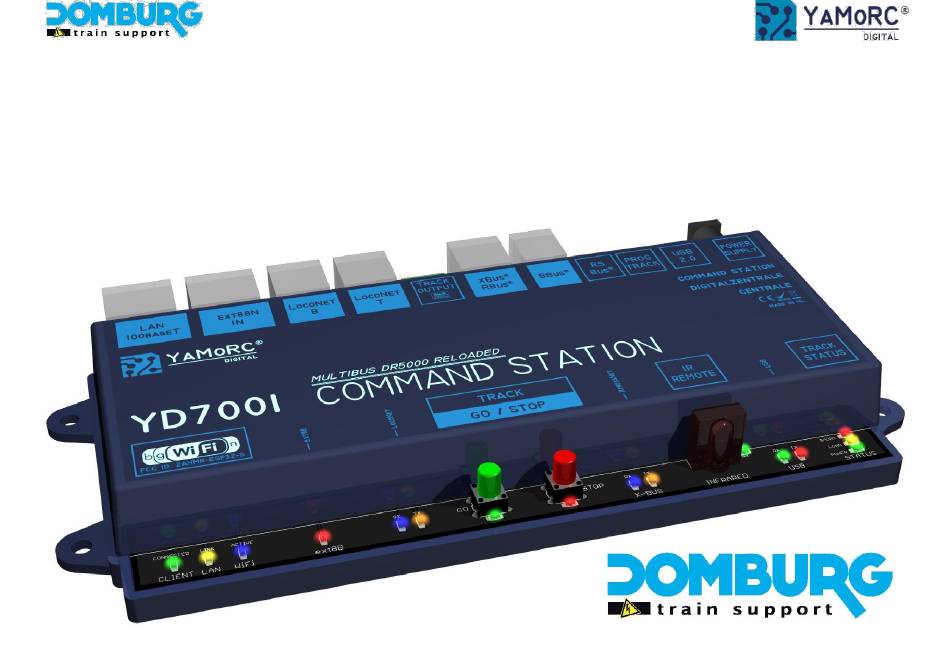

- Page 1 Gebruikershandleiding DTS SPECIAL YAMORC YD7001 COMMAND STATION DTS SPECIAL YAMORC YD7001 COMMAND STATION MultibusDR5000Reloaded —User Guide (NL) This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 1...
- Page 2 Introduction Thank you for purchasing the DTS SPECIAL YAMORC YD7001 COMMAND STATION, or YD7001. The YD7001 is the result of a DR5000 motherboard equipped with a YaMoRC YD9401 upgrade and associated firmware 8.1.x, an upgrade option that you are offered by YaMoRC.
-
Page 3: Table Of Contents
Functions and operation of the cruise control Export and import settings Web server Chapter 8. ES-LINK, SMART S88 ES-LINK, SMART S88 This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 3... -
Page 4: Chapter 1. The Small Print
Gebruikershandleiding DTS SPECIAL YAMORC YD7001 COMMAND STATION Chapter 1 The small print This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 4... - Page 5 The use of another DC power source for the YD7001 is permitted if the voltage is between 14 VDC and 19 VDC maximum and is CE marked. Use the YD7001 in a dry and dust-free environment, moisture can cause damage and malfunction. This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl...
-
Page 6: Warranty Terms
See your busy signal module manual! Copyright All Domburg Train Support, as well as YaMoRC, instructions for use and written instructions that are supplied and/or available for download, are protected by copyright. Duplication is not allowed without written permission from Domburg Train Support or YaMoRC. -
Page 7: Chapter 2. The Hardware Yd7001 Explained
Gebruikershandleiding DTS SPECIAL YAMORC YD7001 COMMAND STATION Chapter 2 The hardware YD7001 explained This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 7... -
Page 8: Product Information
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet® and RS-Bus is a trademark registered in the name of Lenz This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl... -
Page 9: Explanation Of The Central Unit
Gebruikershandleiding DTS SPECIAL YAMORC YD7001 COMMAND STATION Program output 2.2 Explanation of the central unit Reading/writing resume communication LAN connection S88n / ES-Link LocoNet B LocoNet T Rail Voltage XpressNet BBus RS Bus Power Supply wired network Bezetmelder Boosters Brew report R-Bus Booster Busy... - Page 10 This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 9...
-
Page 11: Rail Voltage
Click the "Track Output" menu in the software (chapter 4) to set the maximum track flow (see figure). Track Status Short = short circuit detected Load = overload of the booster Power = Power is OK This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 10... -
Page 12: Chapter 3. Use Of Lan And Wifi
Gebruikershandleiding DTS SPECIAL YAMORC YD7001 COMMAND STATION Chapter 3 Use of LAN and WiFi This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 11... -
Page 13: Use Of Lan And Wifi Capabilities
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet® and RS-Bus is a trademark registered in the name of Lenz This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl... -
Page 14: Connecting The Yd7001 To The Network
Typically, the YD7001 Network Module takes a 20-30 second to boot. The LED’s below the WiFi symbol tell you the status: Network module Status Client = Clients are active = LAN is actief WiFi = WiFi is actief This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 13... -
Page 15: Connect The Yd7001 To Your Computer
We also do not recommend using WiFi to control via software. Wi-Fi is ideal for use with Apps and hand controllers. This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl... -
Page 16: The Choice Between Usb And Network Control When Using The Software
Then the following pop-up appears and we can choose between USB, Network and Demo (2). After you have made a selection, click the green check box (3) to make the settings final This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl... -
Page 17: The Choice Between Usb And Network Control When Using Itrain
“Loconet USB” interface. Then enter the COM port that you see in the upper right image in the blue USB box. This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl... - Page 18 Gebruikershandleiding DTS SPECIAL YAMORC YD7001 COMMAND STATION Chapter 4 Installation of the software This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 17...
- Page 19 By connecting to your computer with the WiFi module YD9401, you can contact the web server using your Internet browser. This is especially useful if you do not have Windows at your disposal. In the next chapters we will discuss how to use them! This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 18...
-
Page 20: Installation Of The Software
Do not connect the YD7001 to the PC yet! Install the software you want to use first. The software can be downloaded from the YaMoRC website. http://yamorc.de/products/?singleproduct=1254 This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 19... - Page 21 "Change...". If you do not want to change the location, leave the settings unchanged and click "Next". This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 20...
- Page 22 Once this is done, the last screen will appear. Click "Finish" and the drivers and configuration program have been successfully installed. This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 21...
-
Page 23: Start The Software
If the power supply and USB are OK, the software will display an activation screen for the first time Click on the activation screen and enter the activation code provided by us or YaMoRc. This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl... -
Page 24: Software Overview
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet® and RS-Bus is a trademark registered in the name of Lenz This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl... - Page 25 Note: the YD9401 Network Module WILL NOT reset to factory defaults, this can be done from the WiFi Network Module Menu (page 42) This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl...
-
Page 26: Update Yd7001 Firmware
IMPORTANT: Do not disconnect the YD7001 from the PC or power supply when updating the firmware! This may render the YD7001 unusable. If this happens, contact your dealer first for advice! This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 25... -
Page 27: Export And Import Settings
Select the file from your explorer that you want to import. Click Open. The files that are saved and loaded are of the XML file type. This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 26... -
Page 28: Webserver
If it does not work, there is a spare IP address http://192.168.4.1 You can then view or change the IP address of your network in the web server at “YD9401”. This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl... -
Page 29: Chapter 5. Smart Settings
Gebruikershandleiding DTS SPECIAL YAMORC YD7001 COMMAND STATION Chapter 5 Smart settings This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 28... -
Page 30: What Do We Want To Set Up
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet® and RS-Bus is a trademark registered in the name of Lenz This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl... -
Page 31: Lan Settings
Do not change these settings unless you really know what you are doing, or at the direction of a DTS or YaMoRC specialist This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl... -
Page 32: Ext88N
A feedback monitor to check the feedbacks Ext88 Modules This option is no longer available from version 8.1.8 of the software. This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 31... -
Page 33: Use Ext88N To Control Accessories
2k2 Ohm resistor to simulate a message. This method of connection is simulating the use of a reed contact or switch as shown in the YD6016ES-CS manual. This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl... -
Page 34: S88-Bus Monitor
Addresses assigned to the R-Bus® (Roco Bus) colors yellow. Addresses assigned to RSBus colors purple. Please confirm your changes Cancel your changes This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 33... -
Page 35: Loconet® B
The other tabs “Boosters” and “Settings” are not recommended to make changes unless you know what you are doing, or to designate a co-worker from DTS or YaMoRC. After each change, always click Green confirm button! This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 34... -
Page 36: Loconet® T
The other tabs “Expert” and “Settings” are not recommended to make changes unless you know what you are doing, or to designate a co-worker from DTS or YaMoRC. After each change, always click the Green confirm button! This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 35... -
Page 37: Main Track Settings
Short circuit delay for switching off the track output. Internal amplifier temperature. The current current flow in milliamps supplied by the central unit. This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 36... - Page 38 We recommend that you only make changes to the advice of DTS or YaMoRC. Changing these values may affect the operation of your system. This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl...
-
Page 39: Xbus/R-Bus® Xpressnet® Instellingen
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl... -
Page 40: Xbus/R-Bus® Xpressnet® Programmeren
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz Important! Only experienced here user changes installation. This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 39... -
Page 41: Pb-Bus
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz Elektronik GmbH This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl... -
Page 42: Rs-Bus
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz Elektronik GmbH This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl... -
Page 43: Usb
Start the firmware update. The latest available firmware version. Status of the firmware update. Return the YD7001 to its factory setting. This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 42... -
Page 44: Wifi Settings
Do not change any of these settings unless you really know what you are doing, or at the direction of a DTS or YaMoRC specialist This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl... -
Page 45: Infrared Settings
Decoder addresses related to infrared remote control. Enter the addresses corresponding to the desired channel of the infrared remote control. This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 44... -
Page 46: Chapter 6. Programming The Decoder Unit
Gebruikershandleiding DTS SPECIAL YAMORC YD7001 COMMAND STATION Chapter 6 Programming the decoder unit This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 45... -
Page 47: Programming Track Settings
The value of the CV to be changed Status bar and result of the action Export and import settings Recorded current from the programming track This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 46... -
Page 48: Test Driving
Current speed step F33 through F64 in the second tab Contamination of the model track (RailCom) Cruise control Direction and control This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 47... -
Page 49: Chapter 7. Row Controller
Gebruikershandleiding DTS SPECIAL YAMORC YD7001 COMMAND STATION Chapter 7 Row Controller This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 48... -
Page 50: Cruise Control And Control Panel
Two very useful other options can be found in the “Settings” tab. This allows you to set whether the rail voltage should be switched on or off immediately after start-up (9) or to set a start-up delay of the YD7001 (10). This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl... -
Page 51: Functions And Operation Of The Cruise Control
F33 through F64 in the second tab Contamination of the model track (RailCom) Cruise control Direction and control This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 50... - Page 52 Gebruikershandleiding DTS SPECIAL YAMORC YD7001 COMMAND STATION Hoofdstuk 8 ES- LINK, Slimme S88 This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 51...
- Page 53 6. After you have finished, click the cross of the active screen to return to the YD7001 Config. YD6901 ES-LINK ADAPTER YD6902 ES-LINK ADAPTER RJ45 This manual is offered to you by Domburg Train Support in collaboration with Drenth Design & Consulting www.domburgtrainsupport.nl Page 52...
