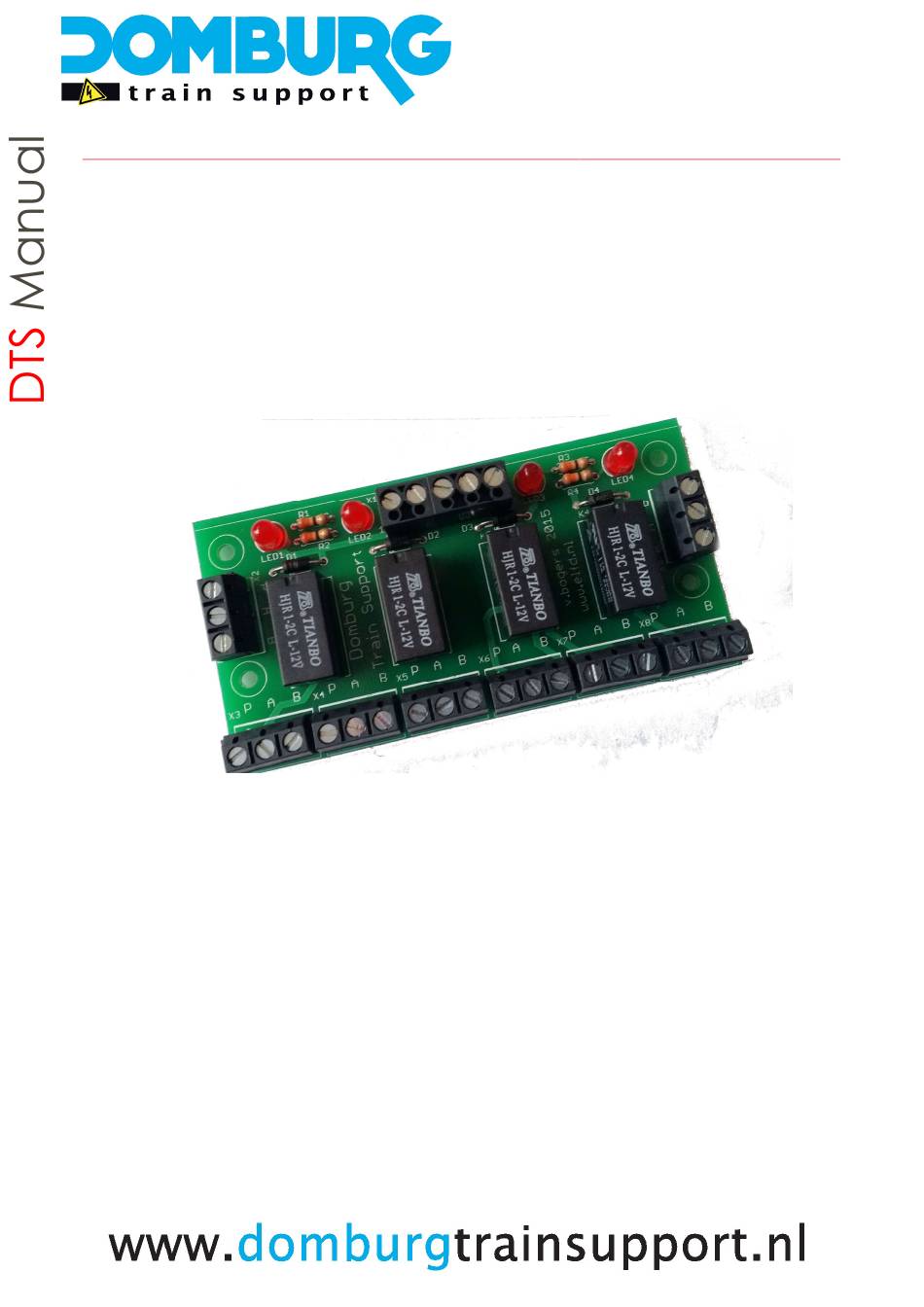

- Page 1 Domburg Train Support Your partner in Model Railway Technology DTS Manual: Switch Polarization Print HPP4 Version 2 - 2019...
-
Page 2: Table Of Contents
Switch Polarization Print HPP4 │ version 2 – 2019 Content Introduction ................................3 How does the HPP4 works ........................... 4 COM .................................. 4 Normally Closed (NC) ............................4 Normally Open (NO) ............................4 Assembly of the kit ............................... 6 Assembling the board step by step ........................6 Mounting ................................ -
Page 3: Introduction
Switch Polarization Print HPP4 │ version 2 – 2019 Introduction Thank you for purchasing our Switch polarization print HPP4. This relay board has been specially developed for switching points, points and crossings in combination with the OC32 developed by VPEB. -
Page 4: How Does The Hpp4 Works
Switch Polarization Print HPP4 │ version 2 – 2019 How does the HPP4 works The HPP4 relay board has a simple but effective operation. The base revolves around the 4 relays. Each relay is equipped with 2 changeover contacts which switch as soon as the relay is energized. - Page 5 Switch Polarization Print HPP4 │ version 2 – 2019 In addition, each relay is equipped with a red status LED, each with its own control resistor. These are easy to find on the print: Relay K1 is protected by extinguishing diode D1. The status LED of K1 is indicated by LED1 and has a resistor R1.
-
Page 6: Assembly Of The Kit
Switch Polarization Print HPP4 │ version 2 – 2019 Assembly of the kit Soldering the circuit board yourself does not have to be difficult. All positions are already printed and all components fit. However, some basic soldering skills are required. If you have no experience with soldering printing, first practice this on a strip board. -
Page 7: Mounting
Switch Polarization Print HPP4 │ version 2 – 2019 Mounting There are 4 holes in the PCB for mounting. You can use our mounting set to place the print. You can find this in the webshop. Connecting the wires The most common use of the HPP4 is in combination with the OC32 accessory module, therefore we are explaining how te connect the module to the OC32. -
Page 8: Configuring The Oc32
Switch Polarization Print HPP4 │ version 2 – 2019 Configuring the OC32 After connecting you still must tell the OC32 that a relay is connected to pin output x. This way, the OC32 can also control the relay. First you open OCConfig, we assume that the OC General tab according to the OC32 manual is already set. - Page 9 Switch Polarization Print HPP4 │ version 2 – 2019 Then click on the “Write Device” button. The orange LED lights up on the OC if the OCConfig needs to write your settings. Once this is done, test the relay with the "Test" button next to the "aspect" box. If everything went correctly, the relay is switched off at aspect 0 and switched on at aspect 1.
- Page 10 Application examples of the HPP4 can be found on our website www.domburgtrainsupport.nl This explains how you can connect circuits via the HPP4. The HPP4 was designed by Mr. V. Bogers in full assignment and based on the idea of Domburg Train Support.
- Page 11 Switch Polarization Print HPP4 │ version 2 – 2019 11 van 11 Page:...
