1. Inputs

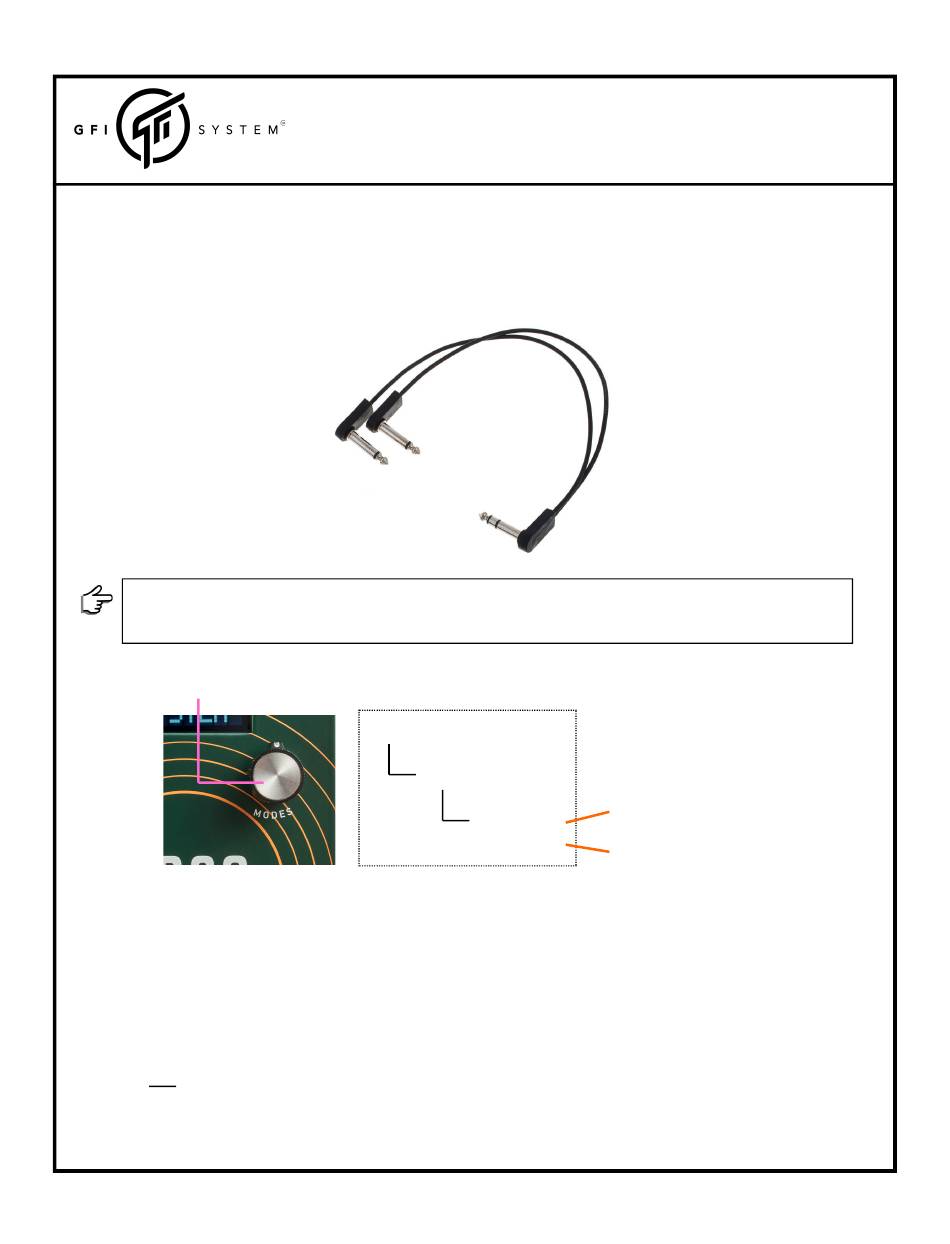

Orca accepts mono input or stereo inputs. For mono input operation use a standard mono (TS) patch
cable and for stereo operation use a stereo (TRS) cable. If the stereo input signals come from an
equipment that has separate Left and Right channel output jacks you will need to use a splitter cable
like this:
To obtain the optimal sound quality, depending whether you use Mono or Stereo inputs,
the pedal must be configured accordingly. This is done in Global Settings.
Hold the MODES button for 2 secs to enter global setting.

2. Outputs

Orca may be used for mono output or stereo outputs. For mono output use a standard mono (TS)
patch cable and for stereo outputs use a stereo (TRS) cable. If the stereo output signals are fed to
an equipment that has separate Left and Right channel input jacks you will need to use a splitter
cable like the one pictured above.
You do not need to configure anything for using mono or stereo outputs.
All manuals and user guides at all-guides.com
U S E R M A N U A L
TS
TS
Globals
1. Input
> MONO
> STEREO
1
TRS
Set to MONO when using mono input.
Set to STEREO when using stereo input.
