ATI Technologies RCE-710 Quick Start Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

RCE-710 Quick Start Guide
This document is intended to guide the user through setting up, wiring, and connecting an RCE-710
to a servo drive.
1. Initial Set-Up
Parts required: Refer to the
1. Mount the RCE-710. The RCE-710 can be side or rear mounted. Reference the
installation instructions, including appropriate interface plates.
2. Plug in the 4mm (5/32") air tube into the compliance connector.
3. Optional: Plug the 1/4" tube into the cooling air manifold, reference
for more repetitive applications.
Rear Mounting Pattern
4. Connect the power and signal connections. Align the engraved dot on the cable with the circle on the RCE-710
and push to connect. Reference
Align circle on cable
with circle on connector
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel: 919.772.0115 • Fax: 919.772.8259 •
RCE-710 Quick Start Guide
RCE-710 manual

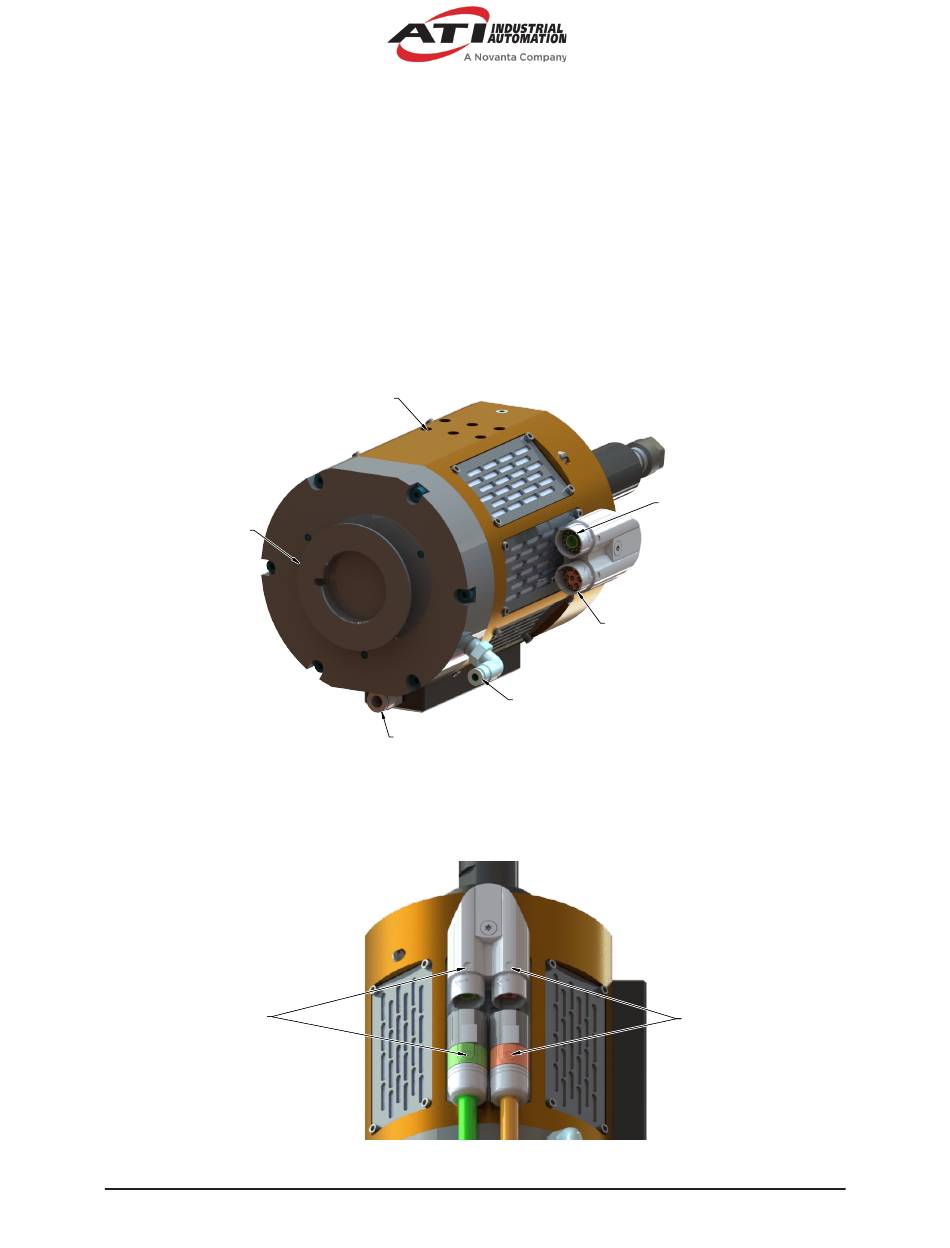

Figure 1.1—RCE-710 Overview
Side Mounting Pattern
Cooling Air Connection
Figure
1.2.
Figure 1.2—Connecting Power and Signal Cables
Figure 1.1.
Orange Power Intercontec
915 ytec Connection
Compliance Air Connection
S-1
Document #9640‑50‑1044‑02
for detailed
RCE-710 manual
The cooling air may be required
Green Signal Intercontec
615 ytec Connection
Align circle on cable
with circle on connector
www.ati‑ia.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCE-710 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATI Technologies RCE-710

Summary of Contents for ATI Technologies RCE-710

  • Page 1 Orange Power Intercontec 915 ytec Connection Compliance Air Connection Cooling Air Connection 4. Connect the power and signal connections. Align the engraved dot on the cable with the circle on the RCE-710 and push to connect. Reference Figure 1.2. Figure 1.2—Connecting Power and Signal Cables...
  • Page 2 RCE-710 Quick Start Guide Document #9640‑50‑1044‑02 Table 1.1—Orange Power Intercontec 915 ytec Intercontec 915 pin out Description Ground / Protected Earth Table 1.2—Green Signal Intercontec 615 ytec Intercontec 615 pin out Description Hall 1 (UV) Hall 2 (VW) Hall 3 (WU) (+) 5 –...

  • Page 3: Side View

    RCE-710 Quick Start Guide Document #9640‑50‑1044‑02 2. Wiring Kollmorgen AKD2G Drive Parts required: • 220V power source (120V accepted, but limits performance) 24 VDC power supply (minimum 3A recommended) • 1.5A fuse • • E-Stop button (recommended) • 16-20 AWG wire 22-24 AWG wire •...
  • Page 4 1. Mount the AKD2G motor to the backplane of the controls cabinet and ensure adequate grounding. 2. Wire X1 with the Orange Intercontec 915 ytec from the RCE-710. Only pins 1, 2, 3 and 5 need to be wired. Table 2.1—Orange Power Intercontec 915 ytec...

  • Page 5: Digital Signals

    RCE-710 Quick Start Guide Document #9640‑50‑1044‑02 4. Wire X21 for control and feedback signals: Supply power to the motor. Wire the X21 digital signals as described in Table 2.3——X21 Connector. b. Set RPM. Supply pin A1 with voltage between -10V and 10V. Supplying -10V corresponds to max speed (15000 RPM) in the counter-clockwise direction, 0V is stopped, and 10V will result in the max speed (15000 RPM) in the clockwise direction.
  • Page 6 RCE-710 Quick Start Guide Document #9640‑50‑1044‑02 5. Wire X23 with the green signal cable from the RCE-710 for hall sensor and thermal overload feedback. Table 2.4—Green Signal Intercontec 615 ytec Intercontec 615 Intercontec 615 Pin Out X23 Connector Pin Out...

  • Page 7: Motor Specifications

    RCE-710 Quick Start Guide Document #9640‑50‑1044‑02 3. Motor Specifications Table 3.1—Motor Specifications Motor Name KBMS-10H02-C Motor Type Rotary, Permanent Magnet Continous Current 5.14 Arms Peak Current 15.5 Arms Coil Thermal Constant 7.176 mHz Inductance (quad, I-I) 3.2 mH Inductance (direct, I-I) 3.2 mH...
