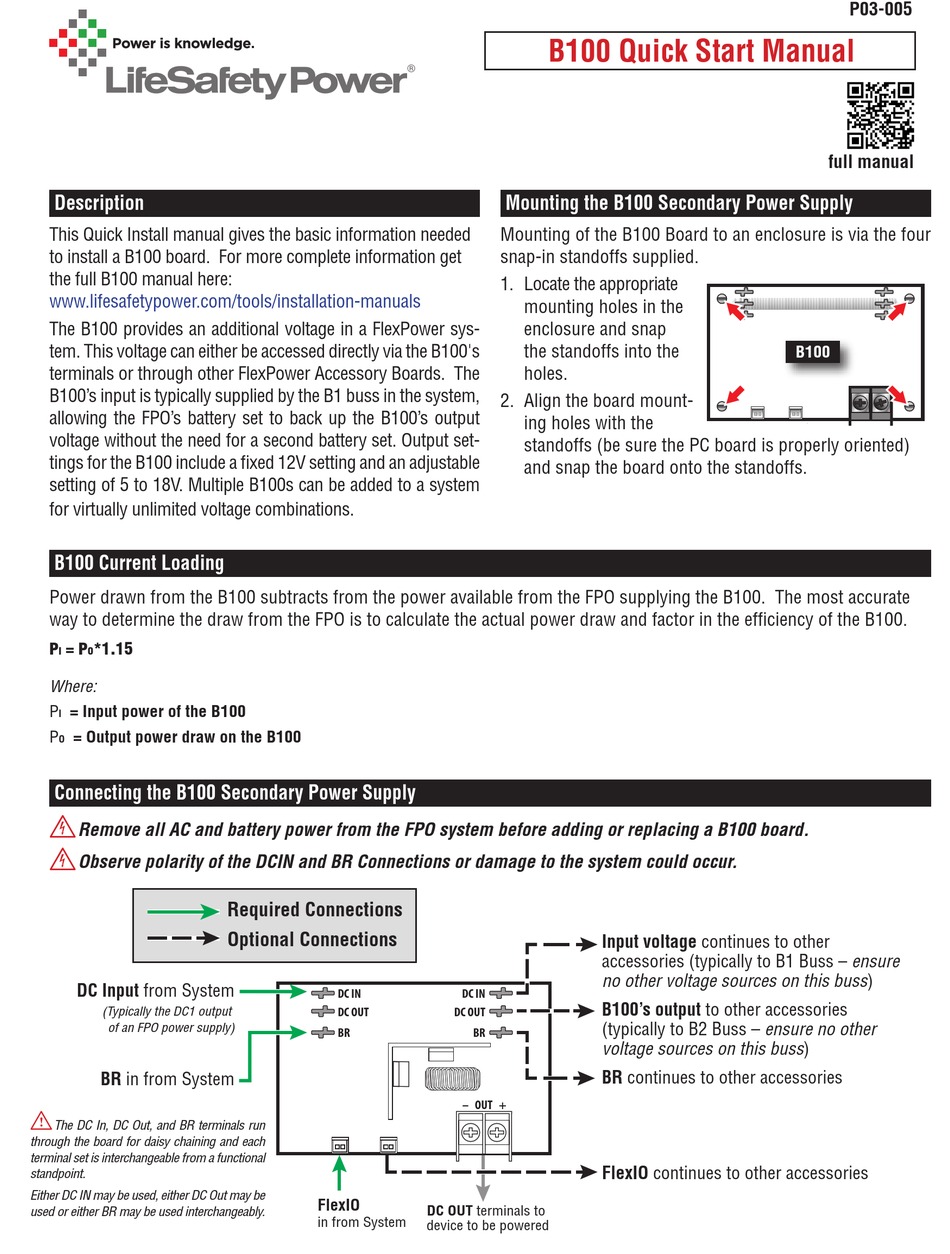

LifeSafety Power B100 Quick Start Manual

Description

This Quick Install manual gives the basic information needed
to install a B100 board. For more complete information get
the full B100 manual here:
www.lifesafetypower.com/tools/installation-manuals
The B100 provides an additional voltage in a FlexPower sys-
tem. This voltage can either be accessed directly via the B100's
terminals or through other FlexPower Accessory Boards. The
B100's input is typically supplied by the B1 buss in the system,
allowing the FPO's battery set to back up the B100's output
voltage without the need for a second battery set. Output set-
tings for the B100 include a fixed 12V setting and an adjustable
setting of 5 to 18V. Multiple B100s can be added to a system
for virtually unlimited voltage combinations.

B100 Current Loading

Power drawn from the B100 subtracts from the power available from the FPO supplying the B100. The most accurate
way to determine the draw from the FPO is to calculate the actual power draw and factor in the efficiency of the B100.
P = P *1.15
I O
Where:
P = Input power of the B100
I
P = Output power draw on the B100
O

Connecting the B100 Secondary Power Supply

h
Remove all AC and battery power from the FPO system before adding or replacing a B100 board.
h
Observe polarity of the DCIN and BR Connections or damage to the system could occur.
DC Input from System
(Typically the DC1 output
of an FPO power supply)
BR in from System
I
The DC In, DC Out, and BR terminals run
through the board for daisy chaining and each
terminal set is interchangeable from a functional
standpoint.
Either DC IN may be used, either DC Out may be
used or either BR may be used interchangeably.
z
Required Connections
Optional Connections
DC IN
DC OUT
BR
FlexIO
in from System
B100 Quick Start Manual

Mounting the B100 Secondary Power Supply

Mounting of the B100 Board to an enclosure is via the four
snap-in standoffs supplied.
1. Locate the appropriate
mounting holes in the
enclosure and snap
the standoffs into the
holes.
2. Align the board mount-
ing holes with the
standoffs (be sure the PC board is properly oriented)
and snap the board onto the standoffs.
Input voltage continues to other
accessories (typically to B1 Buss – ensure
no other voltage sources on this buss)
DC IN
B100's output to other accessories
DC OUT
(typically to B2 Buss – ensure no other
BR
voltage sources on this buss)
BR continues to other accessories
– OUT +
FlexIO continues to other accessories
DC OUT terminals to
device to be powered
P03-005
full manual
B100
