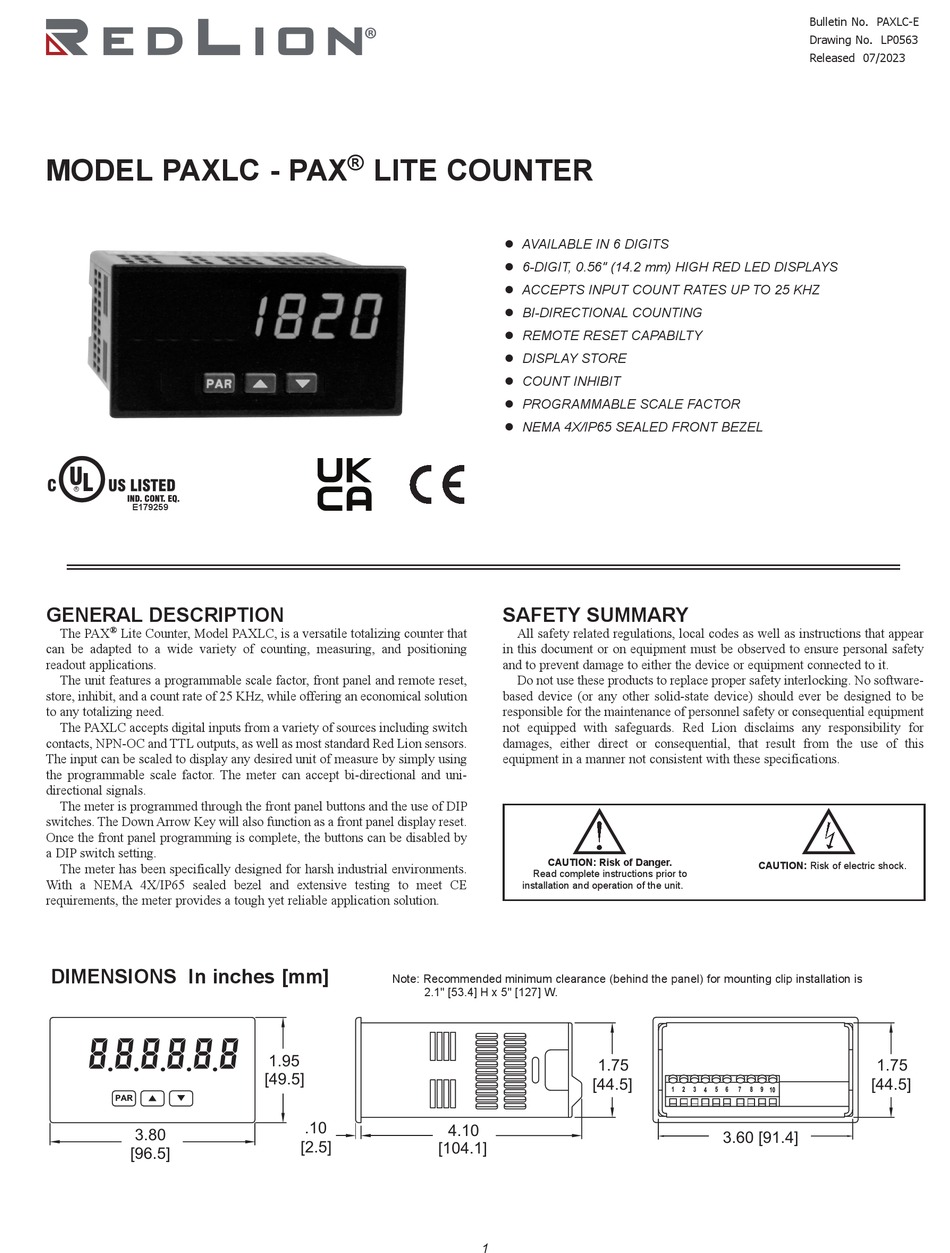

GENERAL DESCRIPTION
®
The PAX
Lite Counter, Model PAXLC, is a versatile totalizing counter that
can be adapted to a wide variety of counting, measuring, and positioning
readout applications.
The unit features a programmable scale factor, front panel and remote reset,
store, inhibit, and a count rate of 25 KHz, while offering an economical solution
to any totalizing need.
The PAXLC accepts digital inputs from a variety of sources including switch
contacts, NPN-OC and TTL outputs, as well as most standard Red Lion sensors.
The input can be scaled to display any desired unit of measure by simply using
the programmable scale factor. The meter can accept bi-directional and uni-
directional signals.
The meter is programmed through the front panel buttons and the use of DIP
switches. The Down Arrow Key will also function as a front panel display reset.
Once the front panel programming is complete, the buttons can be disabled by
a DIP switch setting.
The meter has been specifically designed for harsh industrial environments.
With a NEMA 4X/IP65 sealed bezel and extensive testing to meet CE
requirements, the meter provides a tough yet reliable application solution.
DIMENSIONS In inches [mm]
8. 8 . 8 . 8 . 8 . 8
PAR
3.80
[96.5]
®
LITE COUNTER
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is
2.1" [53.4] H x 5" [127] W.
1.95
[49.5]
.10
[2.5]
[104.1]
 AVAILABLE IN 6 DIGITS
 6-DIGIT, 0.56" (14.2 mm) HIGH RED LED DISPLAYS
 ACCEPTS INPUT COUNT RATES UP TO 25 KHZ
 BI-DIRECTIONAL COUNTING
 REMOTE RESET CAPABILTY
 DISPLAY STORE
 COUNT INHIBIT
 PROGRAMMABLE SCALE FACTOR
 NEMA 4X/IP65 SEALED FRONT BEZEL
SAFETY SUMMARY
All safety related regulations, local codes as well as instructions that appear
in this document or on equipment must be observed to ensure personal safety
and to prevent damage to either the device or equipment connected to it.
Do not use these products to replace proper safety interlocking. No software-
based device (or any other solid-state device) should ever be designed to be
responsible for the maintenance of personnel safety or consequential equipment
not equipped with safeguards. Red Lion disclaims any responsibility for
damages, either direct or consequential, that result from the use of this
equipment in a manner not consistent with these specifications.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
1.75
[44.5]
4.10
1
Bulletin No. PAXLC-E
Drawing No. LP0563
Released 07/2023
CAUTION: Risk of electric shock.
1
2
3
5 6
7
8
9
4
10
3.60 [91.4]
1.75
[44.5]
