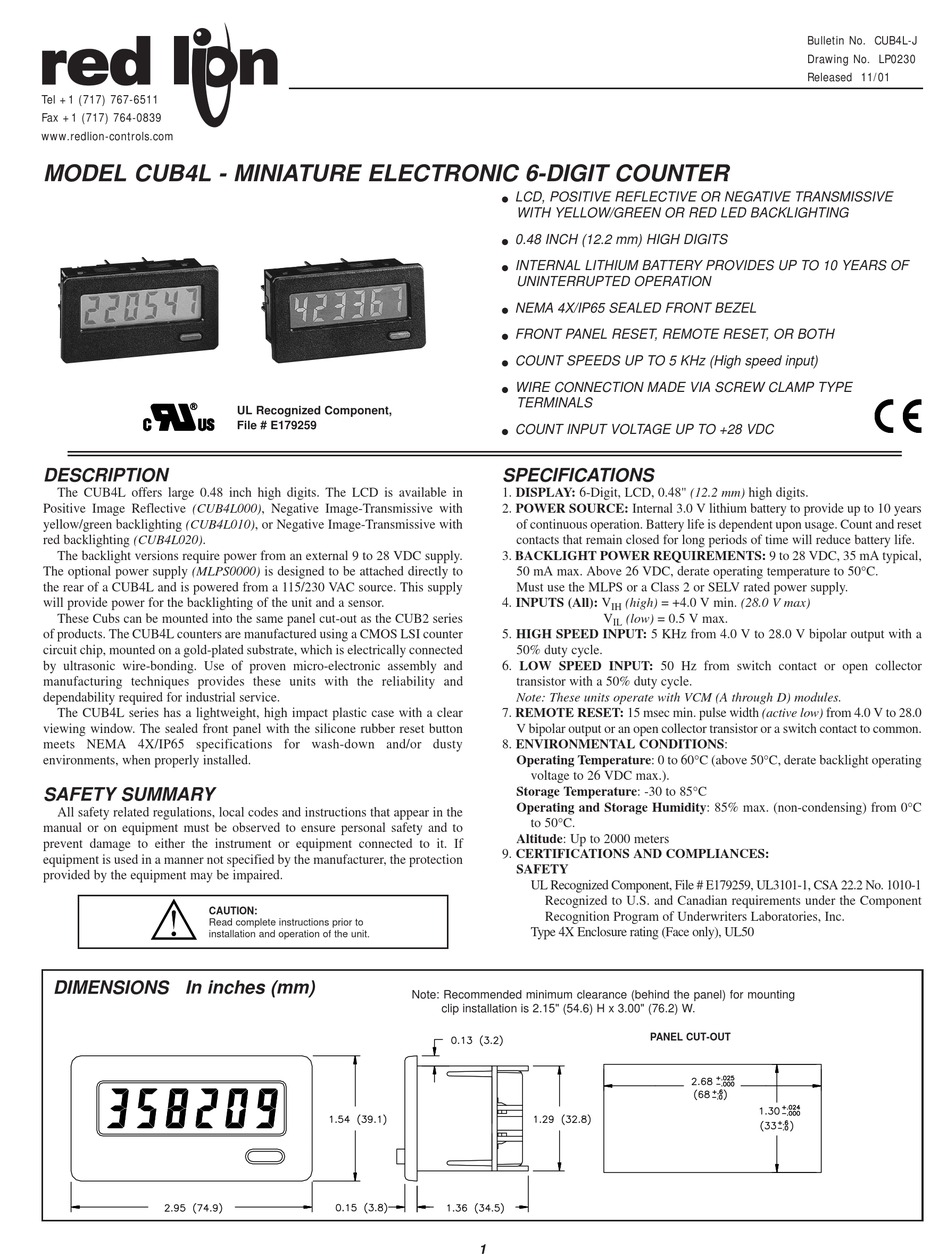

MODEL CUB4L - MINIATURE ELECTRONIC 6-DIGIT COUNTER

DESCRIPTION

The CUB4L offers large 0.48 inch high digits. The LCD is available in
Positive Image Reflective (CUB4L000), Negative Image-Transmissive with
yellow/green backlighting (CUB4L010), or Negative Image-Transmissive with
red backlighting (CUB4L020).
The backlight versions require power from an external 9 to 28 VDC supply.
The optional power supply (MLPS0000) is designed to be attached directly to
the rear of a CUB4L and is powered from a 115/230 VAC source. This supply
will provide power for the backlighting of the unit and a sensor.
These Cubs can be mounted into the same panel cut-out as the CUB2 series
of products. The CUB4L counters are manufactured using a CMOS LSI counter
circuit chip, mounted on a gold-plated substrate, which is electrically connected
by ultrasonic wire-bonding. Use of proven micro-electronic assembly and
manufacturing techniques provides these units with the reliability and
dependability required for industrial service.
The CUB4L series has a lightweight, high impact plastic case with a clear
viewing window. The sealed front panel with the silicone rubber reset button
meets NEMA 4X/IP65 specifications for wash-down and/or dusty
environments, when properly installed.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
CAUTION:
Read complete instructions prior to
Installation and operation of the unit.
DIMENSIONS In inches (mm)
UL Recognized Component,
File # E179259
Note: Recommended minimum clearance (behind the panel) for mounting
LCD, POSITIVE REFLECTIVE OR NEGATIVE TRANSMISSIVE
!
WITH YELLOW/GREEN OR RED LED BACKLIGHTING
0.48 INCH (12.2 mm) HIGH DIGITS
!
INTERNAL LITHIUM BATTERY PROVIDES UP TO 10 YEARS OF
!
UNINTERRUPTED OPERATION
NEMA 4X/IP65 SEALED FRONT BEZEL
!
FRONT PANEL RESET, REMOTE RESET, OR BOTH
!
COUNT SPEEDS UP TO 5 KHz (High speed input)
!
WIRE CONNECTION MADE VIA SCREW CLAMP TYPE
!
TERMINALS
COUNT INPUT VOLTAGE UP TO +28 VDC
!

SPECIFICATIONS

1. DISPLAY: 6-Digit, LCD, 0.48" (12.2 mm) high digits.
2. POWER SOURCE: Internal 3.0 V lithium battery to provide up to 10 years
of continuous operation. Battery life is dependent upon usage. Count and reset
contacts that remain closed for long periods of time will reduce battery life.
3. BACKLIGHT POWER REQUIREMENTS: 9 to 28 VDC, 35 mA typical,
50 mA max. Above 26 VDC, derate operating temperature to 50°C.
Must use the MLPS or a Class 2 or SELV rated power supply.
4. INPUTS (All): V
IH
V
IL
5. HIGH SPEED INPUT: 5 KHz from 4.0 V to 28.0 V bipolar output with a
50% duty cycle.
6. LOW SPEED INPUT: 50 Hz from switch contact or open collector
transistor with a 50% duty cycle.
Note: These units operate with VCM (A through D) modules.
7. REMOTE RESET: 15 msec min. pulse width (active low) from 4.0 V to 28.0
V bipolar output or an open collector transistor or a switch contact to common.
8. ENVIRONMENTAL CONDITIONS:
Operating Temperature: 0 to 60°C (above 50°C, derate backlight operating
voltage to 26 VDC max.).
Storage Temperature: -30 to 85°C
Operating and Storage Humidity: 85% max. (non-condensing) from 0°C
to 50°C.
Altitude: Up to 2000 meters
9. CERTIFICATIONS AND COMPLIANCES:
SAFETY
UL Recognized Component, File # E179259, UL3101-1, CSA 22.2 No. 1010-1
Recognized to U.S. and Canadian requirements under the Component
Recognition Program of Underwriters Laboratories, Inc.
Type 4X Enclosure rating (Face only), UL50
clip installation is 2.15" (54.6) H x 3.00" (76.2) W.
1
(high) = +4.0 V min. (28.0 V max)
(low) = 0.5 V max.
PANEL CUT-OUT
Bulletin No. CUB4L-J
Drawing No. LP0230
Released 11/01
