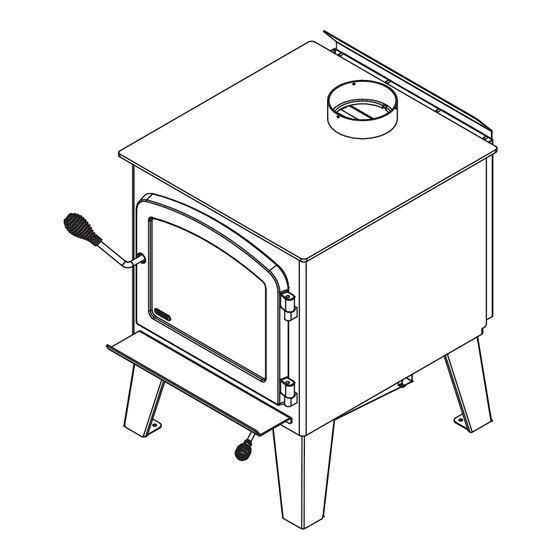

AUSTRAL III
(DB03033 model)
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS
IN LOCAL AREA.
READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD STOVE. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
READ AND KEEP THIS MANUAL FOR REFERENCE
Printed in Canada
Wood Stove
Owner's Manual
Part 2 of 2
INSTALLATION AND OPERATION
US Environmental Protection Agency
phase II certified wood stove compliant
with 2020 cord wood standard
Safety tested according to CAN/ULC
S627, UL 1482 and UL 737 standards
by an accredited laboratory.
REQUIREMENTS
MOBILE
HOME
46142_IA
2023-03-31
Advertisement
Table of Contents
Related Manuals for Drolet AUSTRAL III
Summary of Contents for Drolet AUSTRAL III
- Page 1 Wood Stove Owner's Manual Part 2 of 2 INSTALLATION AND OPERATION AUSTRAL III REQUIREMENTS (DB03033 model) US Environmental Protection Agency phase II certified wood stove compliant with 2020 cord wood standard Safety tested according to CAN/ULC S627, UL 1482 and UL 737 standards by an accredited laboratory.
- Page 2 If it can not be provided, the warranty period will be determined by the date of manufacture of the product. It is also highly recommended to register the warranty online at https://www.drolet.ca/en/warranty/warranty-registration/ Registering the warranty will help to quickly find the information needed on the unit.
-
Page 3: Table Of Contents
6.6 Mobile Home Installation ....................30 7. Maintenance/Parts Replacement ..................31 7.1 Replacement ........................31 7.2 Gasket ..........................32 7.3 Door ..........................32 8. Exploded Diagram and Parts List ..................35 DROLET LIMITED LIFETIME WARRANTY ................. 38 Installation and Operation Requirements - Austral III Page 3... -
Page 4: Certification Plate
1. CERTIFICATION PLATE Page 4 Installation and Operation Requirements - Austral III... -
Page 5: General Information
This appliance is officially tested and certified by an independent agency. Tested and certified in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and draft ASTM WK47329-14. Carbon monoxide. Installation and Operation Requirements - Austral III Page 5... -
Page 6: Specifications
CAN/CSA- Z240 MH standard. Tested and certified in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and draft ASTM WK47329-14. Page 6 Installation and Operation Requirements - Austral III... -
Page 7: Dimensions
31 5/8" 803mm 26 7/8" 682mm 26" 662mm 18 1/2" 471mm 14 5/8" 373mm 11 3/4" 298mm 26 1/2" 673mm 22 7/8" 581mm Figure 2: Front View Figure 3: Side View Installation and Operation Requirements - Austral III Page 7... - Page 8 12" 305mm 16" 406mm Figure 4: Door Opening 5/16" 3/16" 14 1/8" 359mm 21" 19" 535mm 481mm Figure 5: Front View - Combustion Chamber Figure 6: Side View - Combustion Chamber Page 8 Installation and Operation Requirements - Austral III...
-
Page 9: Epa Loading Procedure
See Figures 12 and 13 for an example load for maximum burn rate inside the combustion chamber (illustrative only). Then, place 2 logs in the Installation and Operation Requirements - Austral III Page 9... - Page 10 (3.5 to 4.5 inches of cross section dimensions approximately) in front of the firebox. Page 10 Installation and Operation Requirements - Austral III...
- Page 11 For optimal medium fire load,take small size fuel pieces (between 2- and 3-inches cross section dimensions approximately) in the back of the firebox and use medium to large size fuel pieces (3.5 to 4.5 inches of cross section dimensions approximately) in front of the firebox. Installation and Operation Requirements - Austral III Page 11...
- Page 12 4 and 15 minutes after the loading period. Before closing further, make sure the flame intensity is increasing or stable. Turn ON the blower at minimum speed after 30 minutes. Page 12 Installation and Operation Requirements - Austral III...
-
Page 13: Clearances To Combustible Material
19 ¾" (502 mm) 19 ¾" (502 mm) The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Installation and Operation Requirements - Austral III Page 13... - Page 14 48" Flush 48" 36" 122 cm 92 cm Figure 16: Clearances - Top Figure 17: Clearances - Corner 84" 213 cm Figure 18: Clearances - Side Page 14 Installation and Operation Requirements - Austral III...
- Page 15 6" from combustible materials must be used. Only in this case, the same clearances as a certified double wall pipe connector can be used. The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Installation and Operation Requirements - Austral III Page 15...
- Page 16 21 ¾" (552 mm) 21 ¾" (552 mm) The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Page 16 Installation and Operation Requirements - Austral III...
- Page 17 The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Installation and Operation Requirements - Austral III Page 17...
- Page 18 21 ¾" (552 mm) 21 ¾" (552 mm) The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Page 18 Installation and Operation Requirements - Austral III...
- Page 19 122 cm 92 cm Les distances de tuyau listées dans ce tableau se réfèrent aux distances obtenues lorsque le poêle est installé en accord avec les dégagements de l’appareil mentionnés ci-dessus. Installation and Operation Requirements - Austral III Page 19...
-
Page 20: Floor Protection
The floor protection at the back of the stove is limited to the stove’s required clearance if such clearance is smaller than 8 inches (203 mm). Only required under the horizontal section (Ho) of the connector. Must exceed each side of the connector by at least 2 inches (51 mm). Page 20 Installation and Operation Requirements - Austral III... -
Page 21: Reducing Wall And Ceiling Clearances Safely
Mounting hardware must not be located closer than 8" (200 mm) from the vertical centre line of the appliance. G) Edge clearance for ceiling shields to side and back walls: 3" (75 mm) Shield extension beyond each side of the appliance: 18" (450 mm) Installation and Operation Requirements - Austral III Page 21... - Page 22 Figure 20: Heat shield clearances Figure 21: Heat shield clearances Figure 22: Heat shield clearances Figure 23: Heat shield clearances Page 22 Installation and Operation Requirements - Austral III...
- Page 23 Brick, with a minimum of 24 gauge (0.61 mm) sheet metal backing, spaced out at least 1" (25 mm)* by non-combustible spacers 12" (305 mm) * In Canada this space can be ⅞" (21 mm) Installation and Operation Requirements - Austral III Page 23...
-
Page 24: Installation Of Options On Your Product
(HVAC type, must meet ULC S110 or UL 181 class 0 or class 1) (B), sold separately. Refer to air intake kit installation instructions for more details. Page 24 Installation and Operation Requirements - Austral III... -
Page 25: Optional Fire Screen Installation
Lift the fire screen upwards and push the bottom part towards the stove then let the fire screen rest on the bottom of the door opening. Warning: Never leave the stove unattended while in use with the fire screen. Installation and Operation Requirements - Austral III Page 25... -
Page 26: Optional Blower Installation
Do not run the power cord beneath the stove. Page 26 Installation and Operation Requirements - Austral III... -
Page 27: Optional Thermodisc Installation
Screw the thermodisc (A) with the screws (B) supplied with the thermodisc on the back of the stove. The electrical cord of the thermodisc should not touch any surface of the stove to avoid electric shock or fire. Do not run the power cord under the stove. Installation and Operation Requirements - Austral III Page 27... -
Page 28: Air Tubes And Baffle Installation
Put the baffle in place. Repeat steps 1 and 2 for the three other tubes. To remove the tubes use the above steps in reverse order. Page 28 Installation and Operation Requirements - Austral III... - Page 29 Note that secondary air tubes (B) can be replaced without removing the baffle board (A) and that all tubes are not necessarely identical (look at the part number on the tube). Installation and Operation Requirements - Austral III Page 29...
-
Page 30: Mobile Home Installation
THE IMAGES SHOWN ARE FOR GUIDANCE ONLY AND MAY BE DIFFERENT FROM YOUR PRODUCT, BUT THE ASSEMBLY REMAINS THE SAME. For a stove on legs, install a plate (L) on each leg and screw it in place with the proper hardware (M). Page 30 Installation and Operation Requirements - Austral III... -
Page 31: Maintenance/Parts Replacement
Reinstall the glass, being careful to centre the glass in the door and not to over-tightening the retaining screw. The two main causes of broken door glass are uneven placement in the door and over-tightening the retaining screws. Installation and Operation Requirements - Austral III Page 31... -
Page 32: Gasket
Remove the split pin by pulling and turning it using pliers. Turn the handle one counterclockwise turn to increase pressure. Reinstall the split pin with a small hammer. Figure 24: Removing the split pin Figure 25: Installing the split pin Page 32 Installation and Operation Requirements - Austral III... - Page 33 Using a flat screwdriver, turn the adjustable hinge rods in the direction shown to adjust the doors. Tighten all door hinge pressure screws when they are at the desired positions. Configurations 1-2-3-4-5-6, show in which direction these act on the adjustment of the door. Installation and Operation Requirements - Austral III Page 33...
- Page 34 Leave about ½" long of the gasket when cutting and press the end into the groove. Tuck any loose fibers under the gasket and into the silicone. Close the door. Do not use the stove for 24 hours. Page 34 Installation and Operation Requirements - Austral III...
-
Page 35: Exploded Diagram And Parts List
8. Exploded Diagram and Parts List DETAIL B DETAIL C Installation and Operation Requirements - Austral III Page 35... - Page 36 BLOWER HOUSING 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 60013 POWER CORD 96" X 18-3 type SJT (50 pcs per carton) 44085 RHEOSTAT KNOB 44087 RHEOSTAT NUT 44080 RHEOSTAT WITHOUT NUT (MODEL KBMS-13BV) Page 36 Installation and Operation Requirements - Austral III...
- Page 37 SELF TAPPING SCREW 8-32 "F" TYPE X 7/16" FLAT HEAD PHILLIPS BLACK PL72074 TOP FIRESCREEN HOOK 30898 ROUND WOODEN BLACK HANDLE DULL BLACK FINISH 30187 STAINLESS WASHER ID 17/64" X OD 1/2" 30025 1/4-20 X 1/2" PAN-HEAD QUADREX BLACK SCREW Installation and Operation Requirements - Austral III Page 37...
-
Page 38: Drolet Limited Lifetime Warranty
Shall your unit or a component be defective, contact immediately your DROLET dealer. To accelerate processing of your warranty claim, make sure to have on hand the following information when calling: •... - Page 39 Installation and Operation Requirements - Austral III Page 39...
- Page 40 Resale is strictly prohibited. The manufacturer may update St-Augustin-de-Desmaures (Québec) Canada this document from time to time and cannot be responsible G3A 2H3 for problems, injuries, or damages arising out of the use 1-877-356-6663 of information contained in any document obtained from https://www.drolet.ca/en/ unauthorized sources. tech@sbi-international.com...
