Summary of Contents for Citizen Eco-Drive B6 Series

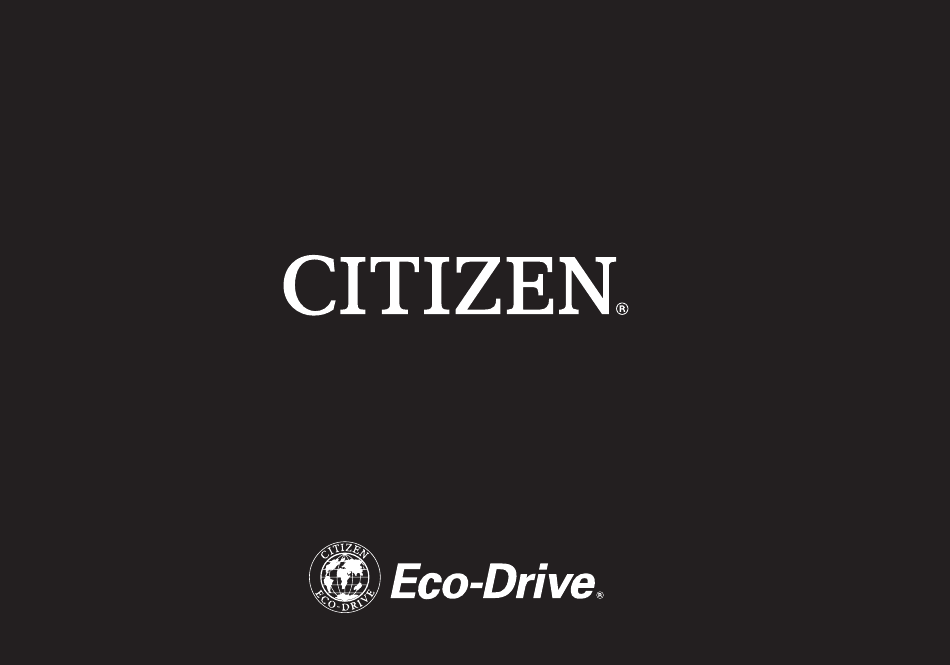

- Page 1 INSTRUCTION MANUAL...
- Page 2 After reading the manual, store it in a safe place for future reference. Be sure to visit the Citizen website at http://www.citizenwatch-global.com/ . Here you will find a variety of information such as electronic setting guides, answers to frequently asked questions, Eco-Drive recharging information and more.
- Page 3 Safety precautions — IMPORTANT This manual contains instructions that should be strictly followed at all times not only for optimal use, but to prevent any injuries to yourself, other persons or property. We encourage you to read the entire booklet (especially, pages 24 to 37) and understand the meaning of the following symbols: ■...
- Page 4 Safety precautions ■ Important instructions are categorized and depicted in this manual as follows: (Following symbols are examples of Pictograms.) Warning (caution) symbol followed by prohibited matters. Warning (caution) symbol followed by instructions that should be followed or precautions that should be observed.
- Page 5 Safety precautions Precautions to be taken when diving PROHIBITED Do not use this watch while diving when... • Do not use your watch while diving when the watch stops or exhibits any abnormal operation. CAUTION Diving with the watch • Persons using the diver’s watch are strongly recommended to receive proper instruction and training pertaining to diving and observe those rules at all times.
- Page 6 Safety precautions CAUTION Before diving • Check items below before diving - Check to see if the watch is sufficiently charged and the insufficient charge warning (2-second interval movement) is not activated. - Make sure that the watch is running correctly (check the movements of the time/calendar/ second hand) - Check to see if the crown is properly pushed in and the screw down push button is securely locked.
-
Page 7: Table Of Contents
Contents Features ..........Before using this watch . -
Page 8: Features
Features ■ Water-resistant to 200m • This watch is a scuba diver’s watch (water-resistant to 200m). You can use it for scuba diving with air tanks, but must not be used in a helium-enriched atmosphere (e.g. saturation diving). ■ Eco-Drive •... -
Page 9: Before Using This Watch
Before using this watch This watch has a rechargeable cell which is charged by exposing the dial to light. Expose the dial to direct sunlight regularly to charge the watch. - Page 10 Before using this watch Band adjustment We recommend seeking the assistance of an experienced watch technician for sizing of your watch. If adjustment is not done correctly, the bracelet may unexpectedly become detached leading to loss of your watch or injury. Consult an authorized service center.
- Page 11 Before using this watch How to use a specially designed crown/push button Unlock the crown prior to operate your watch. Unlock Lock Push the crown in to the Rotate the crown case. With gentle pressure Screw down counterclockwise until towards the case, rotate the crown it releases from the crown clockwise to secure...
-
Page 12: Component Identification
Component identification 1/5 chronograph second hand Minute hand Chronograph minute hand Button Ⓑ Hour hand Crown Date indicator 24-hour hand Button Ⓐ Second hand • The illustrations in this instruction manual may differ from the actual appearance of your watch. •... -
Page 13: Charging Your Watch
Charging your watch This watch uses a built-in rechargeable cell to store electrical energy. Charge the watch by exposing the dial to light such as direct sunlight or fluorescent lamps. To ensure optimal operation, be sure to perform the following: •... - Page 14 Charging your watch CAUTION When the watch is regularly covered with long sleeves, it may not be charged sufficiently. Try to keep the watch exposed to light sufficient for charging. * Do not charge the watch at a high temperature (about 60°C/140°F or higher).
- Page 15 Charging your watch If the reserve power becomes insufficient (Insufficient Charge Warning Function) When the rechargeable cell charge reaches a low power state, the Insufficient Charge Warning Function engages. This cause the second hand to move in two-second intervals (two-second interval movement).
- Page 16 Charging your watch Charging time by environment Below are the approximate charging times when exposing to light continuously. Please use this table as a general reference only. Charging time (approx.) Illuminance To start working To become fully Environment (lx) To work for one day normally when the charged when the cell cell is discharged...
-
Page 17: Setting The Time
Setting the time Make sure that the watch is not wet before operating the crown or any buttons. Pull the crown out to position 2 . Pull out the crown just as the second hand is at the reference position in order to accurately align to the second. Rotate the crown to adjust the time. -
Page 18: Setting The Date
Setting the date Make sure that the watch is not wet before operating the crown or any buttons. The date must be manually adjusted for months shorter than 31-days. You will need to adjust the date at the start of March, May, July, October and December. •... -
Page 19: Using The Chronograph
Using the Chronograph Make sure that the watch is not wet before operating the crown or any buttons. The 1/5 chronograph second hand is normally placed at 12 o’ c lock position. Once the measurement starts, it can move every 0.2 seconds and measure for 60 minutes. Reference position Chronograph minute hand Button Ⓑ... - Page 20 Using the Chronograph Time measurement start/stop To start the chronograph, press and release the upper right button Ⓑ to commence time measurement. To stop the chronograph, press and release the upper right button Ⓑ again. To recommence timing from the stopped position, press and release the upper right button Ⓑ...
- Page 21 Using the Chronograph When the 1/5 chronograph second hand does not Reference position return to the reference position If the 1/5 chronograph second hand does not return to reference position even when reset, perform the following procedures to align the 1/5 chronograph second hand with the reference position.
- Page 22 Using the Chronograph Correct the position of the 1/5 chronograph second hand Press and release the upper right button Ⓑ to adjust the position of the 1/5 chronograph second hand. • Press once → 1/5 chronograph second hand moves 0.2 second forward.
-
Page 23: Using The Rotating Bezel
Using the rotating bezel You can see the elapsed time from a certain moment, or remaining time to a decided moment, easily by using the rotating bezel. • The rotating bezel moves counter-clockwise only. It will not move to the other way (clockwise) to prevent accident. - Page 24 Using the rotating bezel Finding the remaining time ▼ on the rotating bezel to the Remaining time position decided from adding the target time with the current time. • In the illustration, the target time is 20 min. and is added to the current time. You can read the remaining time between the position of the minute hand and the Marked...
-
Page 25: Eco-Drive Watch Handling Precautions
Eco-Drive watch handling precautions <Always Make Sure to Recharge Frequently>... - Page 26 Eco-Drive watch handling precautions CAUTION Recharging Precautions Examples:...
- Page 27 Eco-Drive watch handling precautions <Replacement of Rechargeable Cell> <Replacement of Rechargeable Cell> WARNING Handling of Rechargeable Cell WARNING Handling of Rechargeable Cell...
- Page 28 Eco-Drive watch handling precautions WARNING Use Only the Specified Battery...
-
Page 29: Water Resistance
Water resistance WARNING Water Resistance • Diver’s water-resistant watches can be used only for scuba diving using an air tank and not for saturation diving using a helium gas tank. Indication Name Specification Dial or Case back Water-resistant watch (AIR) DIVER’S 200 m 200m water resistant for scuba diving... - Page 30 Water resistance • The packing used for this watch is a consumable part and will deteriorate over long-term use. Deterioration may lead to water penetration, causing the watch to malfunction or stop. Consult an authorized service center for inspection (for a charge) every 2 or 3 years, and replace the packing, glass or other parts as necessary.
-
Page 31: Precautionary Items And Usage Limitations
Precautionary items and usage limitations CAUTION To Avoid Injury • Be particularly careful when wearing your watch while holding a small child, to avoid injury. • Be particularly careful when engaged in strenuous exercise or work, to avoid injury to yourself and others. - Page 32 Precautionary items and usage limitations CAUTION Precautions • Always use the watch with the crown pushed in (normal position). If the crown is of the screw lock-type, make sure it is securely locked. • Do not operate the crown or any push buttons when the watch is wet. Water may enter the watch causing damage to vital components.
- Page 33 Precautionary items and usage limitations CAUTION When Wearing Your Watch <Band> • Leather bands and rubber (urethane) bands will deteriorate over time due to perspiration dirt. Because of the natural materials, leather band will be worn, deformed, and discolored over time.
- Page 34 Precautionary items and usage limitations CAUTION When Wearing Your Watch (continued) • Please request adjustment or repair of the band in the following cases: - You notice an abnormality with the band due to corrosion. - The pin of the band is protruding. •...
- Page 35 Precautionary items and usage limitations <Strong Shock> • Avoid dropping the watch or subjecting it to other strong impact. It may cause malfunctions and/or performance deterioration as well as damage to the case and bracelet. <Static Electricity> • The integrated circuits (IC) used in quartz watches are sensitive to static electricity. Please note the watch may operate erratically or not at all if exposed to intense static electricity.
- Page 36 Precautionary items and usage limitations CAUTION Always Keep Your Watch Clean • Rotate the crown while it is pressed in fully and press the buttons periodically so they do not become stuck due to accumulations of foreign matter. • The case and band of the watch come into direct contact with the skin. Corrosion of the metal or accumulated foreign matter may result in black residue coming from the bracelet when exposed to moisture or perspiration.
- Page 37 Precautionary items and usage limitations Caring for Your Watch • Wipe any dirt or moisture such as perspiration from the case and crystal with a soft cloth. • For metallic, plastic or synthetic rubber (polyurethane) band, clean it with soap and a soft toothbrush.
- Page 38 Precautionary items and usage limitations <When Luminous Paint is used for your watch> The paint on the dial and hands helps you with reading the time in a dark place. The luminous paint stores light (daylight or artificial light) and glows in a dark place. It is free from any radioactive substance or any other material harmful to a human body or environment.
-
Page 39: Specifications
Specifications B6 ＊ ＊ Model Type Analog Solar-powered watch Within +/-15 seconds per month when worn at normal operating Timekeeping accuracy temperatures (+5°C / 41°F and +35°C / 95°F) Operating temperature ‒10°C (14°F) to +60°C (140°F) range Time: Hour, minute, second, and 24-hour Display functions Calendar: Date (does not automatically adjust for months shorter than 31-days) - Page 40 Specifications • Solar Power Function • Chronograph (measures up to 60 minutes) Additional • Insufficient Charge Warning Function functions • Overcharge Prevention Function • Quick Start Function Specifications and contents of this booklet are subject to change without prior notice.
- Page 42 Model No.CA0＊/FB3＊ Cal.B6＊ ＊ CTZ-B8201...
