Summary of Contents for Euromaid EHPD700

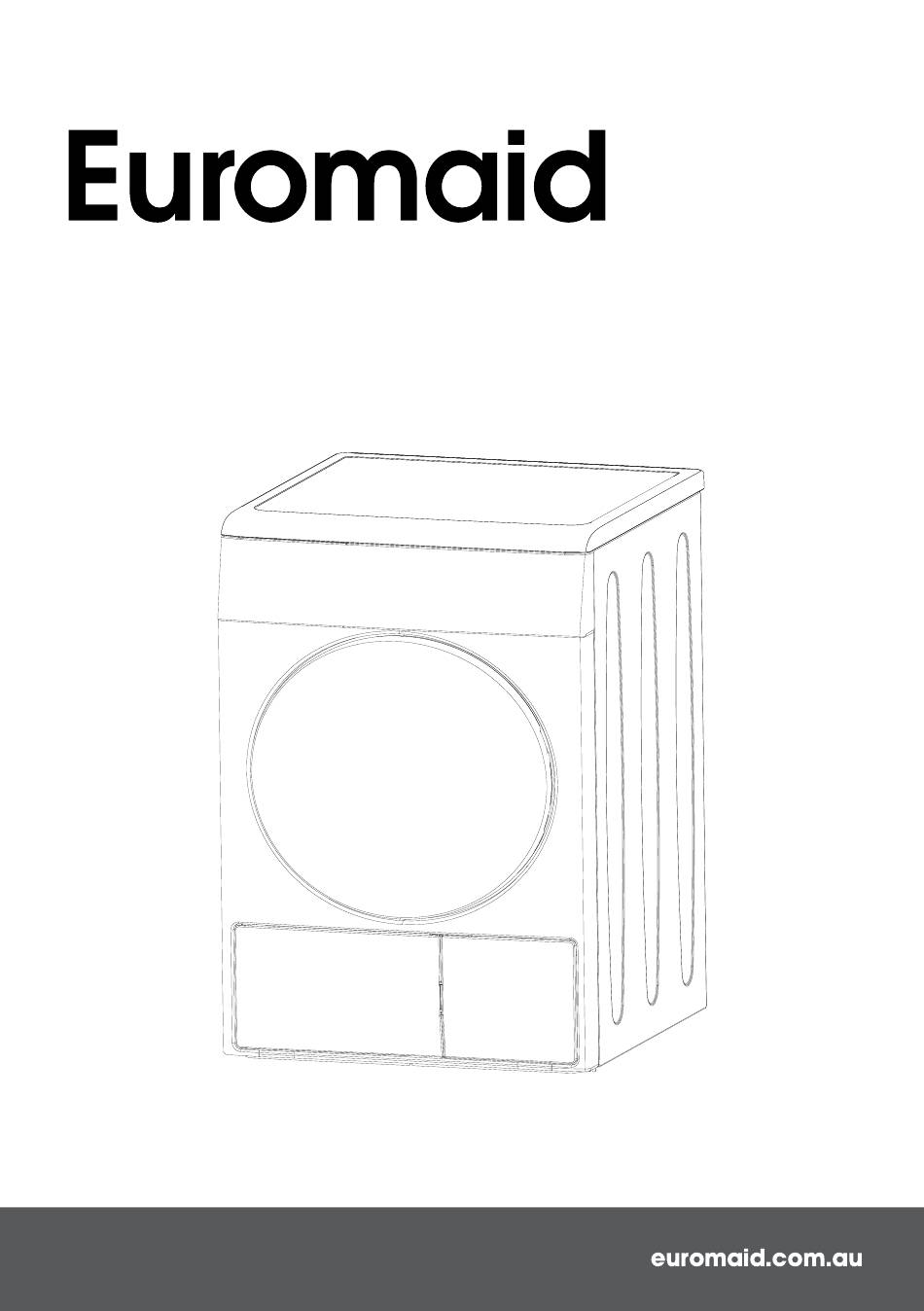

- Page 1 User Manual Description 7KG Heat Pump Dryer MODEL NO. EHPD700G...
-
Page 2: Table Of Contents
Contents Page Important instructions for safety and environment Pg 4 General Safety Pg 5 1.1.1 Electrical Safety Pg 5 1.1.2 Product Safety Pg 5 Stacking over a washing machine Pg 7 Intended Use Pg 8 Child Use Pg 8 Compliance with the WEEE regulations and disposing of the waste product Pg 8 Compliance with the RoHS directive Pg 8... - Page 3 Please read this user manual first! Dear Customer, WARNING! Thank you for preferring a Euromaid product. We hope that your product which • Warning against scalding hazard. has been manufactured with high quality and technology will give you the best results. We...
-
Page 4: Important Instructions For Safety And Environment
1 Important instructions for safety and environment WARNING! NOTE • Always have the installation and • This section contains safety repairing procedures carried out by instructions that will help protect Authorised Service Agent. from risk of personal injury or The manufacturer shall not be held property damage. -
Page 5: Electrical Safety
1.1.1 Electrical safety DANGER! DANGER! • Do not use extension cords, multi- plugs or adaptors to connect the dryer • Electrical safety instructions to power supply in order to decrease should be followed while the risk of fire and electric shock. electrical connection is made •... - Page 6 WARNING! DANGER! • Ensure that the air inlet of the dryer Items such as lighter, match, is open and it is well-ventilated. coins, metal parts, needle etc. may • Product contains R290 refrigerant. damage the drum set or may lead •...
-
Page 7: Stacking Over A Washing Machine
WARNING! WARNING! • Do not lean on the loading door • Underwear that contains metal of your dryer when it is open, reinforcements should not be dried otherwise it may fall over. in the dryer. Dryer may be damaged if metal reinforcements come loose •... -
Page 8: Intended Use
1.5 Compliance with the WEEE Installation Table for Washing Machine and Dryer regulation and disposing of the waste Washing Machine Depth product This product complies with EU Dryer Depth WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and Can be installed Cannot be electronic equipment (WEEE). -
Page 9: Technical Specification
1.8 Technical Specifications Height (Min. / 84,6 cm / 86,6 cm* Max.) Width 59,7 cm Depth 56,8 cm Capacity (max.) 7 kg** Net weight 44 kg (± %10) Voltage Rated power input See type label*** Model code * Min. height: Height with adjustable feet are closed. -
Page 10: Your Dryer
2 Your Dryer 3 Installation 2.1 Overview Before the calling the nearest Authorized Service for the installation of the dryer, ensure that electrical installation and water drain is appropriate referring to the user’s manual. If they are not suitable, contact a qualified electrician and technician to make necessary arrangements. -
Page 11: Connecting To The Drain
• The rear surface of the tumble dryer shall 3.3 Connecting to the drain be placed against a wall. You can directly drain accumulated water through the water drain hose supplied with DANGER! the product instead of periodically draining the water collected in the water tank. -
Page 12: Transportation Of The Dryer
3.5 Transportation of the dryer Drain all water that has remained in the dryer. If direct water drain connection is made, then remove the hose connections. WARNING! • We recommend carrying the dryer in upright position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting towards the right side when looked from... -
Page 13: Preparation
the condenser once in a month or after 4 Preparation every 30 operations regularly. • Clean the filter periodically.Read the 4.1 Laundry suitable for drying in the Maintenance and cleaning of filters for dryer detalied information. Always obey the instructions given on the garment tags. -
Page 14: Operating The Product
5 Operating the product 5.1 Control Panel On/Off/Program selection Dryness Start/Pause button Alarm Duration Delay Start button 5.2 Symbols Filter drawer / Child-proof Filter Mute Tank Volume up Delicates Express Shirts Sport Freshen Up Cottons Heat exchanger lock cleaning full 14’... -
Page 15: Program Selection And Consumption Chart
5.4 Program selection and consumption chart Programmes Programme Description You may dry your cotton laundry to be ironed in this program to have them Cottons Iron Dry 1000 slightly damp for ease of ironing. (Shirt, T-shirt, tablecloth, etc.) It dries single layer, casual cotton textiles Cottons Eco Dry 1000 in the most economical way. - Page 16 It dries the shirts in a more sensitive Delicates manner, and causes less creasing and 1200 easier ironing. You may dry denim pants, skirts, shirts or Jeans 1200 jackets in this program. Use it to dry your clothes made of synthetics, cotton or mixed fabrics or Sport waterproof products such as functional...
-
Page 17: Auxiliary Functions
Changing the delay start time 5.5 Auxiliary functions If you want to change the duration during the Alarm / Duration countdown: Drying machine makes an audible warning Cancel the program by turning the On/Off/ when the program is completed. If you don’t Program selection knob. -
Page 18: Changing The Program After It Is Started
• Open the loading door whilst the unit is Press the Dryness and Alarm buttons paused and add or remove laundry simultaneously for 3 buttons to activate the child lock. items. The child lock has to be deactivated to be •... -
Page 19: End The Program
5.11 End of program When the program ends, the Fibre Filter Cleaning and Water Tank warning symbols on the program observation indicator turn on. Loading door may be opened and the dryer machine becomes ready for another run. Bring the On/Off/Program selection knob to On/Off position to turn the drying machine off. -
Page 20: Maintenance And Cleaning
A layer can build up 6 Maintenance and cleaning on the filter pores that can cause clogging Service life of product extends and frequently of the filter after using experienced problems will be reduced if it is the dryer for a while. cleaned at regular intervals. -
Page 21: Draining The Water Tank
6.3 Draining the water tank 6.4 Cleaning the filter drawer Dampness of the laundry is removed and Lint and fiber that could not be captured by the condensed during drying process and the lint filter are blocked in the filter drawer behind water that arise accumulates in the water tank. -
Page 22: Cleaning The Evaporator
• If you observe a • Replace the filter drawer and tighten the layer over the filter cap turning the filter drawer lock turning it which can block in the arrow direction. the filter, remove the layer washing with a water and then cleaning it. -
Page 23: Troubleshooting
7 Troubleshooting Filter cleaning warning symbol/LED is on/flashing. Fibre filter might not be cleaned. >>> Clean the filter. The filter slot might be clogged with lints. >>> Clean the Drying operation takes too long. filter slot. A layer of fluff might have accumulated clogging up the lint Fibre filter pores might be clogged. -
Page 24: Manufactures Guarantee
Subject to the exclusions below, we warrant that the product will not have any electrical or mechanical breakdowns within: a) In the case of Euromaid products used for personal, domestic or household purposes, a period of 2 years (AU) / 2 years (NZ) from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand. - Page 25 c) The repair relates to the replacement of consumable parts such as fuses and bulbs or any other parts of the product which require routine replacement; d) You are unable to provide us with reasonable proof of purchase for the product; e) the breakdown occurs after the expiry of the express warranty period set out in section 1 or f) the product was not purchased in Australia / New Zealand as a brand-new...
- Page 26 5. Warranty claims If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).
- Page 27 Dryer / User Manual...
- Page 28 READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual.
