AcueLighting Extreme 650 Hybrid User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
!
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Extreme 650 Hybrid and is the answer not in the manual?

Questions and answers

Related Manuals for AcueLighting Extreme 650 Hybrid

Summary of Contents for AcueLighting Extreme 650 Hybrid

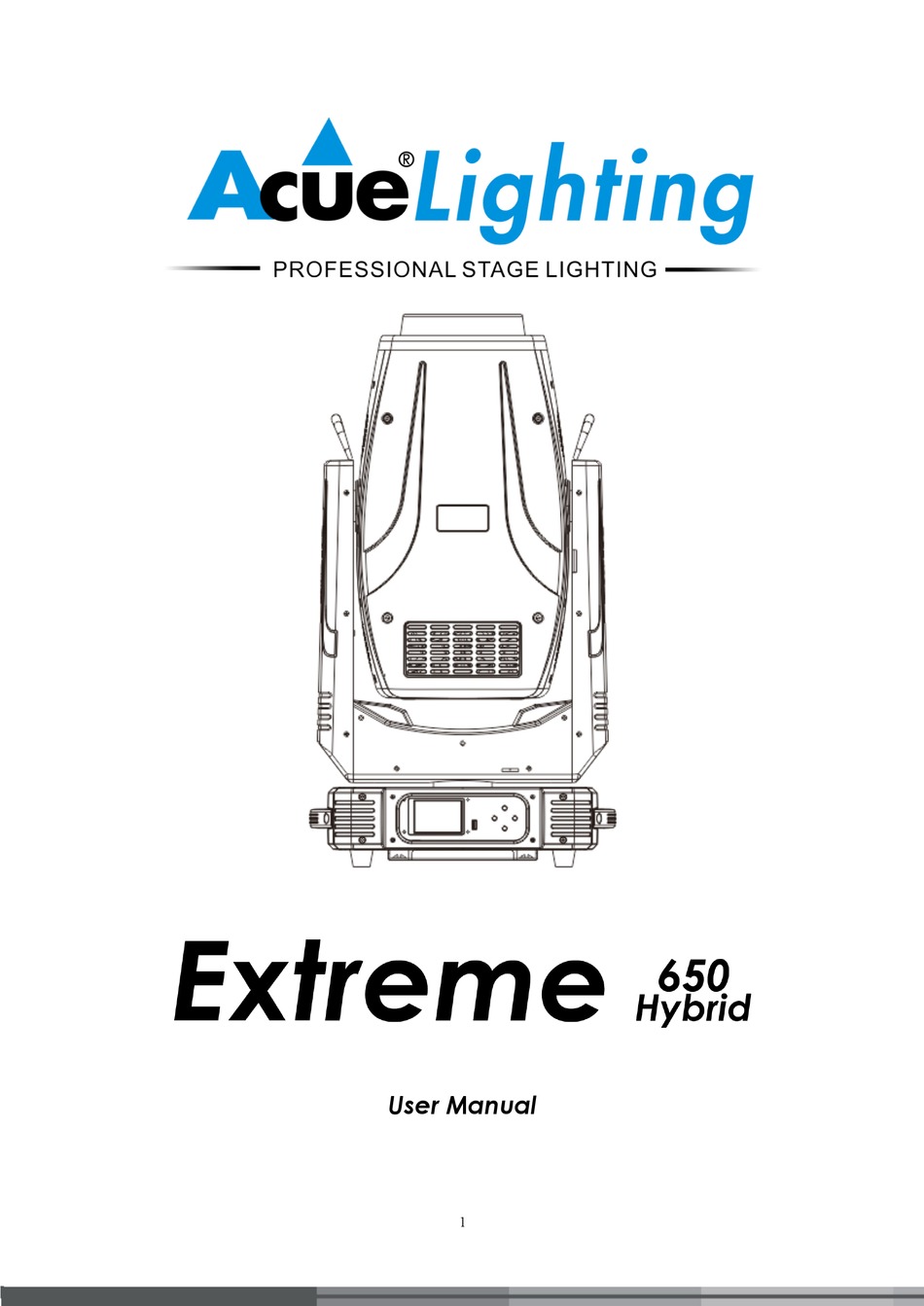

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    Table of Contents 1.Product Specifications............03 2.Fixture size................04 3.Parts introduction..............04 4.Description of color wheel and GOBO wheel.....05 5.Safety information..............06 6.Packaging................09 7.Installation................09 8.AC power................10 9.LED lamp................11 10.Warranty period..............11 11.Control Panel...............12 12.Control panel operation menu...........12 13.DMX Channel Chart............16 14.Routine Maintenance............19...

  • Page 3: Product Specifications

    NOTE: Thank you for purchasing this Acue Lighting product. This product has been tested and checked by our quality control department before it was shipped out of the factory. All users should strictly abide by the warnings and instructions stated in this manual, any damage caused by misuse or neglect of the information in this user manual will exclude the product from the warranty as well as remove the manufacturer from any responsibility of repair or damages.

  • Page 4: Fixture Size

    2. FIXTURE SIZE Product size：410（L）×310（W）×740（H）mm 3. PARTS INTRODUCTION 01 — Lens 02 — Body 03 — Arm 04 — Tilt Lock 05 — Pan Lock 06 — Light base 07 — Handle...

  • Page 5: Description Of Color Wheel And Gobo Wheel

    01 —Control panel 02 — USB Port 03 — Button 01 — DMX In 02 — DMX Out 03 — Power switch 04 — Power in 05 — Fuse 4. Color, CMY, & GOBO wheels, Color wheel: 5 fix color + white + CRI . CT:2800-5600K...

  • Page 6: Safety Information

    Fixed GOBO Wheel : 8 GOBOs + Open Rotating GOBO Wheel: 6 GOBOs + Open. 5. SAFETY INFORMATION 5.1.1 SAFETY WARNING MESSAGE 1. This fixture is meant for professional use and is not intended to be used bye non-qualified individuals. After opening the packaging, please check the package for damages caused by transportation.
  • Page 7 5.1.2 READ MANUAL CAREFULLY BEFORE USE OR INSTALLATION 1. Follow through this user manual section of security methods and pay attention to the warning signs on the fixture. 2、 If you have any problem or are unsure how to safely operate the equipment, please contact your dealer.
  • Page 8 IP PROTECTION This product is certified at IP 20 levels only. Adequate additional precaution should be taken for outdoor use. All lamps, lights and their fittings should be kept dry. Overheating, dust and excessive humidity must be avoided. BURST PREVENTION 1.

  • Page 9: Packaging

    PACKAGING This fixture is sold either in flight cases or carton boxes. Each fixture comes with the following: 6.1 ACCESSORIES CONTENT QUANTITY User Manual Power Cable Safety Cable Clamps Omega Bracket TRANSPORT PROTECTION LOCK In order to protect the fixture, the fixture is equipped with a pan/tilt locking mechanism. During transport in a road case, the pan must be locked in the center position, and the fixture head must be locked in vertical state.

  • Page 10: Ac Power

    a safety cable to secure the fixture to the mounting surface as secondary precaution. 2. Mount the supplied hanging bracket to the base of the fixture body, inserts the fastener into the locking holes of the base, and turn the handle of the fastener 1/4 turn clockwise to lock in place.

  • Page 11: Led Lamp

    ATTENTION ！ Factory has included a standard 3-pin plug socket. If fixture cable is damaged, replacement cable should be connected in the following order. Any question, please contact professionals or talk to a qualified electrician. Live wire ( Null ( Ground wire White Black...

  • Page 12: Control Panel

    11. CONTROL PANEL Button TOUCH SCREEN DISPLAY The control panel has a user-friendly touch screen to display the operation data and other information. There are four buttons on the right side. Each button has a dedicated function. Top button is for upward movement, lower button is for downward movement. The left button is for exiting the selected function where the right button in for confirming the function or data.
  • Page 13 Pan/Tilt Scan Speed setting Slow slow Pan/Tilt Scan Speed setting Fast fast keep signal data Signal Clear: clear signal data half color function Full Color: full color function Shortcust off for colors and gobos ShortCut: Shortcust open for colors and gobos ADV.
  • Page 14 Frame rotation back ChanlDef No function FactSett For factory only LimitTime No function Limit limitCont No function Return to default DefConfig back UseManage SAVE Save and back FacConfig EPRT for factory only back back Verify1: 0-255 need password Verify2: UNLOCK need password back MOTER...
  • Page 15 Prism: Prism Rot: Frost: Zoom: Zoom Fine Focus: Focus Fine: Strobe: Dimmer: > Value+1 < Value-1 Back Back DMX VALUE CH00-CH37 0-255 DMX value number CH00-CH41 0-255 DMX value number ALL MOTER Right/Erro For factory only MOTER LAMP REST PART MOTER Back Run Time: 0-9999...

  • Page 16: Dmx Channel Chart

    2Min Menu back after 2 mins 3Min Menu back after 3 mins Back ground light flash function off Light Flash: Back ground light flash function on Touch screen calibration on Touch Cali: Touch screen calibration off SAVE Save and back Back Lamp off Lamp Default:...
  • Page 17 117-127 CRI/White 128-255 Scroll 0－3 Strobe Close 4－103 Strobe from slow to fast 104－107 Strobe Open Strobe 108－207 Random Strobe from slow to fast 208－212 Strobe Open 213－251 Random Strobe from slow to fast 252－255 Strobe Open Dimmer 0-255 Linear dimming Dimmer fine 0-255 No function...
  • Page 18 57-74 GOBO 3 75-92 GOBO 4 93-111 GOBO 5 112-129 GOBO 6 130-150 GOBO 1 Shake 151-171 GOBO 2 Shake 172-192 GOBO 3 Shake 193-213 GOBO 4 Shake 214-234 GOBO 5 Shake 235-255 GOBO 6 Shake 0-127 Index 128-190 Rotation,Clockwise from fast to slow GOBO Rotation 191-192 Stop...

  • Page 19: Routine Maintenance

    Clear all vent holes of dust. 8. Check the vent holes for blockages to avoid damage to the cooling system after every use. For more information please visit www.AcueLighting.com or email us at Info@AcueLighting.com ©Acue Lighting, inc. 2022...
