Profile LED 300 WW
300W LED Framing Profile Spot light
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Profile LED 300 WW and is the answer not in the manual?

Questions and answers

Related Manuals for AcueLighting Profile LED 300 WW

Summary of Contents for AcueLighting Profile LED 300 WW

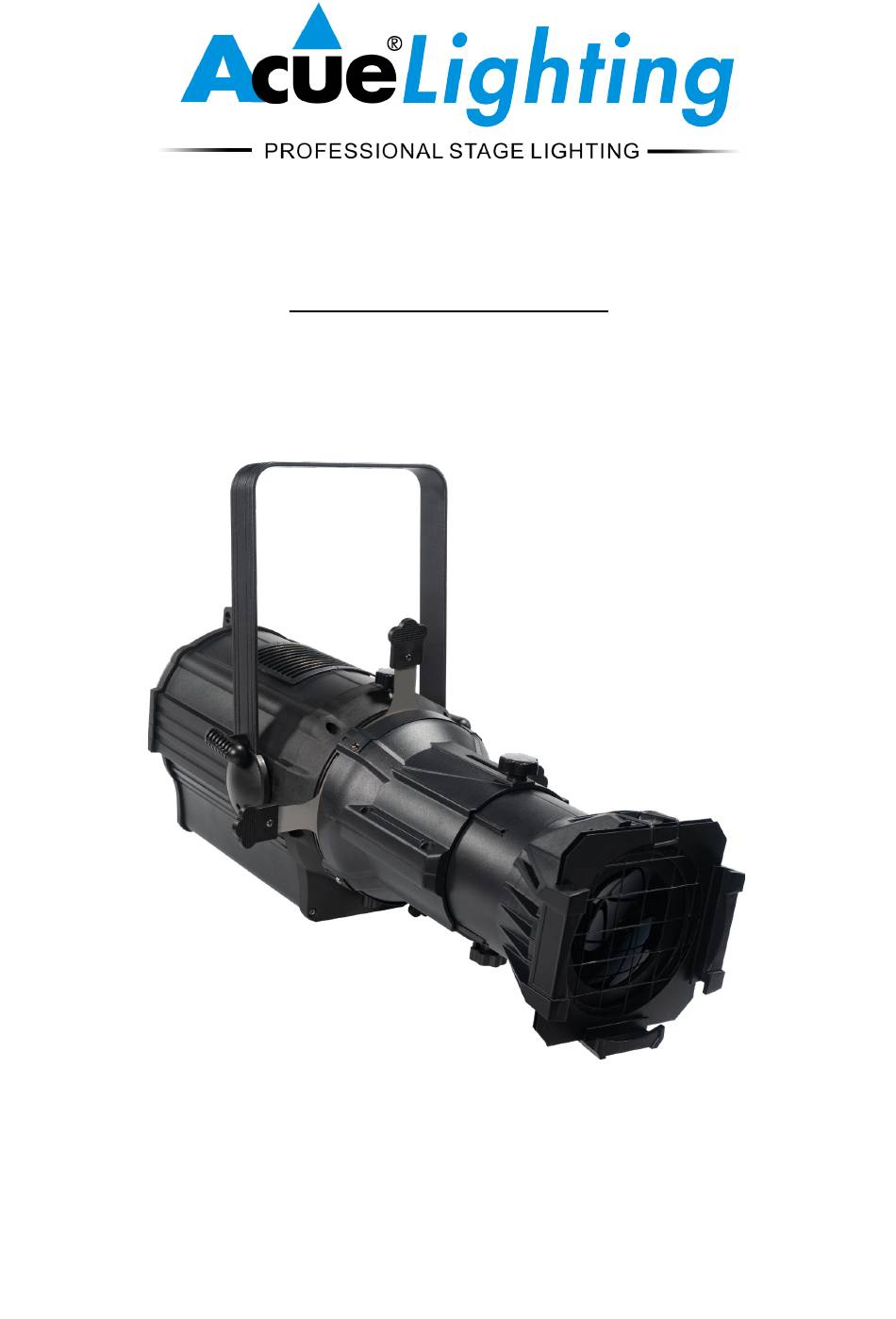

  • Page 1 Profile LED 300 WW 300W LED Framing Profile Spot light USER MANUAL...

  • Page 2: Safety Instructions

    Caution! CAUTION: Make sure fixture is properly plugged in and grounded to avoid electrical shock. Avoid looking directly into the light source from close distances! Wear protective glasses and other PPE (personal protective equipment) when working on or near the fixture.

  • Page 3: Installation

    Installation **SAFETY INFORMATION** This fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand fixture on a surface or leave it where it can be moved or fall over.

  • Page 4: Dmx-512 Connection/Connection Between Fixtures

    DMX-512 connection/connection between fixtures Description of the XLR-connection: DM X OUT DM X IN 1. Ground 1. Ground 2. Signal (-) 2. Signal (-) 3. Signal (+) 3. Signal (+) If you are using a controller for operation, you can connect the DMX-output of the controller directly to the DMX- input of the first fixture in the DMX-chain.

  • Page 5: Operation

    Operation The LED Profile 300WW can operate in three different modes. In each mode you can run the fixture as a stand- alone fixture or in a master/slave configuration. This next section will detail the differences in the operating modes. Control Menu Map Default setting in bold.

  • Page 6: Universal Dmx Control

    You can set the same starting address for all fixtures or a group of fixtures, or make different address for each fixture individually. If you set the same address, all the units will start to listen to the same control signal from the same channel number.

  • Page 7: Dmx Protocol

    DMX Protocol 1 Channel Mode Function Function Control Dimmer 000-255: 0-100% dimmer 2 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Strobe 000-255: Strobe with speed increasing 3 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Dimmer fine 000-255: 16 bit dimmer Strobe 000-255: Strobe with speed increasing...

  • Page 8: Technical Specifications

    Environment: IP20 Please note: All information is subject to change without prior notice 14.05. 2 022 For more information regarding this or other Acue Lighting products please visit www.AcueLighting.com or contact our headquarters. Acue Lighitng, Inc. 6217 Van Nuys Blvd.
