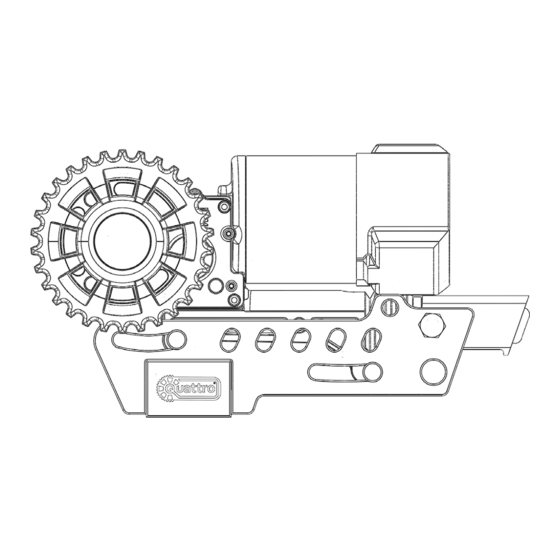

- Page 1 REMOTE CARAVAN MOVER Framework and Motor Installation Guide QTR-M006 QUATTRO600 - Diamond QUATTRO500 - Rhodium EGO500 - Platinum Translate online Online übersetzen Vertaal online Traduire en ligne www.purpleline.co.uk/qtr-m006...
-
Page 2: Document Control
Please visit www.purpleline.co.uk/caravan-movers before installation to check for any updates on product specifications, usage, safety or installation instructions. Bitte besuchen Sie www.purpleline.co.uk/caravan-movers VOR Installation auf Aktualisierungen zu Produktspezifikationen, Nutzung, Sicherheit und Einbauvorschriften zu überprüfen. Kunt u terecht op www.purpleline.co.uk/caravan-movers vóór de installatie te controleren of er updates over productspecificaties, het gebruik, de veiligheid of de installatie-instructies. -
Page 3: Table Of Contents
Table of Contents CONTENTS PAGE NO. Document Control Table of Contents Motor Mover Assembly Instructions 05 - 07 Package Contents (Fig.A) 08 - 09 Technical Reference Diagrams 10 - 14 Introduction Fitting Guidelines Specifications Installation - Safety Guidelines Installation - Mechanical Components Installation - Classic Clamp System 17 - 18 Installation - Shark Clamp System... - Page 4 Blank page EN-04...
-
Page 5: Motor Mover Assembly Instructions
QUATTRO DIAMOND AUTO - Motor Assembly Instructions (1 of 1) NOTE: Depending on the space available around where the motor movers will be fitted, you may find it easier to fit the framework to the chassis before assembling the motor movers onto the framework. To do this, loosely fit the framework as per the assembly instructions and fit motors before final spacing and torquing of the bolts. - Page 6 QUATTRO RHODIUM MANUAL - Motor Assembly Instructions (1 of 2) NOTE: Depending on the space available around where the motor movers will be fitted, you may find it easier to fit the framework to the chassis before assembling the motor movers onto the framework. To do this, loosely fit the framework as per the assembly instructions and fit motors before final spacing and torquing of the bolts.
- Page 7 QUATTRO RHODIUM MANUAL - Motor Assembly Instructions (2 of 2) NOTE: Depending on the space available around where the motor movers will be fitted, you may find it easier to fit the framework to the chassis before assembling the motor movers onto the framework. To do this, loosely fit the framework as per the assembly instructions and fit motors before final spacing and torquing of the bolts.
-
Page 8: Package Contents (Fig.a)
Package Contents (Fig.A) DESCRIPTION REF. Motor Unit (A) Motor Unit (B) Main Cross Bar Actuation Centre Bar (Rhodium Only) Actuation Insert Bars (Rhodium Only) Engagement Tool (Rhodium Only) Classic Stop Bolts & Nuts (2 pairs)* Upper Classic Clamp Plate* Classic U Plate* Lower Classic Clamp Plate* Convoluted Cable Trunking Positive (+) Red Motor Cable... - Page 9 Fig.A QUATTRO RHODIUM ONLY Motor B Motor A DIAMOND / PLATINUM QUATTRO RHODIUM ONLY EN-09...
-
Page 10: Technical Reference Diagrams
Technical Reference Diagrams Fig.1 RHODIUM MANUAL Fig.2 RHODIUM MANUAL Fig.3 PLATINUM AUTO DIAMOND AUTO EN-10... - Page 11 Technical Reference Diagrams Fig.4 Fig.5 RHODIUM MANUAL 20mm RHODIUM MANUAL Fig.6 RHODIUM MANUAL Fig.7 20mm 20mm DIAMOND AUTO PLATINUM AUTO Fig.8 DIAMOND AUTO DIAMOND AUTO PLATINUM AUTO EN-11...
- Page 12 Technical Reference Diagrams Fig.9 Fig.10.1 PLATINUM AUTO Fig.10.2 Fig.13 Fig.11 Caravan Floor L – Profile U – Profile L - Profile U - Profile Fig.12 175mm (min) 2.8mm to 3.5mm 155mm 30mm to 45mm (min) 85mm (min) 1800mm to 2500mm (max) EN-12...
- Page 13 Technical Reference Diagrams Fig.14 Overhead View QUATTRO MANUAL Motor Motor Motor Motor QUATTRO MANUAL EN-13...
- Page 14 Technical Reference Diagrams Fig.15 EN-14...
-
Page 15: Introduction
Fig.12 then various chassis clamp adapters are available to suit the majority of UK and Continental caravans; please refer to the section entitled ‘Optional Fitting Adapters’. Specification Model Name QUATTRO DIAMOND / RHODIUM QUATTRO PLATINUM Operational Voltage 12 Volt DC... -
Page 16: Installation - Safety Guidelines
Installation - Safety Guidelines Read this User Manual carefully before installation and use. Failure to comply with these rules could result in serious injury or damage to property. Before starting installation of the caravan mover: DO check that the caravan is disconnected from the battery supply and the mains electrical supply. DO only use adapters and accessories that are supplied or recommended by the manufacturer. -
Page 17: Installation - Mechanical Components
10mm of clearance between the gearbox and the tyre (Fig 9). Quattro Diamond/Rhodium: If the roller widths exceed that of the tyre, ensure that the outer roller is aligned with the outer wall of the tyre. Overhang on the inside wall of the tyre is acceptable on thinner tyres, and will not affect function or grip. -
Page 18: Installation - Classic Clamp System
10mm of space is left between the tyre and gearbox for the Quattro Platinum (Fig.9). After adjusting ensure the clamps haven’t moved out of position by holding the framework motorside firmly, while reaching round and pushing the clamps outwards until the fastening bolts and chassis are within 1-2mm of each other. -
Page 19: Installation - Electrical/Electronic Components
Installation - Electrical/Electronic Components Please refer to manual supplied with electronics for wiring installation, operation instructions and troubleshooting. Alternatively, for Smart Electonics visit www.purpleline.co.uk/qtr-m005 or for Basic Electronics visit www.purpleline.co.uk/qtr-m003 Operation and Maintenance It is possible to position the caravan’s hitch exactly over a stationery car’s tow ball using the mover. -
Page 20: Product Registration
Product Registration Please register your Quattro caravan mover online within 14 days of purchase. Registration is quick ® and simple, go to www.purpleline.co.uk/product-registration. Please retain your original purchase receipt. Please fill-in the Serial Numbers + additional information and retain this manual for future reference. -
Page 21: Contact Information
Contact Information Purple Line Limited Peninsula Business Centre Tel: +44 (0) 1473 601200 Wherstead, Suffolk E-mail: info@purpleline.co.uk IP9 2BB, United Kingdom Notes EN-21... -
Page 22: Optional Fitting Adaptors
Optional Fitting Adapters Additional chassis clamp adapters shown below are available for purchase: Low Profile Chassis Adapter Plates (Part No. CM-029) If your chassis frame height is less than 140mm these plates must be fitted to lower the assembly to provide the correct height of 185mm. Drilling of your chassis may be required. - Page 23 Blank page EN-23...
- Page 24 Purple Line Ltd, Unit 1, Peninsula Business Centre, Wherstead, Suffolk IP9 2BB Web: www.quattromover.com Tel: +44 (0)1473 601200 Email: info@purpleline.co.uk Photographs & diagrams for illustration purposes only. Actual product may differ slightly. All weights & dimensions are approximate. The manufacturer reserves the right to change product specification without prior notice. E & OE. EN-24...
