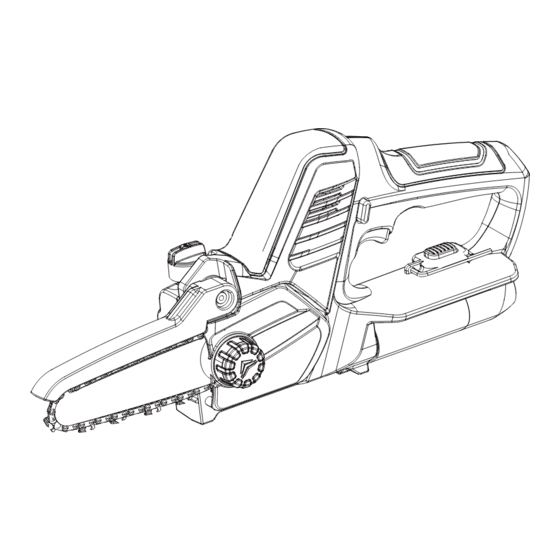

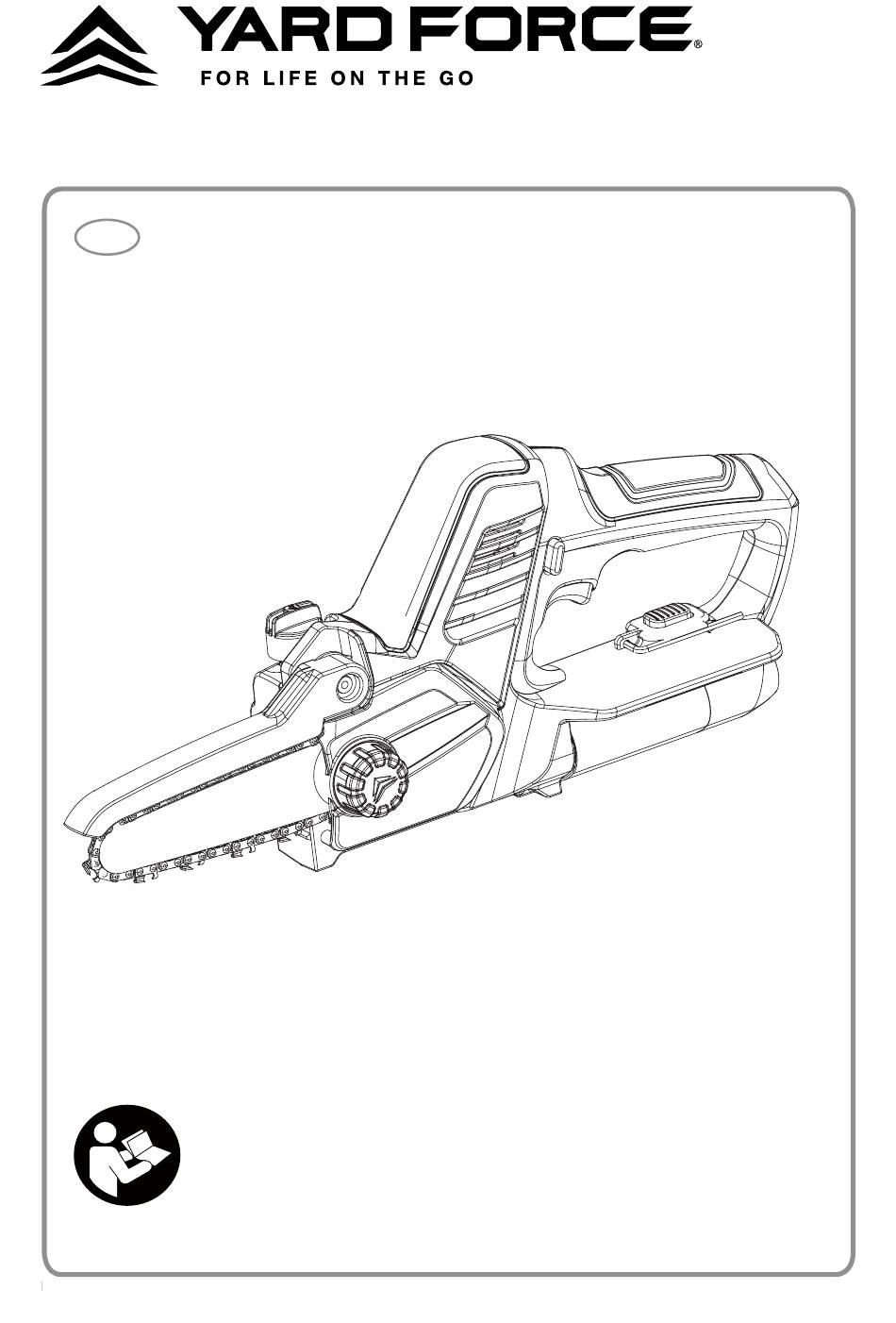

- Page 1 LS F12 12V MINI SAW Original Instructions READ & UNDERSTAND INSTRUCTION MANUAL Save all warnings and instructions for future reference.
- Page 3 100%...
-
Page 4: Table Of Contents
INTENDED USE LS C13 Original Instructions The Mini saw has been exclusively designed for cutting branches. The saw is not intended for continuous commercial use. The intended use also includes an operation following the operating instructions. CONTENT The Mini saw can be used as a pruner for cutting branches. Any use beyond these parameters (different media, applying force) or any changes (reconstruction, no original accessory) can lead to serious risks and is regarded as Intended use... -
Page 5: General Safety Warnings
GENERAL SAFETY WARNINGS GENERAL SAFETY WARNINGS Electrical safety Safety of persons 1. The connector plug for the power tool must fit in the 1. Be careful, pay attention to what you are doing and socket. The plug must not be modified in any way. Do approach work with a power tool in a reasonable not use any adapter plugs in combination with power manner. - Page 6 GENERAL SAFETY WARNINGS GENERAL SAFETY WARNINGS 7. If there is an option for installing dust suction devices 5. Maintain power tools and insertion tools with care. and dust containers, these should be attached and Check to make sure that the moving parts are used correctly.
- Page 7 GENERAL SAFETY WARNINGS GENERAL SAFETY WARNINGS 2. Only use the rechargeable batteries designated for Service 1. Only have your power tool repaired by a qualified use in power tools. Using other rechargeable batteries professional and only with original spare parts. may result in injury and a risk of fire.
-
Page 8: Product Safety Warnings
PRODUCT SAFETY WARNINGS PRODUCT SAFETY WARNINGS Safety instructions for the saw • Carry the saw by the handle with the saw switched off and away from your body. When transporting or • Keep all parts of the body away from the saw chain storing the saw, always fit the guide bar cover. - Page 9 PRODUCT SAFETY WARNINGS PRODUCT SAFETY WARNINGS safety devices built into your saw. As a saw user, you they are supervised for their safety by a qualified should take several steps to keep your cutting jobs person or are briefed by the responsible person how free from accident or injury.
-
Page 10: Symbols
PRODUCT SAFETY WARNINGS SYMBOLS • When sawing, the base plate must always face Safety symbols against the workpiece. The saw chain can become The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the jammed and lead to loss of control over the machine. - Page 11 SYMBOLS SYMBOLS Warning symbols on the battery pack Read the instructions for use before use! To reduce the risk of injury, user must read the instruction manual carefully. Wear suitable protective gloves. Do not throw into water. Wear protective goggles. Do not throw to fire.
-
Page 12: Technical Data
SYMBOLS TECHNICAL DATA Warning symbols on the charger Model LS F12 To reduce the risk of injury, user must read Mains voltage 12 V instruction manual carefully. No load chain speed 7 m/s Cutting diamater. Max. 100 mm The charger is for indoor use only. -
Page 13: Description Of Product
DESCRIPTION OF PRODUCT OPERATION Parts description (Fig. A) Charging the battery pack NOTE: Remove the battery pack from the charger after it has been fully charged. Chain safety guard NOTE: Battery should be fully charged before first use. Oil tank cap NOTE: Make sure the mains voltage is the same as rating label which is located on the Battery pack release button charger. -
Page 14: Operation
OPERATION OPERATION To insert the battery pack (Fig. F) The tension of the saw chain is important for your safety and the function of the machine. A correctly tensioned saw chain increases the service life of the machine. Align the groove on the battery pack with the corresponding ribs in the receptacle of the device. -
Page 15: Maintenance And Storage
OPERATION MAINTENANCE AND STORAGE Adjusting saw chain tension Cleaning and maintenance WARNING: Always remove the battery pack before adjusting/replacing the chainsaw Risk of injury! chain. Improperly handling the saw may result in injury. Remove the battery from the saw before beginning work on the saw. CAUTION: Do not tighten the saw chain too much. - Page 16 MAINTENANCE AND STORAGE MAINTENANCE AND STORAGE Repairs WARNING: Before performing any repair work, always ensure that the battery pack There are no parts that can be repaired by the user inside the saw. If you identify damage, has been removed. contact a specialist workshop or qualified personnel.
-
Page 17: Declaration Of Conformity
SUMEC Hardware & Tools Co., Ltd. No.1 Xinghuo Road, Jiangbei New Area, Nanjing, 210061,Jiangsu,P.R.China. Declare that the product: Description: 12V Mini saw Model No. LS F12 Function: cutting wood Complies with the essential health and safety requirements of the following directives: Machinery Directive 2006/42/EC...
