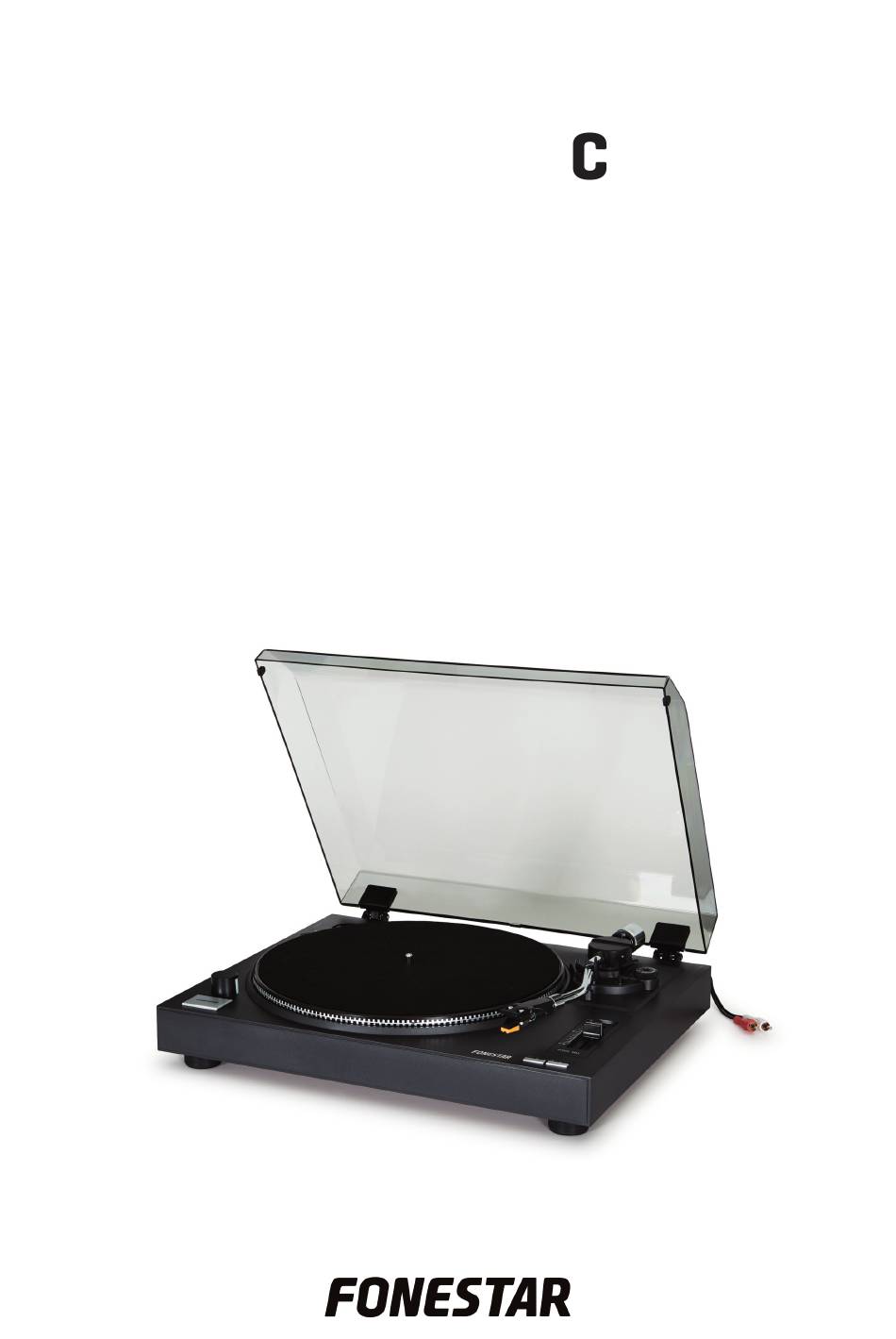

- Page 1 SF-2300 Hi-Fi TURNTABLE INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
- Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.
- Page 4 DESCRIPTION The model SF-2300C is a Hi-Fi turntable that plays vinyl records with belt drive transmission and manual drive system, DC precision servo mechanism with quick start/stop. It has two rotation speeds: 33 and 45 rpm with LED indicators. It allows fine speed and tone adjustment using a sliding potentiometer ±16%. It has an S-shaped headshell arm with slow rise and fall.
- Page 5 REAR PANEL 13.- PHONO/LINE: turntable output level selector: phono level or line level. 14.- GAIN: USB gain control. 15.- USB: PC connection port, female USB B connector. 16.- Turntable output, 2 x RCA connectors. The output level can be selected with the PHONO/LINE selector. 17.- Power supply cable.
- Page 6 ANTI-SKATING CONTROL ADJUSTMENT Place the ANTI-SKATING control at the same value selected on the scale ring so that it corresponds to the weight of the needle above the record. If the weight is 2 grams, the control must be set at value 2. SPEED PITCH CONTROL ADJUSTMENT 1.- This slider allows the speed of rotation to be varied ±16% for DJ effects.
- Page 7 INSTRUCTIONS FOR USE OPERATING 1.- Depending on the type of record going to be played (33 or 45 rpm), choose the required speed with the selector on the upper panel. If the record is a single (45 rpm), use the insert provided. 2.- Turn on the turntable with the POWER switch.
- Page 8 2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
