Sealey 1100CXD.V5 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear safety
instructions footwear

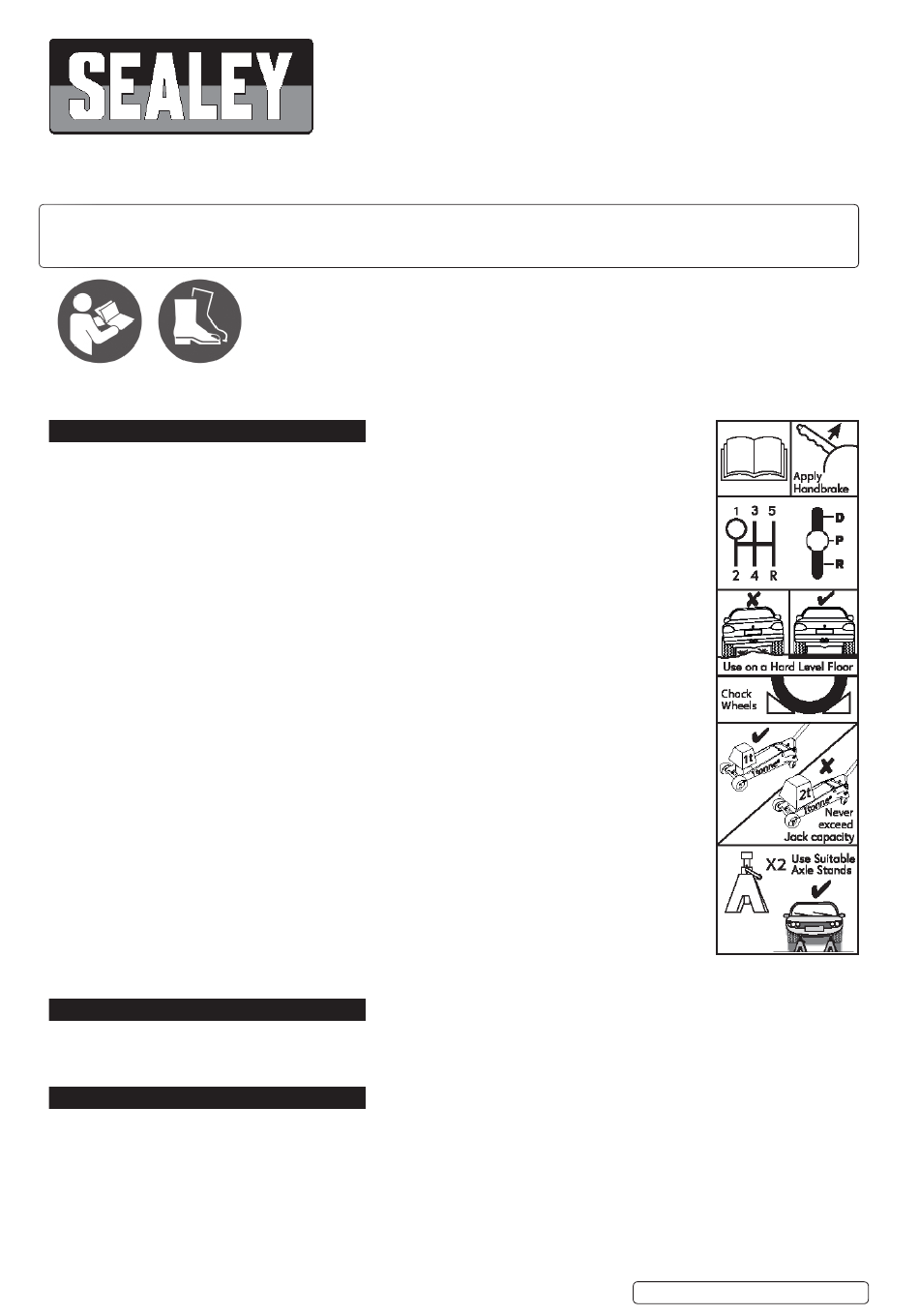

1. SAFETY
Ensure the jack is in sound condition and good working order. Take action for immediate repair
9
or replacement of damaged parts. Use genuine parts only. The use of unapproved parts may
be dangerous and will invalidate the warranty.
Locate the jack in a suitable, well lit working area.
9
Keep working area clean and tidy and free from unrelated materials.
9
Use jack on level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
9
Place chocks under wheels of vehicle (but ensure wheels of jack can move freely).
9
Ensure the vehicle's handbrake is engaged, the engine is switched off and transmission is in gear
9
(or "PARK" if automatic).
Ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc.,
9
to allow for vehicle tilting.
Ensure there are no passengers in the vehicle.
9
Ensure all non-essential persons keep a safe distance whilst the jack is in use.
9
Only place jack under vehicle manufacturer's recommended lifting points (see vehicle handbook).
9
Check the lifting point is stable and centred on the jack saddle.
9
Ensure the jack wheels are free to move and that there are no obstructions.
9
Use correctly rated axle stands under the vehicle before proceeding with any task.
9
Ensure there are no persons or obstructions beneath the vehicle before lowering.
9
Use a qualified person to maintain or repair the jack hydraulic system.
9
When not in use, store jack, fully lowered, in a safe, dry, childproof area.
9
IMPORTANT! During the jacking operation, ensure that the vehicle-to-jack saddle contact point are
always visible.
▲ DANGER! Use the jack for lifting only, NOT for supporting the lifted load.
DO NOT operate the jack if damaged.
8
DO NOT allow untrained persons to operate the jack.
8
DO NOT exceed the rated capacity (2 tonne) of the jack.
8
DO NOT allow the vehicle to move while supported by the jack, or use the jack to move the vehicle.
8
DO NOT jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
8
DO NOT work under the vehicle until suitably rated axle stands have been correctly positioned.
8
DO NOT use the jack for purposes other than which it is intended.
8
DO NOT top up hydraulic system with brake fluid. Use hydraulic jack oil only.
8
DO NOT adjust the safety overload valve.
8
2. INTRODUCTION
Steel chassis with welded castor supports and one-piece hydraulic unit. Fitted with overload valve and finger cover for extra safety. At just
11.3kg this unit is ideal for the serious enthusiast or as an emergency mobile jack. Includes an integral carry handle and one-piece pumping
handle. Supplied in tough carry/storage case to keep dirty jack away from contents of car boot.
3. SPECIFICATION
Model No: ...............................................1100CXD.V5
Capacity: .......................................................... 2tonne
Length: ............................................................ 531mm
Maximum Chassis Height:............................... 132mm
Maximum Saddle Height: ................................ 380mm
Minimum Saddle Height: ................................. 130mm
Nett Weight: ..................................................... 12.1kg
© Jack Sealey Limited
TROLLEY JACK 2TONNE SHORT CHASSIS WITH
STORAGE CASE
1100CXD.V5
MODEL NO:
Original Language Version 1100CXD.V5 | Issue 1 10/12/18
