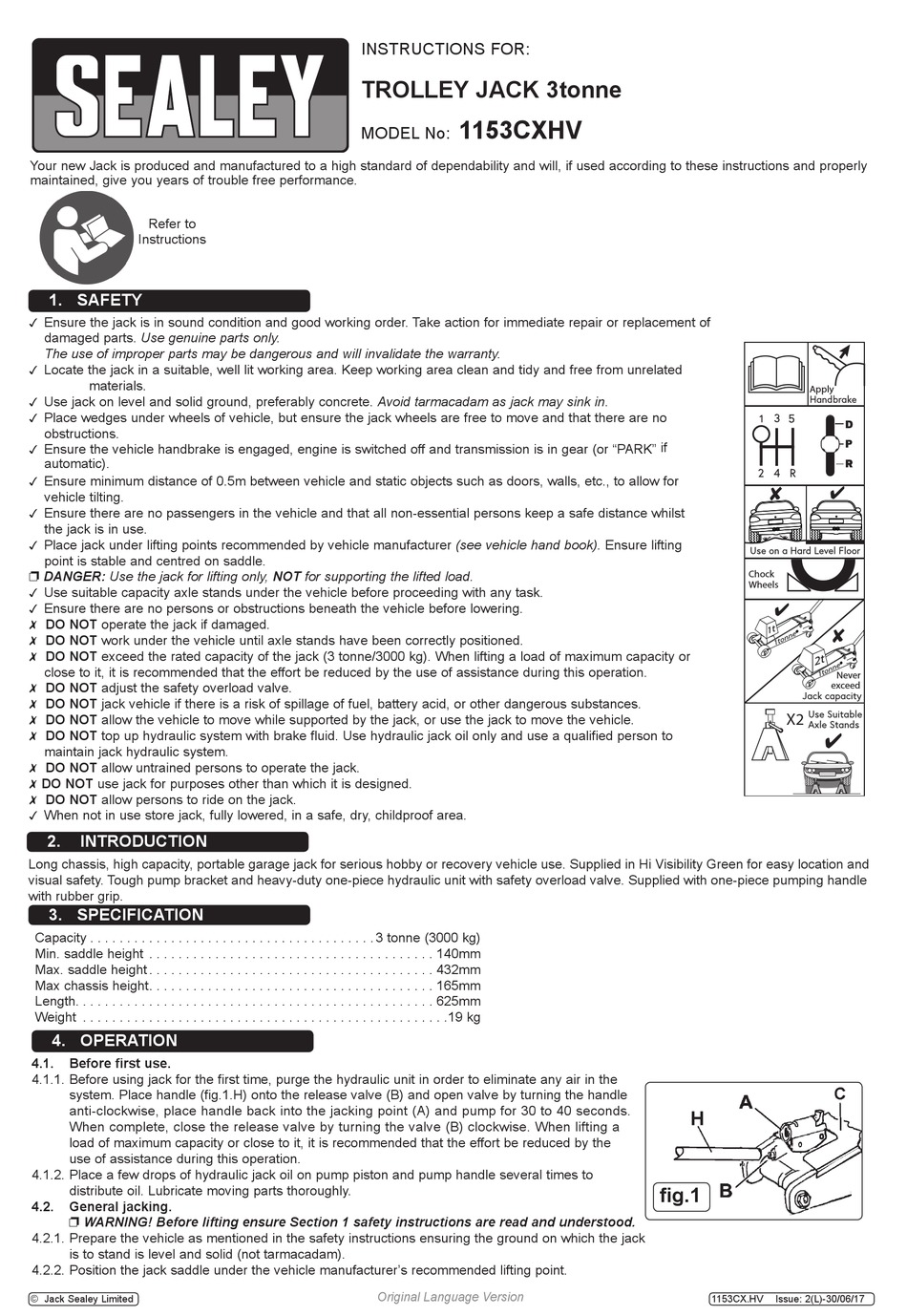

Sealey 1153CXHV Instructions

Your new Jack is produced and manufactured to a high standard of dependability and will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
Refer to
Instructions
1. SAFETY
Ensure the jack is in sound condition and good working order. Take action for immediate repair or replacement of

damaged parts. Use genuine parts only.
The use of improper parts may be dangerous and will invalidate the warranty.
Locate the jack in a suitable, well lit working area. Keep working area clean and tidy and free from unrelated

materials.
Use jack on level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.

Place wedges under wheels of vehicle, but ensure the jack wheels are free to move and that there are no

obstructions.
Ensure the vehicle handbrake is engaged, engine is switched off and transmission is in gear (or "PARK" if

automatic).
Ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc., to allow for

vehicle tilting.
Ensure there are no passengers in the vehicle and that all non-essential persons keep a safe distance whilst

the jack is in use.
Place jack under lifting points recommended by vehicle manufacturer (see vehicle hand book). Ensure lifting

point is stable and centred on saddle.
 DANGER: Use the jack for lifting only, NOT for supporting the lifted load.
Use suitable capacity axle stands under the vehicle before proceeding with any task.

Ensure there are no persons or obstructions beneath the vehicle before lowering.

 DO NOT operate the jack if damaged.
 DO NOT work under the vehicle until axle stands have been correctly positioned.
 DO NOT exceed the rated capacity of the jack (3 tonne/3000 kg). When lifting a load of maximum capacity or
close to it, it is recommended that the effort be reduced by the use of assistance during this operation.
 DO NOT adjust the safety overload valve.
 DO NOT jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
 DO NOT allow the vehicle to move while supported by the jack, or use the jack to move the vehicle.
 DO NOT top up hydraulic system with brake fluid. Use hydraulic jack oil only and use a qualified person to
maintain jack hydraulic system.
 DO NOT allow untrained persons to operate the jack.
DO NOT use jack for purposes other than which it is designed.
 DO NOT allow persons to ride on the jack.
When not in use store jack, fully lowered, in a safe, dry, childproof area.

2. INTRODUCTION
Long chassis, high capacity, portable garage jack for serious hobby or recovery vehicle use. Supplied in Hi Visibility Green for easy location and
visual safety. Tough pump bracket and heavy-duty one-piece hydraulic unit with safety overload valve. Supplied with one-piece pumping handle
with rubber grip.
3. SPECIFICATION
Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 tonne (3000 kg)
Min. saddle height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140mm
Max. saddle height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 432mm
Max chassis height. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165mm
Length. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 625mm
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 kg
4. OPERATION
4.1. Before first use.
4.1.1. Before using jack for the first time, purge the hydraulic unit in order to eliminate any air in the
system. Place handle (fig.1.H) onto the release valve (B) and open valve by turning the handle
anti-clockwise, place handle back into the jacking point (A) and pump for 30 to 40 seconds.
When complete, close the release valve by turning the valve (B) clockwise. When lifting a
load of maximum capacity or close to it, it is recommended that the effort be reduced by the
use of assistance during this operation.
4.1.2. Place a few drops of hydraulic jack oil on pump piston and pump handle several times to
distribute oil. Lubricate moving parts thoroughly.
4.2. General jacking.
 WARNING! Before lifting ensure Section 1 safety instructions are read and understood.
4.2.1. Prepare the vehicle as mentioned in the safety instructions ensuring the ground on which the jack
is to stand is level and solid (not tarmacadam).
4.2.2. Position the jack saddle under the vehicle manufacturer's recommended lifting point.
© Jack Sealey Limited
INSTRUCTIONS FOR:
TROLLEY JACK 3tonne
1153CXHV
MODEL No:
Original Language Version
Apply
Chock
Wheels
exceed
X2
fig.1
1153CX.HV Issue: 2(L)-30/06/17
Never
