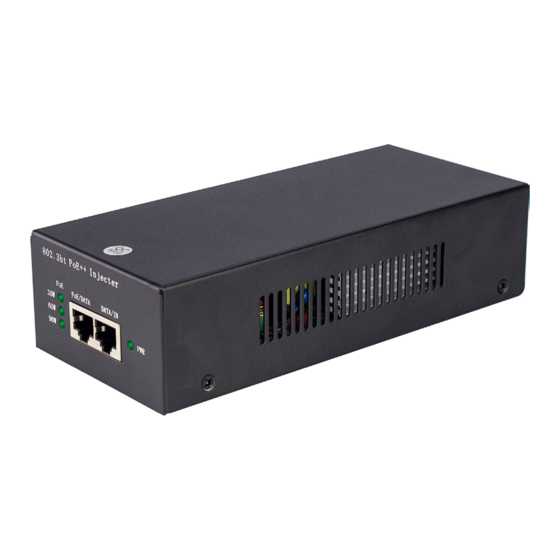

- Page 1 1 Channel PoE Injector User Manual Part Number: MP008632 Newark.com/multicomp-pro Farnell.com/multicomp-pro sg.element14.com/b/multicomp-pro Page <1> 03/12/21 V1.0...
- Page 2 Introduction The PoE Injector is a single port PoE injector offer a compact and cost effective, It can convert standard 100V/AC to 240V/AC power into low voltage. DC that runs over existing LAN cable to power up IEEE 802.3af & at & bt compliant network accessories.

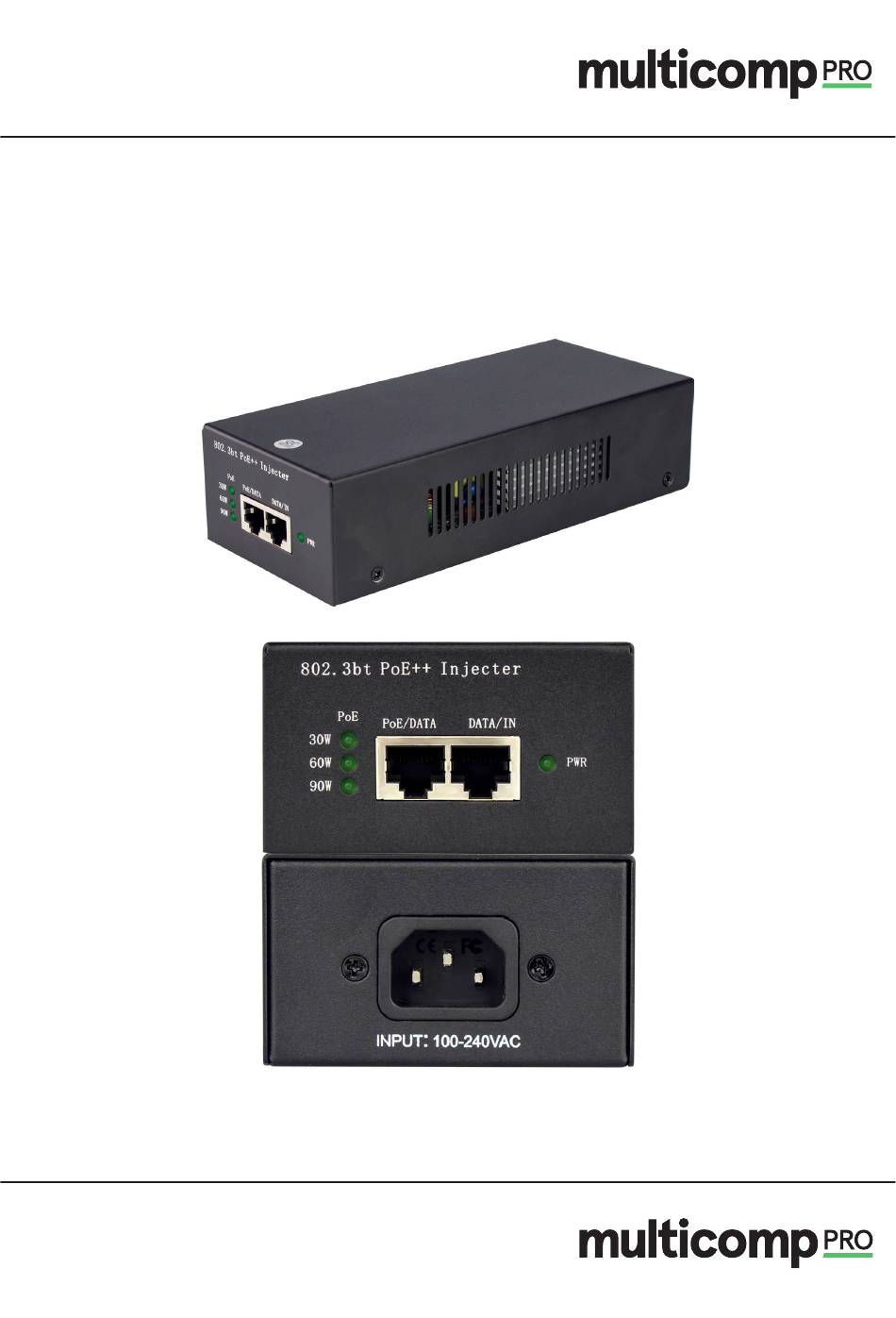

- Page 3 DATA IN: PoE/DATA: Connect to the Ethernet Connect to the camera with UTP device with CAT5 UTP cable 5 to supply power cable to transmit data. PWR: Power LED, a steady green light indicates that the PoE injector got 100-240V power input 30W: When the output power is 0 to 30W, led lights up 60W: When the output power is 30 to 60W, led lights up 90W: When the output power is 60 to 90W, led lights up...
- Page 4 Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
