- Page 1 Thermal Imager User Manual Part Number: MP780429 Newark.com/multicomp-pro Farnell.com/multicomp-pro Element14.com/multicomp-pro Page <1> 24/04/20 V1.0...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction .........3 2. -
Page 3: Introduction

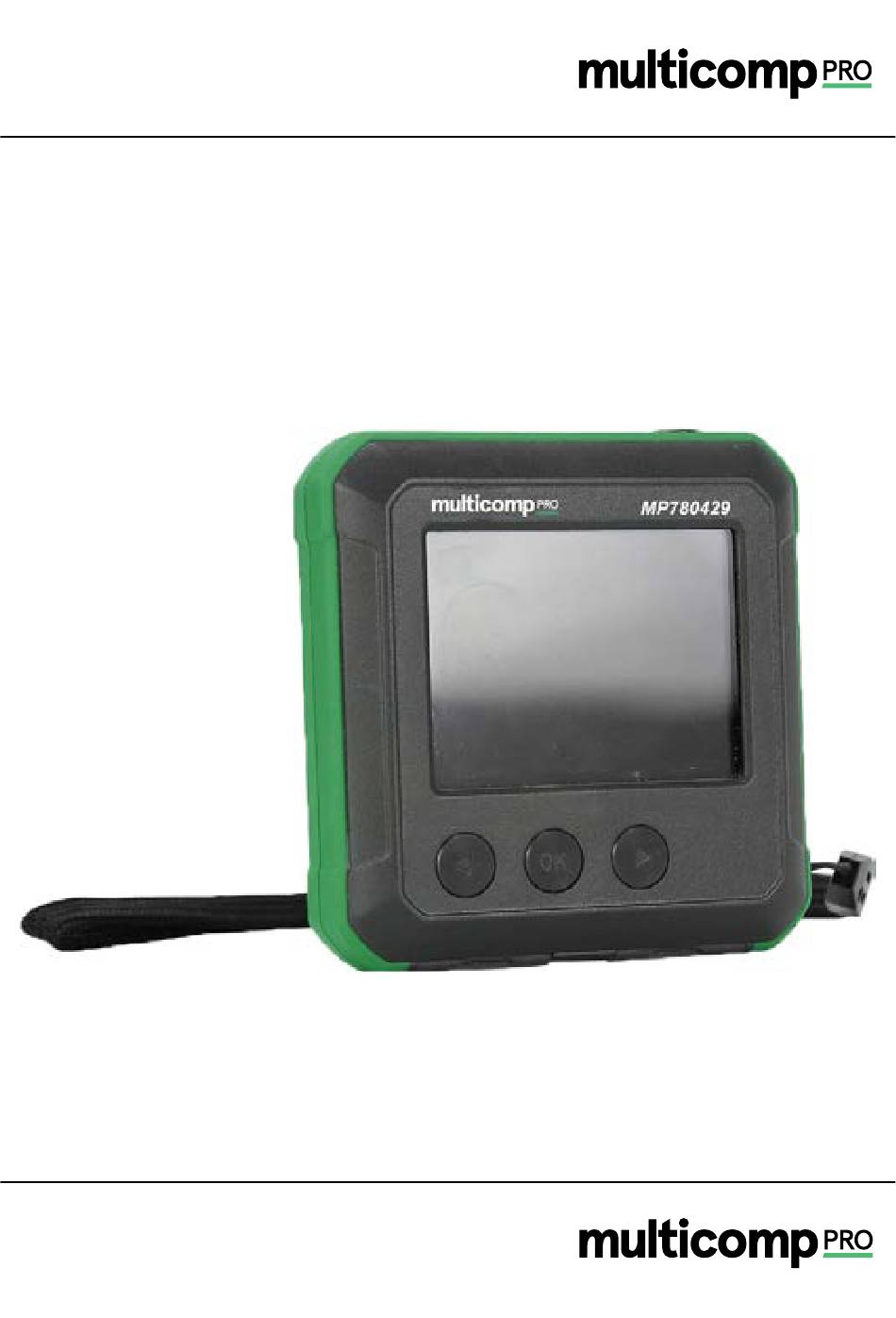

1. Introduction The MP780429 thermal imager is a pocket sized and lightweight device. This device is able to find hidden hot spots, energy loss, structural defects, pipe jams, HVAC faults and other problems through analyzing the thermal image of a surface. It can measure temperatures up to 400°C and quickly displays the result on the LCD screen. -
Page 4: Display
4. Display Display size: 2.4″ (495mm × 377mm) Display resolution: 320 × 240 pixels Item Description Measured temperature Thermal image display area Battery level "Temperature" option "Cursor" option "Colar palette" option "Picture playback" option "Settings" option 5. Menu Introduction and Operation Newark.com/multicomp-pro Farnell.com/multicomp-pro Element14.com/multicomp-pro... - Page 5 a. Picture Taking 1. Press the picture taking button to photograph the current image. 2. Press the right button to save the picture. 3. Press the left button to discard the picture. Note: It is recommended to store no more than 5000 images, so as not to affect the image storage speed. b.
- Page 6 Note: In the image display page, the temperature value displayed in the top left corner of the LCD is the temperature of the center point, and the temperature value displayed in the top/ bottom area of the colour bar on the right side of the LCD is the high/ low temperature.
- Page 7 To view detailed information of the picture: 1. Enter the picture playback submenu. 2. Press the OK button to pop up 3. Press the left/right button to select the option. 4. Press the OK button to display detailed picture information. 5.
- Page 8 ii. Date and Time To set the date and time: 1. Select the Time & date option (left/right button) from settings menu. 2. Press the OK button to enter the Time & Date submenu. 3. Press the left/right button to select the time or date parameter to be adjusted. 4.
- Page 9 v. Display Brightness To set the display brightness: 1. Select the Brightness option (left/right button) from settings menu. 2. Press the OK button to enter the Brightness submenu. 3. Press the left/right button to select the desired brightness. 4. Press the OK button to confirm it. 5.
-
Page 10: Usb Communication
3. Press the left/right button to select Yes or No. 4. Press the OK button to confirm it. 5. Press the back button to exit the current menu. ix. Format SD Card To format the SD card: 1. Select the Format SD option (left/right button) from settings menu. 2. -
Page 11: Maintenance
Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
