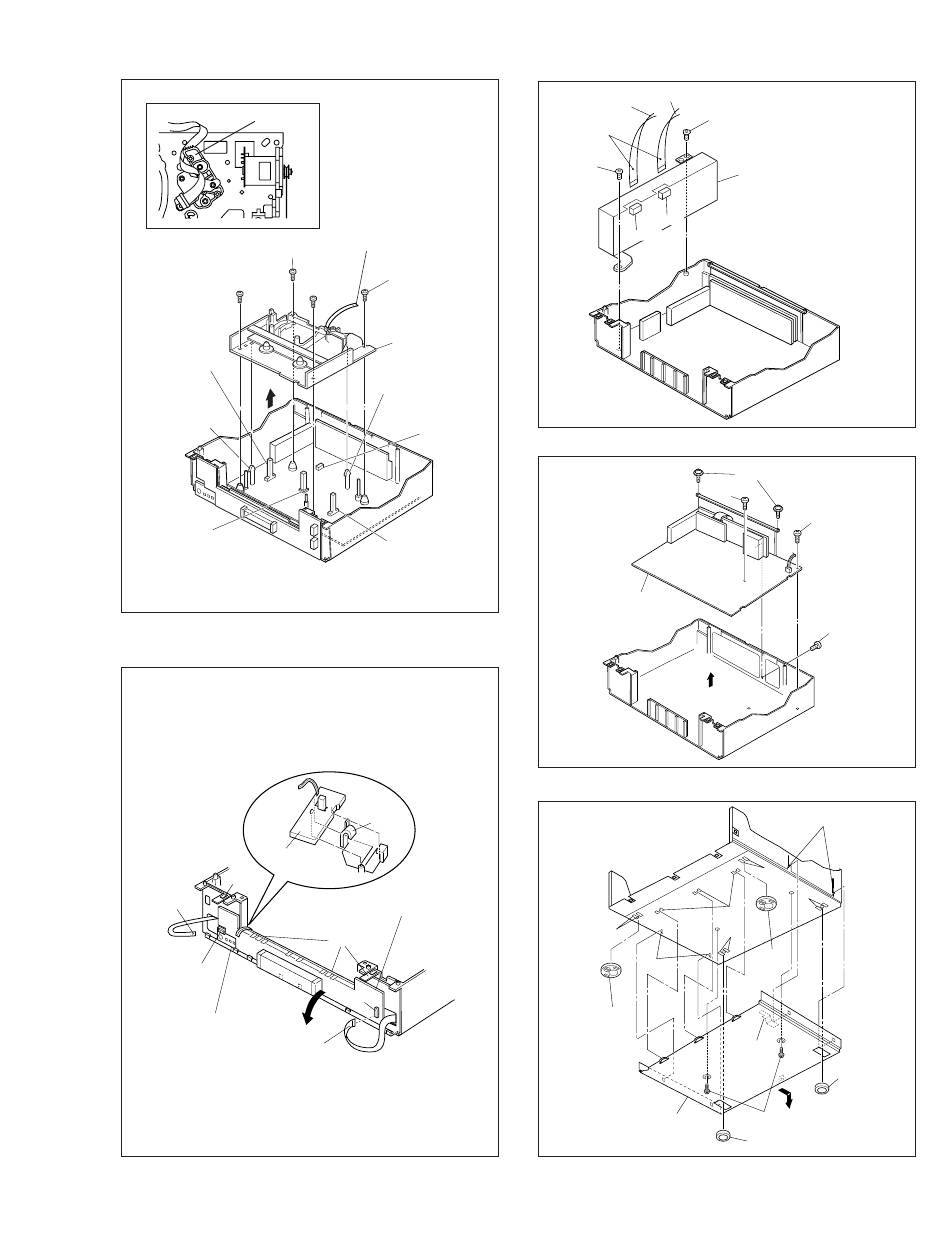

JVC HR-S9850MS Service Manual page 9

A/C head base
WR4a
(S4c)
(S4b)
<Note 4a>
<Note 4a>
Q3003
End sensor
<Note 4a>
(L4a)
Spacer
<Note 4a>
D3001
LED
<Note 4a>
Fig. D4
REC Safety
board assembly
<Note 5a>
(L5b)
WR5b
<Note 2b>
CN7191
[5] Jack board assembly
<Note 5b>
WR5a
<Note 2b>
Fig. D5
Note:
When installing the
Mechanism assembly,
secure the screws
(S4a to S4b) in the
order of a, b.
WR4a
<Note 2b>
(S4a)
(S4d)
[4]
Mechanism
assembly
(L4a)
Spacer
<Note 4a>
CN2001
Q3002
Start sensor
<Note 4a>
(L5a)
[5] SW/Display board assembly
(L5b)
CN7001
WR6b
WR6a
(S6)
Foil side
<Note 2b>
(S6)
[6] P/S converter board assembly
CN3502
CN3501
Fig. D6
(S7c)
(S7b)
[7]
Main board
assembly
Fig. D7
(L8d)
(L8b)
(L8a)
(L8c)
Foot assy
Earth
plate
<Note 8a>
[8]
Bottom cover
Foot (rear)
Fig. D8
(S7b)
(S7a)
(L8c)
(L8b)
(L8a)
Foot
assy
Foot
(rear)
(S8a)
