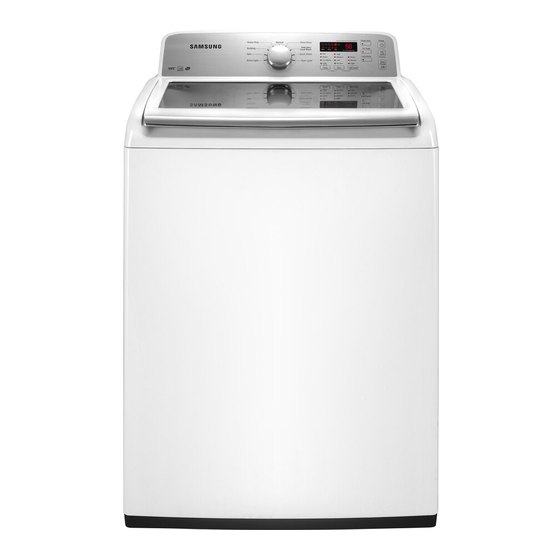

Samsung WA422 Series Fast Track Troubleshooting

Model:
WA422****
Bulletins:
ASC20131127001
WARNING!!!
ENTERING QUICK TEST MODE BEFORE ENTERING SERVICE MODE WILL DELETE STORED ERROR CODES
QUICK TEST MODE – PRESS:
OFF
WITH POWER
SERVICE MODE – PRESS:
ON
WITH POWER
QUICK TEST MODE
All LED's light up Beep Sound when entered.
Displays software version for a sec and Clear EEprom.
When the version is displayed, turn the Jog-Dial so that
the version disappears.
Press the following keys to test the various components.
Temp Key Water Valve Test
Spin Key Drain Pump Test
Soil Key Door Lock/Unlock Test
tSt or SPn On Display Motor Test (Turn Jog Dial)
SPIN
DELAY START
(& MACHINE IN USE)
Fast Track Trouble shooting
Publication # SM WA422
SOIL
LEVEL
EXTRA RINSE
SERVICE MODE
The washer must be on to go into the Service Mode.
The motor speed will be displayed when started
To exit Service Mode, press Delay Start + Extra Rinse
Keys for 3 second again, or Power Key. If no key is
pressed during service mode after 5 minutes, the
machine will return to normal user mode.
Refer to page 2 for a list of checks available
Production Date: 12/17/14
POWER Together - 3 Seconds
Together - 3 Seconds
