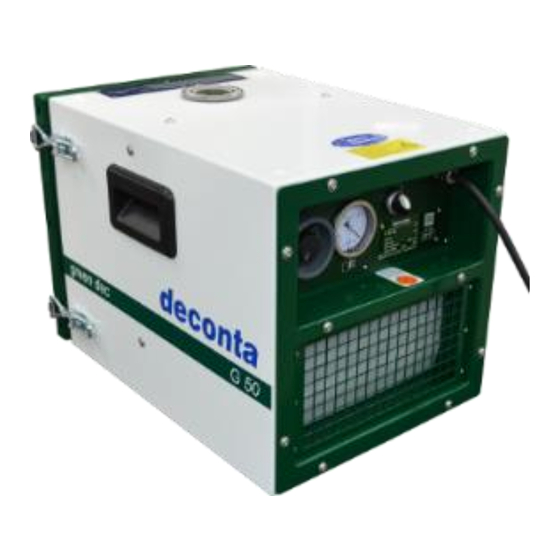

- Page 1 G 50, G 100, G 200, G 300, G 400, G 500 G 100 G 50 G 200 G 500 G 300 G 400 Language: EN Version: 4 Phone: 02874/9156-0 deconta GmbH Fax: 02874/9156-11 Issue Date: Im Geer 20 E-mail: info@deconta.com 24.07.2023 46419 Isselburg Web: www.deconta.com...
-
Page 2: Table Of Contents
Negative pressure unit green dec G 50 ........... 24 4.4.2 Negative pressure unit green dec G 100 ..........24 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 2 from 83 Original operating instructions... - Page 3 8.8.6 Day / Night Settings (Day / Night) ............45 8.8.7 Standby mode ..................45 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 3 from 83 Original operating instructions Version 4...
- Page 4 11.15 Negative pressure unit green dec G 500 SRE connect, 230 volt version ....80 12 Storage ........................... 81 12.1 Environmental conditions ..................81 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 4 from 83 Original operating instructions Version 4...
- Page 5 13.2 Legislation ......................82 13.3 Waste ........................82 14 EC Declaration of Conformity ..................83 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 5 from 83 Original operating instructions Version 4...
-
Page 6: Product And Manufacturer
E-mail info@deconta.com Internet www.deconta.com Change index Date Version Change Responsible 07.03.2023 complete revision Thomas Boland Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 6 from 83 Original operating instructions Version 4... -
Page 7: About These Operating Instructions
When handing over the machine to another person, the operator passes these operating instructions on to that person. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 7 from 83 Original operating instructions... -
Page 8: Warnings
Escape Recommendations for action on how to avoid hazards Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 8 from 83 Original operating instructions... -
Page 9: Symbols
The following table gives an overview of the instruction signs used and their meaning. Symbol Meaning Symbol Meaning Use hearing protection Use protective clothing Wear safety shoes Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 9 from 83 Original operating instructions Version 4... -
Page 10: Description Of The Machine
▪ Free from any adhesive residues ▪ Without residual fibre encapsulation ▪ Without filter ▪ Without damage Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 10 from 83 Original operating instructions Version 4... -
Page 11: Operating Modes
▪ Product waste: Connection spigot for clean air ▪ Product material feed: Connecting piece for contaminated air ▪ Product building: feet or castor wheels Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 11 from 83 Original operating instructions... -
Page 12: Type Plate
Air outlet flange NW 150 BO13928 Air outlet flange NW 300 BO13931 Inlet flange NW 150 BO13949 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 12 from 83 Original operating instructions Version 4... - Page 13 Adapter 4-fold, 4 x NW 100, BO14211 Individually adjustable Adhesive frame BO23144 SNAP A double filtration SNAP T pocket filter Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 13 from 83 Original operating instructions Version 4...
-
Page 14: Negative Pressure Unit Green Dec G 100
2x NW 100 Inlet flange NW 300 BO15422 Adapter 4-fold, 4 x NW 100, BO14211 Individually adjustable Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 14 from 83 Original operating instructions Version 4... -
Page 15: Negative Pressure Unit Green Dec G 200
BO14010 Inlet flange 2 x NW 300 BO19660 Inlet flange 3 x NW 150 BO16629 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 15 from 83 Original operating instructions Version 4... -
Page 16: Negative Pressure Unit Green Dec G 300
Negative pressure unit green dec G 300 Designation Item no. Figure Inlet flange NW 450 BO14695 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 16 from 83 Original operating instructions Version 4... - Page 17 Adhesive frame BO23138 SNAP A double filtration SNAP T pocket filter Filter unit FG 300 SNAP Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 17 from 83 Original operating instructions Version 4...
-
Page 18: Negative Pressure Unit Green Dec G 400 And G 500
Negative pressure unit green dec G 400 and G 500 Designation Item no. Figure Inlet flange NW 450 BO20486 SNAP A double filtration Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 18 from 83 Original operating instructions Version 4... -
Page 19: Technical Data
100 - 120 V 230 V Power consumption 1,2 A Engine power 0.17 kW 0.17 kW Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 19 from 83 Original operating instructions Version 4... -
Page 20: Negative Pressure Unit Green Dec G 100
100 - 120 V 230 V Power consumption Engine power 2x 0.345 kW 0.75 kW Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 20 from 83 Original operating instructions Version 4... -
Page 21: Negative Pressure Unit Green Dec G 300
EU 3 Intermediate filter EU 4 HEPA filter according to EN 1822 class H13 or H14 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 21 from 83 Original operating instructions Version 4... -
Page 22: Negative Pressure Unit Green Dec G 400
EU 3 Intermediate filter EU 4 HEPA filter according to EN 1822 class H13 or H14 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 22 from 83 Original operating instructions Version 4... -
Page 23: Negative Pressure Unit Green Dec G 500
EU 3 Intermediate filter EU 4 HEPA filter according to EN 1822 class H13 or H14 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 23 from 83 Original operating instructions Version 4... -
Page 24: Negative Pressure Unit Green Dec G 50
Length with add-on housing "SNAP 1450 mm Length with extended housing version 1440 mm Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 24 from 83 Original operating instructions Version 4... -
Page 25: Negative Pressure Unit Green Dec G 300
"SNAP Environmental conditions Ambient temperature 0 °C to +45 °C Relative humidity 70 % non-condensing Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 25 from 83 Original operating instructions Version 4... -
Page 26: Noise Emission
By attaching a silencer, the sound level can be reduced, taking into account power losses. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 26 from 83 Original operating instructions... -
Page 27: Filter Description / Classification
610 x 910 x 47 G500 610 x 910 x 47 610 x 910 x 47 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 27 from 83 Original operating instructions Version 4... - Page 28 610 x 910 x 292 G 500 610 x 910 x 292 Handle protection on both sides Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 28 from 83 Original operating instructions Version 4...
-
Page 29: Security
The machine is intended for use in the following applications: Range of application ▪ Refurbishments Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 29 from 83 Original operating instructions Version 4... -
Page 30: Misapplication
▪ Operating the machine in a technically unsound condition, not being aware of safety and hazards and not observing all instructions in the documentation. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 30 from 83... -
Page 31: Tasks And Qualifications Of The Staff
Dispose of machine management company for legally compliant, proper and professional disposal of the machine Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 31 from 83 Original operating instructions Version 4... -
Page 32: Notes On Occupational Health And Safety
Instruction of persons with regard to residual risks This list is not exhaustive and does not claim to be complete. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 32 from 83... -
Page 33: Transport
Warning of residual risks Crushing hazard: Wear safety shoes to protect against running over limbs. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 33 from 83 Original operating instructions Version 4... -
Page 34: Means Of Transportation
Falling of the machine may be possible due to unintentional change of position when loading and unloading onto / from a means of transportation. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 34 from 83 Original operating instructions... -
Page 35: Assembly
Never use the unit without correctly installed filters approved for the respective requirement. Avoid blowing out unfiltered air. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 35 from 83 Original operating instructions... -
Page 36: Operation
No tools are needed to use the machine. Required equipment No equipment is needed to use the machine. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 36 from 83 Original operating instructions... -
Page 37: Negative Pressure Unit With Control Se
Negative pressure too low: Close the supply air opening or adjust the unit upwards. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 37 from 83 Original operating instructions Version 4... -
Page 38: Negative Pressure Units With Sre Connect Control
Turkey, Ukraine, United Kingdom, United States, Uzbekistan, Vietnam, Virgin Islands, U.S., Zambia All other countries not listed on request Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 38 from 83 Original operating instructions... -
Page 39: Create User Account
You will see this page after successful registration. Any number of devices can now be assigned to the user account. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 39 from 83 Original operating instructions... -
Page 40: Add The Machine To The User Account
Tap the "deconta connect" button. The page with a QR code and a key underneath is displayed. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 40 from 83 Original operating instructions... - Page 41 Tap on the button "SCAN QR CODE (our recommendation) or alternatively on the button "SOFTWARE KEY". Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 41 from 83 Original operating instructions Version 4...
- Page 42 "SUBMIT DEVICE KEY", the device is now registered in your user account. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 42 from 83 Original operating instructions...
-
Page 43: Preparation
The display shows the power value in % (Power), the measured negative pressure in Pa, the volume flow in m³/h and the filter pressure in Pa. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 43 from 83... -
Page 44: Automatic Operation
By comparing the entered setpoint with the permanently measured current actual value, the speed of the fan is automatically adjusted, i.e. the fan automatically "goes up" or "goes down". Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 44 from 83 Original operating instructions... -
Page 45: Day / Night Settings (Day / Night)
The standby mode is switched on in the menu by tapping the "Standby" button. In the Standby waiting time field, a delay of 0-600 seconds for switching on can be entered. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 45 from 83... -
Page 46: Consumption
The functions and the status of the filter sensors are shown in the display. The measured values of the filter sensors can be displayed graphically via the "Record" button. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 46 from 83 Original operating instructions... -
Page 47: Service
Assigning a device to a connect account, see 8.8.1. Maintenance Settings in this menu can only be made by qualified deconta service partners. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 47 from 83 Original operating instructions... - Page 48 By tapping the yellow button "Reset factory settings? (reset to factory settings?) the red button "Reset factory settings!" is activated. Tapping this red button resets all settings to factory defaults! Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 48 from 83 Original operating instructions...
-
Page 49: Device Information
By tapping the m³\h button, the unit can be changed to m³/min. 8.8.11 Device information Display of unit information. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 49 from 83 Original operating instructions Version 4... -
Page 50: Alarms
After the fault has been eliminated, the alarm must be acknowledged by tapping the respective button, the colour changes to green. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 50 from 83... - Page 51 ▪ Switching the dust sensors on / off. When sensors switched off, particle concentration in the exhaust air is not monitored! Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 51 from 83 Original operating instructions Version 4...
-
Page 52: Switch Off The Unit
To switch off the unit, tap the red "OFF" button. The unit switches off and the mains plug can be pulled out. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 52 from 83... -
Page 53: Maintenance
Do not use residual fibre binders on the unit. Pull out the mains plug before opening the housing Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 53 from 83 Original operating instructions... -
Page 54: Personal Protective Equipment Required
700 Pascal approx. 1100 Pascal G 400 approx. 1200 Pascal G 500 approx. 1300 Pascal Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 54 from 83 Original operating instructions Version 4... -
Page 55: Control Sre Connect
Maintenance work, including changing / removing the filters, may only be carried out by authorised persons wearing suitable protective clothing. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 55 from 83 Original operating instructions... -
Page 56: Procedure Using The G 300 As An Example
▪ Remove the pre-filter and intermediate filter and dispose of them in accordance with the regulations. PrefilterIntermediate filter Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 56 from 83 Original operating instructions... - Page 57 ▪ Unscrew the Torx screws of the clamping frame with the Torx screwdriver supplied. Torx screw Clamping frame ▪ Remove clamping frame Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 57 from 83 Original operating instructions Version 4...
- Page 58 This can result in the unintentional and uncontrolled release of hazardous substances into the environment due to filter overload (leakage, filter rupture, ...). Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 58 from 83 Original operating instructions...
-
Page 59: Troubleshooting And Fault Clearance
Have the unit repaired by deconta or work pressure unit defective a workshop authorised by deconta. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 59 from 83 Original operating instructions Version 4... -
Page 60: Spare Parts
10.1 Negative pressure unit green dec G 50 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 60 from 83 Original operating instructions Version 4... -
Page 61: Negative Pressure Unit Green Dec G 100
Spare parts 10.2 Negative pressure unit green dec G 100 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 61 from 83 Original operating instructions Version 4... -
Page 62: Negative Pressure Unit Green Dec G 200
Spare parts 10.3 Negative pressure unit green dec G 200 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 62 from 83 Original operating instructions Version 4... -
Page 63: Negative Pressure Unit Green Dec G 300
Spare parts 10.4 Negative pressure unit green dec G 300 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 63 from 83 Original operating instructions Version 4... -
Page 64: Negative Pressure Unit Green Dec G 400
Spare parts 10.5 Negative pressure unit green dec G 400 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 64 from 83 Original operating instructions Version 4... -
Page 65: Negative Pressure Unit Green Dec G 500
Spare parts 10.6 Negative pressure unit green dec G 500 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 65 from 83 Original operating instructions Version 4... -
Page 66: Circuit Diagrams
Circuit diagrams Circuit diagrams 11.1 Negative pressure unit green dec G 50 SE, 110 volt version Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 66 from 83 Original operating instructions Version 4... -
Page 67: Negative Pressure Unit Green Dec G 50 Se, 230 Volt Version
Circuit diagrams 11.2 Negative pressure unit green dec G 50 SE, 230 volt version Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 67 from 83 Original operating instructions Version 4... -
Page 68: Negative Pressure Unit Green Dec G 100 Se, 110 Volt Version
Circuit diagrams 11.3 Negative pressure unit green dec G 100 SE, 110 volt version Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 68 from 83 Original operating instructions Version 4... -
Page 69: Negative Pressure Unit Green Dec G 100 Se, 230 Volt Version
Circuit diagrams 11.4 Negative pressure unit green dec G 100 SE, 230 volt version Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 69 from 83 Original operating instructions Version 4... -
Page 70: Negative Pressure Unit Green Dec G 100 Sre Connect, 230 Volt Version
Circuit diagrams 11.5 Negative pressure unit green dec G 100 SRE connect, 230 volt version Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 70 from 83 Original operating instructions Version 4... -
Page 71: Negative Pressure Unit Green Dec G 200 Se, 110 Volt Version
Circuit diagrams 11.6 Negative pressure unit green dec G 200 SE, 110 volt version Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 71 from 83 Original operating instructions Version 4... -
Page 72: Negative Pressure Unit Green Dec G 200 Se, 230 Volt Version
Circuit diagrams 11.7 Negative pressure unit green dec G 200 SE, 230 volt version Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 72 from 83 Original operating instructions Version 4... -
Page 73: Negative Pressure Unit Green Dec G 200 Sre Connect, 230 Volt Version
Circuit diagrams 11.8 Negative pressure unit green dec G 200 SRE connect, 230 volt version Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 73 from 83 Original operating instructions Version 4... -
Page 74: Negative Pressure Unit Green Dec G 300 Se, 110 Volt Version
Circuit diagrams 11.9 Negative pressure unit green dec G 300 SE, 110 volt version Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 74 from 83 Original operating instructions Version 4... -
Page 75: Negative Pressure Unit Green Dec G 300 Se, 230 Volt Version
Circuit diagrams 11.10 Negative pressure unit green dec G 300 SE, 230 volt version Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 75 from 83 Original operating instructions Version 4... -
Page 76: Negative Pressure Unit Green Dec G 300 Sre Connect, 230 Volt Version
Circuit diagrams 11.11 Negative pressure unit green dec G 300 SRE connect, 230 volt version Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 76 from 83 Original operating instructions Version 4... -
Page 77: Negative Pressure Unit Green Dec G 400 Se, 230 Volt Version
Circuit diagrams 11.12 Negative pressure unit green dec G 400 SE, 230 volt version Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 77 from 83 Original operating instructions Version 4... -
Page 78: Negative Pressure Unit Green Dec G 400 Sre Connect, 230 Volt Version
Circuit diagrams 11.13 Negative pressure unit green dec G 400 SRE connect, 230 volt version Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 78 from 83 Original operating instructions Version 4... -
Page 79: Negative Pressure Unit Green Dec G 500 Se, 230 Volt Version
Circuit diagrams 11.14 Negative pressure unit green dec G 500 SE, 230 volt version Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 79 from 83 Original operating instructions Version 4... -
Page 80: Negative Pressure Unit Green Dec G 500 Sre Connect, 230 Volt Version
Circuit diagrams 11.15 Negative pressure unit green dec G 500 SRE connect, 230 volt version Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 80 from 83 Original operating instructions Version 4... -
Page 81: Storage
/ closing lid We expressly refer to possible additional regional and national regulations when storing the appliance technology. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 81 from 83 Original operating instructions... -
Page 82: Disposal
The waste generated by the machine must be disposed of in a legally compliant, proper and professional manner. Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 82 from 83 Original operating instructions... -
Page 83: Ec Declaration Of Conformity
Boland, Thomas - deconta GmbH - Im Geer 20 - 46419 Isselburg Place: Isselburg Date: 23.02.2023 Negative pressure unit green dec G 50, G 100, G 200, G 300, G 400, G 500 83 from 83 Original operating instructions Version 4...
