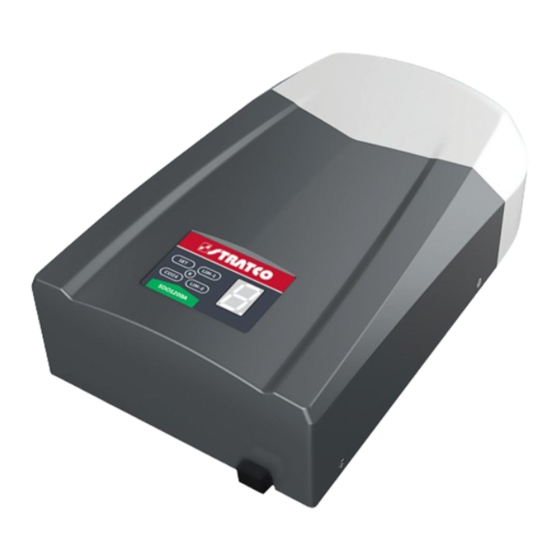

Stratco SDO1200A Installation Instructions And User Manual

Stratco SDO1200A Installation Instructions And User Manual

Sectional & tilting door opener

Advertisement

For model:
SDO1200A
WARNING
Please read the manual carefully before installation and use. The installation of your new door
opener must be carried out by a technically qualified or licensed person. Attempting to install or
repair the door opener without suitable technical qualification may result in severe personal
injury, death and / or property damage.
SECTIONAL & TILTING DOOR OPENER
INSTALLATION INSTRUCTIONS AND USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDO1200A and is the answer not in the manual?

Questions and answers

Summary of Contents for Stratco SDO1200A

  • Page 1 For model: SDO1200A WARNING Please read the manual carefully before installation and use. The installation of your new door opener must be carried out by a technically qualified or licensed person. Attempting to install or repair the door opener without suitable technical qualification may result in severe personal injury, death and / or property damage.
  • Page 2: Table Of Contents

    CONTENTS CONTENTS Important Safety Recommendations..…………………………….………………………….… 1 Basic function introduction………..……………………………………………….……………..2 Special function introduction………….………………………………………………………….2 Installation......………………………………………….………………………….3 Installation (aluminum track)………………………………………….………………………….4 Installation (steel track)………………………………………….…………………………….….6 Installation (sectional steel track)………………………………………….…………………… 8 Installation recommendations……………………………………………………………………10 Basic function setting and applying……………………………………………………………..11 Special function introduction and application………………………………………….……… 13 Manual disengagement…………………………………………………………………………..15 Maintenance……………………………………………………………………………………….15 Final note….……………………………………………………………………………………….16 Important information for the user……………………………………………………………….16 Packing list ………………………………………………………………………………………...16...
  • Page 3: Important Safety Recommendations

    Important safety recommendations FAILURE TO COMPLY WITH THE FOLLOWING SAFETY RECOMMENDATIONS MAY RESULT IN SERIOUS PERSONAL INJURY, DEATH AND / OR PROPERTY DAMAGE. 1. PLEASE READ CAREFULLY AND ADHERE TO ALL SAFETY AND INSTALLATION RECOMMENDATIONS. 2. The opener is designed and manufactured to meet local regulations. The installer must be familiar with local regulations required in respect of the installation of the opener.
  • Page 4: Basic Function Introduction

    Take care when operating the manual release since an open door may fall rapidly due to weak or broken springs, or being out of balance. Frequently examine the installation, in particular check cables, springs and mountings for signs of wear, damage or imbalance. Do not use if repair or adjustment is needed since a fault in the installation or an incorrectly balanced door may cause injury.
  • Page 5: Installation

    Installation Installation 1) Read the instruction carefully. 2) Make sure the door structure is solid and suitable to be motor driven. 1) Read the instruction carefully. 3) Make sure when the door is moving there are no friction point. 2) Make sure the door structure is solid and suitable to be motor driven. 4) The door must be properly balanced and must be easily lowered and raised by hand.
  • Page 6: Installation (Aluminum Track)

    Installation (aluminum track) Before attaching the U brackets (E) (Fig. 4) screw an inverted nut (6mm) (D) on each stud then position the brackets (E) on the studs and secure them in-place using a second 6mm-nut and then lock the brackets to the rail by tightening the inverted lock nuts (D).
  • Page 7 Installation (aluminum track) U bracket A U bracket B U bracket A Fig.6 Fig.7...
  • Page 8: Installation (Steel Track)

    Installation (steel track) Installation (steel track) Ceiling bracket Installation (steel track) bracket Ceiling bracket Ceiling bracket bracket bracket Axis pin U bracket Axis pin ET hanging bracket U bracket Axis pin U bracket ET hanging bracket ET hanging bracket Fig. 8 Fig.
  • Page 9 1. Fixing the wall bracket. Fixing the wall bracket to the wall by 2cm-15cm over the shaft or intermediate bracket (depend on the actual installation space). 2. Fixing the steel track to the wall bracket with axis pin. (Fig. 8) 3.
  • Page 10: Installation (Sectional Steel Track)

    Installation (sectional steel track) Installation (sectional steel track) Installation (sectional steel track) Installation (sectional steel track) The middle rail The middle rail The middle rail The middle rail The end rail The end rail The end rail The end rail The first sleeve The first sleeve The first sleeve...
  • Page 11 Fig. 14 1. As Fig.10, slide the end rail into the 1st sleeve, slide the middle rail into the 1st sleeve; 2. As Fig.11, slide the 2nd sleeve to the other end of middle rail, slide the top rail into the 2nd sleeve;...
  • Page 12: Installation Recommendations

    Installation recommendations Remember there are specific standards that have to be strictly followed regarding the safety rules of electrical installations and automatic gates and doors. As for the legal requirements and standards that must be adhered to, please take notice of the following points to ensure maximum safety and reliability of your installation.
  • Page 13: Basic Function Setting And Applying

    Basic function setting and applying Basic function setting and applying 1. Itinerary setting Opening & closing force self-learning 1. Itinerary setting Opening & closing force self-learning Press ‘SET’ button and hold on until the LED displays figure ‘1’, then adjust the up limit by pressing ‘LIM-1’...
  • Page 14 3. Safety reverse force adjustment Press ‘SET’ button and hold on until the LED displays ‘3’. It’s under force adjustment mode. Press ‘LIM-1’ button to increase the force and ‘LIM-2’ button to decrease the force. The maximum force is 9 and the minimum is 1. Press ‘SET’ button to confirm.
  • Page 15: Special Function Introduction And Application

    Special function introduction and application Special function introduction and application 1. The O/S/C interface available Add another O/S/C button to open or close the door. 1. The O/S/C interface available 2. The photo beam interface available Add another O/S/C button to open or close the door. 2.
  • Page 16 Fig. 17 Fig. 18...
  • Page 17: Manual Disengagement

    Manual disengagement The opener is equipped with a manual release cord to disengage shuttle and move door by hand while holding the handle down (Fig.19). Pull on the handle to disengage the shuttle. To re-engage the door simply run opener in automatic mode or move door by hand until the trolley engages in the chain shuttle.
  • Page 18: Final Note

    Final notes This manual is only used by technical persons who are qualified to carry out the installation. No given information in this manual can be considered of any interest to the end user. It is important for the installer to show their clients correct operation using of the opener including the using of manual disengagement cord.
  • Page 19: Technical Specification

    GDO WiFi CONNECTION Read First Before the WiFi function can be activated, the garage door opener opening and closing position must have been set. 1. Ensure your router, smart phone and device are as close as possible. Make sure that your WiFi has a 2.4G network enabled.
  • Page 20 2. Open the App and create a new account according to the instructions. If you already have an account, log in directly. 1) Click the “Register” button 2) Fill in your mobile number 3) Click the “Get verification code” button 4) Fill in your received code from your mobile phone 5) Set password Fig.
  • Page 21 4. Choose the appropriate WiFi network, enter the password, and then click the “Confirm” button (see Fig. 32). The opener will then connect to your network (see Fig. 33). This may take up to 2 minutes. Fig. 32 Fig. 33 Fig.
  • Page 22 Configuration You can click the right top corner edit button (see below Fig. 36) to get more functions. Fig. 36 You can change the Device Name and Device Location. You can test if the device is connected by clicking “Check Device Network”. You can also “Share Device”, “Create Groups”...
  • Page 23 Changing Account or Device If you need to use a new mobile phone to control the opener, log in with your original app account by your new mobile phone. If you also need to change to a new account, you have two options. Option 1: Remove Device from App Click “Remove Device”...
  • Page 24 16m2 12m2 14m2 16m2 « SCAN THIS QR CODE TO FIND A STRATCO NEAR YOU 1300 155 155 stratco.com.au All brands and logos/images accompanied by ® or ™ are trade marks of Stratco (Australia) Pty Limited. ® Copyright March 2021...
