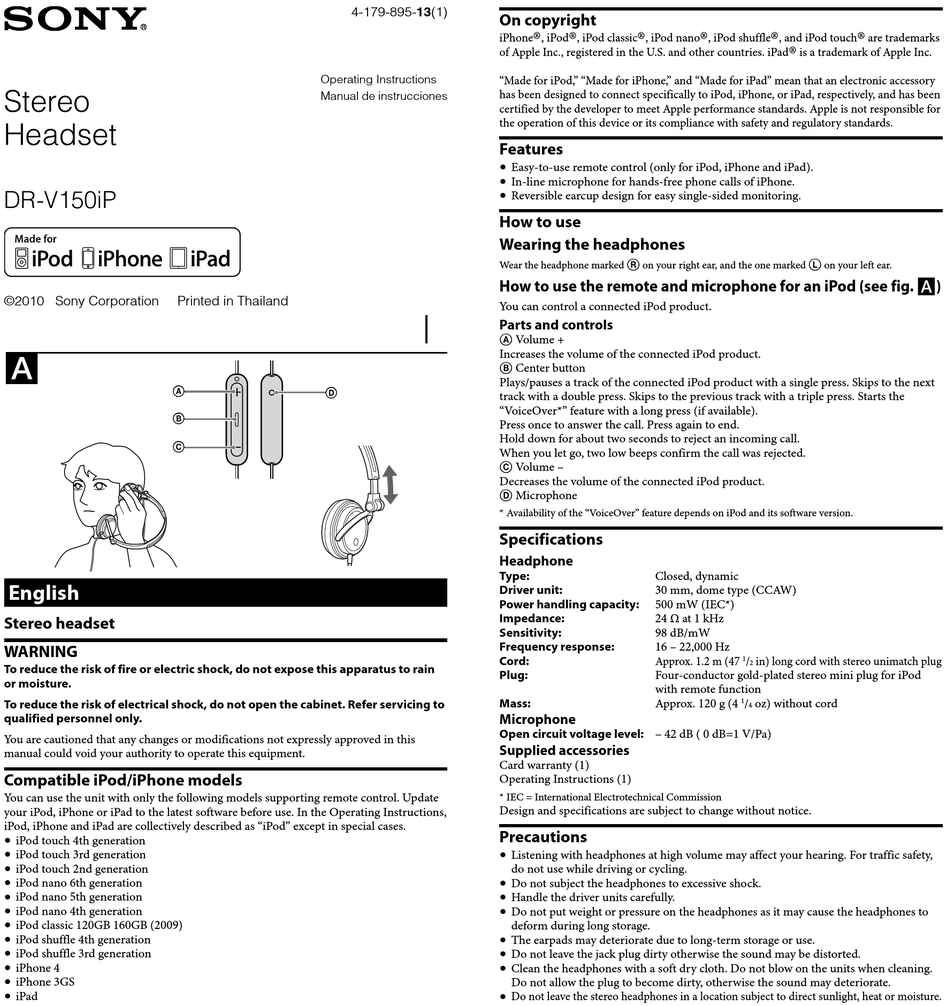

Sony DR-V150iP Operating Instructions

Stereo
Headset
DR-V150iP
©2010 Sony Corporation Printed in Thailand




English
Stereo headset
WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to rain
or moisture.
To reduce the risk of electrical shock, do not open the cabinet. Refer servicing to
qualified personnel only.
You are cautioned that any changes or modifications not expressly approved in this
manual could void your authority to operate this equipment.
Compatible iPod/iPhone models
You can use the unit with only the following models supporting remote control. Update
your iPod, iPhone or iPad to the latest software before use. In the Operating Instructions,
iPod, iPhone and iPad are collectively described as "iPod" except in special cases.
 iPod touch 4th generation
 iPod touch 3rd generation
 iPod touch 2nd generation
 iPod nano 6th generation
 iPod nano 5th generation
 iPod nano 4th generation
 iPod classic 120GB 160GB (2009)
 iPod shuffle 4th generation
 iPod shuffle 3rd generation
 iPhone 4
 iPhone 3GS
 iPad
4-179-895-13(1)
On copyright
iPhone
of Apple Inc., registered in the U.S. and other countries. iPad
Operating Instructions "Made for iPod, " "Made for iPhone, " and "Made for iPad" mean that an electronic accessory
has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been
Manual de instrucciones
certified by the developer to meet Apple performance standards. Apple is not responsible for
the operation of this device or its compliance with safety and regulatory standards.
Features
 Easy-to-use remote control (only for iPod, iPhone and iPad).
 In-line microphone for hands-free phone calls of iPhone.
 Reversible earcup design for easy single-sided monitoring.
How to use
Wearing the headphones
Wear the headphone marked
How to use the remote and microphone for an iPod (see fig. )
You can control a connected iPod product.
Parts and controls
 Volume +
Increases the volume of the connected iPod product.
 Center button
Plays/pauses a track of the connected iPod product with a single press. Skips to the next

track with a double press. Skips to the previous track with a triple press. Starts the
"VoiceOver*" feature with a long press (if available).
Press once to answer the call. Press again to end.
Hold down for about two seconds to reject an incoming call.
When you let go, two low beeps confirm the call was rejected.
 Volume –
Decreases the volume of the connected iPod product.
 Microphone
* Availability of the "VoiceOver" feature depends on iPod and its software version.
Specifications
Headphone
Type:
Driver unit:
Power handling capacity:
Impedance:
Sensitivity:
Frequency response:
Cord:
Plug:
Mass:
Microphone
Open circuit voltage level: – 42 dB ( 0 dB=1 V/Pa)
Supplied accessories
Card warranty (1)
Operating Instructions (1)
* IEC = International Electrotechnical Commission
Design and specifications are subject to change without notice.
Precautions
 Listening with headphones at high volume may affect your hearing. For traffic safety,
 Do not subject the headphones to excessive shock.
 Handle the driver units carefully.
 Do not put weight or pressure on the headphones as it may cause the headphones to
 The earpads may deteriorate due to long-term storage or use.
 Do not leave the jack plug dirty otherwise the sound may be distorted.
 Clean the headphones with a soft dry cloth. Do not blow on the units when cleaning.
 Do not leave the stereo headphones in a location subject to direct sunlight, heat or moisture.
® ® ®
, iPod , iPod classic , iPod nano

on your right ear, and the one marked
Closed, dynamic
30 mm, dome type (CCAW)
500 mW (IEC*)
24 Ω at 1 kHz
98 dB/mW
16 – 22,000 Hz
Approx. 1.2 m (47
Four-conductor gold-plated stereo mini plug for iPod
with remote function
Approx. 120 g (4
do not use while driving or cycling.
deform during long storage.
Do not allow the plug to become dirty, otherwise the sound may deteriorate.
® ® ®
, iPod shuffle , and iPod touch are trademarks
®
is a trademark of Apple Inc.

on your left ear.
/ in) long cord with stereo unimatch plug
1
2
/ oz) without cord
1
4
