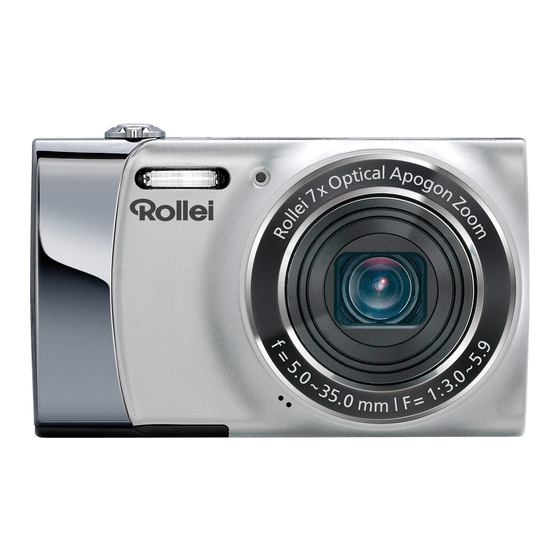

Rollei Powerflex 470 User Manual
  1. Manuals
  2. Brands
  3. Rollei Manuals
  4. Digital Camera
  5. Powerflex 470
  6. User manual

Rollei Powerflex 470 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User GUide
for German | enGlish | spanish | italian | french | portuGuese | Greek |
Dutch | polish | russian | traD. chinese | simplifieD chinese | korean | Japanese |
turkish | hunGarian | Danish | sweDish | norweGian | finnish
Rollei
Powerflex 470

Advertisement

Table of Contents
loading

Related Manuals for Rollei Powerflex 470

Summary of Contents for Rollei Powerflex 470

  • Page 1 German | enGlish | spanish | italian | french | portuGuese | Greek | Dutch | polish | russian | traD. chinese | simplifieD chinese | korean | Japanese | turkish | hunGarian | Danish | sweDish | norweGian | finnish Rollei Powerflex 470...
  • Page 2 FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 3 READ THIS FIRST Trademark Information ® ® Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. ® Pentium is a registered trademark of Intel Corporation. Macintosh is a trademark of Apple Inc. SD™ is a trademark. SDHC™ is a trademark. Other names and products may be trademarks or registered trademarks of their respective owners.
  • Page 4 SAFETY INSTRUCTIONS Read and understand all Warnings and Cautions before using this product. Warnings If foreign objects or water have entered the camera, turn the power off and remove the battery. Continued use might cause fire or electric shock. Consult the store of purchase.
  • Page 5 Cautions Insert the battery paying careful attention to the polarity (+ or –) of the terminals. Inserting the battery with its polarities inverted might cause fire and injury, or damage to the surrounding areas due to the battery rupturing or leaking. Do not fire the flash close to anyone’s eyes.
  • Page 6 Notes on Battery Usage When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below: Use only the specified battery (3.7V). Avoid extremely cold environments as low temperatures can shorten the battery life and reduce camera performance. When you are using a new rechargeable battery or a rechargeable battery that has not been used for an extended period of time (the battery that passed the expiry date is an exception), it may affect the number of images that can be captured.

  • Page 7: Table Of Contents

    CONTENTS INTRODUCTION 25 Protecting Images Overview 26 DPOF Settings Package Contents 27 Erasing Images GETTING TO KNOW YOUR 28 MENU OPTIONS CAMERA 28 Capture Menu Front View 31 Video Menu Rear View 32 Playback Menu LCD Monitor Display 34 Setup Menu 11 GETTING STARTED 36 TRANSFERRING FILES TO 11 Preparation...

  • Page 8: Introduction

    INTRODUCTION Overview Congratulations on your purchase of the new digital camera. Capturing high-quality digital images is fast and easy with this state-of-the-art smart camera. Equipped with a 14.0-megapixel CCD, this camera is capable of capturing images with a resolution of up to 4288 x 3216 pixels. Package Contents Carefully unpack your camera and ensure that you have the following items: Common Product Components:...

  • Page 9: Getting To Know Your Camera

    GETTING TO KNOW YOUR CAMERA Front View 1. Zoom lever 2. Flash 3. ON/OFF Power button 4. Status LED 5. Self-timer LED 6. Microphone 7. Lens Rear View A. LCD monitor B. USB and AV OUT terminal C. Strap holder D.

  • Page 10: Lcd Monitor Display

    LCD Monitor Display Capture mode 00214 00214 00214 Zoom status Available number of shots Image Stab. Storage media SD/SDHC memory card Battery condition Full battery power Medium battery power Low battery power No battery power Focus setting 2011.03.01 2011.03.01 2011.03.01 13:15 13:15 13:15...
  • Page 11 Video mode 1. Zoom status 2. Storage media 3. Battery condition 4. Focus setting 5. Flash off 6. Self-timer icon 7. Video resolution 8. Elapsed time / Available recording time 9. Main focus area 00:00:00 / 02:28:49 00:00:00 / 02:28:49 2011.03.01 2011.03.01 13:15...

  • Page 12: Getting Started

    GETTING STARTED Preparation 1. Attach the camera strap. 2. Open the battery/memory card cover. 3. Insert the supplied battery with correct orientation as shown (label side front). 4. Insert an SD/SDHC memory card (Optional). Be sure to format the memory card with this camera before its initial usage. 5.

  • Page 13: Initial Settings

    Initial Settings The language & date/time needs to be set if and when: The camera is turned on for the first time. The camera is turned on after leaving the camera without the battery for an extended period of time. 1.
  • Page 14 Choosing the Language Specify in which language menus and messages are to be displayed on the LCD monitor. 1. Press the MODE button, and set the camera mode to [ ] or [ ]; or press the 7 button. 2. Press the MENU button. 3.

  • Page 15: Capture Mode

    CAPTURE MODE Capturing Images Your camera is equipped with a 3.0” full color TFT LCD monitor to help you compose images, playback recorded images/video clips or adjust menu settings. 1. Press the ON/OFF button to turn the power on. 2. Press the MODE button, and set the camera mode to [ 3.

  • Page 16: Setting The Scene Mode

    Setting the Scene Mode By simply selecting one of the available scene modes, you can capture the image with the most appropriate settings. 1. Press the MODE button, and set the camera mode to [ ], and press the SET button.
  • Page 17 Scene mode Description Select this mode when you want to capture an image that Portrait Man makes a man stand out against a blurred background. Select this mode when you want to capture an image that Portrait Lady makes a lady stand out against a blurred background. Select this mode when you want to capture an image with Landscape infinity focus, hard sharpness and high saturation.

  • Page 18: Taking Images With Intelligent Scene Mode

    Taking Images with Intelligent Scene mode In this Intelligent Scene mode, the camera can sense the ambient conditions and automatically select the ideal shooting mode. 1. Press the MODE button, and set the camera mode to [ ], and press the SET button.

  • Page 19: Taking And Combining Panoramic Pictures

    Taking and Combining Panoramic Pictures Pictures are manually shot, and the camera automatically combines pictures in the camera. 1. Press the button, and set the camera mode to [ ], and press the MODE button. 2. Select [Panorama PanCapture] with the buttons, and press the button.

  • Page 20: Recording Shots Using Face Detection Technology

    Recording Shots using Face Detection Technology Face Detection Technology can identify and focus on the human faces in the image. 1. Press the MODE button, and set the camera mode to [ 2. Press the button, and select [ ] icon with the buttons.

  • Page 21: Taking Images With Interval Capture Mode

    Taking images with Interval Capture mode This mode is used to capture continuous images at a preselected time interval. 1. Press the MODE button, and set the camera mode to [ 2. Press the MENU button, and select [Capture Md.] with the buttons, and press the SET button.

  • Page 22: Video Mode

    VIDEO MODE Recording Video Clips This mode allows you to record video clips at a resolution of 320 x 240 / 640 x 480 / 720p pixels. 1. Press the MODE button, and set the camera mode to [ 2. Compose the image. 3.

  • Page 23: Playback Mode

    PLAYBACK MODE Playing Back Still Images You can play back the still images on the LCD monitor. 1. Press the 7 button. The last image appears on the screen. 2. The images can be displayed in forward or reverse sequence with the buttons.

  • Page 24: Removing Red-Eye

    Removing Red-eye You can use this function to remove the red-eye effect after an image is taken. 1. Press the 7 button. The last image appears on the screen. 2. Select the image that you want to edit with the buttons.

  • Page 25: Attaching Voice Memos

    Attaching Voice Memos A maximum of 30 seconds of audio can be recorded as a memo for captured still images. The voice memo can be recorded only once. 1. Press the 7 button. The last image appears on the screen. 2.

  • Page 26: Protecting Images

    Protecting Images Set the data to read-only to prevent images from being erased by mistake. 1. Press the 7 button. Setup The last image appears on the screen. 2. Select the image that you want to protect with the Date/Time buttons.

  • Page 27: Dpof Settings

    DPOF Settings DPOF is the abbreviation for Digital Print Order Format, which allows you to embed printing information on your memory card. You can select the images to be printed and how many prints to make with the DPOF menu in the camera and insert the memory card to the card compatible printer.

  • Page 28: Erasing Images

    Erasing Images Erasing a single image / Erasing all images 1. Press the 7 button. The last image appears on the screen. 2. Select the image you want to erase with the buttons. 3. Press the MENU button. 4. Select [Delete] with the buttons, and press the SET button.

  • Page 29: Menu Options

    MENU OPTIONS Capture Menu This menu is for the basic settings to be used when capturing still images. AUTO MENU MENU 1. Press the ON/OFF button to turn the power on. 2. Press the MODE button, and set the camera mode to any scene mode. 3.
  • Page 30 Color This sets the color of the image that will be captured. * Standard / Vivid / Sepia / B&W / Blue / Red / Green / Yellow / Purple Saturation This sets the saturation of the image that will be captured. * High / Standard / Low Metering This sets the metering method for calculating the exposure.
  • Page 31 * Burst 30fps: Permits continuous capture of up to 30 images in the resolution 640 x480 within 1 second. * Interval capture: Captures continuous images at a preselected time interval. Quick Shot If this function is set to “On”, the camera takes a quick shot without focusing. * On / Off Digi.

  • Page 32: Video Menu

    Video Menu This menu is for the basic settings to be used when recording video clips. MENU MENU 1. Press the MODE button, and set the camera mode to [ 2. Press the MENU button to enter the [Video] menu. 3.

  • Page 33: Playback Menu

    Playback Menu In the [7] mode, choose which settings are to be used for playback. MENU MENU 1. Press the 7 button. 2. Press the MENU button. 3. Select the desired option item with the buttons, and press the SET button to enter its respective menu.
  • Page 34 Voice Memo Refer to the section in this manual titled “Attaching Voice Memos” for further details. Resize Resizes a previously saved image. Resizing replaces the original image with the changed image. It is only possible to resize to a smaller size. Qual.

  • Page 35: Setup Menu

    Setup Menu Set your camera’s operating environment. MENU MENU ]; or press the 7 1. Press the MODE button, and set the camera mode to [ ] or [ button. 2. Press the MENU button. 3. Select the [Setup] at the end of the Menu with the buttons, and press the SET button.
  • Page 36 Video Out This sets your camera to match the system of the equipment that you are going to connect to the camera. * NTSC / PAL Fr. No. Reset This creates a new folder. The captured images are recorded to the newly created folder from number 0001.

  • Page 37: Transferring Files To Your Computer

    TRANSFERRING FILES TO YOUR COMPUTER System Requirement Windows Macintosh Pentium III 1GHz or equivalent PowerPC G3/G4/G5 Windows 7/XP/Vista OS 10.3.9 or later 512MB RAM 256MB RAM (512 MB recommended) 150MB available hard disk space 128MB available hard disk space CD-ROM drive CD-ROM drive Available USB port Available USB port...

  • Page 38: Editing Software Installation

    EDITING SOFTWARE INSTALLATION Softwares are included on the CD-ROM: ArcSoft MediaImpression™ - Easily, creatively, and productively manage your multimedia files. Create your own movies or photo slide shows, and share your photo, video and music files easily through simple email attachments or popular photo printing and video sharing websites.

  • Page 39: Specifications

    SPECIFICATIONS Item Description Image sensor 1/2.33” CCD sensor (14.0 megapixels) Still image 14M (4288X3216), 8M(3264 x 2448), 4M (2304x1728), Image resolution 2M(1600 x 1200), VGA(640 x 480) Video clip HD(720p), VGA(640x480), QVGA(320x240) LCD monitor 3.0” full color TFT LCD (230K pixels) Recording media Supports SD/SDHC memory card (1 ~ 32GB) (optional) File format...

  • Page 40: Appendix

    APPENDIX Possible Number of Shots Possible number of shots (still image) The table shows the approximate shots that you can capture at each setting based on the capacity of the SD/SDHC memory card. SD/SDHC memory card capacity Size Quality 16GB 32GB SDHC SDHC...

  • Page 41: Troubleshooting

    Troubleshooting Refer to the symptoms and solutions listed below before sending the camera for repairs. If the problem persists, contact your local reseller or service center. Symptom Cause Solutions / Corrective Actions The battery is not inserted. Insert the battery correctly. The power does not come The battery is exhausted.
  • Page 42 A. Information on Disposal for Users (private households) 1.In the European Union Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.
  • Page 43 RCP-Technik GmbH & Co. KG Tarpen 40 /Gebäude 6b D-22419 Hamburg Hotline +49 (0)6 31/3 42 84 49 welcome @ rcp-technik.com www.rollei.com Subject to technical changes!
