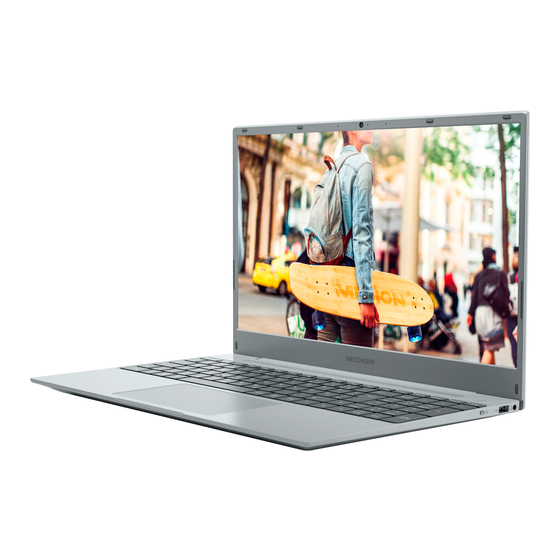

- Page 1 Instruction Manual 39.6 cm / 15.6" Notebook...
-
Page 2: Table Of Contents
Table of Content Information about these Operating Instructions ........4 1.1. Explanation of Symbols ..................4 1.2. Proper Use........................ 6 EU Declaration of Conformity ..............6 2.1. Information on WLAN ..................7 Information on Trademarks ................ 8 Safety Instructions ..................8 4.1. - Page 3 Sound System .................... 30 15.1. External Audio Connections ................30 Network Operation ..................30 16.1. Wi-Fi (Wireless Network) ...................30 16.2. Bluetooth® ......................32 16.3. Airplane Mode ......................32 microSD Card Reader ................32 17.1. Inserting a Memory Card ..................32 17.2. Removing Memory Cards .................33 USB Port .....................
-
Page 4: Information About These Operating Instructions
1. Information about these Operating Instructions Thank you for choosing our product. We hope you enjoy using it. Read the safety instructions and all other instructions carefully before using the device for the first time. Note the warnings on the device and in the operating instructions. - Page 5 Additional information on using the device. Please follow the guidelines in the operating instructions. • Bullet point/information on operating steps and results Tasks to be performed Declaration of conformity (see section ‘Declaration of conformity’): Products that feature this symbol meet the requirements of the EC directives.
-
Page 6: Proper Use
• Do not use the device in extreme environmental conditions. 2. EU Declaration of Conformity MEDION AG hereby declares that this product conforms with the essential requirements and the remaining relevant regulations: •... -
Page 7: Information On Wlan
AT = Austria, BE = Belgium, CZ = Czech Republic, DK = Denmark, EE = Estonia, FR = France, DE = Germany, IS = Iceland, IE = Ireland, IT = Italy, EL = Greece, ES = Spain, CY = Cyprus, LV = Latvia, LT = Lithuania, LU = Luxembourg, HU = Hungary, MT = Malta, NL = Netherlands, NO = Norway, PL = Poland, PT = Portugal, RO = Romania, SI = Slovenia, SK = Slovakia, TR = Turkey, FI = Finland, SE = Sweden, CH = Switzerland, UK = United Kingdom, HR = Croatia... -
Page 8: Information On Trademarks
Inc. and are used by MEDION under licence. The USB™ word mark and logos are registered trademarks of USB Implementers Forum, Inc. and are used by MEDION under licence. Other trademarks and brand names are the property of the respective owner. -
Page 9: Operational Safety
WARNING! Impairment to hearing! Listening through earphones or headphones at excessive volume levels, as well as changes to the basic settings of the equaliser, drivers, software or operating system generates excessive acoustic pressure and can lead to damage or loss of hearing. ` Before pressing play, set the volume to the lowest setting. - Page 10 ` Never tamper with the mains adapter or live parts! The slots and openings on the device are for ventilation purposes. ` Do not cover these openings, as this could cause the device to overheat or even catch fire. ` Do not insert anything into the device through the slots and openings.
-
Page 11: Never Carry Out Repairs Yourself
4.3. Never carry out repairs yourself CAUTION! Risk of electric shock! There is a risk of electric shock if repairs are not carried out by qualified personnel! ` Never open the housing of the notebook or the mains adapter! ` In the event of a fault, please contact the Service Centre or an approved repair specialist. -
Page 12: Environmental Requirements
dissipation on the underside can result in uncomfortable overheating. • This device is not suitable for use with VDU workstations. 4.5. Environmental Requirements • The notebook is most reliably operated at an ambient temperature between 5 °C (+41 °F) and 30 °C (+86 °F) and at a relative humidity between 20% and 80% (without condensation). -
Page 13: Power Supply
4.6. Power Supply CAUTION! Risk of electrical shock! There are live components inside this AC adapter. In the event of an unintentional short circuit of this AC adapter, there is a risk of electrical shock or fire! ` Do not open the housing of the AC adapter. ` Do not cover the mains adapter. -
Page 14: Notes On The Battery
NOTICE! Risk of damage! Unsuitable mains adapters may cause damage to the product. ` Only use the mains adapter supplied in order to charge the device. 4.7. Notes on the Battery To extend your battery’s performance and lifespan and ensure safe operation, you should also observe the guidelines below: •... -
Page 15: Information About The Touchpad
• Please note that only shielded cables that are shorter than 3 metres may be connected to the external interfaces of this notebook. • Do not exchange the supplied cable for another one. Use only the supplied cable as this cable has been extensively tested in our laboratory. -
Page 16: Protecting The Display
4.10. Protecting the Display The display is the most sensitive component part of the device as it consists of thin glass. The display can break if subjected to too much stress. • Do not allow any objects to drop onto the display. •... -
Page 17: Ergonomics
4.12. Ergonomics Avoid dazzle, reflections and a light-dark contrast that is too strong in order to protect your eyes. The notebook should never be placed next to a window because this is the brightest part of the room in daylight. This brightness can make it more difficult for the eyes to adjust to the darker display. - Page 18 50 - 60 cm 40 - 45° 90° In general – change your position frequently (around every 20-30 minutes) and • take regular breaks to avoid tiredness. Back – when sitting at your workstation, your back must be supported by your •...
-
Page 19: Included With Your Notebook
5. Included with your Notebook Risk of suffocation! Packaging material is not a toy! There is a risk of suffocation if plastic packaging is swallowed or used inappropriately! ` Keep packaging material, e.g. plastic film or bags, away from children. ` Check your purchase to ensure all items are included and contact us within 14 days of purchase if anything is missing. -
Page 20: Views And Description Of The Controls
7. Views and description of the controls 7.1. Open Notebook (image similar) -
Page 21: Left Side
Webcam Webcam LED Microphones Display Stereo loudspeakers ON/OFF switch with operationg LED Keyboard Touchpad Fingerprint sensor (optional) 7.2. Left Side 11 12 13 (image similar) LED of the power adapter connector At a charge level of 0 - 94%, the LED lights red. At a charge level of 95%, the LED lights green. -
Page 22: Right Side
7.3. Right Side 16 17 (image similar) “Private mode” slider switches the webcam and internal microphone on/off “Private Mode” LED: lights up when the “Private Mode” is on. USB Port 2.0 Audio combi connection (mic in, headphones) 7.4. Bottom View (image similar) Slot for flash memory expansion module (M.2 2280 SATA) Reset button... -
Page 23: Power Supply
8. Power Supply 8.1. On/Off Switch ` Open the notebook and hold the on/off switch down briefly to switch the notebook on or off. If it is no longer possible to switch off the notebook via the software, keep the On/Off switch pressed down for about 10 seconds. Do not switch your notebook off while the hard drive is being accessed. -
Page 24: Starting The Notebook
The operating system will be loaded from the hard drive. The loading process takes a little longer during the initial setup. Once all the necessary data has been entered, the operating system will be set up. The operating system is fully loaded once the Windows ®... -
Page 25: Ac Power
In the first few days following the initial installation, Windows® may update and configure data (e.g. with new updates) which can result in delays in the notebook shutting down and starting up. For this reason, do not switch the notebook off prematurely. This may adversely affect the installation. - Page 26 11.1.1. Shipping Mode The notebook is in secure transport mode after being unpacked; this prevents accidental switching on and discharging the battery. ` Before switching on for the first time, you must connect the AC adapter and wait around 8 seconds before activating the on/off switch. 11.1.2.
-
Page 27: Power Management (Power Options)
12. Power Management (Power Options) Your notebook offers automatic and user selectable power-saving and energy functions that can be used to optimize battery life and reduce the overall operating costs. If you need help with the power management of your notebook, press the F1 key for Windows Help. -
Page 28: Connecting An External Monitor
` Always hold the display firmly in the middle when folding it open, adjusting the position and closing it. ` Do not fold open the display by an angle of more than 120°. The opening and closing of the display can be assigned different functions, e.g. power save, hibernate and shut down, via Settings ->... -
Page 29: Touchpad
Short Cuts Description Volume up Fn + F4 Increases the playback volume. Brightness down Fn + F5 Reduces the brightness of the display. Brightness up Fn + F6 Increases the brightness of the display. Fn + F7 Opens the Windows settings Fn + F8 not available Fn + F9... -
Page 30: Sound System
15. Sound System 15.1. External Audio Connections Using the external connections provides you with an ideal opportunity to connect your Notebook to external devices. The Fn+F3 and Fn+F4 keyboard shortcut enables you to adjust the volume. You can change the settings by right-clicking on the speaker symbol in the taskbar. WARNING! Impairment to hearing! Listening through earphones or headphones at... - Page 31 WARNING! Danger from radio signals and electromagnetic radiation! Radio signals and electromagnetic radiation can affect the functionality of sensitive electronic devices, such as pacemakers or implanted cardioverter defibrillators. ` Keep the product at least 20 cm away from these devices, as radio signals and electromagnetic radiation may affect their functionality.
-
Page 32: Bluetooth
16.2. Bluetooth® Bluetooth technology is used to wirelessly bridge short distances. Bluetooth devices transfer data via radio so that computers, mobile phones, printers, keyboards, mice and other devices can communicate with one another wirelessly. Bluetooth wireless technology has numerous possible applications. A few of them are listed below: •... -
Page 33: Usb Port
17.2. Removing Memory Cards ` First, log off the memory card to prevent data loss. ` To remove memory cards, first push these into the socket to release the safety catch. ` Now pull the card out of the slot and store it properly. Memory cards are consumables and must be replaced after a long period of use. -
Page 34: Slot For Flash Memory Expansion Module M.2 2280
19. Slot for flash memory expansion module M.2 2280 Your notebook comes with a slot for a flash memory expansion module. The free slot only supports SATA. (image similar) 19.1. Safety information • Switch off your notebook before removing the cover. •... -
Page 35: Securing Your Notebook
` Replace the cover and screw it tight. If the new memory does not include an operating system, you must install an appropriate operating system. 19.3. Inserting the flash memory expansion module Proceed as follows: ` Switch off the notebook by shutting it down normally. Turn the notebook over and place it on a stable and level surface to prevent the notebook from falling. -
Page 36: Resetting The Notebook To Its Factory Settings
20.2. Fingerprint Sensor (optional) 20.2.1. Setting up the fingerprint sensor ` Open the Start menu and click/tap on Settings -> Accounts -> Sign-in options. ` Click/tap on the Set up button under the heading Fingerprint in the section Windows Hello. If you have not yet created a PIN for the sign-in process, this needs to be created first. -
Page 37: System Recovery With Powerrecover (Optional)
21.1. System recovery with PowerRecover (optional) In the event of problems with the installation or other software problems which make it necessary to reinstall the software, Windows® offers three options for reinstalling Windows® on your notebook. First ensure that you have backed up all important data and programs. 21.1.1. -
Page 38: System Restore With Windows Recovery Options
21.2. System Restore with Windows Recovery Options If you experience problems with your device, you can refresh or reset it. Windows is reinstalled when you refresh your device. Your personal files and settings are retained. Windows is also reinstalled when you reset your device. However, your files, settings and apps –... -
Page 39: Uefi Configuration
Always perform any type of recovery using AC power. If you have forgotten the Windows password for your device, you can also restore the notebook from the login screen after rebooting the device. To do this, hold down the Shift key while on the login screen and then select Power >... -
Page 40: Faqs - Frequently Asked Questions
23. FAQs – Frequently Asked Questions How do I activate Windows ® • Windows ® is activated automatically as soon as an Internet connection is established. The time is incorrect. ` Click with the right mouse button on the clock in the bottom right corner of your screen and then click on “Adjust date/time”. - Page 41 The touchpad is not working. ` To activate the touchpad, press the Fn+ESC keyboard shortcut. Apps (e.g. the weather app) cannot be displayed as live tiles. ` Check the date, time zone and time. Problem recognising an additional hard drive If you add an additional hard drive to your device, the drive may not be immediately visible under Windows.
-
Page 42: Customer Service
So-called optional driver updates can be loaded and installed via the Windows Update function. The current drivers are available on our homepage at www.medion.com. Please use the service address for the country where the device was purchased. -
Page 43: Transport
24.5. Transport Please note the following information if you wish to transport the Notebook: ` Switch the notebook off. ` After transporting the notebook, wait until the appliance has reached room temperature before switching it on. Large changes in temperature or fluctuations in humidity can cause moisture build-up within the notebook due to condensation. -
Page 44: Storage When Not In Use
` Under no circumstances must liquids penetrate inside the device as this may cause damage. ` Do not expose the screen to strong sunlight or ultraviolet light. NOTICE! Risk of damage! To avoid damaging the device, never allow the plug contacts to come into contact with water. -
Page 45: Upgrading/Modifying And Repair
` Now confirm the following warning with Enter and unplug the laptop from the mains. The notebook closes down and is now in transport mode. Read more about this in the „Transport Mode“ chapter. 25. Upgrading/Modifying and Repair Upgrades and modifications to your notebook should only be carried out by qualified specialists. -
Page 46: Information On Display Errors
However, these approaches were mostly very complicated and varied from one manufacturer to the next. When handling warranty issues for all of its display products, MEDION therefore adheres to the strict and transparent requirements of the standard EN ISO 9241-307, Class II; which has been briefly summarised below. - Page 47 EN ISO 9241-307, error class II Cluster Cluster Resolution Type 1 Type 2 Type 3 Type 1, type 2 Type 3 1024 x 768 1280 x 800 1280 x 854 1280 x 1024 1366 x 768 1400 x 1050 1600 x 900 1920 x 1080 1920 x 1200...
-
Page 48: Service Information
In our Service Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service Community at http://community.medion.com. • Alternatively, use our contact form at www.medion.com/contact. -
Page 49: Legal Notice
30. Privacy statement Dear customer, We wish to inform you that we, MEDION AG, Am Zehnthof 77, 45307 Essen, Germa- ny process your personal data as a data controller. For matters regarding data protection, we are supported by our company data pro- tection officer who can be contacted at MEDION AG, Datenschutz, Am Zehnthof 77, D –... -
Page 50: Index
31. Index Keyboard ............28 Shortcuts ..........28 Battery Mode ..........25 Charging the Battery ......26 Licence Agreement ........24 Discharging the Battery ...... 26 Bluetooth®............. 32 Network Operation ........30 Requirements ......... 31 Card Reader Wi-Fi (Wireless Network) ....30 Inserting a Memory Card ....
