Vip2 VK2-ENCODER User Manual page 7

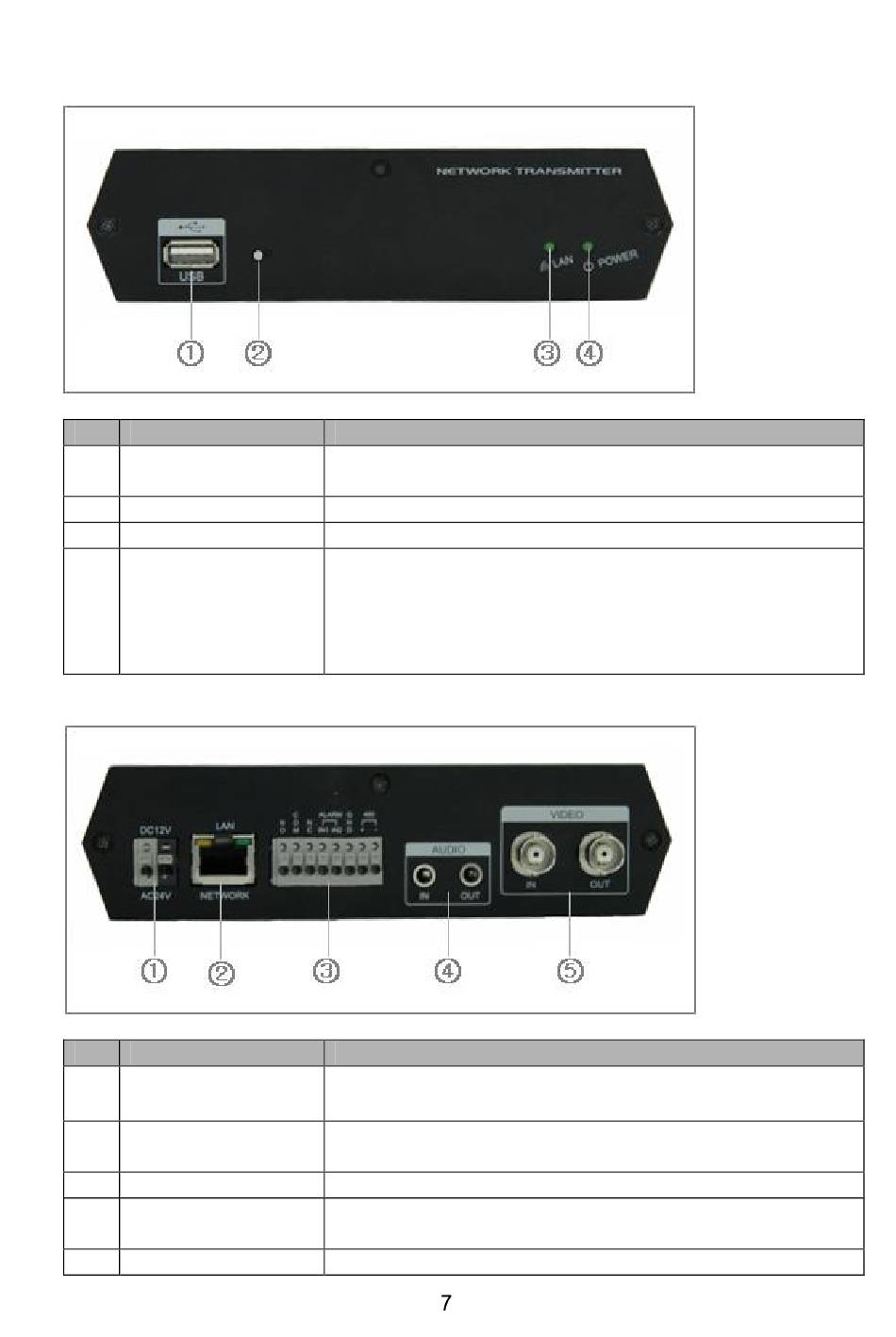

Overview
• Front Panel
NO Function
1 USB
2 Reset Button
3 Network Indicator
4 Power Indicator
• Rear Panel
NO Function
Power adaptor
1
connector
Network
2
connector(PoE)
3 8-pin I/O terminal
4 Audio In/Out
5 Video In/Out
One USB port is provided to connect external USB
memory stick for archiving video or system upgrade.
Press this button to restore the factory default settings
Lights when a remote user is connected to the unit.
Lights when the power is on.
Steady amber during booting and flash amber during
factory default.
Steady green for normal operation and steady red for
failed upgrade.
Connects the supplied power adapter or an external
power supply 12V DC or 24V AC, max.
RJ-45 port compatible with 10/100Mbps, which have a
PoE function.
Connects RS485, alarm input and output.
Connects the port to the microphone and speaker, which
have an amplifier function.
Connects the video input and output.
Description
Description
5W.
