Summary of Contents for Vip2 VK2-ENCODER

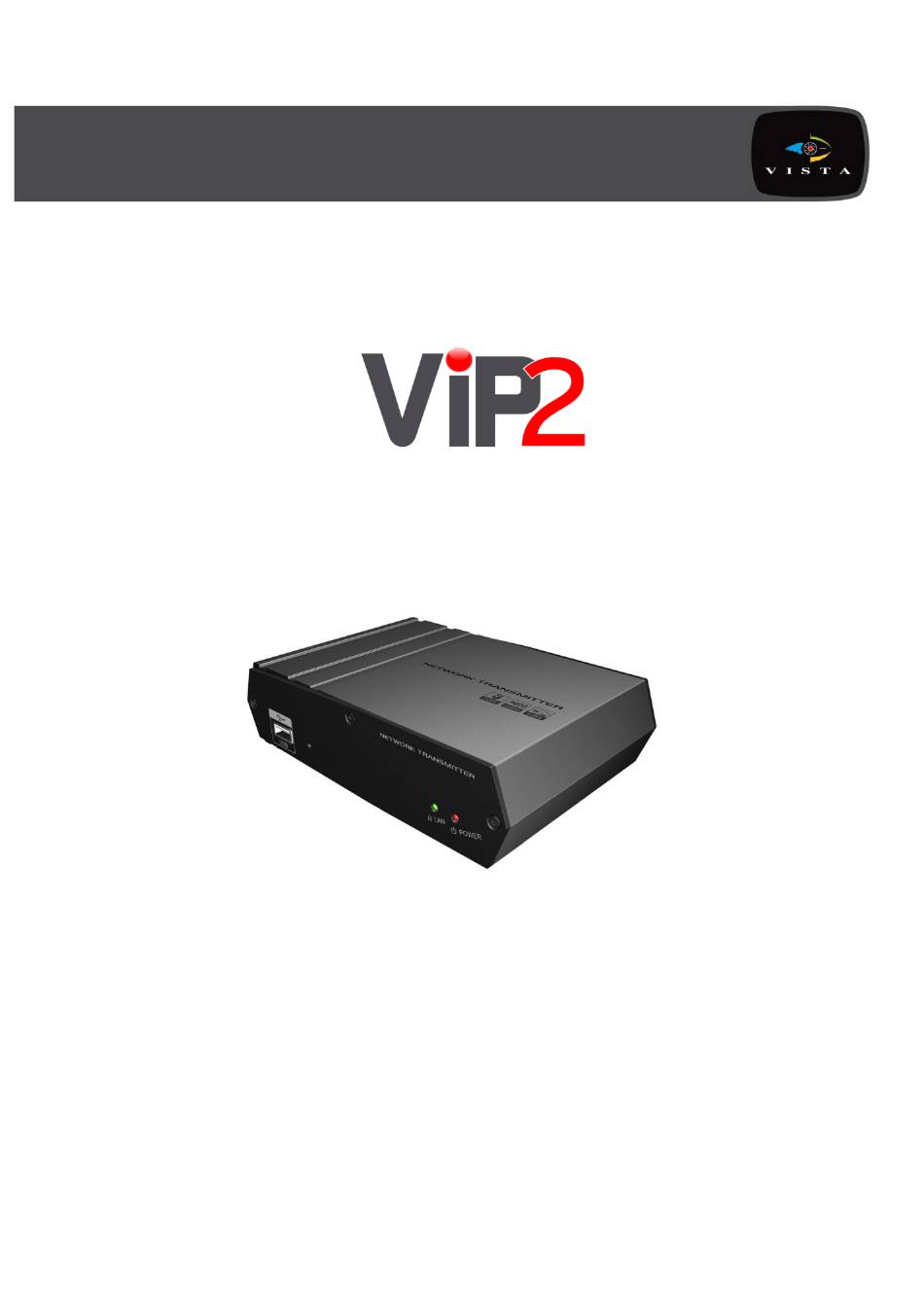

  • Page 1 VK2-ENCODER User Manual...
  • Page 2 RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 3 Important Safeguard 1. Read Instructions 13. Damage requiring Service All the safety and operating instructions should be read before the Unplug this equipment from the wall outlet and refer servicing to appliance is operated. qualified service personnel under the following conditions: A.

  • Page 4: Table Of Contents

    Table of Contents 1. Product Description…………………………………………………………………………………………………5 2. Installation……………………………………………………......…………..…………………8 3. Operation…………………………………………………………………………………………………………….10 3.1 Access from a browser …………………………………………………………………………………..10 3.2 Access from the internet ………………………………………………………………………………..11 3.3 Setting the admin password over a secure connection…………………………….…….…12 3.4 Live View Page ………………………………………………………………………………………………13 3.5 Setup...………………………………………………………………………………………………………...15 3.5.1 Basic Configuration…………………………………………………………………….…………...16 3.5.1.1 Users…………………………………………………………………………………….………...16 3.5.1.2 Network……………………………………………………………………………….…………...17 3.5.1.3 Video &...

  • Page 5: Product Description

    1. Product Description This manual applies to the VK2-ENCODER. The VK2-ENCODER supports the network service for an existing analog camera. An analog image entered can be monitored on a real-time screen regardless of distances and locations. By using its dedicated program, many users are able to have an access to the VK2- ENCODER at once or a single user can monitor various VK2-ENCODERs at the same time.
  • Page 6 This makes for easy installation since no power outlet is needed. • Audio support and USB port The VK2-ENCODER also supports two-way audio and has an USB port for local recording or system upgrade. • Improved Security The VK2-ENCODER logs all user access, and lists currently connected users.
  • Page 7 Overview • Front Panel Function Description One USB port is provided to connect external USB memory stick for archiving video or system upgrade. Reset Button Press this button to restore the factory default settings Network Indicator Lights when a remote user is connected to the unit. Lights when the power is on.

  • Page 8: Installation

    2. Installation For the operation of the VK2-ENCODER, it is necessary to connect a network cable for data transmission, power connection from supplied power adapter and connect a general analog camera. Depending on operation methods, it is possible to connect an alarm cable or audio cable additionally.
  • Page 9 3. Select the VK2-ENCODER on the list and click the right button of the mouse. You can see the popup menu as below. 4. Selecting the “Assign IP” in the popup menu displays the following window. Enter a proper IP address and click the OK button.

  • Page 10: Operation

    3.1 Access from a browser 1. Start a browser (Internet Explorer). 2. Enter the IP address or host name of the VK2-ENCODER in the Location / Address field of your browser. 3. You can see a starting page. Click Live View or Setup to enter web page.

  • Page 11: Access From The Internet

    To gain access to the product, the password for the default administrator user must be set. This is done in the “Admin Password” dialog, which is displayed when the VK2-ENCODER is accessed for the setup at the first time. Enter your admin name and password, set by the administrator.

  • Page 12: Live View Page

    Live View Page live view page comes eight screen modes like 4CIF(704x480(576)), 2CIF(704x240(288)), CIF(352x240(288)), QCIF(176x120(144)), VGA(640x480), QVGA(320x240), and QQVGA(160 X 120). Users are allowed to select the most suitable one out of those modes. Please, adjust the mode in accordance with your PC specifications and monitoring purposes.
  • Page 13 The Stop button stops the video stream being played. toggles the Pressing the key again start and stop. The Start button connects to the VK2-ENCODER or start playing a video stream. The Pause button pause the video stream being played.

  • Page 14: Setup

    Basic, Live View, Video & Image, Audio, Event, and System Configuration. You can configure the VK2-ENCODER by clicking Setup in the top right-hand corner of the Live View page. Click on this page to access the online help that explains the setup tools.

  • Page 15: Basic Configuration

    3.5.1 Basic Configuration 3.5.1.1 Users User access control is enabled by default. An administrator can set up other users, by giving these user names and passwords. It is also possible to allow anonymous viewer login, which means that anybody may access the Live View page, as described below: The user list displays the authorized users and user groups (levels): User Group Authority...

  • Page 16: Network

    IP address dynamically, it is also possible to use it to set a static, known IP address for a particular MAC address. • Use the following IP address - To use a static IP address for the VK2-ENCODER, check the radio button and then make the following settings: -.

  • Page 17: Video & Image

    Note: DHCP should only be enabled if using dynamic IP address notification (see below), or if your DHCP server can update a DNS server, which then allows you to access the VK2- ENCODER by name (host name). If DHCP is enabled and you cannot access the unit, you may have to reset it to the factory default settings and then perform the installation again.
  • Page 18 There are 4 pre-programmed stream profiles available for quick set-up. Choose the form of video encoding you wish to use from the drop-down list: * H.264 MP(Main Profile): Primarily for low-cost applications that requires additional error robustness, this profile is used rarely in videoconferencing and mobile applications, it does add additional error resilience tools to the Constrained Baseline Profile.
  • Page 19 -. Compression When it is necessary to adjust a smooth transmission status according to network situations, users can increase the compressibility to carry out the network transmission stably. On the other hand, when it is necessary to maintain a detailed monitoring screen by enhancing the image quality, users can do so by decreasing the compressibility.

  • Page 20: Audio

    3.5.1.4 Audio The VK2-ENCODER can transmit audio to other clients using an external microphone and can play audio received from other clients by attaching a speaker. The Setup page has an additional menu item called Audio, which allows different audio configurations, such as, full duplex, and simplex.
  • Page 21 This mode requires that the client PC has a sound card with support for full-duplex audio. Uncheck the box enable Simplex mode. The simplex mode only transmits audio from the VK2-ENCODER to any web client. It does not receive audio from other web clients. -. Output volume If the sound from the speaker is too low or high it is possible to adjust the output gain for the active speaker attached to the VK2-ENCODER.

  • Page 22: Date & Time

    3.5.1.5 Date & Time • Current Server Time It displays the current date and time (24h clock). The time can be displayed in 12h clock format in the overlay (see below). • New Server Time Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight savings time, select the “Automatically adjustment for daylight saving time changes”.

  • Page 23: Video & Image

    3.5.2 Video & Image Channel1 Refer to “3.5.1.3 Video & Image” for more details. Appearance - Basic...
  • Page 24 Image Appearance -. Brightness - The image brightness can be adjusted in the range 1-255, where a higher value produces a brighter image. -. Color level -Select an appropriate level by entering a value in the range 1-14. Lower values mean less color saturation. -.

  • Page 25: Audio

    To create a mask window, follow steps: 1. Click the right button of mouse to see the mouse menu. 2. Select New Privacy Mask in the mouse menu. 3. Click and drag mouse to designate a mask window area. You can also modify or delete a motion index. Select an index and then, modify items or delete button.

  • Page 26: Event

    Select “Enable” to activate the motion event. Alarm In Select “Enable” to activate the alarm event. The VK2-ENCODER support 2 alarm input ports. -. Type - Choose the type of alarm you wish to use from the drop-down list. -. Dwell Time - Set the dwell time an event lasts for the specified dwell time from the...
  • Page 27 Manual Trigger This option makes use of the manual trigger button provided on the live view page, which are used to start or stop the event type manually. Alternatively the event can be triggered via the VK2-CS software supplied with the encoder. Motion...
  • Page 28 Motion detection is used to generate an alarm whenever movement occurs (or stops) in the video image. A total of 8 Motion and/or Mask windows can be created and configured. Motion is detected in defined Motion windows, which are placed in the video image to target specific areas.

  • Page 29: Event Out

    Video Loss When there is no input signal from a video input connector, it can be processed as an event. Select “Enable” to activate the video loss event. 3.5.4.2 Event-Out SMTP(E-Mail)
  • Page 30 The VK2-ENCODER can be configured to send event and error email messages via SMTP (Simple Mail Transfer Protocol). • SMTP(E-Mail) Setting Select “Enable” to activate the SMTP operation. -. Mail Server / Port - Enter the host names (or IP addresses) and port numbers for your mail server in the fields provided, to enable the sending of notifications and image email messages from the camera to predefined addresses via SMTP.
  • Page 31 FTP & JPEG When the VK2-ENCODER detects an event, it can record and saves images to an FTP server. Images can be sent as e-mail attachments. Check the box to enable the service. • FTP Setting -. Server - Enter the server's IP address or host name. Note that a DNS server must be specified in the TCP/IP network settings if using a host name.
  • Page 32 -. Additional suffix - Add either a date/time suffix or, a sequence number - with or without a maximum value HTTP Server When the VK2-ENCODER detects an event, HTTP Server can be used to receive uploaded image files and/or notification messages. Check the box to enable the service. • HTTP Server Setting -.
  • Page 33 -. Enable – When you select “Enable alarm out”, the output will be activated for as long as the event is active. Audio Alert When the VK2-ENCODER detects an event, it can output a predefined audio data to external speaker. Check the box to enable the service.
  • Page 34 • Audio Alert Setting To use the audio alert with the VK2-ENCODER, the G.726 audio file made by user must be uploaded from your PC. Provide the path to the file directly, or use the Browse button to locate it. Then click the Upload button.
  • Page 35 The description of each button in the ARecorder window follows. Open: Open an audio file. Capture: Capture audio from the microphone in your PC. Save: Save a captured file to your PC. (PCM format) Encode: Encode a current capture file or opened PCM file to G.726 file for Audio Alert. Play: Play a current audio file.

  • Page 36: Event Map

    PTZ Preset When the VK2-ENCODER detects an event, you can make a PTZ camera, connected to its RS485 port, move to a predefined preset position. Check the box to enable the service and return to the Home position once the event has ended.
  • Page 37 The destination server must first be configured on the Event In page. Enter a message you want to send. -. Audio Alert: Select a Audio alert file the VK2-ENCODER output when audio alert event triggered. The Audio alert file must first be configured on the Event In page.

  • Page 38: Device

    3.5.5 Device The VK2-ENCODER supports several PTZ rotocols. Using an appropriate cable, connect the device to your RS-485 port. These ports are available via the I/O terminal connector. • PTZ settings -. Enable - Check the box to enable the PTZ function.
  • Page 39 • RS485 settings -. Baud rate - Select a Baud Rate in the drop-down list. (Default 9600 bps) -. Data bits - Select Data Bits in the drop-down list. (Default None) -. Parity bits - Select Parity Bits in the drop-down list. (Default 8 bits) -.

  • Page 40: System

    Live View page, as described below: • User Setting Check the box to enable anonymous viewer login to the VK2-ENCODER without the user account. When using the user account, users have to try log-in at every access. • User List Setting This section shows a registered user account.
  • Page 41 HTTPS For greater security, the VK2-ENCODER can be configured to use HTTPS (Hypertext Transfer Protocol over SSL (Secure Socket Layer)). That is, all communication that would otherwise go via HTTP will instead go via an encrypted HTTPS connection. • HTTPS Connection Policy Choose the form of connection you wish to use from the drop-down list for the administrator, Operator and Viewer to enable HTTPS connection (set to HTTP &...
  • Page 42 IP Filtering Checking the Enable IP address filtering box enables the IP address filtering function. Up to 256 IP address entries may be specified (a single entry can contain multiple IP addresses). When the IP address filter is enabled, addresses added to the list are set as allowed or denied addresses.

  • Page 43: Date & Time

    3.5.6.2 Date & Time • Current Server Time It displays the current date and time (24h clock). The time can be displayed in 12h clock format in the overlay (see below). • New Server Time Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight savings time, activate “Automatically adjustment for daylight saving time changes”.

  • Page 44: Network

    3.5.7.3 Network Settings for IP, DNS, Host Name, Port, and ARP/Ping can be established, along with setting for DDNS, uPnP, QoS, and SNMP.
  • Page 45 IP address dynamically, it is also possible to use it to set a static, known IP address for a particular MAC address. -. Use the following IP address - To use a static IP address for the VK2-ENCODER, check the radio button and then make the following settings: * IP address - Specify a unique IP address for your VK2-ENCODER.
  • Page 46 DDNS • Internet DDNS(Dynamic Domain Name Service) When using the Internet users can operate the VK2-ENCODER even on the floating IP environment in which IP address changes with every access. Users should get an account and password by visiting a DDNS service such as http://www.dyndns.com/, or http://www.security-device.name/.
  • Page 47 Settings for sending and receiving an audio or video on a real-time basis. These settings are the IP address, port number, and Time-To-Live value to use for the media stream(s) in multicast H.264 format. Only certain IP addresses and port numbers should be used for multicast streams.
  • Page 48 UPnP The VK2-ENCODER includes support for UPnP™. UPnP™ is enabled by default, and the VK2-ENCODER then is automatically detected by operating systems and clients that support this protocol. Note: UPnP™ must be installed on your workstation if running Windows XP. To do this, open the Control Panel from the Start Menu and select Add/Remove Programs.
  • Page 49 Quality of Service (QoS) provides the means to guarantee a certain level of a specified resource to selected traffic on a network. Quality can be defined as a maintained level of bandwidth, low latency, and no packet losses. The main benefits of a QoS-aware network are: -.
  • Page 50 (WAN) side of a NAT router. With NAT traversal properly configured, all HTTP traffic to an external HTTP port in the NAT router is forwarded to the VK2-ENCODER. Notes: -. For NAT traversal to work, this must be supported by the broadband router.
  • Page 51 NAT router on your network, using UPnP™. Note that UPnP™ must be enabled in the VK2-ENCODER (see System>Network>UPnP). * automatic setting: The VK2-ENCODER automatically search for NAT routers on your network. * manual setting: Select this option to manually select a NAT router and enter the external port number for the router in the field provided.

  • Page 52: Language

    - the subnet mask - the system time -. Default - The default button should be used with caution. Pressing this will return all of the VK2-ENCODER's settings to the factory default values (including the IP address) • Update Server...

  • Page 53: Support

    During the upgrade, do not turn off the power of the VK2-ENCODER. And try an access again after waiting five minutes or longer. • Backup Save a setting value that users enter to the VK2-ENCODER, to a user PC. • Restore Import and apply a setting value saved to a user PC.

  • Page 54: About

    3.5.8 About This will provide the support information for the VK2-ENCODER information and operation. 3.6 PTZ Control You can control PTZ camera in the live screen. Press the button on the left top in the live screen to activate the PTZ control panel.

  • Page 55: Help

    The Help information window will be provided as a popup window so that users can open and read it without a need for log-in. It will offer a description on setting and Help page by which users can manipulate the VK2-ENCODER without a reference to the manual.

  • Page 56: Resetting To The Factory Default Settings

    3.8 Resetting to the factory default settings To reset the VK2-ENCODER to the original factory settings, go to the Setup>System >Maintenance web page (described in Maintenance, on page 54) or use the control button on the network video transmitter, as described below: •...

  • Page 57: Appendix

    4. Appendix 4.1 Troubleshooting Troubleshooting if problems occur, verify the installation of the VK2-ENCODER 1CH with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information.

  • Page 58: Product Specification

    4.3 Product Specification Video In/Out 1BNC/1BNC, 1.0Vp-p[75ohm, composite] Motion JPEG MPEG-4 Part2 Compression H.264 (MPEG-4 Part 10) Profiles: H.264 MP and BP, MPEG-4 ASP and 4CIF, 2CIF, CIF, QCIF, VGA, QVGA, QQVGA Resolutions Max. 704x480/704x576[NTSC/PAL] VIDEO Min. 160x120, Frame Rate, H.264 Up to 30/25fps[NTSC/PAL] @ all resolutions Frame Rate, MPEG-4 Up to 30/25fps[NTSC/PAL] @ all resolutions...
  • Page 59 LED Indicator Power, Network Buttons Factory Reset Metal Casing, Standalone or with Bracket for Casing wall mount Operating 0 C ~ 50 C Temperature Operation Humidity GENERAL AC24/DC12V max. 5watt, Power Consumption Power over Ethernet IEEE 802.3af Class2/3 Dimensions (W x H x D) 6.1”...
  • Page 60 Norbain SD Ltd 210 Wharfedale Road Winnersh Triangle Wokingham Berkshire England RG41 5TP Subject to change without notice 0118 9125 000...
