Summary of Contents for Syscom Video ED2916HD

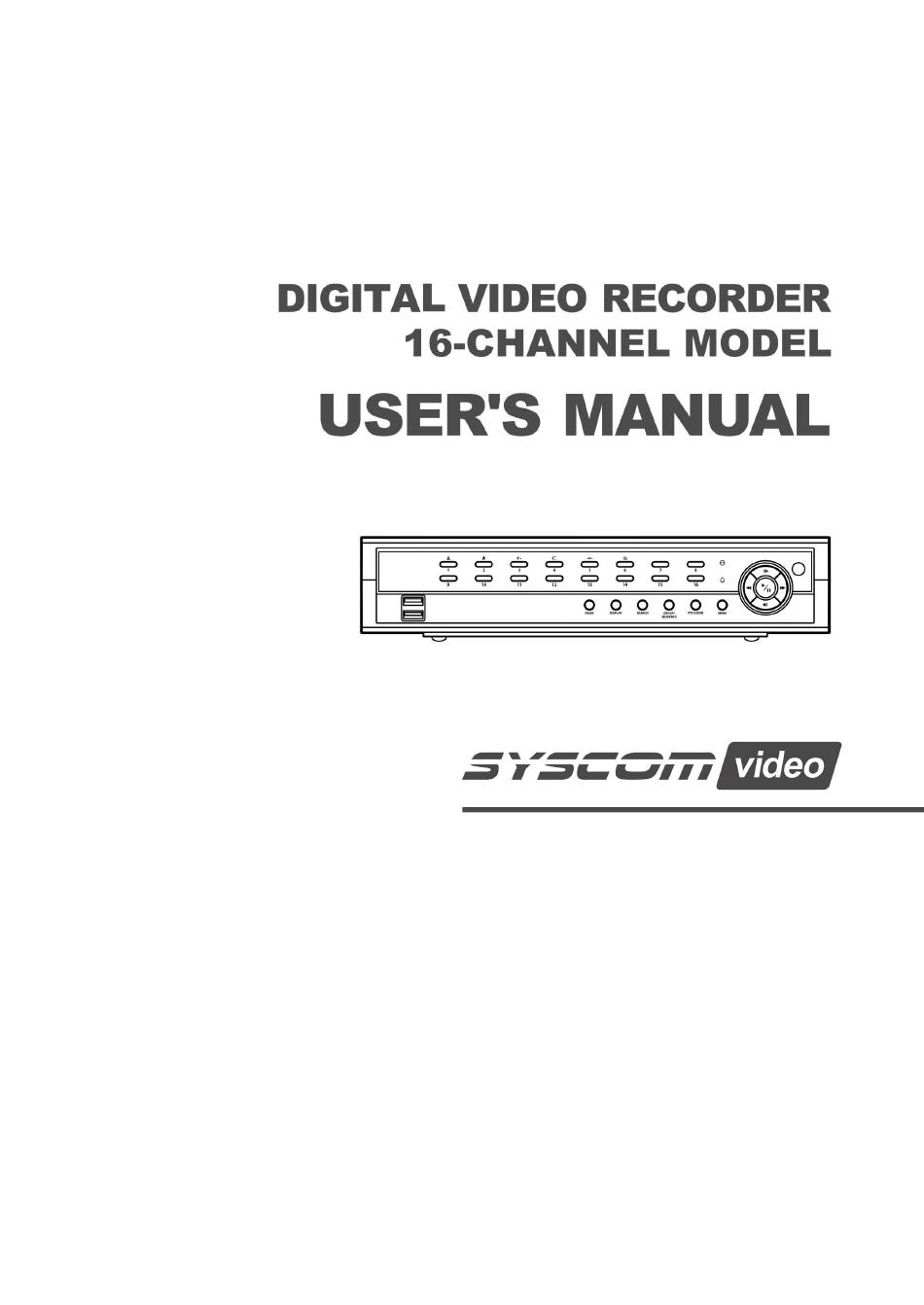

- Page 1 ED2916HD...
- Page 2 Digital Video Recorder WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
- Page 3 User’s Manual Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. in the risk of fire or electric shock. 2.
-
Page 4: Table Of Contents
Digital Video Recorder Table of Contents Chapter 1 — Introduction ......................1 Feature ........................... 1 Technical Overview ........................ 1 Chapter 2 — Installation ......................3 Package Contents ........................3 Required Installation Tools ....................3 Video Input......................... 3 Audio In/Out ........................4 Alarm Input/Output ...................... - Page 5 User’s Manual Turning on the Power ......................11 Initial Unit Setup ........................11 Setup Screen ........................12 System Setup ........................13 General ..........................13 Date/Time ........................21 User ..........................22 Storage ..........................24 System Event ........................25 Recording Setup ........................26 General ..........................
- Page 6 Digital Video Recorder Status Monitoring ......................58 Recording Video ........................59 Panic Recording ......................59 Recording Audio ........................60 Playing Recorded Video ...................... 60 Searching Video ........................61 Search Menu ........................61 Event Log Search ......................64 Record Table Search ....................... 65 Motion Search .........................
- Page 7 User’s Manual Figure 18: Event – Alarm-In setup screen....................31 Figure 19: Event – Video Loss setup screen................... 32 Figure 20: Event – Video Blind setup screen..................33 Figure 21: Event – Text-In setup screen....................34 Figure 22: Camera –...
-
Page 8: Chapter 1 - Introduction
Digital Video Recorder Chapter 1 — Introduction Feature Your color digital video recorder (DVR) provides recording capabilities for 16 camera inputs. It provides exceptional picture quality in both live and playback modes, and offers the following features: 16 Composite Video Input Connectors ... -
Page 9: Figure 1: Typical Dvr Installation
User’s Manual Figure 1: Typical DVR installation. -
Page 10: Chapter 2 - Installation
Digital Video Recorder Chapter 2 — Installation Package Contents The package contains the following: Digital Video Recorder Power Adaptor and Power Cord User’s Manual (This Document) RAS Software CD and User’s Manual Infrared Remote Control Required Installation Tools No special tools are required to install the DVR. -
Page 11: Audio In/Out
User’s Manual Audio In/Out Your DVR can record audio from up to four sources. Connect the audio sources to Audio In 1, Audio In 2, Audio In 3 and Audio In 4 as needed using RCA jacks. Connect Audio Out to your amplifier. NOTE: It is the user’s responsibility to determine if local laws and regulations permit recording audio. -
Page 12: Video Out
Digital Video Recorder Video Out An HDMI (High-Definition Multimedia Interface) connector is provided so that you can use an HDMI monitor as your main monitor. A VGA connector is provided so that you can use a standard, multi-sync computer monitor as your main monitor. -
Page 13: Power Cord Connector
User’s Manual Power Cord Connector Connect the connector of the adaptor to the DVR, and connect the AC power cord to the adaptor and then to the wall outlet. WARNING: ROUTE POWER CORDS SO THAT THEY ARE NOT A TRIPPING HAZARD. MAKE CERTAIN THE POWER CORD WILL NOT BE PINCHED OR ABRADED BY FURNITURE. -
Page 14: Chapter 3 - Configuration
Digital Video Recorder Chapter 3 — Configuration NOTE: Your DVR should be completely installed before proceeding. Refer to Chapter 2 — Installation. Front Panel Controls Figure 3: DVR front panel. Camera Buttons HDD LED Alarm LED Arrow Buttons Play/Pause Button Menu Button PTZ/Zoom Button Group/Sequence Button... -
Page 15: Arrow Buttons
User’s Manual Arrow Buttons These buttons are used to navigate through menus and GUI. You can also use them to change numbers by highlighting a number in the menu and using the Up and Down arrow buttons to increase or decrease the number’s value. These buttons are also used to control Pan and Tilt when in the PTZ mode. -
Page 16: Display Button
Digital Video Recorder Display Button Pressing the button toggles between different display formats. The available formats are: PIP, 2x2, 1+5, 1+7, DISPLAY 3x3 and 4x4. Panic Button Pressing the button starts panic recoding of all camera channels, and displays on the screen. Pressing the PANIC button again will stop panic recording. -
Page 17: Id Button
User’s Manual NOTE: For simplicity, the button descriptions in this manual refer to the front panel buttons. ID Button If a DVR System ID is set to 0, the infrared remote control will control that DVR without any additional operations. (Refer to the System –... -
Page 18: Panic Button
Digital Video Recorder Panic Button Pressing the button starts panic recoding of all camera channels, and displays on the screen. Pressing the PANIC button again will stop panic recording. Layout Button Pressing the button toggles between different display formats. The available formats are: 4x4, 3x3, 1+7, 1+5, LAYOUT 2x2 and PIP. -
Page 19: Setup Screen
User’s Manual Throughout the screens you will see . Highlighting the and pressing the button gives you the opportunity to reset that screen to its default settings. Highlighting This page or All pages and pressing the button resets the current page or all pages of the screen to its or their default settings. -
Page 20: System Setup
Digital Video Recorder Press the button or move the mouse pointer on the right edge of the screen and then select (Setup) in the Live MENU Monitoring menu to enter the setup screen. While setting up the DVR, there will be many opportunities to enter names and titles. When making these entries, a Virtual Keyboard will appear. - Page 21 User’s Manual The box beside Version displays the software version of the DVR. To upgrade the software, connect a USB device containing the upgrade package file to the DVR. Highlight Upgrade… and press the button. The Upgrade screen appears. The screen displays the upgrade package file names that are available. The “.rui” indicates that the file is for software upgrades.
- Page 22 Digital Video Recorder The System Log screen lists system activities (up to 5,000 from the latest) that have occurred along with the time and date. The icon will be displayed in the last column for system activities of the remote site. You can scroll through the log pages by using the Up and Down arrows, or you can go directly to a log page by entering the log page number in the box at the bottom left of the screen.
- Page 23 User’s Manual Select either Quick wizard or Network wizard and select the Next button to start the selected setup wizard. NOTE: Selecting the Cancel button throughout the screens exits the Quick Setup Wizard without saving your changes and returns to the main setup screen. If you selected the Quick wizard, selecting the Next button starts the Quick Setup Wizard.
- Page 24 Digital Video Recorder Record Method Setup Select the desired recording mode from: – Motion Event Record (Recommended) – Continuous & Motion Event Record – Continuous Record NOTE: You should understand each recording mode before setting the DVR’s recording method. Record Video Quality Setup ...
- Page 25 User’s Manual NOTE: The recording quality and recording speed of each camera channel will be set as show below according to the Record Method and Record Video Quality you set. HVQPP* SRP* LRTPP* Motion Event Record Very High / 30 ips High / 5 ips Standard / 3 ips Continuous &...
- Page 26 Digital Video Recorder Internet Connection Select whether or not your DVR is connected to the Internet. LAN Setup Select between Auto Configuration and Manual Configuration for network configuration, and then select the Test button to test the network configuration you selected. NOTE: Selecting Auto Configuration allows the DVR to automatically obtain LAN parameters (IP address, Gateway, Subnet Mask and DNS Server address).
- Page 27 User’s Manual FEN Setup FEN Name: Enter the DVR name to be registered on the DVRNS (DVR Name Service) server. NOTE: The FEN Name you entered should be checked by selecting Test, otherwise the FEN changes will not be saved. When entering no name or a name already registered on the DVNRS server, an error message displays.
-
Page 28: Date/Time
Digital Video Recorder Date/Time Figure 9: System – Date/Time setup screen. Highlight the first box beside Date and press the button. The individual sections of the date will highlight. Use the Up and Down arrow buttons to change the number. Use the Left and Right arrow buttons to move between month, date and year. -
Page 29: User
User’s Manual Highlight the box beside Time Server and press the button. A virtual keyboard appears that you can use to enter the IP address or domain name of the time server. Highlighting allows you to select your time server from a list of registered time servers. - Page 30 Digital Video Recorder The +/– column is used to collapse and expand user groups. If there is a + or – in this column, it indicates the item is a Group Name. If there is a – in front of the Group Name, it indicates that the group has been “expanded” and all of the User Names within that group are displayed below the Group Name.
-
Page 31: Storage
User’s Manual To add a User, highlight the + User… box and press the button. A virtual keyboard appears allowing you to enter the User Name. Enter the name and assign the User to a Group and password. You can use camera buttons 1 to 9 on the front panel to assign the password. -
Page 32: System Event
Digital Video Recorder You will be able to check the model name, serial number and the time information about recorded data of the selected storage device. If you want to erase recorded data on the selected device, highlight Clear and press button. -
Page 33: Recording Setup
User’s Manual Highlight the Settings box beside Check Alarm-In and press the button. You can select the interval that you want the DVR to run self-diagnostics on Alarm Inputs. You can select from 1 hr. to 30 days or Never. Highlight the Settings box beside Disk Almost Full, and press the button. -
Page 34: Schedule
Digital Video Recorder Highlight the slide bar beside Auto Deletion, and use the Left and Right arrow buttons or Up and Down arrow buttons to adjust the length of time recorded data will be kept from 1 to 999 days. The DVR automatically deletes video recorded earlier than the user-defined period under three conditions: at midnight, whenever the system reboots or whenever the user changes the Auto Deletion settings. -
Page 35: Figure 15: Schedule - Settings (Advanced Mode) Setup Screen
User’s Manual NOTE: Changing the schedule mode will reset all event and action statuses. Highlight the + and press the button to add a schedule item. Highlight the box under the Day heading and press the button to change the days that the scheduled recording will take place. -
Page 36: Pre-Event
Digital Video Recorder NOTE: When multiple events are detected at the same time from a specific channel, the DVR will record event video with the high setting values if the ips, Quality, Resolution and Dwell values of events are different from each other. -
Page 37: Event Setup
User’s Manual NOTE: When the DVR is in the Time or Time & Event mode, it ignores the pre-event settings and follows the time settings. Event Setup Motion Figure 17: Event – Motion setup screen. Your DVR has built-in video motion detection. Video motion detection can be turned On or Off for each camera. Highlighting the box under the Sensitivity heading and pressing the button allows you to adjust the DVR’s sensitivity to motion for Daytime and Nighttime... -
Page 38: Alarm-In
Digital Video Recorder Select – Activates highlighted blocks to detect motion. Clear – Deactivates highlighted blocks so that they will not detect motion. Reverse – Activates inactive highlighted blocks and deactivates active highlighted blocks. Select All – Activates all blocks to detect motion. Clear All –... -
Page 39: Video Loss
User’s Manual The alarm terminal strip on the back of the DVR has inputs associated with each alarm. You can set up each input on the Alarm-In screen. You can turn each input On or Off by highlighting the alarm number and pressing the button. -
Page 40: Video Blind
Digital Video Recorder Video Blind Figure 20: Event – Video Blind setup screen. The DVR checks to see if anything is blinding a camera. Highlighting the box under the Sensitivity heading allows you to adjust the DVR’s sensitivity to video blind for Black and White independently from 0 (Never) and 1 (least sensitive) to 15 (most sensitive). -
Page 41: Text-In
User’s Manual Text-In Figure 21: Event – Text-In setup screen. The DVR can be set to react to text input from devices such as ATMs (Automated Teller Machines) and POS (Point of Sale; i.e., cash registers). This screen allows you to configure the DVR for each text-in device. Highlight the box under the Setup heading, and press the button. - Page 42 Digital Video Recorder NOTE: The following description is for a Generic Text Device. The screen changes for different types of text input devices, and there will be different parameter boxes for you to enter information. Highlight the box beside Transaction Start, and press the button.
-
Page 43: Camera Setup
User’s Manual Camera Setup General Figure 22: Camera – General setup screen. You can turn the camera number On or Off, and you can change the Title of each camera using the virtual keyboard. You can also determine which cameras will display on the monitors by selecting Normal, Covert 1 or Covert 2 from a drop-down list in the Use column. -
Page 44: Ptz
Digital Video Recorder Figure 23: Camera – PTZ setup screen. NOTE: You will only be able to set up PTZ devices if the PTZ port is set to RS232 or RS485. Highlight the box in the Product column for the PTZ camera you wish to configure and press the button. -
Page 45: Device Setup
User’s Manual Device Setup Audio Figure 24: Device – Audio setup screen. The DVR can record up to four audio inputs. Highlight the box beside the input and press the button. A list of cameras appears, and you can select which camera you want associated with that audio input. Highlight Enable Audio-Out and press the button. -
Page 46: Remote Control
Digital Video Recorder You can add and edit alarm output schedules on this screen. Highlight the + and press the button to add a schedule. Highlighting the boxes under the Column heading and pressing the button allows you to edit the information in those boxes. -
Page 47: Network Setup
User’s Manual Network Setup General Figure 27: Network – General setup screen. Highlight the first box beside Remote Watch – bps/ips. You can select the Transfer Speed from 50Kbps to 1Gbps. Highlight the second box beside Remote Watch – bps/ips. You can select the unit of measure for the transfer speed between: bps and ips. -
Page 48: Lan
Digital Video Recorder NOTE: While the SSL function is enabled, the network transfer speed you selected may not be achieved. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/). Figure 28: Network – LAN setup screen. Highlight the box beside Type and press the button. - Page 49 User’s Manual Highlight Use UPnP and press the button to toggle between On and Off. When it is On, port forwarding from the NAT (Network Address Translation) device to the DVR will be enabled automatically via UPnP (Universal Plug and Play) service.
-
Page 50: Fen
Digital Video Recorder Figure 29: Network – FEN setup screen. Highlight Use FEN and press the button to toggle between On and Off. NOTE: FEN is the technology that automatically sets up your DVR to work seamlessly for remote viewing via your network internet connection. -
Page 51: Rtsp
User’s Manual RTSP Figure 30: Network – RTSP setup screen. Highlight Enable RTSP (Real-Time Streaming Protocol) and press the button to toggle between On and Off. You will be able to change the settings if Enable RTSP is enabled. Highlight the box beside RTSP Port and press the button. -
Page 52: Webguard
Digital Video Recorder WebGuard Figure 31: Network – WebGuard setup screen. Highlight Use WebGuard Service and press the button to toggle between On and Off. See Appendix – WebGuard for detailed descriptions of the WebGuard service. Highlight the box beside Port and press the button. -
Page 53: Notification Setup
User’s Manual Highlight the box beside Password and press the button. A virtual keyboard appears allowing you to enter the password for VNC connection. NOTE: Up to three users at a time can access a DVR remotely via VNC service. When controlling the DVR remotely using a keyboard, shortcut keys perform the following functions as described below: Function... -
Page 54: Mail
Digital Video Recorder Highlight the IP Address box that you want to change and press the button. Use the arrow buttons to enter the IP address of the computer you want contacted during an event. You can enter up to five IP addresses. Highlight the box beside Retry and enter the number of times you would like the DVR to try contacting the computer. - Page 55 User’s Manual Highlight Use and press the button to toggle between On and Off. Assign the Recipient to a Group and enter the Recipient’s Display Name. Highlight the box beside Address and enter the recipient’s e-mail address and mail server provider. Highlighting allows you to select the mail server provider from a list of registered SMTP mail server...
-
Page 56: Sns
Digital Video Recorder Figure 35: Notification – SNS setup screen. The DVR can be set up to post a message via SNS (Social Network Service) when an event occurs. You can add and edit the SNS account on this screen. The SNS account can be turned On or Off by highlighting the boxes under the No. -
Page 57: Display Setup
User’s Manual You can add and edit notification schedules on this screen. Highlight the + and press the button to add a schedule. Highlighting the boxes under the Column heading and pressing the button allows you to edit the information in those boxes. -
Page 58: Main Monitor
Digital Video Recorder Freeze & Sequence – The icon displays while in the Freeze mode, and the displays while in the Sequence mode. Screen Group – The number of screen group displays when the DVR is not in the 4x4 display mode. ... - Page 59 User’s Manual You can adjust the display dwell time by highlighting the box beside Interval and pressing the button. You can select dwell intervals ranging from 1 second to 1 minute. Highlight Event Monitoring On and press the button. Pressing the button toggles between On and Off.
-
Page 60: Chapter 4 - Operation
Digital Video Recorder Chapter 4 — Operation NOTE: This chapter assumes your DVR has been installed and configured. If it has not, please refer to Chapters 2 and 3. The DVR’s controls are similar to a VCR. As with a VCR, the main functions are recording and playing back video. However, you have much greater control over recording and playing back video. -
Page 61: Live Monitoring Menu
User’s Manual Live Monitoring Menu Login/Logout Selecting (Login) in the Live Monitoring menu accesses the Login screen, and you will be asked to select a User and enter the password to log into the system. Selecting (Logout) in the Live Monitoring menu displays the Logout screen asking you to confirm whether or not you want to log out the current user. - Page 62 Digital Video Recorder < Full Sequence > < Cameo Sequence > Selecting again in the Live Monitoring menu exits the Sequence mode. While in the Sequence mode, the icon displays in bottom-left corner if Sequence is selected in the Display setup screen (OSD tab). If all the cameras in a page are Off, or have lost video or are set to Covert (unless the user has authority to view covert cameras), that page will be excluded from the sequence.
-
Page 63: Active Cameo Mode
User’s Manual Active Cameo Mode You can enter the Active Cameo mode by selecting Edit Group from the Live Monitoring – Camera menu or pressing and holding the button for three seconds or longer in any multi-view format. The yellow outline surrounding MENU the video indicates the active cameo, and pressing the arrow buttons moves the active cameo. -
Page 64: Event Monitoring
Digital Video Recorder You can save camera position settings as “presets” so that you can go directly to desired views. Once you have the camera at the desired settings, press the button, and the Set Preset dialog box will appear. Select the number you want to assign to the preset and press the (Play/Pause) button. -
Page 65: Covert Camera
User’s Manual Covert Camera If a camera is set up as Covert 1 in the Camera setup screen (General tab), that camera will not be displayed unless a user with Covert Camera View authority logs into the system. However the camera title and status icons will be displayed on the monitor. -
Page 66: Recording Video
Digital Video Recorder Highlighting the Storage tab will display the hard disk drive status. Figure 43: Event Status – Storage screen. The Type column displays the type of storage device. The Disk Bad column displays the percentage of bad sectors. Not formatted indicates the device is not formatted. The Temperature column displays the temperature of the storage device. -
Page 67: Recording Audio
User’s Manual NOTE: When the DVR is not in the Recycle mode and all available storage space has been used, panic recording will not operate. Recording Audio If the DVR was set up to record audio, it will record audio from up to four inputs when video is recording. NOTE: Make certain you comply with all local and federal laws and regulations when recording audio. -
Page 68: Searching Video
Digital Video Recorder Search Button: Pressing the button enters the search mode, and pressing the button again exits the search SEARCH mode. When entering the search mode, video is paused. Pressing the (Play/Pause) button plays back video at regular speed. The screen displays when the DVR is in the Pause mode and the screen displays when the DVR is playing back video. - Page 69 User’s Manual Record Table Search: Selecting (Search) → Record Table Search selects using a recording table. See the following Record Table Search section for details. Motion Search: Selecting (Search) → Motion Search selects motion events. See the following Motion Search section for details.
- Page 70 Digital Video Recorder Camera Menu Zoom: Selecting (Camera Menu) → Zoom and choosing the camera number zooms the current playback image of the selected camera on the screen. It is the same as pressing the button. Selecting Zoom again exits the ZOOM Zoom mode.
-
Page 71: Event Log Search
User’s Manual Event Log Search Figure 46: Event Log Search screen. The DVR maintains a log of each time the Alarm Input port is activated. The Event Log Search screen displays this list. Use the arrow buttons to highlight the event for which you would like to see video. There is no determined user authority to display the Event Log Search screen, however, the event video will not be played unless a user with Search authority logs into the system . -
Page 72: Record Table Search
Digital Video Recorder Highlight the box beside To and press the button to toggle between On and Off. When set to Off, you can enter a specific Date and Time. When set to On, the search will be from the last recorded image . When highlighting pressing the button the bookmark list displays and the bookmark point you selected will be the ending date and time. -
Page 73: Figure 47: Record Table Search Screen
User’s Manual < Expanded View > Figure 47: Record Table Search screen. Recording information about video images currently displayed on the screen displays on the recording status bar. A grey vertical line indicates the current search position. To search specific video, move the vertical line by using the Left or Right arrow buttons on the front panel or by clicking the mouse on the desired segment. -
Page 74: Motion Search
Digital Video Recorder Go To: Displays the first or last recorded image, or searches by date and time (see the previous Searching Video – Go To section of this chapter for more details). Clip-Copy: Clips a video segment and saves it (see the following Clip Copy section for more details). ... -
Page 75: Text-In Search
User’s Manual Highlight the box beside From and press the button to toggle between On and Off. When set to Off, you can enter a specific Date and Time. When set to On, the search will be from the first recorded image. When highlighting pressing the button the bookmark list displays and the bookmark point you selected will be the starting date and time. - Page 76 Digital Video Recorder Pressing the (Play/Pause) button will extract the video associated with the Text Input and display the first image of the event. Pressing the button will start playing the “event” video segment. Pressing returns to live SEARCH monitoring . NOTE: It is possible that no recorded image displays on the current screen.
-
Page 77: Bookmarks
User’s Manual Bookmarks The Bookmarks screen can also be accessed by selecting Bookmark in the Search menu. Figure 50: Bookmarks screen. Highlight + and press the (Play/Pause) button to add the current playback point to the bookmark list. Highlight the Title box and enter the name of the registered bookmark. -
Page 78: Figure 51: Clip-Copy Screen
Digital Video Recorder Figure 51: Clip-Copy screen. You can search video from the first to last recorded images, or you can set the start and stop times and dates. Highlight the box beside From and press the (Play/Pause) button to toggle between On and Off. When set to Off, you can enter a specific Date and Time. -
Page 79: Print
User’s Manual NOTE: The file size for clip copy is limited to 30GB. When copying video clips larger than 2GB, the video clips will be save in units of 2GB. For example, 3 individual 2GB files will be created when saving a 6GB video clip. -
Page 80: Appendix
Digital Video Recorder Appendix USB Hard Disk Drive Preparation NOTE: The following description is for preparing a USB hard disk drive under Windows 2000. Preparing a USB hard disk drive under Windows XP, Window Vista and Window 7 is almost identical to Windows 2000. Connect the USB hard disk drive to your computer using the USB Cable. -
Page 81: Search Example Ii
User’s Manual Search Example II 123456789012345678901234567890123456789012345678901234567890 Item Unit price amount ================================================== Coke 2.20 | 1(s) 2.20 Fanta 2.20 | 1(s) 2.20 Hotdog 3.50 | 3(s) 10.50 Pepsi 1.95 | 1(s) 1.95 ================================================== total : $ 16.85 Thank you~~ In the above text-in data, you can find that the comparison value is located at 17th (Unit price, $ mark will be ignored automatically), 28 (Qty) and 40 (amount) characters (including spaces) from the left, but the value of amount... -
Page 82: Webguard
Digital Video Recorder WebGuard WebGuard allows you to access a remote DVR, monitor live video images and search recorded video using Internet Explorer web browser anytime from virtually anywhere. Computer system requirements for using the WebGuard program are: ® ® ®... -
Page 83: Web Monitoring Mode
User’s Manual NOTE: There might be a problem with screen display or screen update due to low image transmission speed when using the Microsoft Windows Vista or higher operating system. In this situation, it is recommended that you disable the Auto Tuning capability of your computer. Run the Command Prompt with elevated administrator permissions (Go to the Start Menu ... -
Page 84: Web Search Mode
Digital Video Recorder ⑩ Click the to save the current image as a bitmap or JPEG file format. ⑪ Click the to set up the image drawing mode, OSD display and beep on/off. You can adjust the display speed by changing the image drawing mode, select OSD information to be displayed on the screen, and turn the DVR’s internal buzzer on and off from a remote site. - Page 85 User’s Manual ④ The DVR information window displays the time information of recorded data on the remote DVR and login information of WebGuard. ⑤ Click the to blur, sharpen, equalize and interpolate playback images. Click the to zoom out or zoom in the recorded image. Click the to adjust the brightness of the recorded images.
-
Page 86: Time Overlap
Digital Video Recorder Time Overlap If the DVR’s time and date have been reset to a time that is earlier than the existing recorded video, it is possible for the DVR to have more than one video stream in the same time range. In this case, you can search overlapping video streams individually by selecting a specific segment. -
Page 87: System Log Notices
User’s Manual System Upgrade Related Clip Copy Related Description Description Remote connection failed. Appending failed. Remote network error. Bad sector. Remote upgrade is not authorized. No executable file. Saving remote package failed. Opening executable file failed. Remote upgrade is cancelled by the user. Writing executable file failed. -
Page 88: Map Of Screens
Digital Video Recorder Map of Screens MENU SYSTEM General Date/Time User Storage System Event RECORD General Schedule Pre-Event EVENT Motion Alarm-In Video Loss Video Blind Text-In CAMERA General DEVICE Audio Alarm-Out Remote Control NETWORK General RTSP WebGuard NOTIFICATION Callback Mail Schedule DISPLAY Main Monitor... -
Page 89: Troubleshooting
User’s Manual Troubleshooting Problem Possible Solution Check power cord connections. No Power Confirm that there is power at the outlet. Check camera video cable and connections. Check monitor video cable and connections. No Live Video Confirm that the camera has power. ... - Page 90 Digital Video Recorder CONNECTORS Video Input Composite: 16 BNC HDMI: 1 HDMI Monitor Output VGA: 1 VGA Audio In 4 RCA connector Audio Out 1 RCA connector Alarm Input/Output Terminal Blocks Ethernet Port RJ-45 RS232 Serial Port Two-connector terminal block RS485 Serial Port Two-connector terminal block IR Port...
