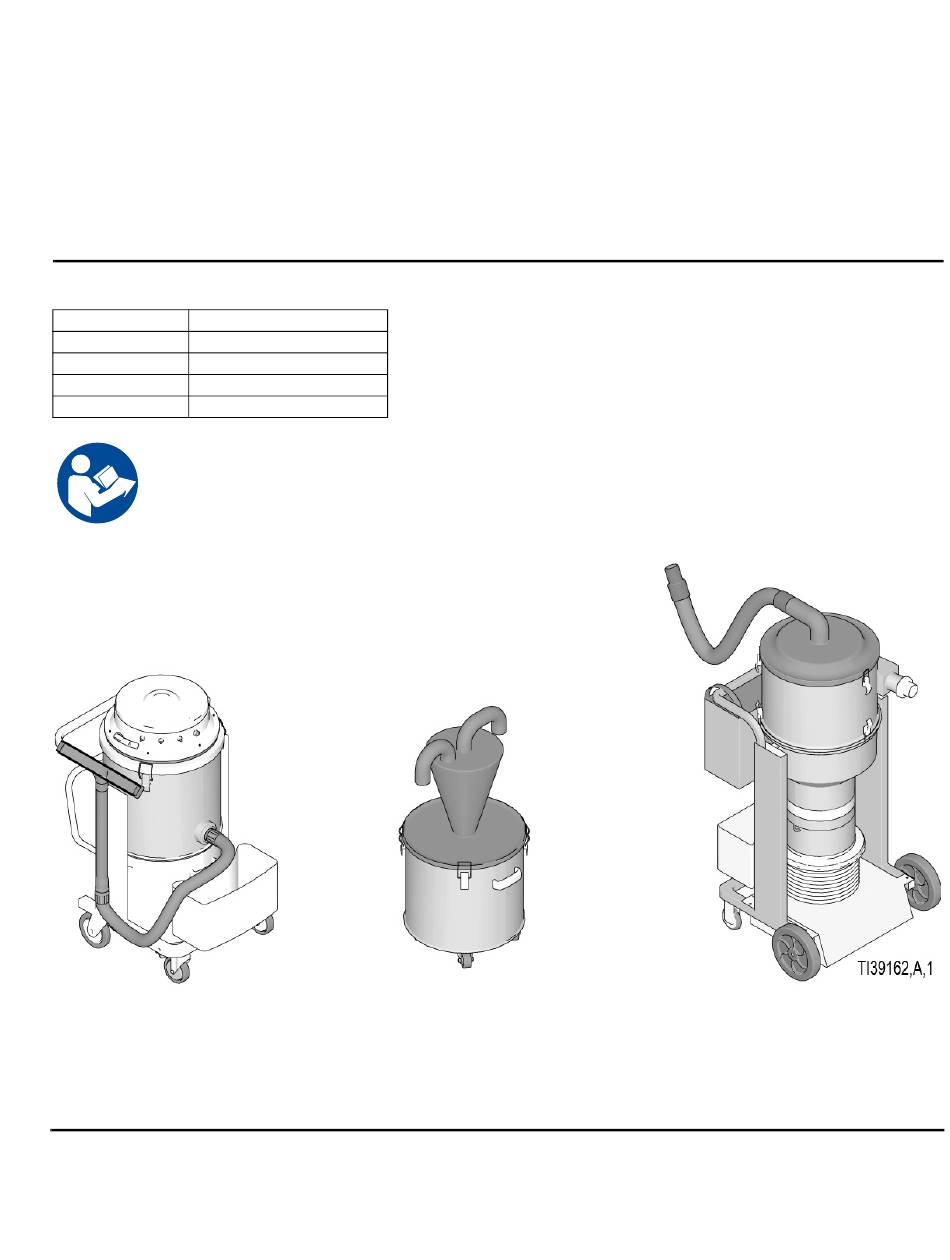

Operation, Parts
MaxiVac
Vacuum for collection of dry concrete and asphalt dust. For professional use only.
Vacuums
MaxiVac 360 (120V)
MV360
Separators
MVSA
Cyclone 20 (20 gallon)
MVSC
Cyclone LP
Important Safety Instructions
Read all warnings and instructions in this manual before using the
equipment. Be familiar with the controls and the proper usage of the
equipment. Save these instructions.
MaxiVac
™
and Cyclone
Cyclone 20
3A7635A
EN
Cyclone LP
Advertisement
Table of Contents
Related Manuals for Smith MaxiVac 360
Summary of Contents for Smith MaxiVac 360
- Page 1 Operation, Parts ™ MaxiVac and Cyclone 3A7635A Vacuum for collection of dry concrete and asphalt dust. For professional use only. Vacuums MaxiVac 360 (120V) MV360 Separators MVSA Cyclone 20 (20 gallon) MVSC Cyclone LP Important Safety Instructions Read all warnings and instructions in this manual before using the equipment.
-
Page 2: Table Of Contents
Motor Housing Assembly Diagram (MaxiVac 360) ........ -
Page 3: Warnings
Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable. - Page 4 Warnings WARNING GROUNDING This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.
- Page 5 Warnings WARNING EQUIPMENT MISUSE HAZARD Misuse can cause death or serious injury. • Do not operate the unit when fatigued or under the influence of drugs or alcohol. • Do not leave the work area while equipment is energized. Turn off all equipment when equipment is not in use.
-
Page 6: Component Identification
Separator Mid Body Vacuum Hookup Separator Lower Body Vacuum Inlet 10” Wheel Vacuum Outlet 4” Wheel Separator Lid Tool Box Long Hose (to connect the MaxiVac or Cyclone Tool Bag to the SMITH removal equipment) 3A7635A... -
Page 7: Setup
• Connect one end of the Long Vacuum Hose to the inlet of the MaxiVac. Connect the other end of the long hose to the vacuum hookup on the SMITH removal equipment. b. If using a Cyclone separator, remove the Separator Lid and insert the collection bag into the tank. -
Page 8: Operation
4. MaxiVac is now ready for dust collection from the SMITH removal equipment. 5. Use the vacuum accessories shown in the section titled MaxiVac 360 Main Assembly Diagram, page 12 to pick up dust from the ground between grinding passes. -
Page 9: Emptying Collection Tanks And Bags
Operation 7. Insert new bags into the collection tanks and insert 4. Put on respirator. Cut the bag between the two the Dust Bag Holder on top of the bag. Then reinsert cable ties. the tanks into the Cyclone separator and into the bottom of the MaxiVac. -
Page 10: Shutdown And Storage
Shutdown and Storage Shutdown and Storage Shutdown Storage 1. Turn off all vacuum motors and leave Auto Filter Disconnect power cord before storing. Store indoors. Cleaner Power Switch to ON. NOTICE Do not store in a location with high temperatures or excessive humidity, in order to prevent damage to your MaxiVac components. -
Page 11: Maintenance
Maintenance Maintenance Weekly • Inspect Filter Ring Seal for damage. If damaged, replace seal. Ensure seals are installed correctly and properly sealed. DUST AND SHOCK HAZARD To reduce the risk of serious injury: • Respirator must be worn during all maintenance. •... -
Page 12: Parts
Parts Parts MaxiVac 360 Main Assembly Diagram 3A7635A... -
Page 13: Main Maxivac Assembly Parts (Maxivac)
Parts Main MaxiVac Assembly Parts Part Number Description See page 14-16 Motor Housing Assembly See page 16 Auto Filter Cleaner Assembly MV.1.891A Filter (includes item 4) 17X197 Filter Seal Ring MV.6.001 Main Frame MV.6.002 Dust Collection Tank 17X156 Long Vacuum Hose, Standard, 2” (includes item 19) MV.26 Vacuum Extension (set of 2) MV.24... -
Page 14: Motor Housing Assembly Diagram (Maxivac 360)
Parts Motor Housing Assembly Diagram (MaxiVac 360) 3A7635A... -
Page 15: Motor Housing Assembly Parts List (Maxivac 360)
Parts Motor Housing Assembly Parts List (MaxiVac 360) Part Number Description AHN.25-20 Acorn Nut MV.1.002 Motor Housing Cover (includes power cord) HN.25-20x1.0 Hex Spacer, Long (not shown, located inside item 2) MV.1.07 Set of Motor Rubber Rings and Plastic Net MV.3.06B... -
Page 16: Auto Filter Cleaner Assembly (Maxivac)
120V Filter Cleaner Assembly Motor MV.1.11-C Filter Cleaner Bar, Support (set of 2) 4† MV.1.11-D Filter Cleaner Plastic Insert * MaxiVac 360 comes with one replacement set of item 3 † MaxiVac 360 comes with three replacements of item 4 3A7635A... -
Page 17: Notes
Parts Notes 3A7635A... -
Page 18: Cyclone 20 Assembly And Accessories
Parts Cyclone 20 Assembly and Accessories 3A7635A... -
Page 19: Cyclone 20 Assembly And Accessories Parts List
Parts Cyclone 20 Assembly and Accessories Parts List Part Number Description 17X693 Short Vacuum Hose, Standard, 2” (to connect to MaxiVac) MV.SA.01 Debris Tank MV.3.20 Dust Bag (set of 20) MV.1.025 Dust Bag Holder 17X197 Cyclone Seal, Rubber 17X196 Cyclone Ring, Metal MV.SAB.01 Cyclone Head MV.SB.4... -
Page 20: Cyclone Lp Assembly And Accessories
Parts Cyclone LP Assembly and Accessories 3A7635A... -
Page 21: Cyclone Lp Assembly And Accessories Parts List
Parts Cyclone LP Assembly and Accessories Parts List Part Number Description 19B348 Tool Box 19B345 10” Wheel MV-CSC-08 Lower Body 17X930 Bag Adapater 19B350 Dust Flap Cover 19B346 4” Caster 17X154 Belt (to secure Vacuum Dust Collection Bag) 17W295 Plastic Bag 17X196 Metal Ring (main body seal) 17X197... -
Page 22: Technical Data
Technical Data Technical Data MaxiVac 360 (25M858) Electrical Power Requirements - 120 Vac, 60 Hz, 20 A, 1Ø Air Flow (without hose) - 1 vacuum motor: 135 cfm, 2 vacuum motors: 262 cfm Air Flow (with 2” x 30’ hose) - 1 vacuum motor: 93 cfm, 2 vacuum motors: 178 cfm Filtration - 99.3% at 0.3 μm particle size... -
Page 23: California Proposition 65
California Proposition 65 California Proposition 65 CALIFORNIA RESIDENTS WARNING: Cancer and reproductive harm – www.P65warnings.ca.gov. 3A7635A... -
Page 24: Smith Standard Warranty
With the exception of any special, extended, or limited warranty published by SMITH, SMITH will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by SMITH to be defective.
