Brandywine PTP-800 User Manual

Quad port ptp time server
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

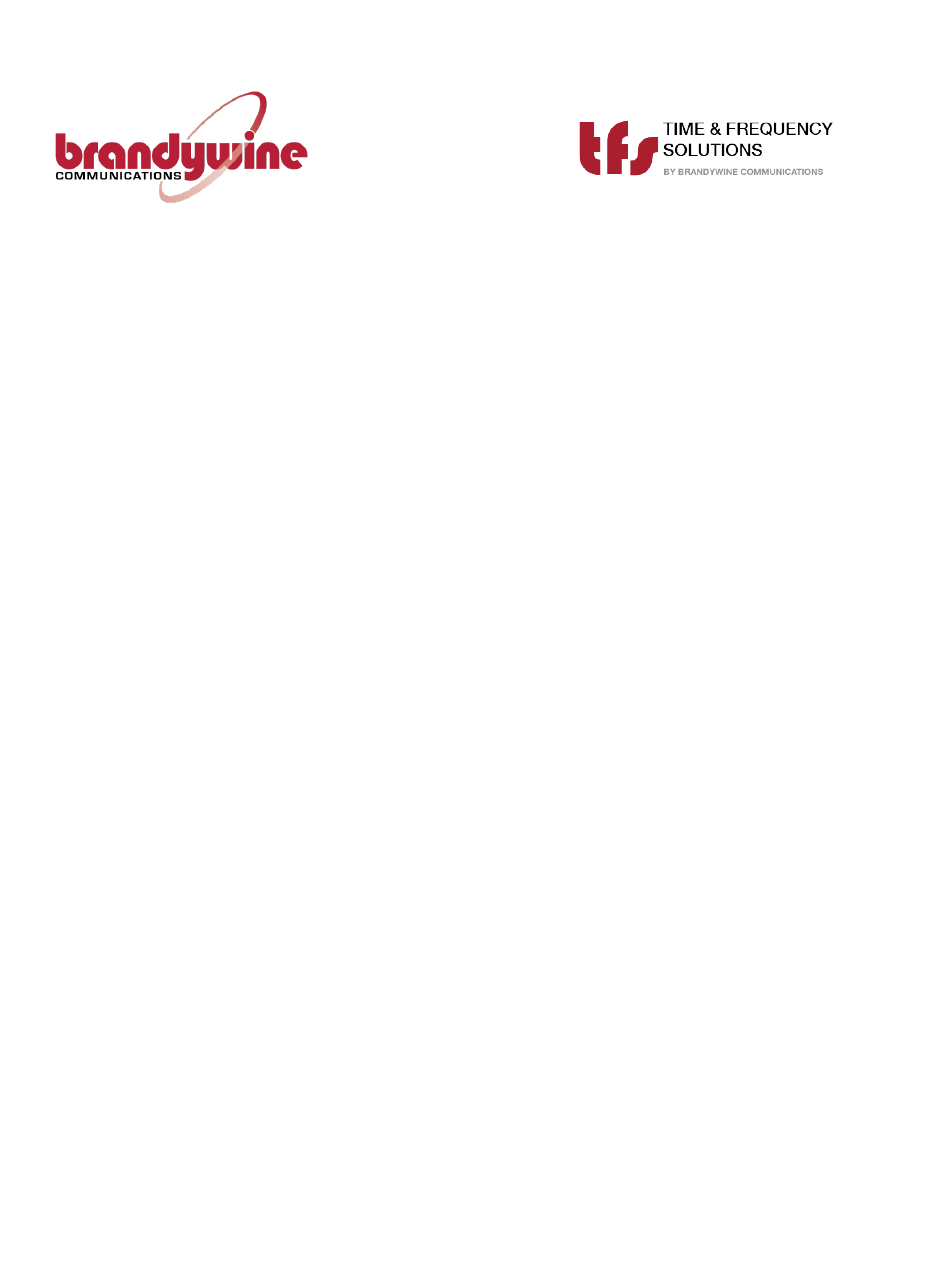

User Manual
Quad Port PTP Time Server
PTP-800
For Brandywine Communications and Time &
Frequency Solutions Part Number:
050600XXX
900600200 Rev. A
June, 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTP-800 and is the answer not in the manual?

Questions and answers

Related Manuals for Brandywine PTP-800

Summary of Contents for Brandywine PTP-800

  • Page 1 User Manual Quad Port PTP Time Server PTP-800 For Brandywine Communications and Time & Frequency Solutions Part Number: 050600XXX 900600200 Rev. A June, 2023...
  • Page 2 Revision History REVISION DATE COMMENTS ECO NUMBER 2023/06/08 Initial Release ECO12629...
  • Page 3 Safety Warnings WARNING: The lightning flash with an arrowhead inside of an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure. The “dangerous voltage” may be of sufficient magnitude to con- stitute a risk of electrical shock to people.

  • Page 5: Table Of Contents

    Contents 1 Overview 1.1 Introduction ....... . 1.2 System Overview ......1.3 Specifications .
  • Page 6 4 Setup 4.1 Accessing the PTP800 ......4.2 Network Configuration ......4.3 Sources and NTP .
  • Page 7 6.3.1.4 Signal Mask ..... . . 6.3.1.5 Elevation Mask ..... 6.3.1.6 Cable Delay .
  • Page 8 C SNMP MIB Format C.1 Brandywine Common MIB ......C.2 TFS Common MIB ......
  • Page 9 List of Figures 1.1 Block Diagram ......2.1 Quick Setup Guide ......4.1 PTP800 Front Panel .
  • Page 10 7.1 PTP Protocol Diagram ......7.2 PTP Heirarchical Structure ..... . . B.1 NTP Propagation Delay .
  • Page 11 List of Tables 1.1 Oscillator Frequency Stability ..... . 4.1 Status Web Page ......5.1 Long Reach Antenna Connections J16 .

  • Page 13: Overview

    Chapter 1 System Overview Introduction to the PTP800 Multi-port Time Server This manual shows you how to install, configure and operate your PTP800 to provide a Precise Time Protocol (PTP) time server for your network. Once up and running the PTP800 will provide accurate time synchronization for your computer clients to within nanoseconds on a Local Area Network (LAN) and tens of microseconds over a Wide Area Network (WAN).

  • Page 14: System Overview

    The network interfaces to PTP-800 allow either a Small Form Factor Pluggable (SFP) module to be fitted or the Reference Jack 45 (RJ45) associated with a port to be used.
  • Page 15 CHAPTER 1. OVERVIEW 1.2. SYSTEM OVERVIEW Figure 1.1: PTP800 Block Diagram 3 of 107 900600200 Rev. A...

  • Page 16: Specifications

    1.3. SPECIFICATIONS CHAPTER 1. OVERVIEW Specification (Basic Unit) 1.3.1 Reference Inputs 1.3.1.1 Commercial GNSS • GNSS, Active or Long Distance Antenna • 1 PPS with Serial Time of Day • IRIG B, AC or DC • NTP Client • 10 MHz 1.3.1.2 Outputs •...

  • Page 17: Interface Standards

    CHAPTER 1. OVERVIEW 1.3. SPECIFICATIONS 1.3.1.4 Interface Standards • PTP [IEEE 1588v2] • NTP V3 [RFC 1305], V4 [RFC5905], SNTP V4[RFC 4330] • SNMPV1[RFC1155/7], V2c[RFC1901/8], V3 [RFC 3411/8] • Ethernet/ IEEE802.3 • IPv4 [RFC 791], IPv6[RFC2460, 8200] • ICMP ping [RFC 792] •...

  • Page 18: Physical

    1.3. SPECIFICATIONS CHAPTER 1. OVERVIEW 1.3.1.6 Physical (Stand Alone Unit) Size 19-inch rack mounting 1U high 200 mm deep Weight 4 5 kg Power Dual redundant option, hot swappable AC Power 90 V to 264 V AC 50-60 Hz Load 20 W (typical), subject to oscillator. Connection via 3 pin IEC plug DC Power 18 V to 36 V DC...

  • Page 19: Frequency Stability

    CHAPTER 1. OVERVIEW 1.3. SPECIFICATIONS 1.3.1.9 Frequency Stability Table 1.1 below shows the frequency stability of the various oscillator options for the PTP800. Table 1.1: Oscillator Frequency Stability Holdover accuracy at Stability constant temperature Oscillator Performance while disciplined Averaging Time per C after loss of reference.

  • Page 21: Quick Start Guide

    Chapter 2 Quick Start Guide Remove the PTP800 from the shipping carton shown in Figure 2.1 on the following page. The following items should be included in the shipment: • 1 PTP800 • 2 Power supply cables • 1 CD-ROM containing User Manual and Utility Software 9 of 107 900600200 Rev.
  • Page 22 CHAPTER 2. QUICK START GUIDE 192.168.101.92 Figure 2.1: PTP-800 Quick Setup Guide 10 of 107 900600200 Rev. A...

  • Page 23: Installation

    Site Preparation 3.1.1 Antenna To prepare the site for the PTP-800 installation, a suitable antenna location has to be found. The antenna is a sealed unit. It should be located outside where there is good sky-coverage (e.g. on a roof) and away from high frequency electrical interference sources.

  • Page 24: Power

    3.1. SITE PREPARATION CHAPTER 3. INSTALLATION 3.1.1.1 Power The PTP800 requires between 90 V to 240 VAC @ 50/60 Hz for power. Power Con- sumption is 30 W. 3.1.1.2 Network The PTP800 has four RJ45/SFP network connections. If an SFP module is fitted for a port, the associated RJ45 port is disabled.

  • Page 25: Power

    CHAPTER 3. INSTALLATION 3.1. SITE PREPARATION 3.1.1.4 Power Insert the power cord of the PTP800 into an electrical socket to apply power to the unit. If dual redundant power is required, connect both power supplies to independent power sources 3.1.1.5 Antenna Connect the antenna to the BNC connector J17 labelled “GPS Antenna”...

  • Page 27: Setup

    Chapter 4 Setup Power on the PTP800 by switching the rear Power Supply Module to the upwards “On” position. To view the IP address depress the reset button on the rear of the unit for a maximum of 5 seconds and release. The 4 IP addresses are then rolled across the front panel display shown in Figure 4.1 for 10s each in sequence, expressed in the standard dot decimal format, with the left most digit indicating the port number 1 to 4.

  • Page 28: Accessing The Ptp800

    4.1. ACCESSING THE PTP800 CHAPTER 4. SETUP Accessing the PTP800 NOTE The PTP800’s factory settings have no default username and password for the system. Ensure you configure appropriate security settings for your environment after setting it up. Once the PTP800 is powered on and connected to the network, open up a web browser on a device connected to the same network as the PTP800 and type the IP Address of the PTP800 into the address bar to access the web page user interface (Web UI) shown in Figure 4.2 below.

  • Page 29: Status Web Page

    CHAPTER 4. SETUP 4.1. ACCESSING THE PTP800 Table 4.1: Status Web Page Field Description Firmware Displays the name of the PTP800’s firmware. Runtime The length of time that the PTP800 has been powered on. Version Displays the current version of the PTP800’s firmware.

  • Page 30: Network Configuration

    4.2. NETWORK CONFIGURATION CHAPTER 4. SETUP Network Configuration Web Page Use the [NETWORK] button on the right to select the network configuration page shown in Figure 4.3 below. This provides configuration for all the network settings, IP addresses, SNMP and service selection for the network ports. Figure 4.3: Network Setting Web Page Configure each port as required.

  • Page 31: 4.3. Sources And Ntp

    CHAPTER 4. SETUP 4.3. SOURCES AND NTP Sources and NTP Configuration Use the [CONFIGURE NTP] buttons to open the Time Source Settings Config- uration page shown in Figure 4.4 below to configure the unit references and NTP service. The supplied configuration will run the auto-arbitration mechanism between all the sources, GNSS, IRIG, Time of Day.

  • Page 32: Ptp Configuration

    Figure 4.5 below to configure the unit for PTP. The relevant Ethernet port can be enabled to be a Grandmaster source. The PTP-800 will now be configured and able to serve time on your network. Figure 4.5: PTP Configuration Web Page 20 of 107 900600200 Rev.

  • Page 33: Connections

    Chapter 5 Connections Figure 5.1: Rear Panel Drawing Figure 5.1 above shows the rear of the PTP800. The following sections of this chapter detail the signal formats that the PTP800 is capable of receiving or sending. 21 of 107 900600200 Rev. A...

  • Page 34: Input Signal Connections

    GNSS Antenna Connections (GNSS Version) 5.1.1.1 Standard GPS Antenna for PTP-800 P/N 040002XX The antenna is connected to the BNC port marked J17 GPS Antenna on the rear of the PTP800. The antenna connector is a BNC Socket (50 Ω) and its connections are: Centre Pin : GPS Signal 1 6 GHz (&...

  • Page 35: Irig B Time Code Input

    CHAPTER 5. CONNECTIONS 5.1. INPUT SIGNAL CONNECTIONS 5.1.2 IRIG B Time Code Input The IRIG B time code input is connected to BNC connector J15. The pin connections are as follows: Centre Pin : Time Code Input Shield : Time Code Return This is internally configured for either Modulated (IRIG B12X) or IRIG DCLS (IRIG B00X).

  • Page 36: 1Pps Input

    5.1. INPUT SIGNAL CONNECTIONS CHAPTER 5. CONNECTIONS 5.1.4 1PPS Input This 1 PPS input is used to provide the on-time mark for the time of day. Time of day message will follow the PPS to which it is associated. The 1 PPS input is connected to BNC connector J13.

  • Page 37: Output Connections

    1 PPS will not be within the quoted accuracy specifications until the PTP800 has synchronized. Upon synchronization of the PTP-800 to the selected reference, the 1 PPS will be accurate to the quoted specifications.

  • Page 38: Irig Time Code Output

    5.2. OUTPUT CONNECTIONS CHAPTER 5. CONNECTIONS 5.2.2 IRIG Time Code Output NOTE The available options for IRIG-B output type are dependent upon the factory settings, as configured for customer requirements. The PTP800 generates IRIG B serial time code in either carrier modulated (AC) or Unmodulated (DCLS) format by means of the IRIG Output radio button, on the [CONFIGURE OUTPUTS] webpage.

  • Page 39: Time Of Day Output

    CHAPTER 5. CONNECTIONS 5.2. OUTPUT CONNECTIONS 5.2.3 Time of Day Output Port J10 provides time of day output through an RJ45 connection with the pinout shown in Table 5.3. RS422 is available from pins 1 & 2, and RS232 from pins 3 & 4. Table 5.3: J10 Pin Connections Signal RS422 TX +...

  • Page 40: Nmea0183 Message Format Gpzda

    5.2. OUTPUT CONNECTIONS CHAPTER 5. CONNECTIONS 5.2.3.1 NMEA0183 Message format GPZDA The NMEA0183 message format provides UTC day, month, and year, and local time zone offset. Table 5.4 below shows a more detailed breakdown of the ZDA message format. An example of the ZDA message string is: $GPZDA,172809.456,12,07,1996,00,00 45 Table 5.4: ZDA Message Fields Field...

  • Page 41: Tfs Message1

    CHAPTER 5. CONNECTIONS 5.2. OUTPUT CONNECTIONS 5.2.3.2 TFS Message1 Table 5.5 below shows the fields for the TFS Message1 output from the PTP800. Table 5.5: TFS Message1 Fields Field Meaning BCD centiseconds BCD seconds BCD minutes BCD hours BCD Day of Week (00 = Sunday) BCD Day of Month BCD Month BCD Year...

  • Page 42: Network Ports

    5.3. NETWORK PORTS CHAPTER 5. CONNECTIONS Network Ports Four independent Ethernet ports are available for interfacing to your network(s) and can use either the standard Ethernet RJ45 connections or and SFP module. If an SFP module is fitted the associated RJ45 connection port is disabled. The unit is also configured and monitored via a web GUI through a network connection.

  • Page 43: Power Connection

    CHAPTER 5. CONNECTIONS 5.4. POWER CONNECTION Power Connection The AC power connector is suitable for 90 V to 240 V AC at 50/60 Hz. Use Table 5.6 below to find the power cord appropriate to the country of use. A locking cord is available for applications where the power cord must remain securely attached when the power cord may experience tension –...

  • Page 44: Default Setting / Ip Button

    5.5. DEFAULT SETTING / IP BUTTON CHAPTER 5. CONNECTIONS Default Setting / IP Address Button Pressing this button for less than 5 seconds and releasing it causes the unit to display its four IP address in sequence for 10 seconds each. The 4 IP addresses are then given for 10s each in sequence, expressed in dot-decimal notation.

  • Page 45: Web Configuration

    (2) PTP for PTP parameters and (3) OUTPUTS to configure the unit output signals. • System: Set up all the unit’s security credentials; web security to access the PTP-800, SNMP v3 credentials and the NTP authentication keys. 33 of 107 900600200 Rev. A...
  • Page 46 Login is not required for the STATUS and EVENT pages of the web interface. Accessing the PTP-800 can be achieved with any browser. The PTP800 uses a secure HTTPS protocol. There is an automatic redirection from the standard HTTP port to HTTPS.

  • Page 47: System Security

    CHAPTER 6. WEB CONFIGURATION 6.1. SYSTEM SECURITY System Security System security is managed using the System Setup Screen, shown in Figure 6.2. PTP800 offers user-defined security configuration for the following areas: 1. Login credentials 2. Simple Network Management Protocol (SNMP) 3.

  • Page 48: Login Credentials

    6.1. SYSTEM SECURITY CHAPTER 6. WEB CONFIGURATION 6.1.1 Login Credentials NOTE Do not lose the details of the user name and password. If they are lost then the unit will have to be restarted and the factory defaults restored. Use the fields shown in Figure 6.3 below to set a username and password, and to control access to the PTP800.

  • Page 49: Remote Configuration Access

    CHAPTER 6. WEB CONFIGURATION 6.1. SYSTEM SECURITY 6.1.2 Remote Configuration Access NOTE It is important that discrepancies are avoided between the subnet mask and IP address; for example if 192.168.101.1 had been entered with a subnet mask of 255.255.255.0 then all access would be denied as there are no addresses that can meet this configuration.

  • Page 50: Snmp V3 Credentials

    6.1. SYSTEM SECURITY CHAPTER 6. WEB CONFIGURATION 6.1.3 SNMP v3 Credentials Use the section of the webpage shown in Figure 6.4 below to configure SNMP V3 with the authentication and privacy keys. Figure 6.4: SNMP v3 Credentials Input Area Enter the desired keys and click on [Submit]. 6.1.4 NTP Aunthentication The section of the webpage shown in Figure 6.5 below allows the three following...
  • Page 51 CHAPTER 6. WEB CONFIGURATION 6.1. SYSTEM SECURITY keys and the authentication type. This file is uploaded in its entirety. It is up to the user to manage this file and maintain appropriate secure copies. Once uploaded the file cannot be directly accessed in any way. If a change to it is required it must be done to the file externally and reloaded.

  • Page 52: Network Configuration

    6.2. NETWORK CONFIGURATION CHAPTER 6. WEB CONFIGURATION Network Configuration This page, shown in Figure 6.6, allows the configuration of each of the Ethernet ports. Select the port to configure from the drop down list box. The current settings for that port will be shown. Figure 6.6: Network Settings Screen The following settings in Table 6.1 on the facing page are port specific: IP , Gateway, Netmask, Speed, Duplex...

  • Page 53: Port Specific Network Settings

    CHAPTER 6. WEB CONFIGURATION 6.2. NETWORK CONFIGURATION Table 6.1: Port Specific Network Settings Setting Description Permit port to acquire its address via Dynamic Host Con- DHCP figuration Protocol (DHCP). This will be shown on the status page. This can only be applied to one port of the unit.

  • Page 54: Network Screen Showing Configuration Changes

    6.2. NETWORK CONFIGURATION CHAPTER 6. WEB CONFIGURATION The PTP800 will send traps when a trap address is set. There are rules as to where these traps will be sent depending on the port configurations. If the trap address is on a subnet of a particular SNMP enabled port then the trap will only be sent to that port.

  • Page 55: Network Screen After Ip Address Change

    CHAPTER 6. WEB CONFIGURATION 6.2. NETWORK CONFIGURATION NOTE If the port IP address, through which the web page is being accessed, is changed, then the screen in Figure 6.8 will be shown, the link ‘Click here to redirect to STATUS PAGE’ is created to connect to the new address.

  • Page 56: Configure

    6.3. CONFIGURE CHAPTER 6. WEB CONFIGURATION Configure This page sets up the NTP service and input and output sources. The PTP800 has three possible external reference sources, GNSS, IRIG and Time of Day (with PPS). The use of these sources can be either as manual selection or under the TimeWall™arbitrator.

  • Page 57: Stats

    CHAPTER 6. WEB CONFIGURATION 6.3. CONFIGURE The default priority order is GNSS, IRIG and Time of Day. Without any available reference time, an external 10 MHz will be used to maintain the timescale established from the last available reference source. 6.3.1.1 STATS This is used for diagnostic purposes and should normally not be enabled.

  • Page 58: Signal Mask

    6.3. CONFIGURE CHAPTER 6. WEB CONFIGURATION The tracked satellites on status page will show the satellites used in each constella- tion. 6.3.1.4 Signal Mask A signal level value below which satellites ignored for timing, this is an integer between 0 and 55. The default value is 35, reduce this if there are problems with GNSS synchronization.

  • Page 59: Irig Year

    CHAPTER 6. WEB CONFIGURATION 6.3. CONFIGURE 6.3.1.8 IRIG year For IRIG formats that do not contain a year, enter the current year. This will be provided by other reference sources if they are available. 6.3.1.9 AC/DCLS Set to agree with the configuration of the unit for the IRIG input; either AC IRIG or DCLS.

  • Page 60: Time Of Day

    6.3. CONFIGURE CHAPTER 6. WEB CONFIGURATION 6.3.1.12 Time of Day Select the serial port parameters from the list, either RS232 or RS422. Select the message protocol to be expected either GPZDA standard NMEA message or TFS message 4, defined in Appendix D on page 101. 6.3.1.13 Local time Check this box if the time in the reference source message is in local time and not...

  • Page 61: Mulitcast (Or Broadcast) Address

    CHAPTER 6. WEB CONFIGURATION 6.3. CONFIGURE 6.3.1.15 Mulitcast (or Broadcast) Address The PTP800 can be used as a broadcast NTP server. A broadcast address or mul- ticast address can be specified in the multicast address box along with the poll interval.

  • Page 62: Outputs

    6.3. CONFIGURE CHAPTER 6. WEB CONFIGURATION 6.3.2 Outputs Table 6.3 below shows the various output configuration options. Table 6.3: Output Configuration Options Output Description Enable/disable PPS output Select the required IRIG output format. DCLS or AC IRIG IRIG output is dependent on the hardware jumper con- format figuration.

  • Page 63: Status

    CHAPTER 6. WEB CONFIGURATION 6.4. STATUS Status The status of the PTP800 is shown across two status pages. 6.4.1 Status Selecting [STATUS] will bring up the PTP800 Network Time Server status screen, shown in Figure 6.10 shows the current running state of the PTP800. The top section shows the system state including how long it has been running and the currently loaded date and time.
  • Page 64 Where multi-constellation mode has been selected then the satellites tracked from each constellation are identified. PTP slave status provides an indication of the PTP-800 operational state, with regard to the PTP network clock hierarchy. The NTP status indicates the current NTP service synchronization source and the stratum level.

  • Page 65: Ptp Status

    CHAPTER 6. WEB CONFIGURATION 6.4. STATUS 6.4.2 PTP STATUS The PTPSTATUS webpage provides additional detail regarding each of the four Ethernet ports: : Provides additional information specific to DEFAULT DATA SET the current settings associated with each Ethernet port. TIME PROPERTIES DATA SET : Provides additional information regarding the condition of the internal clock being used.

  • Page 66: Events

    6.5. EVENTS CHAPTER 6. WEB CONFIGURATION Events Figure 6.11 below shows the Event Log Screen. Figure 6.11: Event Log Screen The following lists all the events and their causes that can appear in the event log. They will cause an SNMP v1 trap to be sent to SNMP enabled ports. Global Positioning System (GPS) events are also shown on the front panel of the PTP800, and these events will be shown in the relevant status field on the web status page.

  • Page 67: System Events

    CHAPTER 6. WEB CONFIGURATION 6.5. EVENTS 6.5.1 System Events Table 6.4 below shows the possible System Events for the PTP800. Table 6.4: System Events Event Description System startup. Initialization of event log. Not visible after first 800 events. Manual restart Remote reboot has been applied.

  • Page 68: Ntp Server Events

    6.5. EVENTS CHAPTER 6. WEB CONFIGURATION some intermediate messages will occur as the number of satellites tracked increases. In most cases, if any state other than normal is seen persistently then the likelihood is that there is an issue with the GPS reception either due to antenna placement, operation or cable length.

  • Page 69: Remote Restart

    CHAPTER 6. WEB CONFIGURATION 6.6. REMOTE RESTART Remote Restart There is a mechanism to remotely reboot the PTP800. From the SYSTEM webpage notice the small ‘ ’ on the top left side of the webpage as shown in Figure 6.12 below. Figure 6.12: Detail View of Remote Restart Option Selecting the [reboot now] button will cause the unit to do a complete restart.

  • Page 70: Remote Restart Complete

    6.6. REMOTE RESTART CHAPTER 6. WEB CONFIGURATION Figure 6.13: Remote Restart Complete Clicking the link shown in Figure 6.13 above will take you back to the status webpage. The reboot is recorded in the event log. 58 of 107 900600200 Rev. A...

  • Page 71: Precision Time Protocol

    Chapter 7 The Precision Time Protocol Why Use The Precision Time Protocol? Accurate Time has always been an important issue, especially in today’s world where computer systems are required to precisely time stamp events and occurrences. How- ever, computers are notorious for poor time keeping because they use a basic watch crystal as their internal timebase.
  • Page 72 7.1. WHY USE PTP? CHAPTER 7. PRECISION TIME PROTOCOL precise timekeeping. PTP employs a mechanism called hardware-assisted synchro- nization. It utilizes hardware timestamps and precise delay measurements to achieve high-precision time synchronization between PTP clients and a grandmaster clock. PTP (Precision Time Protocol) timestamping is a crucial aspect of accurate time synchronization in PTP networks.

  • Page 73: 7.2. Ptp Heirarchy

    CHAPTER 7. PRECISION TIME PROTOCOL 7.2. PTP HEIRARCHY PTP Heirarchical Structure Figure 7.2 below shows the PTP Heirarchical structure. Ordinary Boundary Transparent Clock Clock Clock Ordinary Clock Grandmaster Clock Ordinary Clock Ordinary Clock Boundary Transparent Clock Clock Ordinary Clock Ordinary Clock Figure 7.2: Precise Time Protocol Heirarchical Structure Diagram 61 of 107...

  • Page 75: Maintenance

    Chapter 8 Maintenance Preventive Maintenance The PTP800 does not require scheduled preventative maintenance during normal operation. 63 of 107 900600200 Rev. A...

  • Page 76: Uploading New Firmware

    8.2. UPLOADING NEW FIRMWARE CHAPTER 8. MAINTENANCE Uploading New Firmware to the PTP800 See Chapter 11 on page 71, “Updating Firmware and FPGA” for the instructions on how to do this. 64 of 107 900600200 Rev. A...

  • Page 77: Frequently Asked Questions

    Chapter 9 Frequently Asked Questions Table 9.1 below and on the following page is a list of commonly asked questions by our customers. If the question that you wished to be answered is not in the list please contact us. Contact details are found at the end of this manual under Chapter A. Table 9.1: Frequently Asked Questions Can the PTP800 act as a stratum one server? Yes, Once the PTP800 has synchronized to a traceable GPS or Off-Air...

  • Page 78: Frequently Asked Questions

    CHAPTER 9. FREQUENTLY ASKED QUESTIONS Table 9.1: Frequently Asked Questions (Continued) Can a client have two sources of stratum one server so if one server loses the time or is offline the client can receive time from the second server? Yes, in most cases the client software will allow the configuration for two IP addresses;...

  • Page 79: Troubleshooting

    Chapter 10 Troubleshooting The PTP800 is capable of alarm and status reporting. These alarms are listed in Table 10.1 on page 69 together with likely causes, and potential solutions. 67 of 107 900600200 Rev. A...

  • Page 80: Status Led Meanings

    10.1. STATUS LED MEANINGS CHAPTER 10. TROUBLESHOOTING 10.1 Status LED Meanings POWER LED on PSUs STATUS – On TIME VALID Unit has obtained time from a time source since power on and holdover has not expired Flashing = Unit time invalid but advancing with 10 MHz input = Unit has not obtained time from a time source since power on GNSS = GNSS receiver PPS and time data both present...

  • Page 81: 10.2. Troubleshooting Guide

    CHAPTER 10. TROUBLESHOOTING 10.2. TROUBLESHOOTING GUIDE 10.2 Faults/Troubleshooting Guide Table 10.1: Faults/Troubleshooting Guide Fault Cause Solution The PTP800 does The PTP800 does Unsure that the PTP800 is respond not have power connected to power (on both the network and no power supplies if necessary), lamps illumi-...

  • Page 83: Updating Firmware And Fpga

    The file for system update and a checksum will be supplied by Brandywine. At this point it is possible to set up an ftp-server onto which the update file is placed, and retrieve from, or Brandywine will ftp the provided file to the unit under instruction.
  • Page 85 Appendix A Support Information All Brandywine Communications and Time & Frequency Solutions products come with a three-year warranty. If the unit is still exhibiting problems not covered by the above troubleshooting guide, contact us for technical support at support@brandywinecomm.com or call us at +1 (714) 755-1050.
  • Page 87 Appendix B Understanding the Network Time Protocol Why use the Network Time Protocol Accurate Time has always been an important issue, especially in today’s world where computer systems are required to precisely time stamp events and occurrences. How- ever, computers are notorious for poor time keeping because they use a basic watch crystal as their internal timebase.
  • Page 88 B.2. UNDERSTANDING NTP APPENDIX B. NETWORK TIME PROTOCOL Understanding NTP The client computer obtains the NTP protocol by requesting a NTP packet from the NTP Server. The Software that requests the packet handles reception, maintenance and distribution of the time on the computers where it is installed. All Time & Frequency Solutions NTP Time Servers are supplied, with client software as standard for a range of operating systems &...
  • Page 89 APPENDIX B. NETWORK TIME PROTOCOL B.3. NTP HIERARCHY NTP Hierarchical Structure NTP supports a hierarchical structure as shown in Figure B.2 to ensure the avail- ability of time, allowing the user to monitor their position in the hierarchy and thus the quality of the time service available.
  • Page 91 Appendix C SNMP MIB Format Brandywine Communications Common MIB File --*********************************************************************-- -- BRANDYWINE COMMUNICATIONS Inc -- COMMON MIB 928600001 -- Standard MIB objects in all products. --*********************************************************************-- BRANDYWINECOMM-COMMON-MIB DEFINITIONS ::= BEGIN IMPORTS enterprises, OBJECT-TYPE, MODULE-IDENTITY, NOTIFICATION-TYPE FROM SNMPv2-SMI; brandywineComm MODULE-IDENTITY LAST-UPDATED "201910210000Z"...
  • Page 92 C.1. BRANDYWINE COMMON MIB APPENDIX C. SNMP MIB FORMAT ORGANIZATION "Brandywine Communications Inc" CONTACT-INFO "support@www.brandywinecomm.com" DESCRIPTION "All objects common to Brandywine Communications products" -- Revision History REVISION "201905250000Z" DESCRIPTION "Initial release" REVISION "201910020000Z" DESCRIPTION "v1.0 Add class/project definitions" REVISION "201910210000Z"...
  • Page 93 APPENDIX C. SNMP MIB FORMAT C.1. BRANDYWINE COMMON MIB ntp80 (8), ptp80 (9), ptp8 (10), timeacc001 (11), ntp800 (6002), catu (6033) MAX-ACCESS read-only STATUS current DESCRIPTION "Indicates type of unit and hence its functionality" ::= {inventory 1} partNo OBJECT-TYPE SYNTAX OCTET STRING (SIZE(0..16))
  • Page 94 C.1. BRANDYWINE COMMON MIB APPENDIX C. SNMP MIB FORMAT SYNTAX OCTET STRING (SIZE(0..14)) MAX-ACCESS read-only STATUS current DESCRIPTION "Programmable logic (FPGA, EPLD) part number" ::= {inventory 6} phwversion OBJECT-TYPE SYNTAX OCTET STRING (SIZE(0..8)) MAX-ACCESS read-only STATUS current DESCRIPTION "Programmable logic (FPGA, EPLD) version number"...
  • Page 95 APPENDIX C. SNMP MIB FORMAT C.1. BRANDYWINE COMMON MIB timestamp OBJECT-TYPE SYNTAX INTEGER MAX-ACCESS read-only STATUS current DESCRIPTION "time as number of secs since 1 January 1970" ::={syslogEntry 1} resolver OBJECT-TYPE SYNTAX INTEGER MAX-ACCESS read-only STATUS current DESCRIPTION "fraction of seconds, in microseconds"...
  • Page 96 C.1. BRANDYWINE COMMON MIB APPENDIX C. SNMP MIB FORMAT function OBJECT-TYPE SYNTAX OCTET STRING (SIZE(0..31)) MAX-ACCESS read-only STATUS current DESCRIPTION "Function within module causing event" ::={syslogEntry 6} description OBJECT-TYPE SYNTAX OCTET STRING (SIZE(0..128)) MAX-ACCESS read-only STATUS current DESCRIPTION "Description of event"...
  • Page 97 APPENDIX C. SNMP MIB FORMAT C.1. BRANDYWINE COMMON MIB ::= {systemstatus 4} restart OBJECT-TYPE SYNTAX INTEGER MAX-ACCESS read-write STATUS current DESCRIPTION "Remote reset. Set to 1 to cause reset." ::= {systemstatus 7} clock OBJECT IDENTIFIER ::= {common 3} frequency OBJECT-TYPE...
  • Page 98 C.1. BRANDYWINE COMMON MIB APPENDIX C. SNMP MIB FORMAT freqoffset OBJECT-TYPE SYNTAX INTEGER MAX-ACCESS read-only STATUS current DESCRIPTION "clock offset in ppb" ::= {clock 5} stability OBJECT-TYPE SYNTAX INTEGER MAX-ACCESS read-only STATUS current DESCRIPTION "clock stability in ppb" ::= {clock 6}...
  • Page 99 APPENDIX C. SNMP MIB FORMAT C.1. BRANDYWINE COMMON MIB 0x04 loaded last frame (LLF) 0x08 loaded since reset (LSR) 0x10 LSR in the last VALIDSECONDS 0x20 Synchronised since reset. 0x40 Manual time entry 0x80 Leap second pending Note not all flags are implemented in all clocks. LLF & LSR are always implemented.
  • Page 100 C.1. BRANDYWINE COMMON MIB APPENDIX C. SNMP MIB FORMAT phase INTEGER sourcetype OBJECT-TYPE SYNTAX INTEGER noClockSource (0), gps (1), timecode (2), msf (3), dcf (4), wwvb (5), ntp (6), ptp (7), havequick (8), irig (9) MAX-ACCESS read-only STATUS current DESCRIPTION "type of synchronization source"...
  • Page 101 APPENDIX C. SNMP MIB FORMAT C.1. BRANDYWINE COMMON MIB MAX-ACCESS read-only STATUS current DESCRIPTION "Current time expressed as number of seconds since 1/1/1970" ::= {sourcelistEntry 4} phase OBJECT-TYPE SYNTAX INTEGER MAX-ACCESS read-only STATUS current DESCRIPTION "last phase error measurement ns"...
  • Page 102 C.1. BRANDYWINE COMMON MIB APPENDIX C. SNMP MIB FORMAT 90 of 107 900600200 Rev. A...
  • Page 103 APPENDIX C. SNMP MIB FORMAT C.2. TFS COMMON MIB Time & Frequency Solutions Common MIB File --*********************************************************************-- -- TFS Enterprise MIB -- v8.00 Additional clock objects. -- v7.00 Rationalisation of TFS mibs for all products. -- Initial common MIB for all products. --*********************************************************************-- TFS DEFINITIONS ::= BEGIN IMPORTS...
  • Page 104 C.2. TFS COMMON MIB APPENDIX C. SNMP MIB FORMAT ptp80 (9), ptp8 (10), timeacc001 (11) ACCESS read-only STATUS mandatory DESCRIPTION "Indicates type of unit and hence its functionality" ::= {common 1} modelNo OBJECT-TYPE SYNTAX OCTET STRING (SIZE(0..16)) ACCESS read-only STATUS mandatory DESCRIPTION "Model number"...
  • Page 105 APPENDIX C. SNMP MIB FORMAT C.2. TFS COMMON MIB lastevent OBJECT-TYPE SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION "Last event ID" ::= {systemstatus 2} trapmask OBJECT-TYPE SYNTAX INTEGER (0..63) ACCESS read-write STATUS mandatory DESCRIPTION "This is a bit-mask representing the severity levels that cause a trap.
  • Page 106 C.2. TFS COMMON MIB APPENDIX C. SNMP MIB FORMAT SyslogEntry ::= SEQUENCE { timestamp INTEGER, resolver INTEGER, eventid INTEGER, severity INTEGER, module OCTET STRING (SIZE(0..31)), function OCTET STRING (SIZE(0..31)), description OCTET STRING (SIZE(0..128)) timestamp OBJECT-TYPE SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION "time as number of secs since 1 January 1970"...
  • Page 107 APPENDIX C. SNMP MIB FORMAT C.2. TFS COMMON MIB DESCRIPTION "Event type" ::={syslogEntry 4} module OBJECT-TYPE SYNTAX OCTET STRING (SIZE(0..31)) ACCESS read-only STATUS mandatory DESCRIPTION "Module causing event" ::={syslogEntry 5} function OBJECT-TYPE SYNTAX OCTET STRING (SIZE(0..31)) ACCESS read-only STATUS mandatory DESCRIPTION "Function within modules causing event"...
  • Page 108 C.2. TFS COMMON MIB APPENDIX C. SNMP MIB FORMAT ::= {clock 2} jitter OBJECT-TYPE SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION "clock jitter in ns" ::= {clock 3} dispersion OBJECT-TYPE SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION "clock dispersion, averaged error, in ns" ::= {clock 4} freqoffset OBJECT-TYPE SYNTAX INTEGER...
  • Page 109 APPENDIX C. SNMP MIB FORMAT C.2. TFS COMMON MIB DESCRIPTION "Oscillator type description" ::= {clock 8} clockState OBJECT-TYPE SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION "Clock status bit flags: 0x01 valid pps 0x02 valid data 0x04 loaded last frame (LLF) 0x08 loaded since reset (LSR) 0x10 LSR in the last VALIDSECONDS 0x20 Synchronised since reset.
  • Page 110 C.2. TFS COMMON MIB APPENDIX C. SNMP MIB FORMAT ACCESS read-only STATUS mandatory DESCRIPTION "Last lock time expressed as number of seconds since 1/1/1970" ::= {source 2} currenttime OBJECT-TYPE SYNTAX INTEGER ACCESS read-only STATUS mandatory DESCRIPTION "Current time expressed as number of seconds since 1/1/1970" ::= {source 3} modules OBJECT IDENTIFIER ::= {tfs 8} alerts OBJECT IDENTIFIER ::= {tfs 99}...
  • Page 111 APPENDIX C. SNMP MIB FORMAT C.2. TFS COMMON MIB DESCRIPTION "System log event trap" ::= 8 99 of 107 900600200 Rev. A...
  • Page 113 Appendix D TFS Message4 Format Definition Each message is 22 bytes long and the format is defined in Table D.1 below. Table D.1: TFS Message4 Format Definition Byte Definition ASCII ‘T’ ASCII TENS OF HOURS ASCII UNITS OF HOURS ASCII ‘:’ ASCII TENS OF MINUTES ASCII UNITS OF MINUTES ASCII ‘:’...

  • Page 114: Tfs Message4 Format Definition

    APPENDIX D. TFS MESSAGE4 FORMAT DEFINITION Table D.1: TFS Message4 Format Definition (Continued) Byte Definition ASCII UNITS OF YEAR ASCII DAY OF WEEK(‘0’ = SUN) HEX Checksum: Longitudinal Redundancy Check bytes 1-20 (XOR data) HEX Status ASCII Carriage Return STATUS: 0000abcd (a-d = 0 or 1) when 1, a = Time loaded since reset, b = Time loaded last minute, c = Leap year, d = Daylight Saving time 102 of 107 900600200 Rev.
  • Page 115 Front Panel Drawing Figure D.1 below shows the front panel of the PTP800 Figure D.1: Front Panel Drawing 103 of 107 900600200 Rev. A...
  • Page 117 Rear Panel Drawing Figure D.2 below shows the rear panel of the PTP800 Figure D.2: Rear Panel Drawing 105 of 107 900600200 Rev. A...
  • Page 119 Parts List 107 of 107 900600200 Rev. A...
