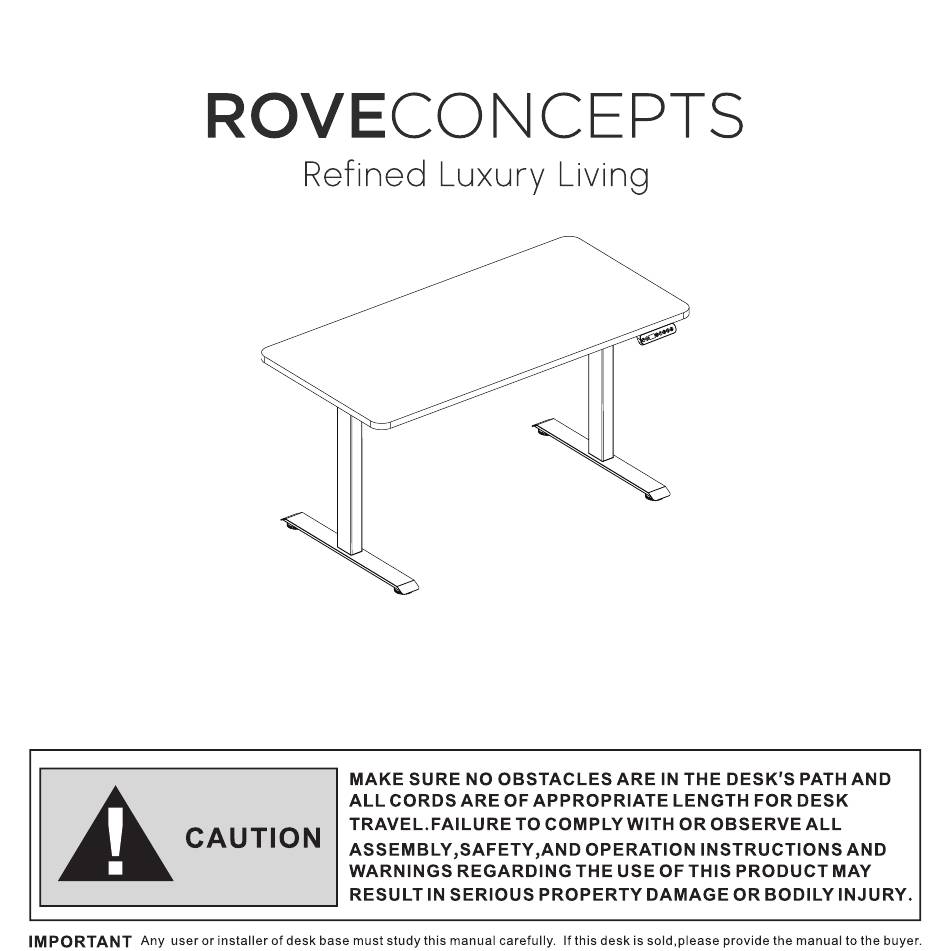

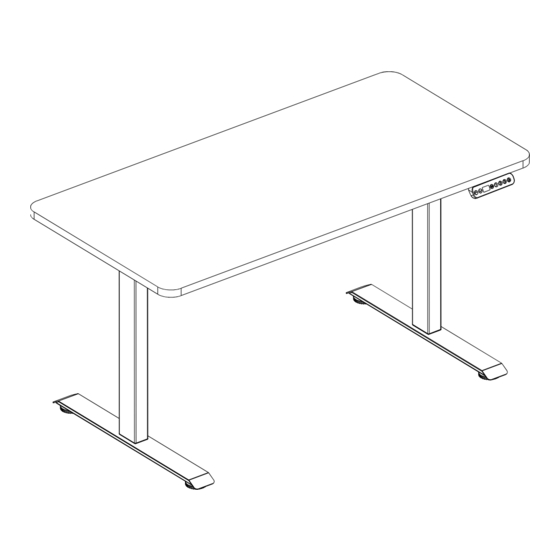

- Page 1 ERYK/ATHENA E-STANDING DESK ASSEMBLY INSTRUCTIONS...
- Page 2 CAUTION Eryk/Athena E-Standing Desk | 2...
- Page 3 CAUTION Eryk/Athena E-Standing Desk | 3...
- Page 4 CAUTION Eryk/Athena E-Standing Desk | 4...
-
Page 5: Tools Required
TOOLS REQUIRED 4mm Wrench Tapeline Phillips Head Screwdriver Power Drill (Included) Eryk/Athena E-Standing Desk | 5... - Page 6 COMPONENTS Lifting Column Crossbar End Crossbar Center Rails Side Bracket Foot Leveling Studs Control Box Handset Wires Mesh Eryk/Athena E-Standing Desk | 6...
- Page 7 HARDWARE M6*12 M6*16 M6*8 M5*18 M4*12 M8*6 Washers Cable Clips Screw Cap Eryk/Athena E-Standing Desk | 7...
- Page 8 Lay the Crossbar End 1 and 2 out flat on the floor, slide the frame out evenly from both sides. c. Slide crossbar center rails out of Crossbar ends. Crossbar End 2 Crossbar End 1 Eryk/Athena E-Standing Desk | 8...
- Page 9 Align the crossbar end to the lifting column, insert the A screws and tighten it. b. Repeat for the other side. Allen Key 4mm Lock screw *Avoid over-tightening the screws to not damage the product. Eryk/Athena E-Standing Desk | 9...
- Page 10 Line up the two holes on the side bracket with the crossbar end. Insert two Cs and tighten it. b. Attach the washers on the side bracket. c. Repeat for the other side. Allen Key 4mm Lock screw *Avoid over-tightening the screws to not damage the product. Eryk/Athena E-Standing Desk | 10...
- Page 11 Align the foot with the lift column, and insert and tighten four Bs into the holes under the feet. c. Repeat for the other side. Allen Key 4mm Lock screw *Avoid over-tightening the screws to not damage the product. Eryk/Athena E-Standing Desk | 11...
- Page 12 STEP 5 Merge the frame Slide crossbar center rails back into crossbar ends. Ensure the slots of the crossbar center rails are facing inward. Eryk/Athena E-Standing Desk | 12...
- Page 13 *The length of the frame can be adjusted by lifting the two side brackets. The adjustable range is 1010-1750mm, which can be used for tables of different widths. *Avoid over-tightening the screws to not damage the product. Eryk/Athena E-Standing Desk | 13...
- Page 14 Attach control box & handset a. Insert the control box (7) controller into the crossbar. b. Attach the handset (8) to the tabletop plate with E screws. *Avoid over-tightening the screws to not damage the product. Eryk/Athena E-Standing Desk | 14...
-
Page 15: Connect Cables
Connect the line pulled from the other lifting column to control box (7) M2. c. Connect the outgoing line from the handset (8) to the control box (7) HS port. d. Connect the power cable (9) to control box (7) AC port. Eryk/Athena E-Standing Desk | 15... - Page 16 STEP 9 Attach Mesh a. Put D into the hole of the screw cap. b. Fix D on the desktop c. Cover the screw cap. Eryk/Athena E-Standing Desk | 16...
- Page 17 Hold "V" for 5 seconds until there is a beep sound which confirms the desk reset. You must complete this initialization step or your *Hold down the down arrow until work center will NOT workcenter moves slightly upwards. function properly Eryk/Athena E-Standing Desk | 17...
- Page 18 OPERATING MANUAL • • • • • • • • • • • • • • Eryk/Athena E-Standing Desk | 18...
-
Page 19: Time Reminder
Press "1+3" key, handset will display 0.0h to 9.0h Press UP or DOWN button to set the remind duration it can be adjusted from 0.0h to 9.0h After setting, release the UP or DOWN button, it will go back to height display automatically. Eryk/Athena E-Standing Desk | 19... - Page 20 Eryk/Athena E-Standing Desk | 20...
- Page 21 Eryk/Athena E-Standing Desk | 21...
