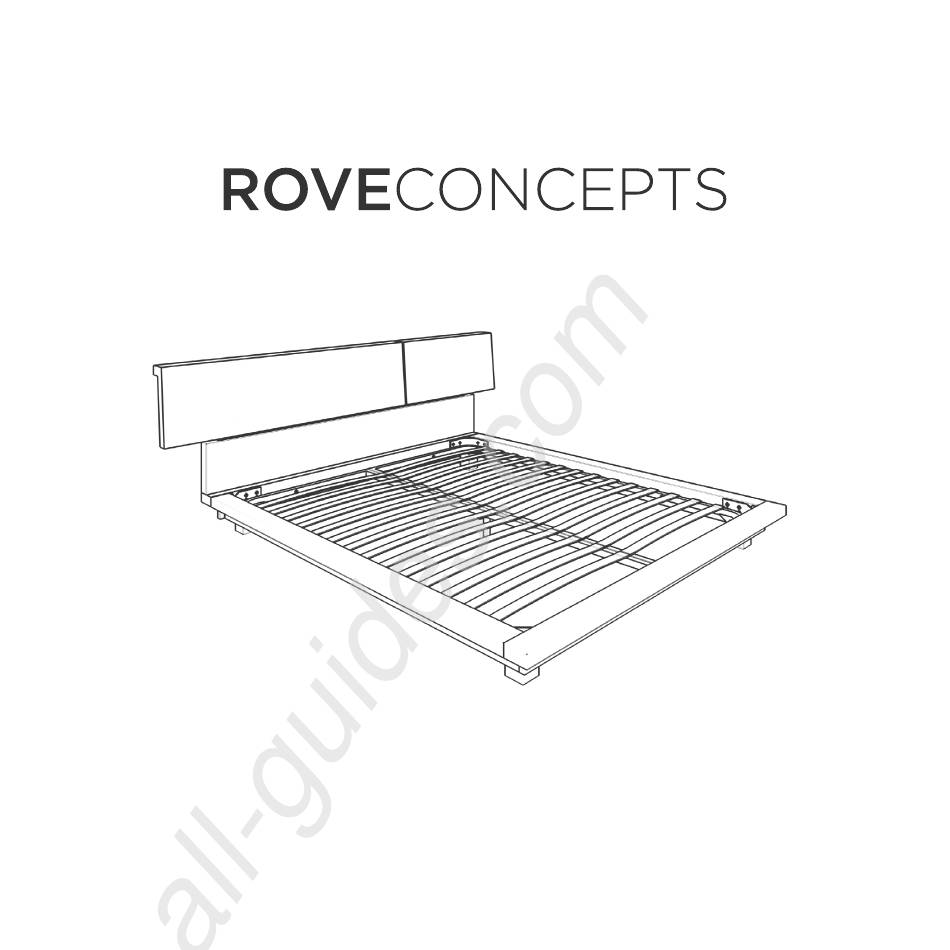

- Page 1 All manuals and user guides at all-guides.com Refined Luxury Living HUNTER BED ASSEMBLY INSTRUCTIONS...
- Page 2 All manuals and user guides at all-guides.com HARDWARE Hunter Bed | 2...
- Page 3 All manuals and user guides at all-guides.com STEP 1 • Join the two headboard pieces together by inserting “J” into slots • Secure by screwing “A” and “G” in all 4 holes Hunter Bed | 3...
- Page 4 All manuals and user guides at all-guides.com STEP 2 • Repeat STEP 1 by attaching bottom headboard piece to top 2 headboard piece • Make sure all 12 holes are secure Hunter Bed | 4...
- Page 5 All manuals and user guides at all-guides.com STEP 3 • Cover all holes with “D” caps Hunter Bed | 5...
- Page 6 • Insert 2 “L”s in outer holes on each corner • Join side pieces to headboard and foot • Use “F” to screw in 2 “C”s and “I”s • Repeat steps above throughout for the 4 corners of the bed Hunter Bed | 6...
- Page 7 All manuals and user guides at all-guides.com STEP 5 • Attach leg base to bracket by screwing “M” with “B” through leg into “N” with “I” • Repeat step above to attach all 4 legs to brackets Hunter Bed | 7...
- Page 8 All manuals and user guides at all-guides.com STEP 6 • Attach bracket to frame by screwing “C” with “B” into frame • Repeat step above to securely attach all 4 brackets Hunter Bed | 8...
- Page 9 All manuals and user guides at all-guides.com STEP 7 • Combine “B”, “C”, and “G” to attach center leg to slat frame Hunter Bed | 9...
- Page 10 All manuals and user guides at all-guides.com STEP 8 • Use “B” and “E” to attach slat frame to bed frame • Use 2 screws for each side Hunter Bed | 10...
