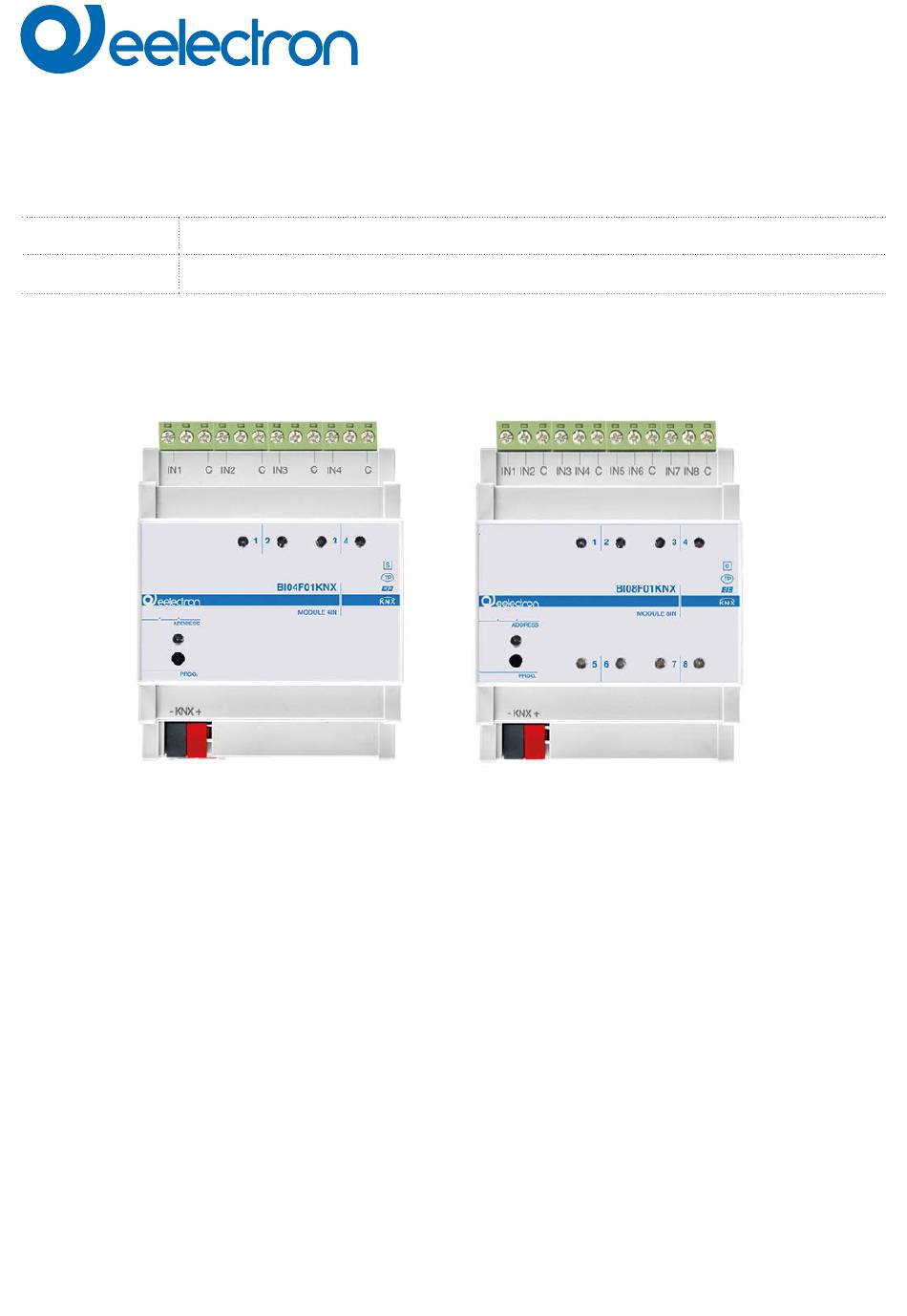

- Page 1 BI04F01KNX Universal DIN Module 4 Digital Inputs BI08F01KNX Universal DIN Module 8 Digital Inputs USER MANUAL Translation of the original instructions Version: 1.0 Date: 18/07/2023...
- Page 2 BI0xF01KNX Index Introduction to the user manual ..............................4 Meaning of the symbols used ..............................4 Product overview ..................................4 Installation instructions ................................4 Configuration and commissioning ............................. 5 General parameters .................................. 5 General settings ..................................5 Inputs Configuration ................................6 Digital Input ....................................6 Logics ......................................
- Page 3 We therefore cannot accept any liability for this. Any necessary corrections will be incorporated into newer ver- sions of this manual. Eelectron S.p.A. Via Claudio Monteverdi 6, I-20025 Legnano (MI), Italia Tel +39 0331.500802 info@eelectron.com BI0xF01KNXFI00020100_UM_EN_1.0 M E M B E R...
- Page 4 Device is equipped with KNX communication interface and is in- This manual is intended for use by KNX installers and describes tended for installation on DIN rail in LV distribution switchboards. functions and parameters of the BI04F01KNX and BI08F01KNX devices and how the settings and configurations can be changed 3. Installation instructions using the ETS software tool.
- Page 5 General settings ETS® program. The commissioning of the device requires the following steps: Communication objects involved: •...
- Page 6 On bus voltage recovery all the communication objects are set to 0 except for objects for which a parameter is defined for the Temperature function (analog) It can be configured as analog for the connection of NTC temperature initial value. probes (see eelectron probes code TS01A01ACC / TS01B01ACC / TS01D01ACC) with which to send the temperature measurement on Wrong application download the bus or manage a complete thermostat module. CO2/VOC sensor (analog) If the wrong ETS application is downloaded then KNX/EIB led It can be configured as “smart sensor” for connection of the plug-in...
