Summary of Contents for HBM ML71BS6

  • Page 1 Operating Manual English ML71BS6...
  • Page 2 Tel. +49 6151 803-0 Fax +49 6151 803-9100 info@hbm.com www.hbm.com Mat.: 7-2002.0572 DVS: A00851_03_E00_02 HBM: public 06.2018 E Hottinger Baldwin Messtechnik GmbH. Subject to modifications. All product descriptions are for general information only. They are not to be understood as a guarantee of quality or...

  • Page 3: Table Of Contents

    ........ML71BS6 A00851_03_E00_02 HBM: public...

  • Page 4: Safety Instructions

    The same applies to the use of accessories. General dangers of failing to follow the safety instructions The ML71BS6 CAN bus module complies with the state of the art and is fail‐safe. The device may give rise to further dangers if it is inappropriately installed and operated by untrained personnel.
  • Page 5 G36.35.0) Conversions and modifications No modifications that affect the design or the technical safety of the ML71BS6 CAN bus module may be carried out without our express agreement. Any modification shall exclude all liability on our part for any resulting damage.

  • Page 6: Markings Used

    Symbols on the product CE mark The CE mark enables the manufacturer to guarantee that the product complies with the requirements of the rele­ vant EC directives (the declaration of conformity is avail­ able at http://www.hbm.com/HBMdoc). ML71BS6 A00851_03_E00_02 HBM: public...

  • Page 7: Introduction

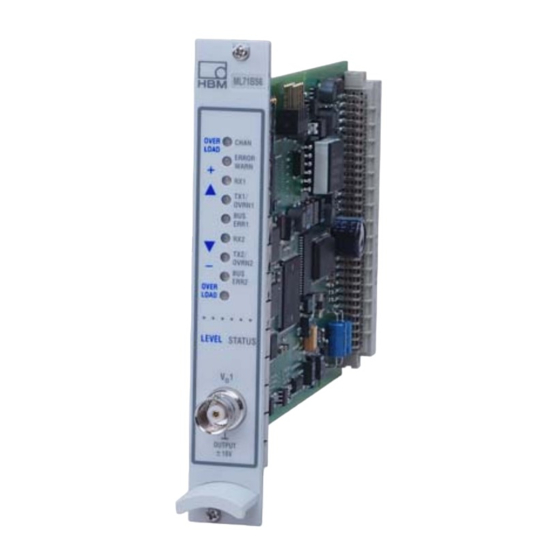

    Introduction Introduction The ML71BS6 is an MGCplus system module that takes measurement data from the MGC and outputs it as CAN messages. It records up to 128 measured values per CAN port, scales them and outputs them at the CAN bus.

  • Page 8: Connections

    Physical layer: High: Standard CAN speeds up to 1MBaud acc. to ISO11898 (24 V dielectric strength). Low: Low-speed bus for in‐car communication up to 100 kBaud (CAN_V+ must be connected to 12 V) Fig. 4.1 CAN connection ML71BS6 A00851_03_E00_02 HBM: public...

  • Page 9: Front Panel

    Tx2/OVRN2 red/yellow CAN protocol transmitted BUSERR2 Bus error at CAN2 Analog output (BNC connector (female)) Any voltage from -10 V to +10 V can be output through the female BNC connector by interface command. ML71BS6 A00851_03_E00_02 HBM: public...

  • Page 10: Parameterization

    2400 INT32 2400 Float32 2400 INT16 1200 INT32 1200 Float32 1200 INT16 INT32 Float32 The first ID of a range can be set. The last ID is derived from this and from the number of signals. ML71BS6 A00851_03_E00_02 HBM: public...
  • Page 11 5. Select the output rate in the same way as for 2. 6. Use the cursor keys to select the “First ID” edit field and enter the de­ sired figure. The “Last ID” edit field is set automatically. ML71BS6 A00851_03_E00_02 HBM: public...

  • Page 12: Panel Output Signals Can 1

    CAN1 / CAN 2 output signals dialogue window 2. Use the cursor keys to select the “Source for MGC channel” selection field. Use to call the selection list and choose the desired CAN signal. Confirm with ML71BS6 A00851_03_E00_02 HBM: public...
  • Page 13 Fig. 6.3 CAN1 / CAN 2 output signals dialogue window 2. Use the cursor keys to select the “Source for MGC channel” selection field. Use to call the selection list and choose the desired signal. Confirm with ML71BS6 A00851_03_E00_02 HBM: public...
  • Page 14 “Point 2” edit field and proceed in the same way as for points 5 and 6. 8. Use the shift key to change to measuring mode and confirm the fol­ low‐up question with ML71BS6 A00851_03_E00_02 HBM: public...

  • Page 15: Menu Structure In Set-Up Mode

    You will find more notes on working with the AB22A display and control panel in the “MGCplus with AB22A/AB32” manual. ML71BS6 A00851_03_E00_02 HBM: public...

  • Page 16: Can Protocol

    0. Digital value scaling can be preset by using two point calibrations. 8.1.3 In digits as Word In each CAN message, 4 of these values are transmitted as Words (16‐bit). Digital value scaling can be preset by using two point calibrations. ML71BS6 A00851_03_E00_02 HBM: public...

  • Page 17: Identifier Assignment

    1 sured value 1 sured value 1 (signed inte­ (signed inte­ (signed inte­ (signed inte­ gers in digits gers in digits gers in digits gers in digits from 30000) from 30000) from 30000) from 30000) ML71BS6 A00851_03_E00_02 HBM: public...
  • Page 18 30000) from 30000) from 30000) Adjusting the ranges As a variant to the default setting, you can choose the start of the ID range you are using for the selected format at the particular CAN bus. ML71BS6 A00851_03_E00_02 HBM: public...
  • Page 19 CAN protocol ML71BS6 A00851_03_E00_02 HBM: public...
  • Page 20 HBM Test and Measurement Tel. +49 6151 803-0 Fax +49 6151 803-9100 info@hbm.com measure and predict with confidence...
