Summary of Contents for UNIS BIG HORN

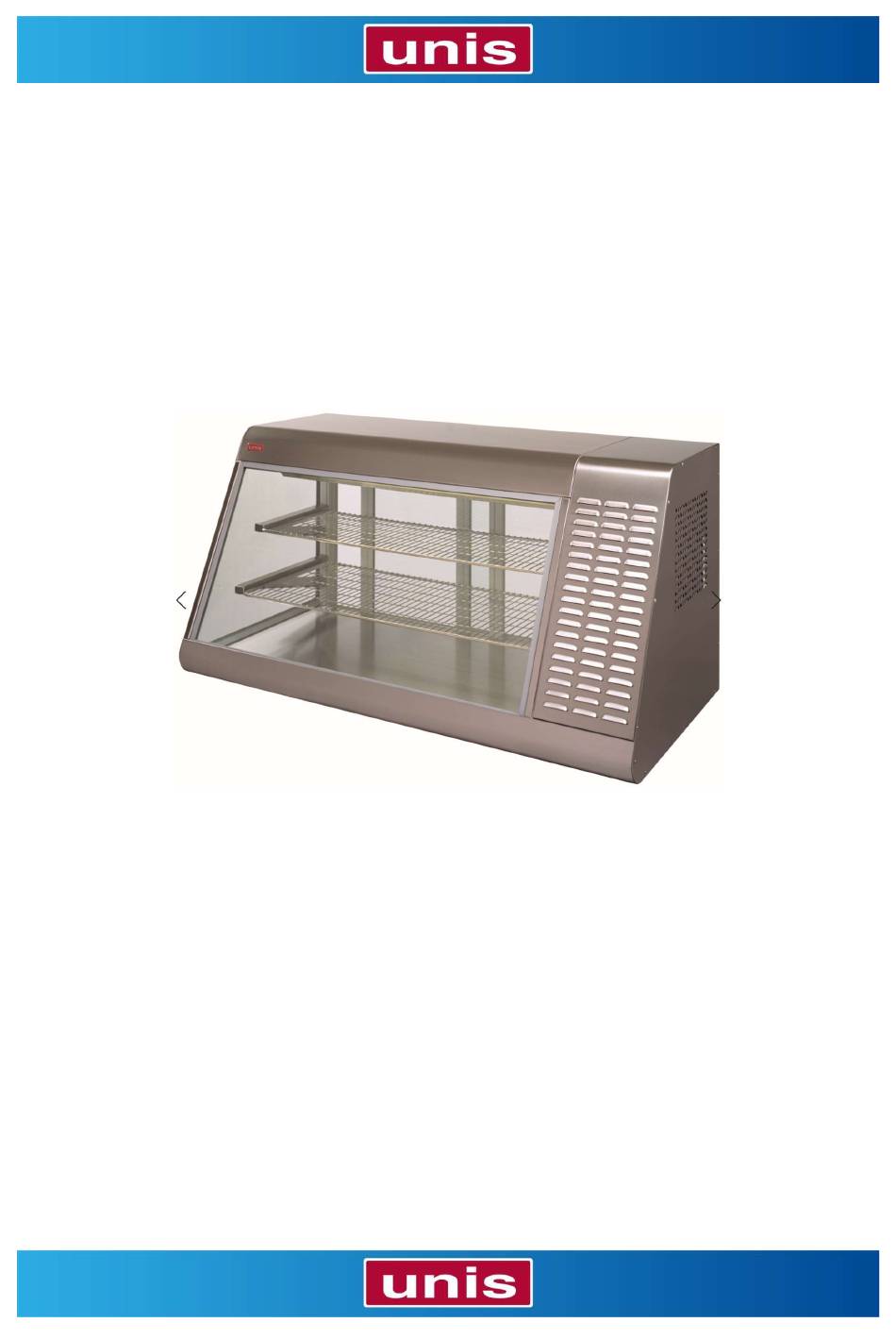

- Page 1 Refrigerated top table counter BIG HORN Operating manual...
- Page 2 OPERATING MANUAL FOR BIGHORN Dear Customer, Thank you for purchasing the product of the company UNIS COOL s.r.o., which is long-time successful manufacturer and supplier of a specialized range of professional refrigeration and catering equipment. We believe that with the help of this facility you will attract a lot of attention to the exhibited goods and your customers will be happy to return.
-
Page 3: Transport To The Installation Site
OPERATING MANUAL FOR BIGHORN 1DELIVERY Packaging and Content Delivery During transport the rear sliding doors, shelf brackets and shelves are removed. Everything is packed and placed on exhibition board. Inside the exhibition space you will find individually wrapped dismantled smaller portion of the case. ... -
Page 4: Improper Use
OPERATING MANUAL FOR BIGHORN 2INTRODUCTION Using of the showcase BIGHORN top table counter is designed to display and maintain the temperature of cold pre-packed snacks. Showcase allows easy installation on the table therefore it is ideal for fast foods, pastry shops, bakeries, shops, restaurants, pumps and so on. - Page 5 OPERATING MANUAL FOR BIGHORN Dimensions BIGHORN WITH BUILD IN aggregate...
- Page 6 OPERATING MANUAL FOR BIGHORN 3BEFORE FIRST TURN-ON Place of operation 1) The showcase will work correctly: - At the workplace with temperature from +16°C to +25 °C - With ambient humidity max. to 60% RH 2) Do not operate the showcase: - near the cooling nor heating sources - in the place where sunlight can affect operation of the unit - in the place with draught (from air-conditioner or near the entry)
-
Page 7: Safety In Use
OPERATING MANUAL FOR BIGHORN 4 SAFETY IN USE For personal safety when operating equipment is mainly responsible the operator. Manufacturer of the showcase is not responsible for personal injury or property damage and environmental damage caused while the unit is not used and serviced in accordance with the instructions for operation and maintenance and the applicable safety regulations. -
Page 8: Operation
OPERATING MANUAL FOR BIGHORN 5OPERATION Control panel 1 - Electronic control unit EVCO 3224 2 - Light switch 3 - Power switch Description of control unit‘s buttons/indicators Symbols explanation of electronic control unit indicators:... -
Page 9: Increasing The Temperature
OPERATING MANUAL FOR BIGHORN Turn on 1) Connect the power supply to the display case. 2) Turn the power switch (3). The display will show the current temperature and cooling to this temperature will showcase cool. 3) Turn on the light switch (2). Let the empty showcase run for at least one hour, or until the desired temperature is reached. - Page 10 OPERATING MANUAL FOR BIGHORN Placing of goods in the display case The showcase is not designed for cooling the goods, but to maintain the temperature of pre-cooled food during its presentation in the display case. Food, whose temperature is extremely higher than the temperature inside the display case, may not be placed in the unit.
-
Page 11: Daily Maintenance
OPERATING MANUAL FOR BIGHORN 6MAINTENANCE Showcase does not require any special maintenance. However, it must be kept clean and remove the residues of exhibited goods and other contaminants. Instructions for maintenance are obligatory to follow, otherwise void the warranty. Just regular maintenance windows and following all instructions is to ensure its long life and trouble-free function. -
Page 12: Troubleshooting
OPERATING MANUAL FOR BIGHORN • Use a soft brush or brush to clean the condenser fins. If extremely dirty condenser (fins are clogged with dust and other impurities), use a vacuum cleaner, compressed air or compressed nitrogen to blow through the fins. 6.3. - Page 13 OPERATING MANUAL FOR BIGHORN 6.6. Errors While using showcase to display error messages may appear. Their meaning are as follows: SYMBOL ERROR CORRECTION RESULT Temperature sensor defect. Turn off and turn on the display Showcase will be switched on and off case.
-
Page 14: Warranty
OPERATING MANUAL FOR BIGHORN 7SPARE PARTS AND WARRANTY Spare parts For information about spare parts, please contact your supplier. Warranty The warranty does not cover damage or disruptions caused by incorrect operation, disregarding this instruction manual, using harsh chemical cleaning agents and improper cleaning of the device. The warranty excludes damages resulting from improper installation, which is not in accordance with the manufacturer's recommendations, factually incorrect repairs as well as defects which have been caused by foreign intervention or force majeure. -
Page 15: Technical Information
Pos. Name Pos. Name Producer Serial number Contact Technical data Model Production date UNIS COOL, s.r.o. Na Baštici 201 739 01 Staré Město District Frýdek-Místek Czech Republic Tel: +420 558 655 211 Fax: +420 558 655 104 E-mail: info@uniscool.cz www.uniscool.cz...
