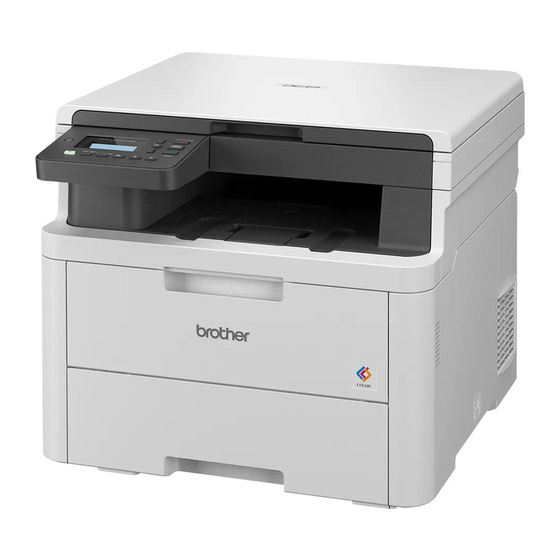

Brother DCP-L3520CDW Quick Setup Manual

D027VU001-00
OCE/ASA/SAF/GLF/TWN
Version 0
EN

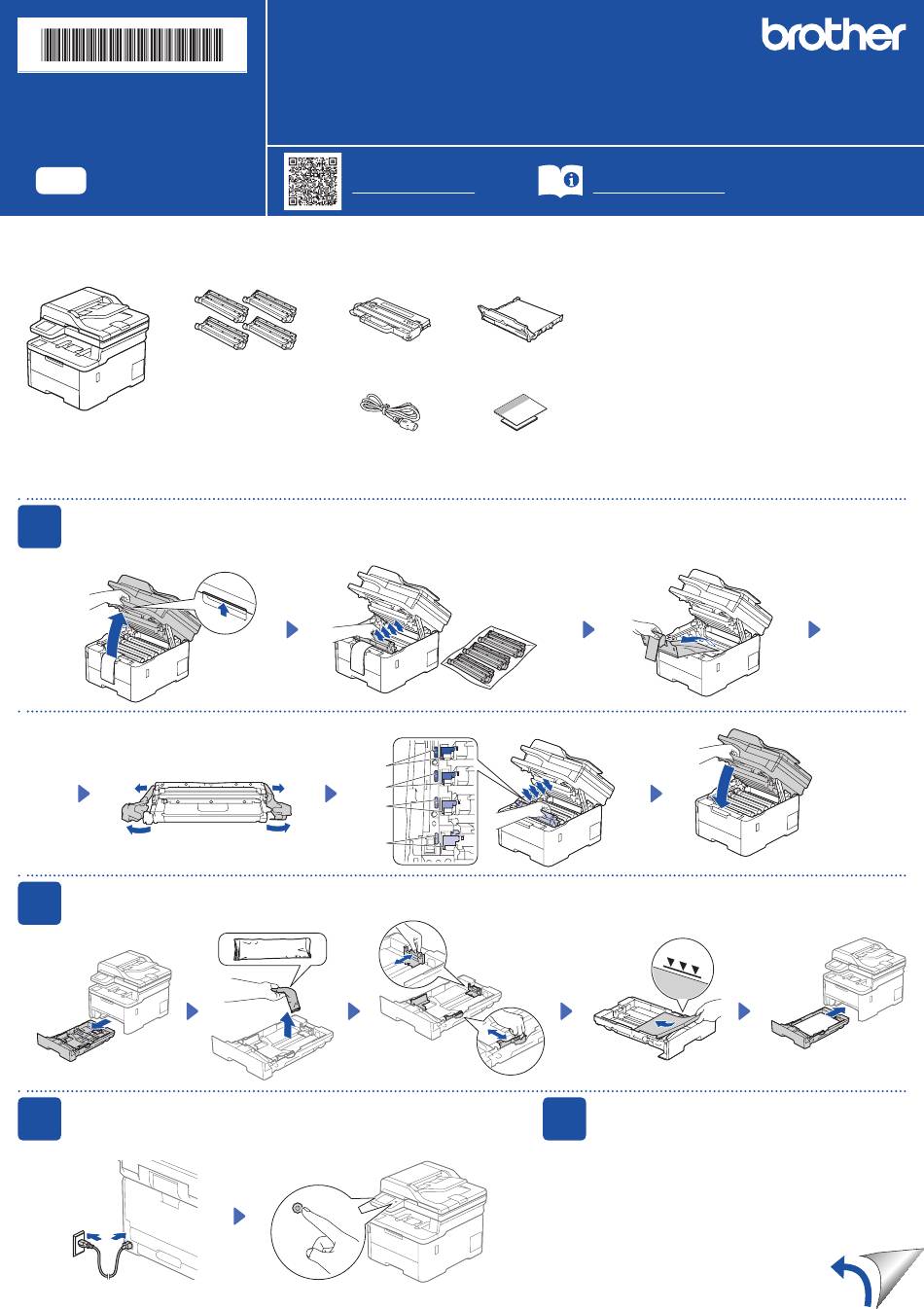

Unpack the machine and check the components
Toner Cartridge and Drum
(Black, Cyan, Magenta, and
* Installed in the machine
1
Remove the packing materials and re-install the toner cartridge and drum unit assemblies
Remove all the blue packing tape.
Remove the orange parts
from each cartridge.
2
Load paper in the paper tray
3
Connect the power cord and turn the machine on
Back
Quick Setup Guide
DCP-L3520CDW / DCP-L3560CDW / MFC-L3720CDW / MFC-L3755CDW /
MFC-L3760CDW / MFC-L3780CDW / MFC-L8340CDW / MFC-L8390CDW
Read the Product Safety Guide first, then read this Quick Setup Guide for the correct installation procedure.
Not all models are available in all countries.
Video setup instructions:
support.brother.com/videos
Waste Toner Box*
Unit Assemblies*
Yellow)
AC Power Cord
BK
x4
Location of the power button varies depending
on the model.
Front
Belt Unit*
Quick Setup Guide
Product Safety Guide
Push firmly.
C
M
Y
Adjust the paper
guides.
The latest manuals are available at the Brother support website:
support.brother.com/manuals
NOTE:
• The components included in the box may differ depending on your
country.
• The available connection interfaces vary depending on the model.
You must purchase the correct interface cable if you require one.
• USB cable
We recommend using a USB 2.0 cable (Type A/B) that is no
more than 2 metres long.
• Network cable (DCP-L3560CDW / MFC-L3755CDW /
MFC-L3760CDW / MFC-L3780CDW / MFC-L8390CDW)
Use a straight-through Category 5 (or greater) twisted-pair cable.
• The illustrations in this Quick Setup Guide show the
MFC-L8390CDW.
Do not exceed this mark.
4 Select your country/language
(Initial setup only)
After turning the machine on, you may be required
to set your country or language (depending on your
machine).
If required, follow the on-screen instructions.
