Summary of Contents for Manta 50LUA28L

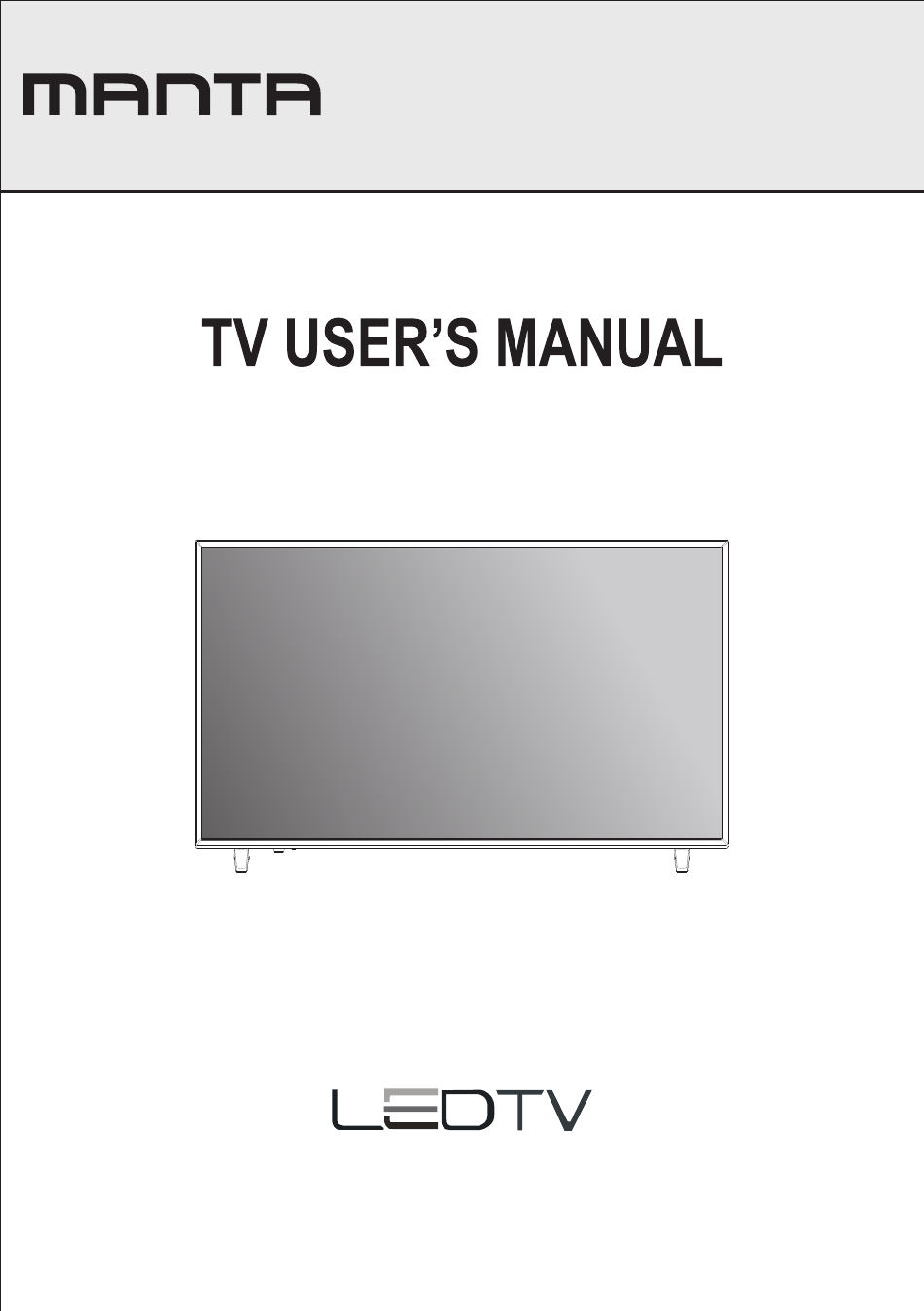

  • Page 1 50LUA28L...
  • Page 3: Table Of Contents

    Contents IMPORTANT SAFETY INSTRUCTIONS ........2 SAFETY INFORMATION .
  • Page 4: Important Safety Instructions

    Important Safety Instructions • Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The safety and operating instructions should be retained for future reference. • Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
  • Page 5: Safety Information

    Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below. Electrical safety • The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product.
  • Page 6: What Is Included/Tv Placement Setup

    What is Included/TV Placement Setup Unit and Accessories HOME 50LUA28L Base Stand 6Screws Remote Control TV Set with Batteries User’s Manual TV Stand Installation/Removal 400mm 200mm Four mounting holes (size M6 screw) 3 Screws 3 Screws 4*23 BMH 4*23 BMH...
  • Page 7: Getting Started

    Getting Started Front/Back View Button Functions POWER LED:llluminates green when the TV is turned on.llluminates red when the TV is in standby mode.The LED will alternate between red and green when the RVR timer programming has started in the standby mode. IR(Infrared Receiver):Receives IR signals from the remote control.
  • Page 8 RJ45 VIDEO L AUDIO R PC AUDIO HDMI1 HDMI2 HDMI PC AUDIO: Connect it to the audio output terminal of the PC LINE OUT:Video output VGA: PC video input Coaxial: Digital audio output AUDIO IN L/R: Stereo audio input YPbPr: Connect to the YPbPr video output terminal of the DVD VIDEO IN: Video input RF: Antenna connection...
  • Page 9: Connecting To External Devices

    Connecting to External Devices Connecting external devices to your LED TV RJ45 VIDEO L AUDIO R PC AUDIO HDMI1 HDMI2 Audio cable cable HDMI cable VHF/UHF antenna RF Coaxial cable Composite cable cable TV company cable receiver/satellite box Comonent cable...
  • Page 10: Remote Control

    Remote Control Basic Operations POWER HOME MUTE POWER:Turn on the TV/Standby. :Press to open the Home Page. 3. MUTE:Mute or restore the sound. 4. NUMBER KEYS: Change the channel directly. 5. SLEEP: Auto Power Off Timer RETURN 6. REPEAT: Repeat mode. SLEEP :Return to the previous channel tuned.
  • Page 11: Install The Batteries

    20. SUBTITLE:Select subtitle of media video file. (needs the support of disk or flie) 21. FAV: Show the list of favourite channels. 22. TS: In DTV mode, press the button to active the TIMESHIFT function. : Play/Pause. : Stop playback. GOTO: Play from the desired location.
  • Page 12: Settings

    Settings Initial Setup 1. Connecting your TV on the poweroutlet; 2. Press the POWER button on the remote to turn on the TV in green for the LED light. CAUTION:Always disconnect the TV from the power outlet when the TV will not be used for a long period of time.
  • Page 13: System Setting

    Press OK button to enter to set . Input the signal, and select the input source. System Setting Select the Setting in the Main Menu to enter the System Setting...
  • Page 14: Network

    Network Wireless Network Select the WIFI ,and press the passwork to connect. wired network Insert the Ethernet cable ,and select Auto get IP address to connect the Ethernet.
  • Page 15: Time

    Time Press the ◄ / ► to select the Time to set. Auto Attach Get the current time and date automatically. 24 Hours Select the 12 hours or 24 hours. Time Zone Select the local time zone. Time Edit Edit the current time and date. Date Format Set current date format.
  • Page 16: General

    General Press the to select the General and set the general setting. Language Setting Select current display language. Input Method Select the Input method. System Upgrade Upgrade to the newest system version. System Recovery Recovery system to original state.
  • Page 17: Multimedia

    About Information about the TV. SMART Multimedia Press the Input to select Media source. Select the Video, and OK button to enter.
  • Page 18: Music

    Music Press the◄ / ► button to select the Music . Photo Press the ◄ / ► button to select the Photo. Folder Press the◄ / ► button to select the Folder.
  • Page 19: Tv Setting

    Input Source Press INPUT button to enter input source. Press the ▼ /▲ button to select. TV Setting Press the MENU button to enter the TV Setting. Picture...
  • Page 20 Press the to set the picture. Picture Mode Highlight the item and Press ENTER to enter the sub-menu,that shows the picture mode you can choose: Dynamic/Standard/Mild/User. Contrast Adjust the white level of the picture. Brightness Adjust darkness of black sections in the picture.
  • Page 21: Sound

    Sound Press the ◄ / ►to select sound . Press Enter button to enter the sub-title, and press ◄ / ►to adjust. Sound Mode Standard/Music/Movie/Sports/User(Only in this mode, Treble and Bass can be adjusted.) Bass Adjust the low frequency sounds. Treble Adjust the high frequency sounds.
  • Page 22: Channel

    Channel Press the ◄ / ► to select Channel. Press Enter button to enter the sub-title, and press ◄ / ► to adjust. Antenna Type Select the Antenna Type(Air/Cable). Auto Scan Searching the programs automatically. Anolog Manual Scan Searching the programs by input the frequency. Digital Manual Scan Searching the DTV programs by input the frequency.
  • Page 23 Auto Scan Auto Scan will search for available channels and program receivable channels. Press▼/▲ to select Auto Tuning, then press OK to start auto search. If you want to stop searching, press EXIT to stop searching. Channel Set the channel number. Color system Select the color system.
  • Page 24 Lock Press the ◄ / ►to select LOCK . Press ▲/▼ button to select System Lock, then press OK button to enter enter the sub menu with the password “0000”: System Lock Press ▲/▼ button to select System Lock, then press ◄...
  • Page 25: Time

    Time Press the◄ / ►to select Time. Press Enter button to enter the sub-title, and press◄ / ►to sdjust. OSD Timer Select OSD Timer,and ◄ / ► to adjust. Available OFF, 5sec, 15sec, 30sec Sleep Timer Select Sleep Timer,and ◄ / ►to adjust. (Available:OFF , 15min, 30min, 45min, 60min, 90min,120 min,240min).
  • Page 26: Setting

    Setting Press ◄ / ►to select Setting. Press Enter button to enter the sub-title, and press ◄ / ►to adjust. Blue Screen Set the background color to blue or black when no input signal. TELETEXT Arabic/East/West/Fasri/Russian HDMI CEC Setup Set the CEC ON/OFF.
  • Page 27: Reset

    HDMI CEC Setup. Press ▼ /▲ to select HDMI CEC Setup. Reset Press ▼ /▲ to Reset the default setting...
  • Page 28 SYMPTOM POSSIBLE CAUSE REMEDY TV – No signal input Signal cable is loose or not Ensure signal cable is not loose connected. or disconnected. Reattach and try connected, loose or again. disconnected. Remote Control Receiver of remote control Ensure the remote receiver is not is covered.
  • Page 29: Specifications

    Specifications Specifications TV System DVB-T2+C Maximum 3840x2160 Brightness 260 cd/m2 Static Contrast 5000:1 Response Time 9.5ms Consumption <108W Power Supply AC 100-240V- 50/60Hz Connectivity Composite Video Input Comonent Video Input PC Video Input (VGA) PC Audio Input HDMl input RF Antenna Input LJ45 Earphone LINE OUT...
