Potter SCA-5070INT Installation Manual

Installation MANUAL: SCA-5070INT 50W INTEGRATED AMPLIFIER
NOTICE TO THE INSTALLER
This manual provides an overview and the installation instructions for the SCA-5070INT module.
All terminals are power limited and should be wired in accordance with the requirements of NFPA 70 (NEC) and NFPA
72 (National Fire Alarm Code). Failure to follow the wiring diagrams in the following pages will cause the system to not
operate as intended. For further information, refer to the control panel installation instructions. The module shall only be
installed with listed control panels. Refer to the control panel installation manual for proper system operation.

1. DESCRIPTION

The SCA-5070INT is a small form single channel 50W amplifier that can be mounted in the IPA-4000V, AFC-1000V, LOC-
1000 and PSN-1000E. Each amplifier is mounted to an exclusive stacker bracket for secure and accessible mounting. The
SCA-5070INT provides 4 Class B or 4 Class A speaker circuits. The IPA-4000V supports up to thirty-one (31) amplifiers
and the AFC-1000V supports up to 10 amplifiers. The SCA-5070INT communicates via the P-Link communication bus and
audio is distributed through the V-Link 1 audio riser. The amplifier is powered by a constant 24VDC provided by a panel or
PSN-1000 NAC circuit. The SCA-5070INT can support either 25V or 70V speaker circuits. The speaker circuit voltage is
set using the panel programming software. All circuits are power-limited and supervised.

2. SETTING THE ADDRESS

Each P-Link device has a five (5) position dip switch which is used to program the device address ranging from one (1) to
thirty-one (31). The table below may be used to set dip switches when addressing any P-Link module:

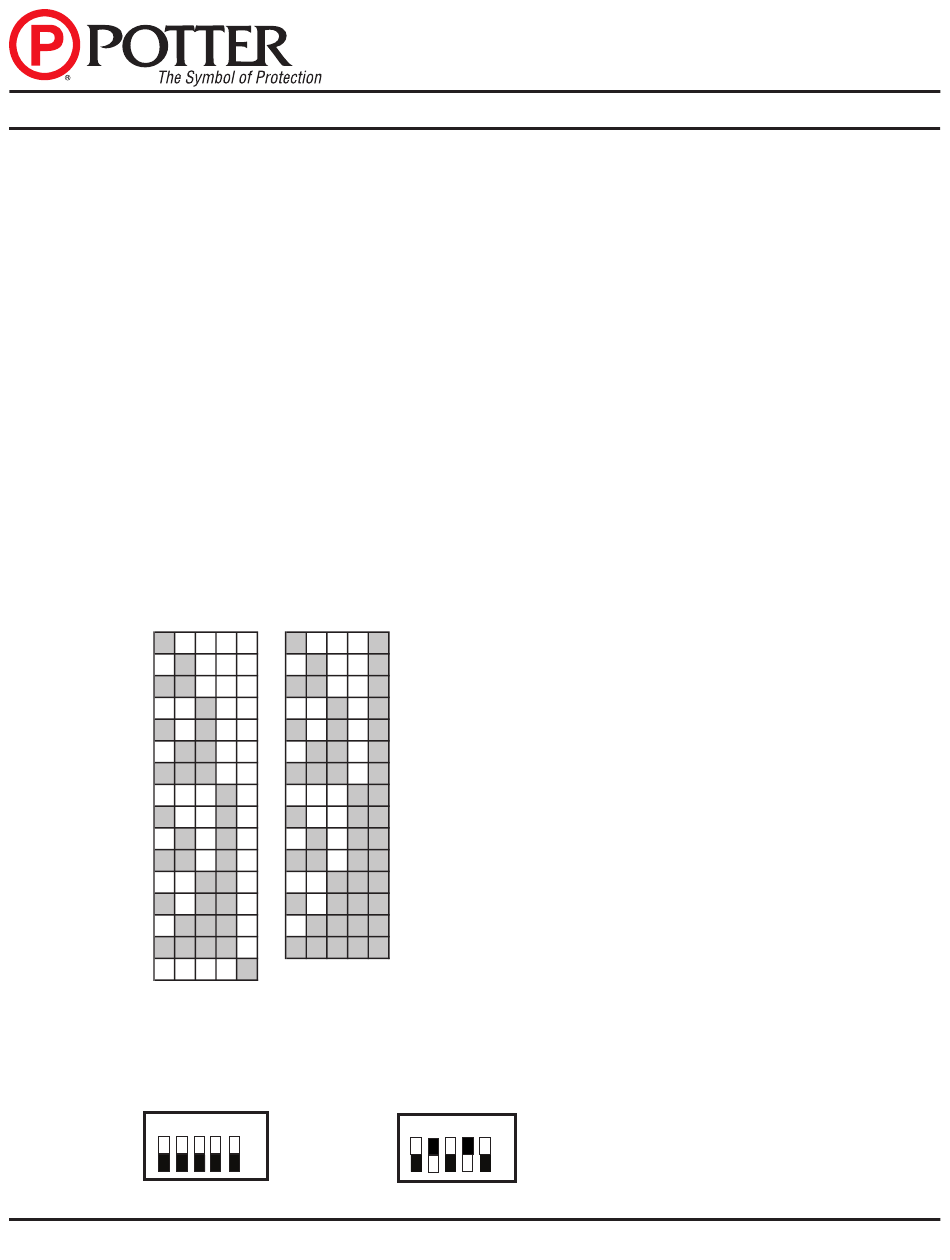

FIGuRE 1. DIP SWITCH SETTINGS TABLE (ADDRESSES 1–31) P-LINK DIP SWITCHES ARE LABELED 1,2,3,4,5.
1 2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1 2
Note: Each "gray" box indicates that the dip switch is "On," and each "white" box indicates "Off."
The examples shown below illustrate a P-Link's dip switch settings: the 1st example shows a P-Link module not
ad¬dressed where all dip switch settings are in the default "Off" position, the 2nd illustrates an addressed P-Link module
via the dip switch settings
FIGuRE 2. EXAMPLES OF P-LINK MODuLE SHOWING DEFAuLT DIP SWITCH SETTING (uNADDRESSED) & ADDRESSED
1 2 4
Note:Unless these are different than other P-Link dip switches they are labeled 1,2,3,4,5 and not 1,2,4,8 &16
Potter Electric Signal Company, LLC
4 8 16 1 2 4 8 16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1 2 4 8 16
4 8 16
8 16
All dip switches are
ON
shown in the "Off"
OFF
position.
• St. Louis, MO
1 2 4 8 16
Example shows this P-Link module
ON
address = 10. Dip switches #2 & 8
are in the "On" position.
OFF
• Phone: 800-325-3936
5409248-REV A 3/23
