SkoFlo Industries SF10000HTVB Operation And Maintenance Manual

Surface cimv, low flow, htv
Table of Contents

Advertisement

Quick Links

Industries
Surface CIMV, Low Flow, HTV
10,000 psi
SF10000HTVB
DOC-04114 Rev A
Operations and
Maintenance Manual
Pioneering an Industry

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF10000HTVB and is the answer not in the manual?

Questions and answers

Summary of Contents for SkoFlo Industries SF10000HTVB

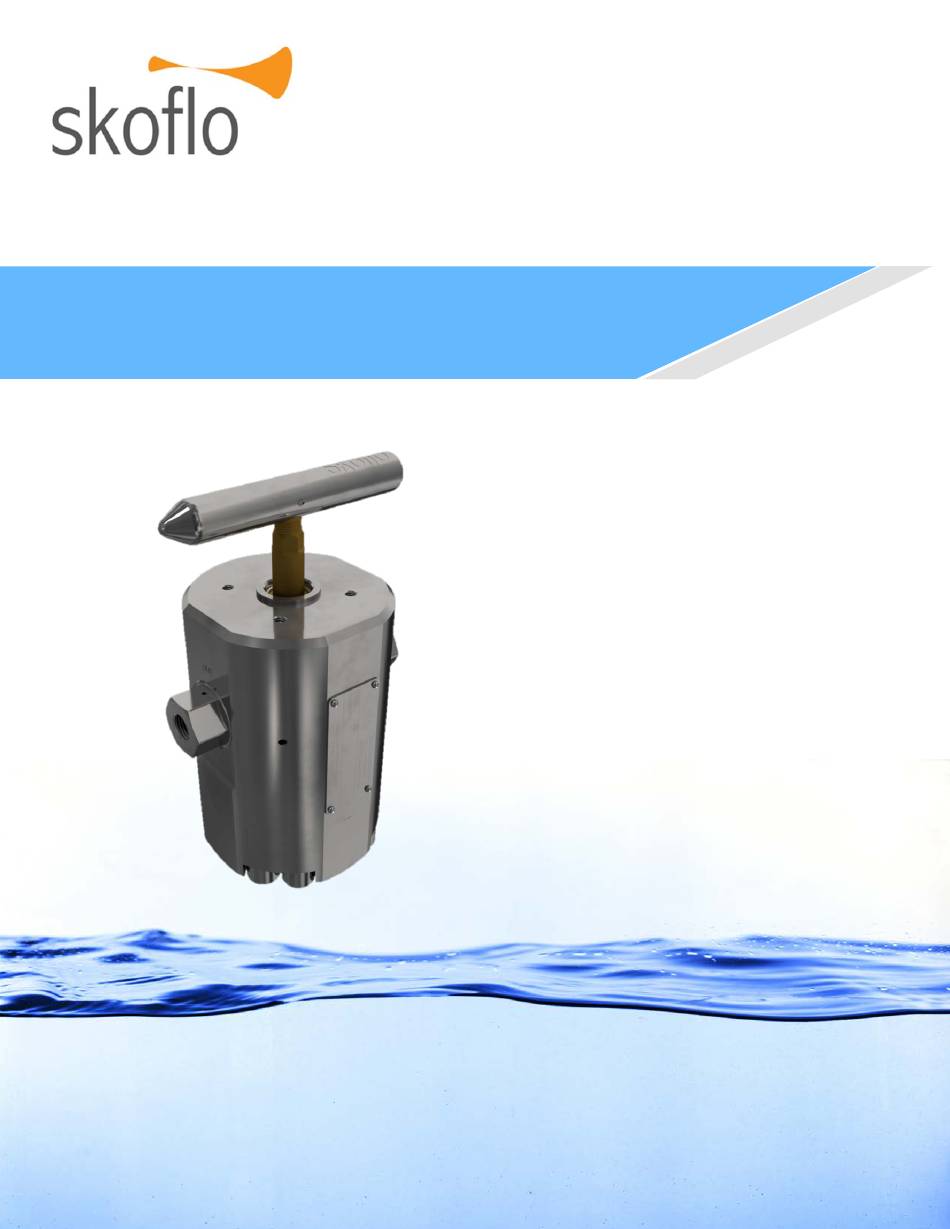

  • Page 1 Industries Surface CIMV, Low Flow, HTV 10,000 psi SF10000HTVB Operations and Maintenance Manual Pioneering an Industry DOC-04114 Rev A...
  • Page 2: Table Of Contents

    Assembly Seals ................ 8 Table 1 – Filter Specification ............3 Replacing Stem Seals ..........8 Table 2 – SF10000HTVB Spares Kit Part Numbers ....5 Valve Reassembly ............9 Table 3 – SF10000HTVB Rebuild Kit Number Guide ..... 5 Handle Installation ..........
  • Page 3: About Skoflo

    Warning, Caution, Notice Product Overview Throughout this manual there are steps and procedures The SF10000HTVB is a pressure independent chemical which, if not followed, may result in a hazard. The injection and metering valve (CIMV), used in the following flags are used to identify the level of potential petroleum industry to accurately control chemical injection hazard.
  • Page 4: Hydraulic Ratings

    Min Differential Pressure (DP) for Max Rated Flow: 300 psi* 2. Hydraulic Installation * Lower flow rates require a lower DP Install the SF10000HTVB so that the flow is in the proper direction. The IN (inlet) and OUT (outlet) connections are TORAGE marked respectively.
  • Page 5: Start Up Procedures

    The SF10000HTVB is not a positive shut off device, Overall monitoring of the flow is done by taking inventory therefore, a valve on the inlet or outlet will be required to of the usage from the supply tank.
  • Page 6: General

    Surface CIMV, Low Flow, HTV SF10000HTVB 5. General Table 5 – SF10000HTVB Stem Kit Number Guide Spares kits available for typical maintenance items are 31625 - XXXX - XXXX listed in Table 2. See Tables 3, 4, and 5 for part number guides.
  • Page 7: Disassembling The Sf10000Htvb

    Remove the spring and gate pad assembly – A brass rod can be used to aid pad assembly removal. Figure 2 – SF10000HTVB Cross-Section Remove the valve from the system. If applicable, see Section 13 for information on unpairing the valve from an SF3 Actuator.
  • Page 8: Replacing The Stem Assembly Seals

    Surface CIMV, Low Flow, HTV SF10000HTVB 7. Replacing the Stem Assembly Seals Figure 7 – Stem Assembly Seals Screw the O-ring installation tool onto the PN 31479 stem as shown in Figure 8 – (Actuated) or 31480 (Manual) Figure 5 – Piston Assembly Removal...
  • Page 9: Replacing The Gate Pad And Gate Pad Assembly Seals

    Surface CIMV, Low Flow, HTV SF10000HTVB Remove the spiral ring from the piston Apply O-ring lube to the new 2-012 O-ring pick or small screwdriver assembly – and install on the gate pad seal retainer. Remove the cup seal from the piston and Apply O-ring lube to the gate pad shaft.
  • Page 10: Valve Reassembly

    Screw the stem bushing into the body. Tighten hand tight. Note: the body must be held in a horizontal position during this step Figure 15 – SF10000HTVB Cross-Section to allow the stem seal tool to move out of the way as the bushing is screwed in.
  • Page 11: Handle Installation

    Surface CIMV, Low Flow, HTV SF10000HTVB 11.19 Verify that the gate profile is visible in the gate pad bore and the gate guide ring is not 11.6 Verify that the gate profile is visible in the visible (if applicable). gate pad bore and the gate guide ring is not visible.
  • Page 12: Disconnecting Valve From The Sf3 Actuator

    14.8 Slide the square drive into the drive shaft. 14.9 Realign the fastener holes. Figure 19 – SF10000HTVB with SF3 Actuator 14.10 Insert 4X M6 SHCS into the bracket. 14.11 Tighten fasteners in opposite pairs – 13.1 If unit does not have a PDFM skip to step 13.5 hex key.
  • Page 13: Frequently Asked Questions

    Surface CIMV, Low Flow, HTV SF10000HTVB REQUENTLY SKED UESTIONS Table 7 – Frequently Asked Questions ALL CIMVs Question Answer CIMV Shutoff SkoFlo CIMVs are not shut off devices. Ability Separate isolation valves should be used for shutting off the flow.
  • Page 14: Troubleshooting

    Surface CIMV, Low Flow, HTV SF10000HTVB ROUBLESHOOTING Figure 21 – Troubleshooting Operations and Maintenance Instructions...
  • Page 15: Appendixa - A Typical Chemical Injection System

    Surface CIMV, Low Flow, HTV SF10000HTVB A – A T PPENDIX YPICAL HEMICAL NJECTION YSTEM NOTES Any number of injection points can be served by a single pump and header system. The only limitation is the flow capability of the pump.
  • Page 16: Appendixb - Sf10000Htvb Ga And Bom Drawings

    Surface CIMV, Low Flow, HTV SF10000HTVB B – SF10000HTVB GA BOM D PPENDIX RAWINGS Operations and Maintenance Instructions...
  • Page 17 Surface CIMV, Low Flow, HTV SF10000HTVB Operations and Maintenance Instructions...
  • Page 18 Surface CIMV, Low Flow, HTV SF10000HTVB Operations and Maintenance Instructions...
  • Page 19 Surface CIMV, Low Flow, HTV SF10000HTVB Operations and Maintenance Instructions...
  • Page 20 Surface CIMV, Low Flow, HTV SF10000HTVB Operations and Maintenance Instructions...
  • Page 21 SkoFlo Industries 14241 NE 200 Street Woodinville, WA 98072 USA Tel 1-425-485-7816 Fax 1-425-368-1696 www.SkoFlo.com DOC-04114 Rev. A...
