Evobike JBT03K Manual

Bike trailer
Hide thumbs

Advertisement

Quick Links

Download this manual
JBT03K
EN: manual
Art.: JBT03K
EN: bike trailer

Advertisement

loading
Need help?

Need help?

Do you have a question about the JBT03K and is the answer not in the manual?

Questions and answers

Related Manuals for Evobike JBT03K

Summary of Contents for Evobike JBT03K

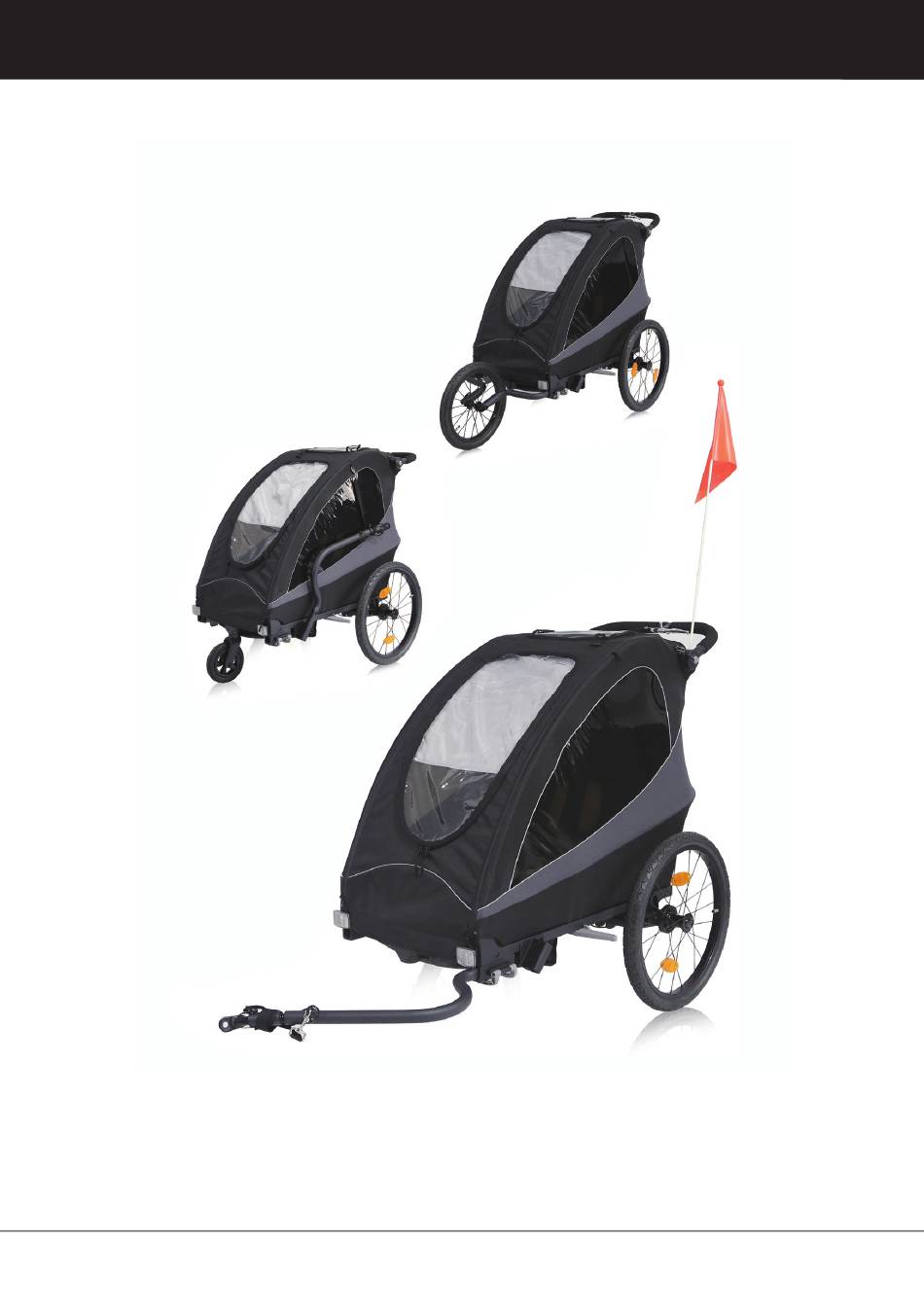

  • Page 1 JBT03K EN: manual Art.: JBT03K EN: bike trailer...
  • Page 2 IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. • Read these instructions carefully before assembling and using the product. • The assembly may only be carried out by an adult. • Retain these instructions for future reference.
  • Page 3 Components A 1x frame C 1x jogger wheel D 2x wheel outrigger E 1x buggy wheel F 1x drawbar with axle coupling H 1x axle coupling G 1x safety pennant...

  • Page 4: Assembling The Base Frame

    Assembling the base frame 1. Reach into the folded bicycle trailer and pull the handlebar. 2. Pass the frame part to which the handlebar is attached under the linkage of the frame. Note: The angle of the handlebar can be adjusted by pressing both buttons simultaneously. 3.
  • Page 5 Folding the base frame 1. set the handle bar to the lowest position. Note: The angle of the handlebar can be adjusted by pressing both buttons simultaneously. 2. Open the Velcro fastener that connects the textile cover to the frame. 3.

  • Page 6: Use Of The Safety Belt

    Use of the safety belt The 5-point safety harness system consists of two shoulder straps, two lap straps and a crotch strap secured in a buckle. Padded shoulder straps provide more comfort. Warning！ Never transport babies under 6 months or children who cannot yet sit independently. e time the black buttons on the buckle.

  • Page 7: Attaching The Rear Wheels

    Attaching the rear wheels Insert the rear wheels into the openings on the frame. When you hear a click, the rear wheels an be removed by pressing the button located in the middle of the wheel. Warning! After assembly, check the locking by pulling both wheels back and forth! The wheels must not be able to be pulled out without pressing the button.
  • Page 8 Apply and release the locking devices The parking brake prevents the bicycle trailer from unintentionally rolling away when stationary. It is not suitable for braking a rolling bicycle trailer. Always apply the parking brake when you: 1.) park the jogger or buggy. 2.) allow your child to get in and out of the trailer when using it as a jogger, buggy or bicycle trailer.
  • Page 9 Attaching the drawbar 2. Secure the drawbar with the clamp. To do this, insert both steel bolts of the clamp into the holes on the side of the bicycle trailer and close the clamp. The clamp is securely closed as soon as you hear a loud clack.
  • Page 10 Mounting the axle coupling (quick release) The coupling is always mounted on the left-hand side of the tractor wheel, as seen in the direction of travel. It consists of two parts: the drawbar head, which is attached to the drawbar, and the axle coupling, which is attached to the axle of the rear wheel hub of the towing bicycle.
  • Page 13 Assembly of the axle coupling (solid axle) The coupling is always mounted on the left-hand side of the tractor wheel, as seen in the direction of travel. It consists of two parts: the drawbar head, which is attached to the drawbar, and the axle coupling, which is attached to the axle of the rear wheel hub of the towing bike.
  • Page 15 Coupling the trailer to the bicycle Warning! Check whether the towing bike is approved by the manufacturer for towing trailers! Pulling trailers with an unsuitable towing bike can lead to frame fractures and accidents with life-threatening injuries. Coupling should always be done without a child in the trailer. 1.
  • Page 16 Attaching the safety pennant To ensure that the bicycle trailer is better seen by other road users, you should always use the safety pennant provided. This increases your safety and that of your child. The safety pennant is inserted into a tunnel located on the left side of the handle bar.
  • Page 17 Mounting the buggy wheels If the bicycle trailer has the drawbar or the jogger wheel set insert the fastening hooks back into the holes provided. Make sure that the fastening hooks are closed. trailer at the front, tilt it backwards and support it on the handlebar. Make sure that the surface under the trailer is clean and smooth so as not to soil or damage the textile cover.
  • Page 18 Mounting the jogger wheel If the drawbar or the buggy wheels are mounted on the bicycle t The jogger set consists of two wheel arms, a jogger wheel and a catch strap. The two wheel outriggers are mounted in a similar way to the drawbar. 1.
  • Page 19 Assembly of reflectors There are total 8pcs reflectors in the spare parts box. 2pcs white reflectors should be assembled at the front of carrier. 2pcs red reflectors should be assembled at the rear of carrier. 4pcs orange reflectors should be inserted to the spokes of rear wheels, 2pcs on each one.
  • Page 20 Stock the draw bar Once don’t need the draw bar, can stock it into the holder fixed on the left side of carrier. To avoid the safety belt getting caught into the rear wheel, can use the hook being connected to the elastic circle on the fabric cover.
  • Page 21 Warnings Not following the instructions and safety information in this manual can result in serious injury or death to the passenger or driver! • Any additional load on the handlebar will affect the stability of the trailer. • Do not use this trailer on stairs or escalators. •...

  • Page 22: Care And Maintenance

    quick•release system can cause the rear wheel to accidentally come loose. • The rear axle nut must be tightened with at least 5 full turns to ensure that it is tight. You can replace the original nut on some axles to make room for the axle coupling. To be sure, ask your specialist bicycle dealer.
