Summary of Contents for Evobike LCD-X3

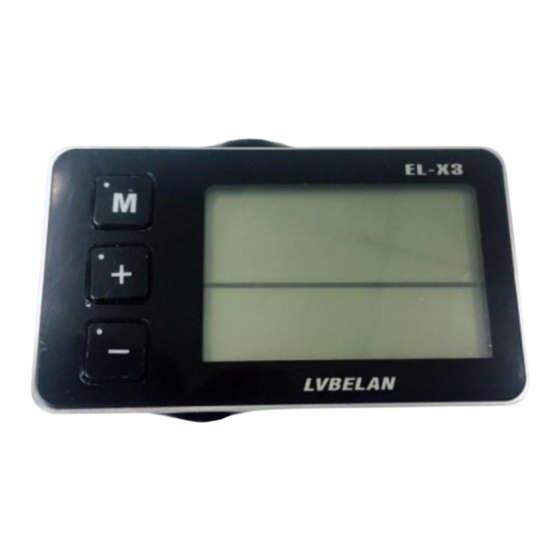

- Page 1 USERS GUIDE LCD–X3 Version：V2.1 Date：2007 - 10- 18...
-
Page 2: Table Of Contents
Catalog About the user manual............1 Main material and color..........1 Appearance size chart............2 Function overview and button definition....2 Functional Overview............2 Normal display area............3 Note for users..............3 Installation Notes..............4 Normal operation..............4 Power on/off................4 Instrument display interface..........5 Power display.................6 Error code display..............7... - Page 3 User settings..............8 Backlight headlights on..........8 6KM implementation..........8 PAS gear setting............8 Internal parameter setting........9 Enter settings..............9 Exit settings..............12 Frequently Asked Questions and Answers...12 Quality commitment and warranty scope..12 Lead connection diagram........13 Version change............14...
-
Page 4: About The User Manual
Main material and color The LCD-X3 V2.1 product uses PC material. The shell material is allowed to be at -20℃ It can be used normally at a temperature of 60℃, and good mechanical properties can be guaranteed. -
Page 6: Function Overview And Button Definition
Function overview and button definition Functional Overview LCD-X3 V2.1 provides you with multiple functions and displays to meet your riding needs. You can charge your mobile phone while you are riding; The contents displayed are: ◆Power display ◆Motor power display ◆Speed display (including real-time speed display, maximum... -
Page 7: Note For Users
Note for users Pay attention to safety during use, and do not plug or unplug the meter when it is powered on. Try to avoid bumping the instrument. The film used by the meter is a waterproof film, please do not tear it, so as not to affect the water resistance of the meter can. -
Page 8: Installation Notes
Installation Notes Fix the instrument on the handlebar and adjust the viewing angle. When the electric bicycle is powered off, just plug the connector of the instrument and the corresponding connector of the controller to complete the installation. Normal operation Power on/off After long pressing the 【MODE】key, the meter starts to work and provides the working power of the controller. -
Page 9: Instrument Display Interface
Instrument display interface After the meter is turned on, the meter defaults to display real-time speed. Short press【MODE】key to switch display information. Displayed in turn: single mileage TRIP-----single time TIME-------power display WATT------single average speed AVG------single maximum mileage→MAX ------Total mileage Real-time speed, single mileage display real-time speed, single time display Real-time speed, real-time speed of single maximum mileage, single average speed Real-time speed, real-time speed of single maximum mileage, single... -
Page 10: Power Display
Power display When the battery voltage is high, the five-segment LCD will be on. When the battery voltage is low, the battery The outer frame flashes, indicating that the battery is seriously undervoltage and needs to be charged immediately Battery undervoltage flashes battery power display... -
Page 11: Error Code Display
Error code display When the electric vehicle electronic control system fails, the meter will automatically display the error code, Refer to Appendix 1 for the definition of detailed error codes. Error code display interface The fault display interface can only be exited when the fault is eliminated. -
Page 12: User Settings
User settings Backlight, headlights on Long press [+] for 2 seconds to turn on the headlights, and the backlight is on. 6KM implementation When the motor is stationary, press and hold [-] for 2 seconds to enter the 6KM implementation state, Release the button to exit the 6KM implementation state. -
Page 13: Internal Parameter Setting
PAS gear setting area Internal parameter setting Enter settings After the meter is turned on, press and hold [+]] [-] at the same time to enter the setting interface; [M] is the letter Switch between information, P01-P08 selection; short press 【+】 】... - Page 14 P03: Non-zero start selection 0-1 (0-zero start, 1-non-zero start), this function needs controller support. P04: KM/MILE switch P05: Battery working voltage selection 24V, 36V, 48V...
- Page 15 P06: Sleep time setting, the default value of the factory sleep time is 5 minutes When the motor is stationary and has no power output, the meter will automatically turn off after 5 minutes and switch off. Cut off the controller signal power supply. 0-60 (unit: minutes), 0 means no sleep P07: Speed limit setting, the default value of the maximum riding speed of the instrument is 25Km/h.
- Page 16 0: Display the hub hall communicated from the controller 1: Display the hub hall directly connected from the instrument...
-
Page 17: Frequently Asked Questions And Answers
Frequently Asked Questions and Answers Q: Why can't it be turned on? Answer: Check whether the battery is turned on or the leakage lead is broken. Question: How to deal with the fault code displayed by the instrument? Answer: Go to the repair point for repairing the electric vehicle in time. Quality commitment and warranty scope 1. -
Page 18: Lead Connection Diagram
Lead connection diagram Standard connector line sequence 6 core waterproof head male end front view Table: Wire sequence table of standard connectors wiring color Function Red (VCC) instrument power cord Blue (K) electric door lock wire of controller Black (GND) instrument ground wire Green (RX) Data receiving line of the meter... -
Page 19: Version Change
版本变更 Version change The instruction manual of this instrument is the universal software version of Wuxi Qishang Technology Co., Ltd. This (V2.1 version) operation manual. Instrument software version used on some vehicles There may be slight differences between this manual and this manual, and the actual version shall prevail.
