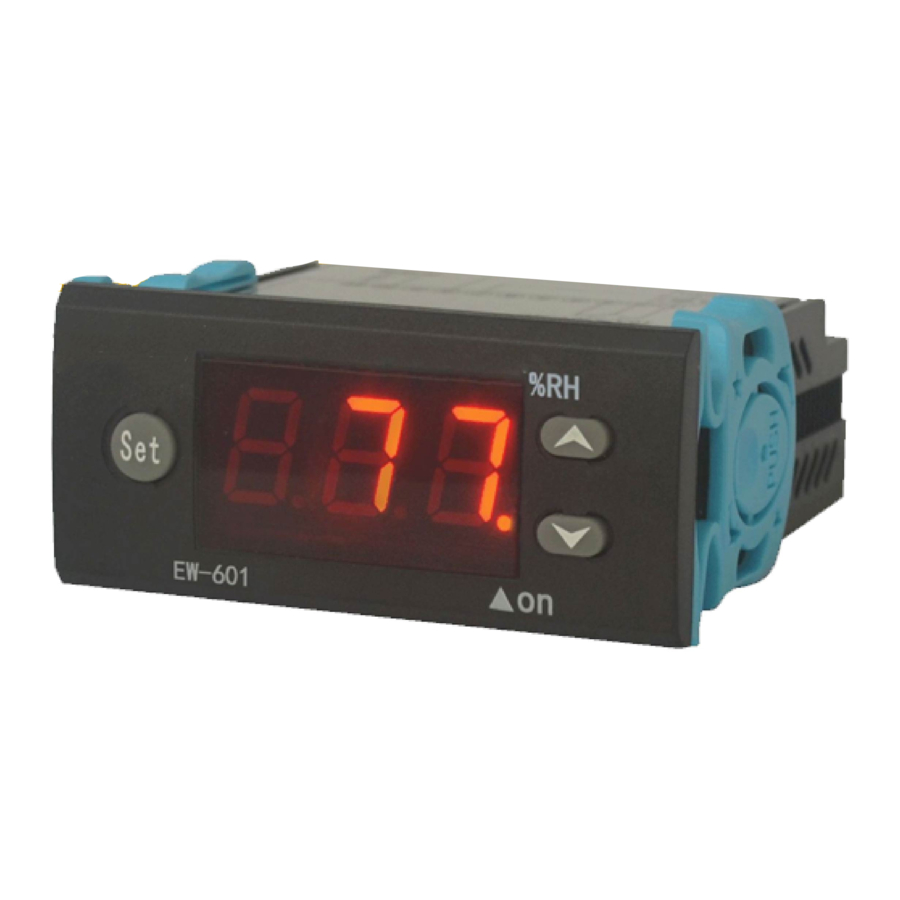

Eliweli EW-601 - Micro Computer Humidity Controller Manual

Introduction

First thanks you to use this company measuring appliance product. This product union widespread automatic control technology, the simplicity of operator, controls the warm precision to be high, antijamming ability. Applies in equipment's and so on air the constant humidity doctor humidity controls and the demonstration (adds wet and dehumidifies dual purpose control model).
This product uses the import the humidity sensor, the survey humidity is accurate, is stable, and the bringing humidity sensor makes a mistake the self-checking function; Dew-point output alarm function; Power failure automatic memory function.
This product avoids using easily to have the dew-point situation.
For example:

1. airtight, the space small indoor environment (for example cold storage) will cause the relative humidity to be unusual.
2. thermal shock's environment (for example use forced-air cooling system) will cause the relative humidity to be unusual.

Technical Specifications

1. Operating voltage: AC220V 土10% 50HZ/60HZ
2. Load current:
   Alarm relay 5A/220V/AC
   Control plus / Dehumidification relay10A/220V/AC
3. Controlled output: a group control adds/dehumidifies, a group control warning
4. Control range: 5%RH~95%RH、Does not have the condensation
5. Power consumption: ≤3W
6. Controls the wet precision: ±5%
   Resolution: ±1%RH
7. Working environment: 0℃~60℃ 10%~90%RH
   Does not have the condensation, the standard length 2 m
8. Overall dimension: 76(length)×35(wide)×76(high)mm
9. Starter size: 71(length)×29(wide)mm

Brief on Operation

Parameters for Procedure

Wiring diagram

Functional Description

Humidification Mode
below the set:
Back to the start humidification setting the value higher or equal will stop humidification
Dehumidification Mode
higher the set:
Back to the star dehumidificationt setting the value equal or lower will stop dehumidificationt While the digital tube show flash E1,the sensor will shorted or open and the alarm system relay is working.
While the Condensation way choice C,such as digital tube show flase E2 before the sensor Condensation will be delay and the alarm system relay is working.

The operation showed

The hypothesis controls the wet parameter:
The measuring appliance circular telegram demonstrated the value is the humidity value which present surveys, when establishes humidity value which needs, according to the key is the demonstration preinstall humidity setting value, presses setting value which the key or the key may the resume load need, after revising the parameter, does not need to press any key to confirm, six seconds later automatic memory new setup parameter.
Enters the menu according to the key namely the demonstration the code, the key or the key may circulate the menu according to: — — — — —

Adds wet and dehumidifies the control model:
A according to the key or the key to enter the menu, demonstrated that the code, according to the key, presses the key again either the key choice or (adds wet or dehumidifies function).

Hypothesis dew point time delay:
enters the menu according to the key, or the key transfers to according to the key , according to the key, presses the key again or the key may change the dew point time delay the setting value (this function is when the humidity sensor induces after the dew point, time delay demonstration , output alarm, but establishes 0~30 minutes freely).

The hypothesis humidity returns to the difference:
enters the menu according to the key, or the key transfers to according to the key , does not put according to the key, demonstrated that the original setup parameter, this time or the key may readjust the parameter after the key (this function is when achieves humidity stop, according to returns to difference parameter which establishes to add wet).

Time delay hypothesis:
enters the menu according to the key, or the key transfers to according to the key , presses the key not to put again demonstrated that the original setup param-eter (this function is according to humidifier whether to need time delay work, but establishes 0~3 minutes freely).

Temperature correction:
enters the menu according to the key, or the key transfers to according to the key , does not put according to the key, demons trated that the original setup parameter, may or the key readjusts the parameter according to the key to carry on the adjustment (this function be when humidity and survey demonstration value has error carries on adjustment).

Condensation way:
Enter the menu, press set or set to ,press key, while press key or key can choice c or v way (condensing or non-condensing).
When choice c way, the humidity sensor sensitive to the dew point delay show E2 and output alarm, when choice V way, show 99%(Not alarm).
Modify the parameters don't need press any key. Confirm six seconds automatic memory the new set parameter.

Warnings

1. Please read this product instruction carefully and connect input/output plugs of power & sensor to the corresponding sockets strictly by following connection diagram, otherwise the usage & operations will be affected. Check again to make sure there is no mistake. Tighten all the screw of connection plugs aga in, and then connect it to the power for running.
2. Keep away this product from moist or corrosiIve air and high magnetic field. Otherwise the normal operaton of this product will be affected.
3. All our products have passed strict quality inspections before leaving factory. We provide one-year quality guarantee (which is limited to product itself) period for this product.

If you have any doubt or problem concerning the electronic temperature or humidity controller made by us, please contact our distributors and we will provide you high-quality aftersale services. Thanks!

Guangzhou Eliweli A utocontrol Tech. Co., Ltd
