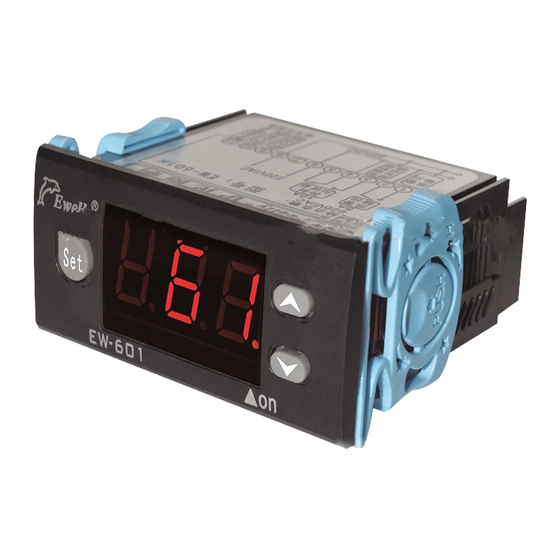

Eliweli EW-601 Instructions For Use

- - this product avoids using easily to have the dew-point situation.
for example: 1st, airtight, the space small indoor environment (for example cold storage) will
cause the relative humidity to be unusual.
2, thermal shock's environment (for example use forced-air cooling system) will
cause the relative humidity to be unusual.
/
Micro computer humidity controller series
《EW-601 Instruction for use 》
First thanks you to use this company measuring appliance
product. This product union widespread automatic control tech-
nology, the simplicity of operator, controls the warm precision to
be high, antijamming ability. Applies in equipment's and so on
air the constant humidity doctor humidity controls and the demo-
nstration (adds wet and dehumidifies dual purpose control model).
This product uses the import the humidity sensor, the survey
humidity is accurate, is stable, and the bringing humidity sensor
makes a mistake the self-checking function; Dew-point output
alarm function; Power failure automatic memory function.
Technical Specifications
1. Operating voltage ：AC220V 土10% 50HZ/60HZ
2. Load current ：Alarm relay5A/220V/AC
Control plus / Dehumidification relay10A/220V/AC
3. Controlled output ：a group control adds/dehumidifies,
a group control warning
4. Control range ：5%RH~95%RH、Does not have the condensation
5. Power consumption ：≤3W
6. Controls the wet precision ：±5%
7. Working environment ：0℃～60℃ 10%～90%RH
Does not have the condensation,the standard length 2 m
8. Overall dimension ：76（length）×35（wide）×76（high）mm
9. Starter size ：71（length）×29（wide）mm
Brief on Operation
Ewic-601
EW-601
Resolution：±1%RH
Demonstration now humidity value
Loud power LED
Parameters for Procedure
Indicator
Function
Adds wet/dehumidifies
H/P
Dew point time delay
CP
The humidity returns to
D
the difference
Delay time
Pt
Humidity Adjustment
CA
Humidity Delay Change
AP
C/V Condensation Way
Wiring diagram
Output Load:
220V/AC
Control
Warning
humidifier
output
5A 10A
1 2 3 1 2 3
4 5
220V/AC
Code: 601H. 12.08.03
Ex-factory
Setting range
value
H/P H
6
0~30
5%
1~20%
0
0~3
0
-10%~10%
0~15
3
C
C/V
Mode：EW-601H
9 10 11 12 13
6 7 8
白 黑 红
色 色 色
连 连 连
线 线 线
Unit
－
Min
RH
Min
RH
S e c
