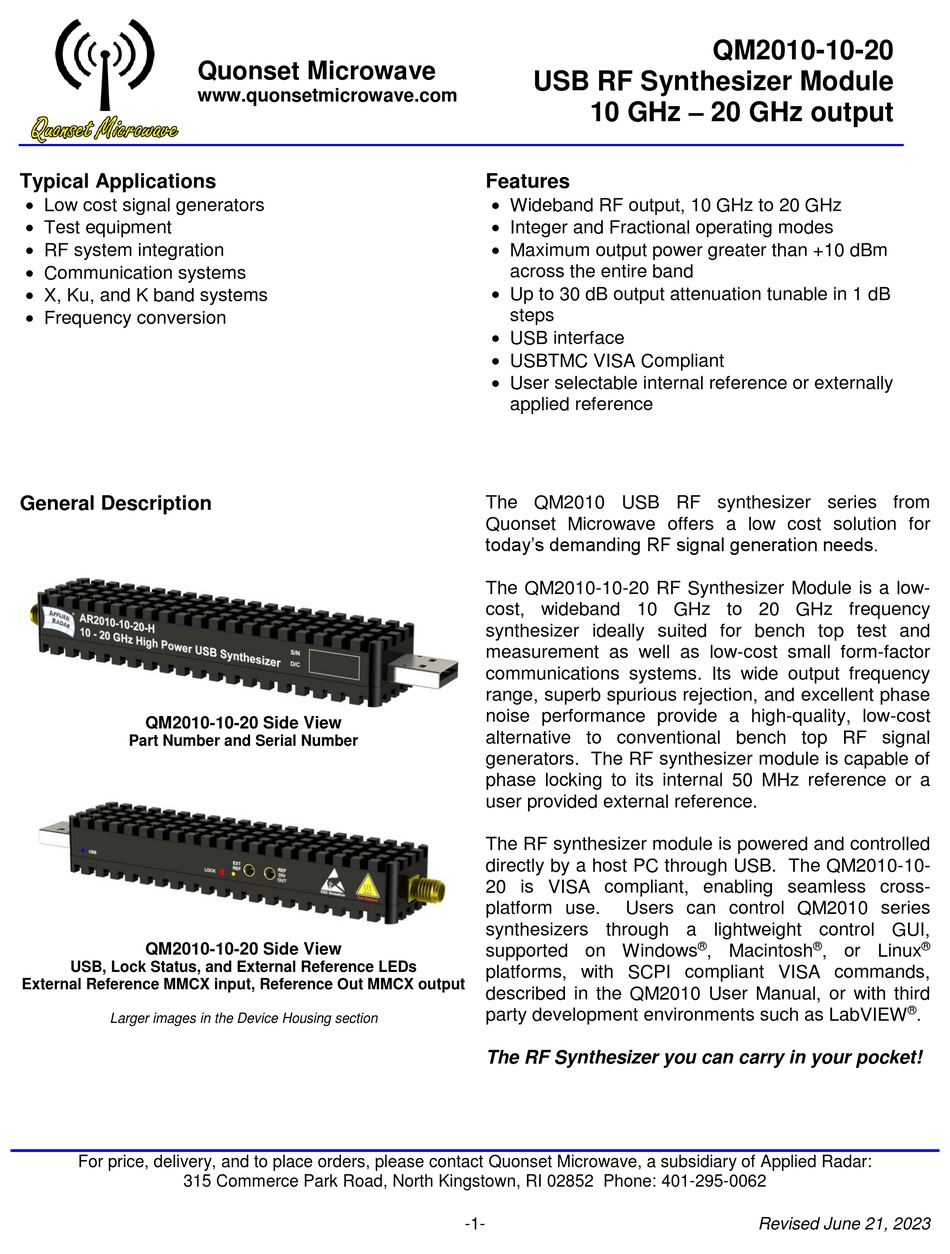

Typical Applications
 Low cost signal generators
 Test equipment
 RF system integration
 Communication systems
 X, Ku, and K band systems
 Frequency conversion
General Description

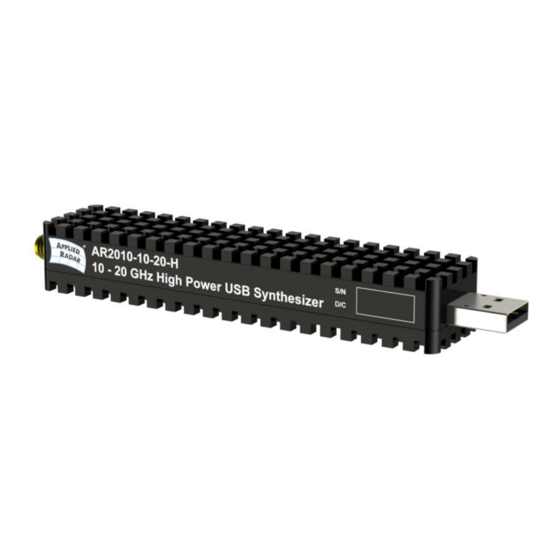

QM2010-10-20 Side View
Part Number and Serial Number
QM2010-10-20 Side View
USB, Lock Status, and External Reference LEDs
External Reference MMCX input, Reference Out MMCX output
Larger images in the Device Housing section
For price, delivery, and to place orders, please contact Quonset Microwave, a subsidiary of Applied Radar:
315 Commerce Park Road, North Kingstown, RI 02852 Phone: 401-295-0062
USB RF Synthesizer Module
10 GHz – 20 GHz output
Features
 Wideband RF output, 10 GHz to 20 GHz
 Integer and Fractional operating modes
 Maximum output power greater than +10 dBm
across the entire band
 Up to 30 dB output attenuation tunable in 1 dB
steps
 USB interface
 USBTMC VISA Compliant
 User selectable internal reference or externally
applied reference
The QM2010 USB RF synthesizer series from
Quonset Microwave offers a low cost solution for
today's demanding RF signal generation needs.
The QM2010-10-20 RF Synthesizer Module is a low-
cost, wideband 10 GHz to 20 GHz frequency
synthesizer ideally suited for bench top test and
measurement as well as low-cost small form-factor
communications systems. Its wide output frequency
range, superb spurious rejection, and excellent phase
noise performance provide a high-quality, low-cost
alternative to conventional bench top RF signal
generators. The RF synthesizer module is capable of
phase locking to its internal 50 MHz reference or a
user provided external reference.
The RF synthesizer module is powered and controlled
directly by a host PC through USB. The QM2010-10-
20 is VISA compliant, enabling seamless cross-
platform use.
Users can control QM2010 series
synthesizers through a lightweight control GUI,
supported on Windows
platforms, with SCPI compliant VISA commands,
described in the QM2010 User Manual, or with third
party development environments such as LabVIEW
The RF Synthesizer you can carry in your pocket!
-1-
QM2010-10-20
®
®
, Macintosh
, or Linux
Revised June 21, 2023
®
®
.
