Quonset Microwave
www.quonsetmicrowave.com
Typical Applications
• Low cost signal generators
• Test equipment
• RF System Integration
• Communication systems
• EW systems
• UHF/VHF systems
• Radar systems
• Frequency conversion
General Description

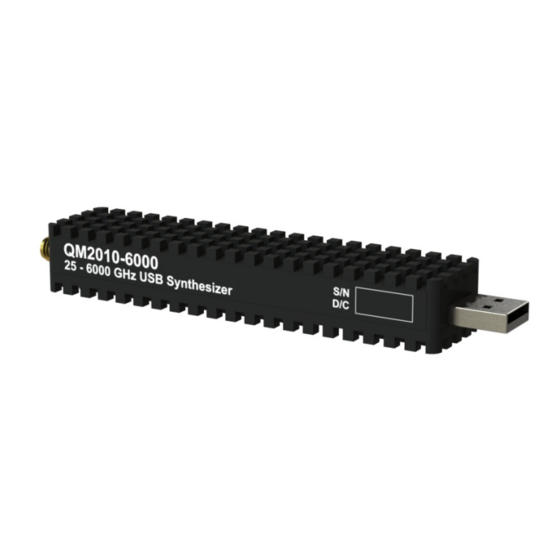

QM2010-6000 Side View
Part Number and Serial Number
QM2010-6000 Side View
USB, Lock Status, and External Reference LEDs
External Reference MMCX input, Reference Out MMCX output
Larger images in the Device Housing section
For price, delivery, and to place orders, please contact Quonset Microwave: a subsidiary of Applied Radar, Inc.
315 Commerce Park Road, North Kingstown, RI 02852 Phone: 401-295-0062
USB RF Synthesizer Module
25 MHz – 6 GHz output
Features
• Wideband RF output, 25 MHz to 6 GHz
• Integer and Fractional operating modes
• Up to 50 dB output attenuation adjustable in 1 dB
steps
• USB interface
• USBTMC VISA Compliant
• User selectable internal reference or externally
applied reference
The QM2010 USB RF synthesizer series from
Quonset Microwave offers a low cost solution for
today's demanding RF signal generation needs.
The QM2010-6000 RF Synthesizer Module is a low-
cost, wideband 25 MHz to 6 GHz frequency
synthesizer ideally suited for bench top test and
measurement as well as low-cost small form-factor
radar and communications systems. Its wide output
frequency range, superb spurious rejection, and
excellent phase noise performance provide a high-
quality, low-cost alternative to conventional bench top
RF signal generators. The RF synthesizer module is
capable of phase locking to its internal 50 MHz
reference or a user provided external reference.
The RF synthesizer module is powered and controlled
directly by a host PC through USB. The QM2010-
6000 is VISA compliant, enabling seamless cross-
platform use.
Users can control QM2010 series
synthesizers through a lightweight control GUI,
supported on Windows
platforms, with SCPI compliant VISA commands,
described in the QM2010 User Manual, or with third
party development environments such as LabVIEW
The RF Synthesizer you can carry in your pocket!
-1-
QM2010-6000
®
®
, Macintosh
, or Linux
Revised Dec 23, 2015
®
®
.
Advertisement
Related Manuals for Quonset Microwave QM2010-6000
Summary of Contents for Quonset Microwave QM2010-6000
- Page 1 LabVIEW The RF Synthesizer you can carry in your pocket! For price, delivery, and to place orders, please contact Quonset Microwave: a subsidiary of Applied Radar, Inc. 315 Commerce Park Road, North Kingstown, RI 02852 Phone: 401-295-0062...
- Page 2 For command structure information and a full command list, see the USB Programming manual (QM2010-99-2). For price, delivery, and to place orders, please contact Quonset Microwave: a subsidiary of Applied Radar, Inc. 315 Commerce Park Road, North Kingstown, RI 02852 Phone: 401-295-0062...
- Page 3 The QM2010 RF Synthesizer Module is capable of operating in integer or fractional mode. In integer mode, the frequency resolution of the QM2010-6000 is dependent on the frequency range of operation. This is due to the design topology of the QM2010-6000, which has a fundamental frequency range of 1500 MHz to 3000 in integer mode, the frequency resolution is equal to ��������...
- Page 4 Fractional vs. Integer Mode Spectrum 10 MHz span, RBW = 10 kHz, VBW = 300 Hz For price, delivery, and to place orders, please contact Quonset Microwave: a subsidiary of Applied Radar, Inc. 315 Commerce Park Road, North Kingstown, RI 02852 Phone: 401-295-0062...
- Page 5 Aside from reference divider selection, the phase noise performance and stability of the reference oscillator has a direct effect on QM2010 phase noise performance. The QM2010-6000 includes an on board, high precision TXCO 50 MHz reference whose phase noise parameters are outlined in Table 2. To ensure optimal QM2010 performance when an external reference is required, it is important to choose an accurate and stable oscillator with specifications equal to or better than the 50 MHz TCXO Int Ref outlined in Table 2.
- Page 6 QM2010 will set the power level to the closest possible value. Figure 2 - Representative Phase Noise Plots For price, delivery, and to place orders, please contact Quonset Microwave: a subsidiary of Applied Radar, Inc. 315 Commerce Park Road, North Kingstown, RI 02852 Phone: 401-295-0062...
- Page 7 Figure 8 - 1 GHz Output, DC-10 GHz, VBW/RBW = 3 kHz VBW/RBW = 100 kHz For price, delivery, and to place orders, please contact Quonset Microwave: a subsidiary of Applied Radar, Inc. 315 Commerce Park Road, North Kingstown, RI 02852 Phone: 401-295-0062 Revised Dec 23, 2015...
- Page 8 Figure 12 – 6 GHz Output, DC-10 GHz, VBW/RBW = 3 kHz VBW/RBW = 100 kHz For price, delivery, and to place orders, please contact Quonset Microwave: a subsidiary of Applied Radar, Inc. 315 Commerce Park Road, North Kingstown, RI 02852 Phone: 401-295-0062 Revised Dec 23, 2015...
- Page 9 Figure 13 – 6 GHz Output, 10 MHz span, VBW/RBW = 3 kHz For price, delivery, and to place orders, please contact Quonset Microwave: a subsidiary of Applied Radar, Inc. 315 Commerce Park Road, North Kingstown, RI 02852 Phone: 401-295-0062...
- Page 10 RF output: 25-6000 MHz USB Type A – Male USB signal and power For price, delivery, and to place orders, please contact Quonset Microwave: a subsidiary of Applied Radar, Inc. 315 Commerce Park Road, North Kingstown, RI 02852 Phone: 401-295-0062 -10-...
- Page 11 Storage Temperature -50 to +100 Ordering Information QM2010-6000 For price, delivery, and to place orders, please contact Quonset Microwave: a subsidiary of Applied Radar, Inc. 315 Commerce Park Road, North Kingstown, RI 02852 Phone: 401-295-0062 -11- Revised Dec 23, 2015...
