Nova 6061-R Assembly Instructions

HOW TO
ASSEMBLE YOUR
Overdoor Exercise Set
Item # 6061-R
Weight capacity not to exceed 10 lb
Pulley Hanger
NOTE: It is much easier and safer to assemble this device with help from a second
person.
1

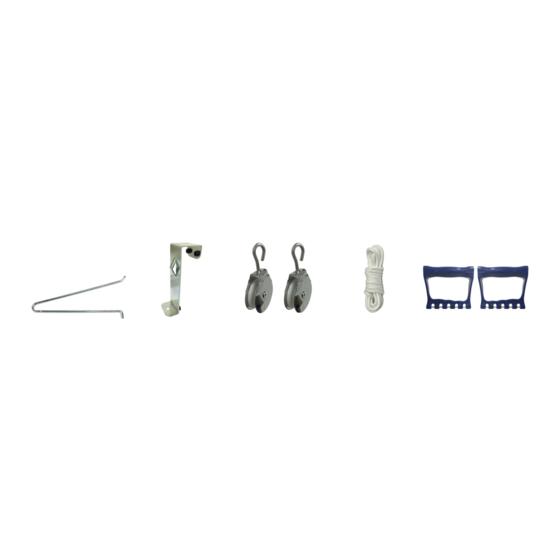

Remove all parts from box:
1 pulley hanger, 1 door bracket, 2 pulley mechanisms, 1 traction rope, and
2 exercise handles
2
On one of the bent ends of the "PULLEY HANGER", it will have
a locking notch on the side. With the "PULLEY HANGER" turned
upwards, slide that end into the triangle opening of the door
bracket.
3
Once the locking notch slides completely through the "DOOR
BRACKET", turn the "PULLEY HANGER" downwards and slide
on both "PULLEY MECHANISMS.
4
Squeeze the "PULLEY HANGER" and insert the bent end
into the hole at the bottom of the "DOOR BRACKET".
5
Once assembled, install the "DOOR BRACKET" over the top of
an interior door. Ensure the "DOOR BRACKET" is centered on
the door and the top of the bracket is pushed all the way down.
Close the door after secured.
NOTE: Make sure that no one opens the door while you are
using the exercise device. Use the "DO NOT OPEN" door sign
found at the end of this User Guide.
Door Bracket
Pulley
Traction Rope
Mechanisms
No tools required
All parts included
Easy to follow
step by step
instructions
Exercise Handles
