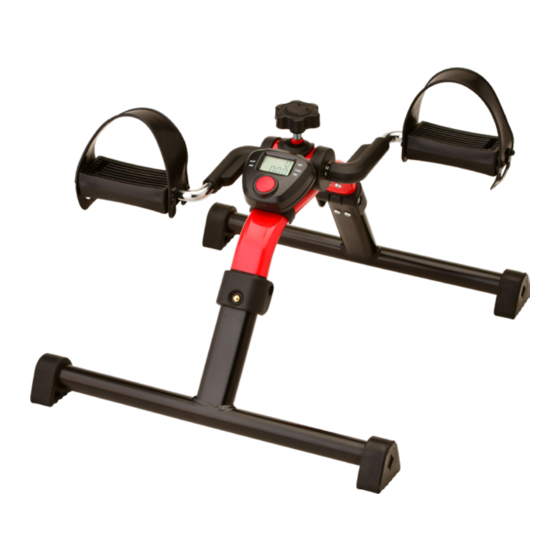

ASSEMBLE YOUR
EXERCISE PEDDLER
Item # 6002-R
1
Instructions for use
Remove unit from all packaging. Open unit by unfolding peddler legs. An audible "click" will be
heard when push buttons are engaged.
Caution: Take care not to pinch fingers where unit unfolds and locks into place.
Place exercise peddler level on floor to use with legs or other flat surface to use with arms. Position
peddler at a comfortable distance and rotate pedals, ensuring straps are used appropriately.
2
Adjusting the tension control knob
The tension control knob may be tightened or loosened to increase or decrease the tension
required to use the product.
3
Digital Display
For units with a digital display, the display will automatically power on when you start to exercise.
When the exercise peddler is not used for 5 seconds, a "STOP" indicator in the top left corner of
the window will appear, and the timer will also stop. The timer will resume when you continue
exercising.
The digital display will power off after 5 minutes of inactivity. To reset the digital display, hold the
red button for 10 seconds.
Readout
A) Exercise time
B) Revolution count from last reset
C) Total revolutions for all sessions
D) Calories burned from last reset
To select the information to display, press red button,
and indicator arrow will point to the desired data.
Selecting "SCAN" will automatically prompt the digital
display to cycle through all data in the above order.
NOTE: If numbers begin to fade or show unusual characters, replace the battery.
4
To install battery
This unit uses one 1.5V (AAA) battery (included)
Unscrew and remove tension control knob, and lift the digital display off
of exercise peddler. Depress tab on bottom of digital display, and gently
pull apart and open the case. Install or replace battery. Close the case, and
replace display on peddler. Screw on tension control knob.
HOW TO
a. (1) Peddler
b. (1) Digital display
a.
WHAT'S IN THE BOX
c. (1) Tension control knob
d. (1) AAA battery
b.
NO tools required
Quick assembly
Easy to follow
step-by-step
instructions
c.
SCAN
A
Tab
*Revised February 19, 2019
d.
B
C
D
