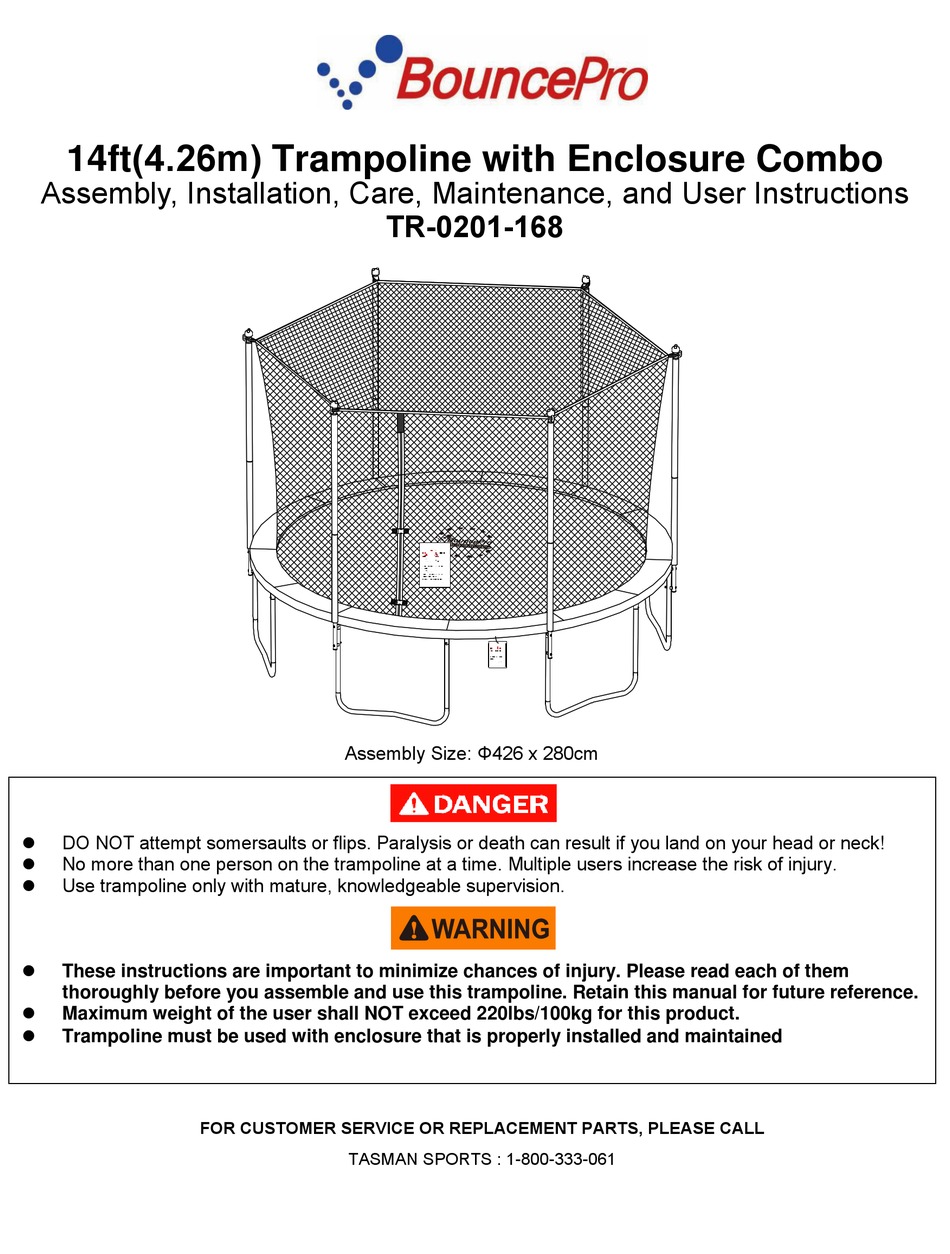

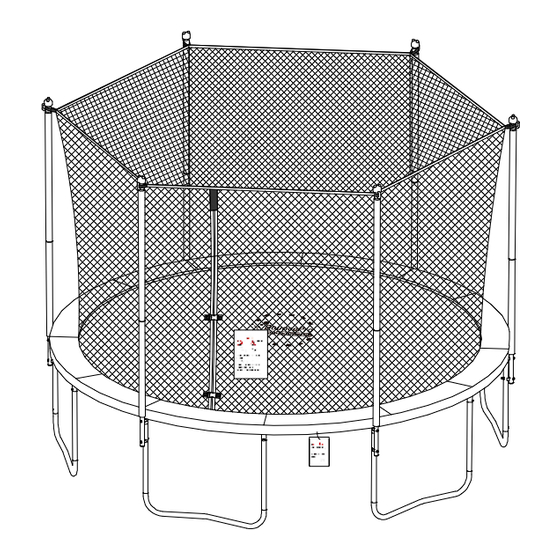

14ft(4.26m) Trampoline with Enclosure Combo
Assembly, Installation, Care, Maintenance, and User Instructions
DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck!
No more than one person on the trampoline at a time. Multiple users increase the risk of injury.
Use trampoline only with mature, knowledgeable supervision.
These instructions are important to minimize chances of injury. Please read each of them
thoroughly before you assemble and use this trampoline. Retain this manual for future reference.
Maximum weight of the user shall NOT exceed 220lbs/100kg for this product.
Trampoline must be used with enclosure that is properly installed and maintained
Assembly Size: Φ426 x 280cm
FOR CUSTOMER SERVICE OR REPLACEMENT PARTS, PLEASE CALL
TASMAN SPORTS : 1-800-333-061
TR-0201-168
Advertisement
Table of Contents
Related Manuals for BouncePro TR-0201-168
Summary of Contents for BouncePro TR-0201-168
- Page 1 14ft(4.26m) Trampoline with Enclosure Combo Assembly, Installation, Care, Maintenance, and User Instructions TR-0201-168 Assembly Size: Φ426 x 280cm DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck! No more than one person on the trampoline at a time. Multiple users increase the risk of injury.
- Page 2 NO SOMERSAULTS OR FLIPS – PARALYSIS OR DEATH can result if you No more than ONE user at a time land on your head or neck! (maximum weight - 220 lbs/100 kg). Do not use if in a Do not allow Remove all hard Do not use cast or have...
- Page 3 INTRODUCTION Thank you for purchasing this product. This trampoline was designed and manufactured with quality materials and craftsmanship, providing fun and exercise in the enjoyment of your own backyard. It is very important that the owners and users of this trampoline have adequate knowledge of techniques and rules for proper use.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Use trampoline only with adult supervision. Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. Do not allow more than one person on the trampoline. Use by more than one person at the same time ... -
Page 5: Before You Start To Assemble
BEFORE STARTING… Use trampoline only with adult supervision. Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. Do not allow more than one person on the trampoline. Use by more than one person at the same time ... -
Page 6: Important Warnings
IMPORTANT WARNINGS Use trampoline only with adult supervision. Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. Do not allow more than one person on the trampoline. Use by more than one person at the same time ... - Page 7 IMPORTANT WARNINGS Proper Play Conditions: Always use the product in a well-lit area. Do not use without lighting during dawn, dusk or in complete darkness! The trampoline must be placed on a surface that is COMPLETELY FLAT AND LEVEL. If the ground is ...
- Page 8 IMPORTANT WARNINGS Appropriate Use Conditions: Children must always be supervised while they are playing on the trampoline and must be instructed not to use the trampoline in an inappropriate or hazardous manner. Take precautions to prevent access to the trampoline by children when there is no adult supervision.
- Page 9 IMPORTANT WARNINGS ➢ Use trampoline only with mature, knowledgeable adult supervision. ➢ Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. ➢...
-
Page 10: Important Instructions For Enclosure Netting And Mat
IMPORTANT INSTRUCTIONS FOR ENCLOSURE NETTING AND MAT Important Instructions for Enclosure Netting and Mat Failure to follow these instructions to ensure proper operational condition of your trampoline may lead to serious injury or death. 1. Maintenance of Trampoline Enclosure Net, Mat and Pad Enclosure nets and padding are prone to wear and tear like tires on a car. - Page 11 IMPORTANT INSTRUCTIONS FOR ENCLOSURE NETTING AND MAT How to Inspect the Trampoline Net for Proper Use Always check the enclosure netting for signs of UV damage, deterioration, brittleness, cracking, and tearing every time before using the trampoline and enclosure. Step1 - Inspect the enclosure netting before EACH use for wear or tear by pinching and pulling a section of the netting between fingers and pulling downward.
-
Page 12: Trampoline And Enclosure Parts List
TRAMPOLINE AND ENCLOSURE PARTS LIST Trampoline and Enclosure Parts List Trampoline Part Picture Description Quantity Number Trampoline Mat, stitched with Triangle- Rings Frame Pad Top Rail with Leg Sockets Top Rail Leg Base Vertical Leg Extensions Vertical Leg Extension with Indented Hole Spring Trampoline Safety Instruction Placard... -
Page 13: Hardware Parts List
HARDWARE PARTS LIST Hardware Parts List Part Picture Description Quantity Number Bolt (M8x87mm) Wrench Gap Spacer Bolt (M8x84mm) Spring Lock Washer Cap Nut Self-Locking Screw Arc Washer Allen Wrench Cord Enclosure Tube Washer End Cap Small Spring Lock Washer Tube Cap... -
Page 14: Assembly And Installation Instructions
ASSEMBLY AND INSTALLATION INSTRUCTIONS Assembly and Installation Instructions Review all steps before assembly and read all precautions before using this product. Failure to do so can result in serious injury or death. During periods of non-use, this trampoline and trampoline enclosure can be easily disassembled and stored by reversing the order of installation. -
Page 15: Trampoline Frame Assembly
TRAMPOLINE FRAME ASSEMBLY Trampoline Frame Assembly BEFORE YOU BEGIN: Review all steps before assembly and read all precautions before using the trampoline. At least two adults are required to assemble this trampoline. Protective gloves should be used during assembly to avoid injuries during installation. Goggles should be worn to avoid injuries to the eyes. Step 1 –... - Page 16 TRAMPOLINE FRAME ASSEMBLY Step 2 – Leg Support and Top Rail with Leg Socket Assembly At this point, two people will be needed to assemble the trampoline. Connect Vertical Leg Extensions (# 6A and # 6B) to Leg Base (# 5) as shown below (the assembled parts ...
- Page 17 TRAMPOLINE FRAME ASSEMBLY Step 3 –Top Rail Assembly Complete the trampoline frame by inserting all of the Top Rails (# 4) in between Top Rail with Leg Sockets (# 3) as shown below. DO NOT PLACE HANDS NEAR THE OPENING WHEN CONNECTING THE TUBES.
- Page 18 TRAMPOLINE FRAME ASSEMBLY Step 4 –Secure Leg Support to Top Rail Secure Vertical Leg Extension (# 6A) to the frame using Self-Locking Screw (# I), Small Spring Lock Washer (# 10) and Allen Wrench (# K) as shown below. If the holes do not match up, rotate Vertical Leg Extension back and forth until the holes are aligned.
-
Page 19: Trampoline Mat Assembly
TRAMPOLINE MAT ASSEMBLY Trampoline Mat Assembly When attaching the springs, do not place your hands, arms, legs or any other body part close to the connector points (i.e. joints connecting the steel tubes). The connector points can become pinch points as the trampoline springs tighten up. - Page 20 TRAMPOLINE MAT ASSEMBLY Step 6 – Spring Assembly Continue to attach springs in the same manner. For even distribution of tension and ease of assembly, the springs must be placed on opposite sides of the mat in an alternating manner, i.e. 10 then 46, 28 then 64, etc.
- Page 21 TRAMPOLINE MAT ASSEMBLY Step 7 – Spring Assembly Continue to attach springs in the same manner. For even distribution of tension and ease of assembly, the springs must be placed on opposite sides of the mat in an alternating manner, i.e. 5 then 41, 14 then 50, 23 then 59, 32 then 68, etc.
- Page 22 TRAMPOLINE MAT ASSEMBLY Step 8 – Spring Assembly Continue to attach the remaining springs in the same manner as the previous step, i.e. the springs must be placed on opposite sides of the mat in an alternating manner to ensure even distribution of tension. IMPORTANT: Once all the springs are properly installed, you must go back to Step 4 and now tighten the screws on all Leg Supports.
-
Page 23: Frame Pad Assembly
FRAME PAD ASSEMBLY Frame Pad Assembly Never use the trampoline without the Frame Pad, the Frame Pad reduces the risk of getting injured by hitting the metal frame or springs. Inspect the Frame Pad before each and every use to ensure all exposed metal parts are fully covered by the Frame Pad! Step 9 Lay Frame Pad (# 2) over the trampoline so that the springs and steel frame are fully covered. -
Page 24: Trampoline Enclosure Assembly
TRAMPOLINE ENCLOSURE ASSEMBLY Trampoline Enclosure Assembly BEFORE YOU BEGIN: This trampoline must only be used when the enclosure netting is properly assembled. The trampoline netting must be checked thoroughly before each use to ensure there are no tears or damages. Please carefully read all the Important Warnings contained in this manual and all warnings on the product before use. - Page 25 TRAMPOLINE ENCLOSURE ASSEMBLY Step 11 – Connect the Enclosure Upper Frame to the Lower Frame Attach Tube Cap (# 11) to Upper Frame Tube with Foam (# A2) using Self-Locking Screw (# I) and Allen Wrench (# K) as shown below. Repeat this step for all of the frame tubes.
- Page 26 TRAMPOLINE ENCLOSURE ASSEMBLY Secure the buckles located at the top of the netting enclosure through Tube Cap (# 11) as shown below. Hint: Please make sure the cap holder is facing outward. Keep some looseness on the strap of the buckles. ...
- Page 27 TRAMPOLINE ENCLOSURE ASSEMBLY Diagram 11-2 Step 12 – Connect the Enclosure Upper Frame to the Lower Frame Tubes Connect all six Upper Frame Tube with Foam (# A2) to Lower Frame Tube with Foam (# A1). Secure with Self-Locking Screw (# I) using Allen Wrench (# K) as shown below. Helpful Tips: One person should stand inside the trampoline to hold the netting in place while another person installs all the frame tubes from the outside.
- Page 28 TRAMPOLINE ENCLOSURE ASSEMBLY Step 13 – Tie the Enclosure to the Mat Secure the trampoline netting to the trampoline frame using the Cords (# L). Lift up the frame pad and tie one end of the cord to any one of the triangle-rings on the trampoline mat as shown below. Loop the other end of the cord through the next hole on the mat and then the adjacent triangle-ring.
- Page 29 TRAMPOLINE ENCLOSURE ASSEMBLY Step 14 - Secure the Frame Pad Wrap and tie the inner elastic straps on the frame pad around the triangle-rings and the outer straps around the trampoline frame as shown below. Diagram 14-1...
- Page 30 TRAMPOLINE ENCLOSURE ASSEMBLY For the elastic straps near the leg sockets, wrap them BEHIND the leg sockets and then tie a one-sided bow in front as shown below. Diagram 14-2...
- Page 31 TRAMPOLINE ENCLOSURE ASSEMBLY Make sure that the knots and bows are tight for all elastic straps. Make sure the frame pad is securely attached to the frame and completely covers the frame and all of the springs before using this trampoline. Do not use the trampoline if even one spring or triangle-ring is damaged or missing. ...
-
Page 32: Disassembly Of The Trampoline And Enclosure
DISASSEMBLY OF THE TRAMPOLINE AND ENCLOSURE IMPORTANT Once you have finished the assembly of the trampoline, go back over all of the nuts and bolts and properly tighten all of them before using. Read this entire manual and make sure all jumpers completely understand all of the safety rules printed in the manual and on the various warning signs. -
Page 33: Care And Maintenance
CARE AND MAINTENANCE Care and Maintenance Failure to follow these instructions to ensure proper operational condition of your trampoline may lead to serious injury or death. The springs, trampoline legs and enclosure netting must be inspected prior to every use. The legs should ... -
Page 34: Proper Use Instructions
PROPER USE INSTRUCTIONS Proper Use Instructions Read and understand the use instructions in this manual prior to using this product. Failure to do so can result in serious injury or death. Responsibilities of the user The key here is to stay in control of your jumps. DO NOT move onto more complicated, more difficult maneuvers until you have mastered the basic, fundamental bounce. - Page 35 PROPER USE INSTRUCTIONS Read and understand the use instructions in this manual prior to using this product. Failure to do so can result in serious injury or death. Read all instructions before using the trampoline. Warnings and instructions for the care, ...
-
Page 36: Learning The Fundamental Trampoline Skills
USE INSTRUCTIONS Learning the fundamental trampoline skills The following lessons are suggested for you to learn basic steps and bounces. Before using the trampoline, you should read and understand all warnings. A complete discussion and demonstration of body mechanics and trampoline guidelines should occur between the supervisor and student as well. - Page 37 USE INSTRUCTIONS BASIC TRAMPOLINE BOUNCES THE BASIC BOUNCE 1. Start from the standing position, with your feet having shoulder width apart and with head up and eyes on mat 2. Swing arms forward and up in a circular motion 3. Bring feet together while in mid-air and point toes downwards.
-
Page 38: Product Warranty
PRODUCT WARRANTY Product Warranty We warrant its products to be free from defects in material and workmanship under normal use and service conditions for ninety (90) days after the date of purchase. The steel frame on trampolines is warranted for two (2) years after the date of purchase. All warranty coverage extends only to the original purchaser of the product and is not assignable or transferable. - Page 39 ACCEPTABLE QUALITY AND THE FAILURE DOES NOT AMOUNT TO A MAJOR FAILURE. FOR NEW ZEALAND CUSTOMERS, THIS WARRANTY IS IN ADDITION TO STATUTORY RIGHTS OBSERVED UNDER NEW ZEALAND LEGISLATION. TASMAN SPORTS SHEEHAN ROAD, WEST HEIDELBERG, VICTORIA SERVICE PHONE NUMBER 1-800-333-061 ARTICLE NO. : TR-0201-168 ITEM NO. : 0270667 BNG-25-TR-0201-168-21001-0527AH...
