Summary of Contents for Husqvarna TS 248TXD

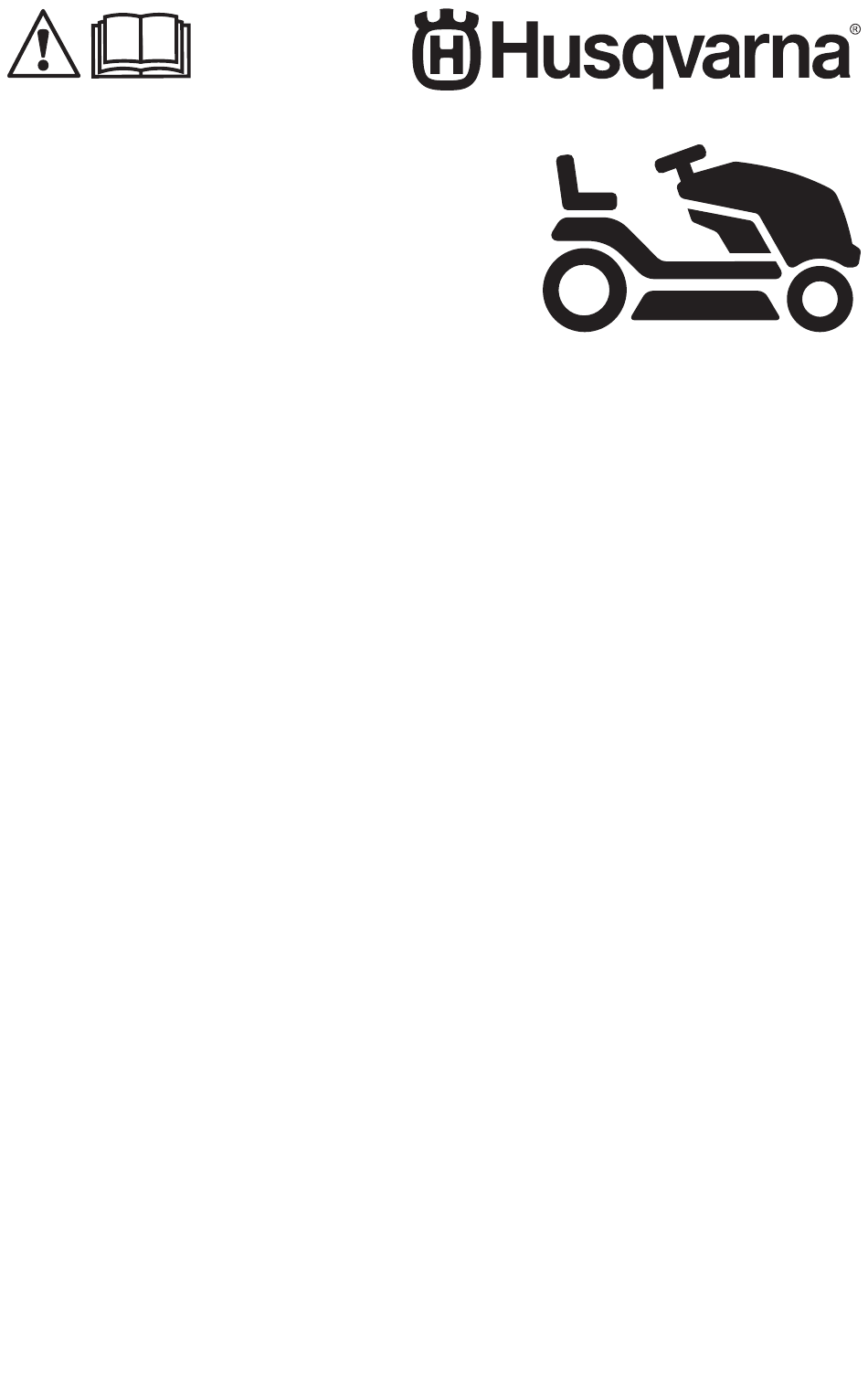

  • Page 1 TS 248TXD Operator's manual 2-37...
  • Page 2: Table Of Contents

    This product is only used to cut grass in private • Visit our website: www.husqvarna.com gardens and on private garden slopes with not more than 15° slope. It is not to be used in public parks, •...
  • Page 3 Product overview 1. Light switch the instructions before you use this product. 2. Throttle control 3. Hour meter 4. Ampere meter 5. Attachment clutch control 6. Ignition switch Reverse. 7. Reverse drive pedal 8. Forward drive pedal 9. Cruise control lever 10.
  • Page 4 Slow. Forward. Ignition switch. Lights on. Engine off. Battery. The blades are disengaged. Engine start. The blades are engaged. Engine on. Dangerous, keep hands and feet away from this area. Differential lock. Fuel. Brake and clutch pedal. Ear protection recommended. Parking brake.
  • Page 5: Safety

    Freewheel (automatic models only). The hot surfaces symbol show a risk, Hour meter which, if not obeyed, can cause death, serious injury and/or damage. The hour meter shows how many hours the engine Product overview on has been in operation. Refer to page 3 for the position of the hour meter.
  • Page 6 • Keep children out of the mowing area and in the WARNING: In order to prevent watchful care of a responsible adult other than accidental starting when setting up, the operator. transporting, adjusting pr making repairs, • Be alert and turn machine off if a children enters always disconnect spark plug wire and the area.
  • Page 7 If the safety devices are defective, mower safely enough to protect themselves and speak to your Husqvarna service agent. others from serious injury. • Do not make modifications on safety devices. Do •...
  • Page 8 3. Make sure that the engine stops when you try to WARNING: The muffler becomes reverse with the ignition key is in the on position very hot during and after use and when (A). the engine operates at idle speed. Be careful near flammable materials and/or fumes to prevent fire.
  • Page 9 Fuel safety If the battery has a deformation or is damaged, speak to an approved WARNING: Read the warning Husqvarna service agent. instructions that follow before you use the product. WARNING: Read the warning •...
  • Page 10: Assembly

    • Always put the cutting deck in servicing position WARNING: Read the warning to clean it. Do not park the product near the edge instructions that follow before you do of a ditch or slope to get access to the cutting maintenance on the product.
  • Page 11 2. Loosen the seat adjustment knob (B). 3. Remove the 2 terminal caps (A) and discard them. 4. Connect the red battery cable to the positive (+) terminal and tighten the bolt and nut as shown. Move the terminal cover on the terminal. 3.
  • Page 12: Operation

    • For best cutting results, make sure that the • Make sure that the tank is filled with the correct cutting deck is balanced side to side and front type of fuel. to rear. Make sure that the tires are correctly •...
  • Page 13 To set the cutting deck in transport Note: If the engine does not accept the load, position or mow position restart the engine and let it warm up for one minute. Follow the instructions above. The cutting deck must be in transport position during transportation.
  • Page 14 1. Push down on the brake pedal (A) fully until the Note: The forward and reverse drive pedals product stops fully. go back to neutral position when they are not pushed down. 4. Push down more on the forward drive pedal or the reverse drive pedal to increase the speed.
  • Page 15 1. Push the forward drive pedal (A) down. Keep the 2. Move the attachment clutch control. forward drive pedal in a position that gives the correct speed for the terrain. a) Pull the attachment clutch control upwards to engage the cutting deck. 2.
  • Page 16: Maintenance

    To put the product in freewheel • Make sure that the cutting deck is level. Refer to To adjust the parallelism of the cutting deck on mode page 25 . • If the grass is high, start with a high cutting If it is necessary to move or tow the product without height and decrease it gradually.
  • Page 17 Maintenance schedule Maintenance schedule Before At inter- At inter- At inter- At inter- Each Before each vals of 8 vals of vals of vals of season storage hours hours hours hours Product Do a check of the brake function. Do a check of tire pres- sure.
  • Page 18 Maintenance schedule Before At inter- At inter- At inter- At inter- Each Before each vals of 8 vals of vals of vals of season storage hours hours hours hours Engine Do a check of the en- gine oil level. Change the engine oil (models with oil filter).
  • Page 19 WARNING: A broken or missing washout port causes injury to you or others by thrown objects if they touch the blade. The product has a washout port as a part of the deck washout system. Use it after each operation. A.
  • Page 20 10. Move the product to a dry area. Put the 2. Remove the dust cover (A), the E-clip (B), the attachment clutch control in the “ENGAGED” washer (C) and the square key (D). position to remove unwanted water and dry the product dry before you move it.
  • Page 21 To replace the motion drive belt • Before you clean with water, clean with a brush. Remove grass cuttings and dirt on and around the transaxle fan and cooling fins. • Examine the cooling fan to make sure the fan blades are clean and not damaged.
  • Page 22 c) Carefully install the belt below around the 3. Remove the terminal covers (A). transmission cooling fan and onto the input pulley (F). Make sure the belt is in the belt keeper. d) Install the belt on the centerspan idler (E). e) Install the belt through the stationary idler (C) and clutching idler (D).
  • Page 23 1. Connect one end of the red battery cable to the 1. Set the attachment clutch switch to the POSITIVE (+) battery terminal (A) on the weak disengaged position. battery. 2. Lower the attachment lift lever to its lowest position. 3.
  • Page 24 4. Install the anti-sway bar (B), if applicable. 6. Attach the rear lift links (G). a) Lift the rear corner of the mower deck. b) Put the slot in the link assembly above the pin on the rear mower deck bracket (H). c) Install the washer and the retainer spring.
  • Page 25 11. If it is necessary, adjust the gauge wheels before 5. Measure the distance (B) from the bottom edge To adjust you operate the mower deck. Refer to of the blade to the ground on the left and right the anti-scalp rollers on page 27 . side.
  • Page 26 5. Measure the distance to the ground at the rear 1. Put the cutting deck in transport position. Refer To set the cutting deck in transport position or (A) and front (B) end of the blade. mow position on page 13 . 2.
  • Page 27 3. Remove the nut, the bolt, the washer, and the anti-scalp roller. 9/16” 3/4” 4. Install the anti-scalp roller, the bolt, the washer, and the nut in the correct position. 1. Install the belt around all pulleys (A). Make sure 5.
  • Page 28 3. Put the dipstick into the oil fill tube. Do not turn 5. Install the drain tube (E) onto the oil drain valve. the oil fill cap onto the oil fill tube. 4. Remove the dipstick. Use the gauge on the dipstick to examine the engine oil level.
  • Page 29 To replace the in-line fuel filter 5. Fill the oil tank with new engine oil. Refer to change the engine oil on page 28 . Note: 6. Start the engine and let it operate at idle speed Replace the in-line fuel filter every year at for 3 minutes.
  • Page 30: Troubleshooting

    b) Push the reverse drive pedal to the full 8. Sit in the seat and start the engine. When the reverse position and keep it pushed down for engine has started, move the throttle control to 5 seconds before you release it. the half speed position.
  • Page 31 Problem Cause Action The starter motor does not turn the The battery is too weak. Charge the battery. engine over. The attachment clutch control is Disengage the attachment clutch engaged. control. The clutch/brake pedal is not Push down the clutch/brake pedal pushed down fully.
  • Page 32 Problem Cause Action The engine becomes too hot. There is overload in the engine. Decrease the workload. The air intake or the cooling fins Clean the air intake and the cool- on the engine are blocked. ing fins on the engine. The cooling fan is defective.
  • Page 33 Problem Cause Action The battery does not charge. The main fuse is defective. Replace the main fuse. The battery is defective. Replace the battery. The charging cable is disconnec- Connect the charging cable. ted. The connection at the cable con- Do a check of the battery connec- nectors on the battery terminals is tions.
  • Page 34 Problem Cause Action The headlight does not function. The headlight switch is in the off Turn the headlight switch to the on position. position. The light bulb is defective. Replace the light bulb. The power switch for the headlight Replace power switch for the is defective.
  • Page 35: Transportation, Storage And Disposal

    Freewheel control is at the rear Tow safety drawbar of the product. • Only use tow equipment approved by Husqvarna. • Use the tow bar to attach the equipment. • Do not tow equipment that is heavier than the maximum permitted weight.
  • Page 36: Disposal

    • Do not discard the battery as domestic waste. disposal location. • Send the battery to a Husqvarna service agent • When the product is worn out, send it to the or discard it at a disposal location for used dealer or to an applicable recycling location.
  • Page 37: Service

    TS 248TXD Blade length, in. / cm 16.5 / 41.81 Cutting Width, in. / cm 48 / 122 Cutting Height, in. / cm 1.5–3.8 / 3.8–10.2 Tires Tire pressure, rear – front, PSI / kPa / bar 15 / 103 / 1 Front tires, in.
  • Page 38: Appendix

    1968 - 001 - 19.10.2022...
  • Page 39 1968 - 001 - 19.10.2022...
  • Page 40 Original instructions 1142290-28 2022-11-09...
